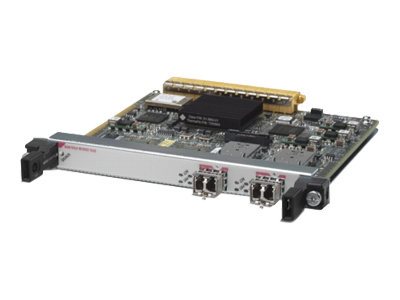

Cisco 2-Port OC-48c/STM-16c POS/RPR Shared Port Adapter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Cisco 2-Port OC-48c/STM-16c POS/RPR Shared Port Adapter
- Expansion module
- HDLC, Frame Relay, SONET/SDH, PPP, SRP, RPR
- 2 ports
- OC-48c/STM-16c
- for SPA Interface Processor 800
| Additional Details | |
|---|---|
| Mfr Part #: | SPA-2XOC48POS/RPR= |
| SHI Part #: | 17073676 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Cisco 2-Port OC-48c/STM-16c POS/RPR Shared Port Adapter - Expansion module - HDLC, Frame Relay, SONET/SDH, PPP, SRP, RPR - 2 ports - OC-48c/STM-16c - for SPA Interface Processor 800 |
| Manufacturer | Cisco Systems |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.5 cm |
| Dimensions & Weight / Height | 2 cm |
| Dimensions & Weight / Weight | 340 g |
| Dimensions & Weight / Width | 17.2 cm |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | Cisco SPA Interface Processor 800 |
| Dimensions & Weight | |
| Depth | 18.5 cm |
| Height | 2 cm |
| Weight | 340 g |
| Width | 17.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x expansion slot |
| Expansion Slots | 2 (total) / 2 (free) x SFP |
| General | |
| Device Type | Expansion module - 2 ports |
| Form Factor | Plug-in module |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, VCCI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 3548, FCC CFR47 Part 15 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, SONET/SDH, PPP, Spatial Reuse Protocol (SRP), RPR |
| Line Rate | OC-48c/STM-16c |
| Remote Management Protocol | SNMP |
| Status Indicators | Active, carrier detect, status, alarm |
