StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5 Gigabit Ethernet, 98W Power Delivery, for Windows/MacBook

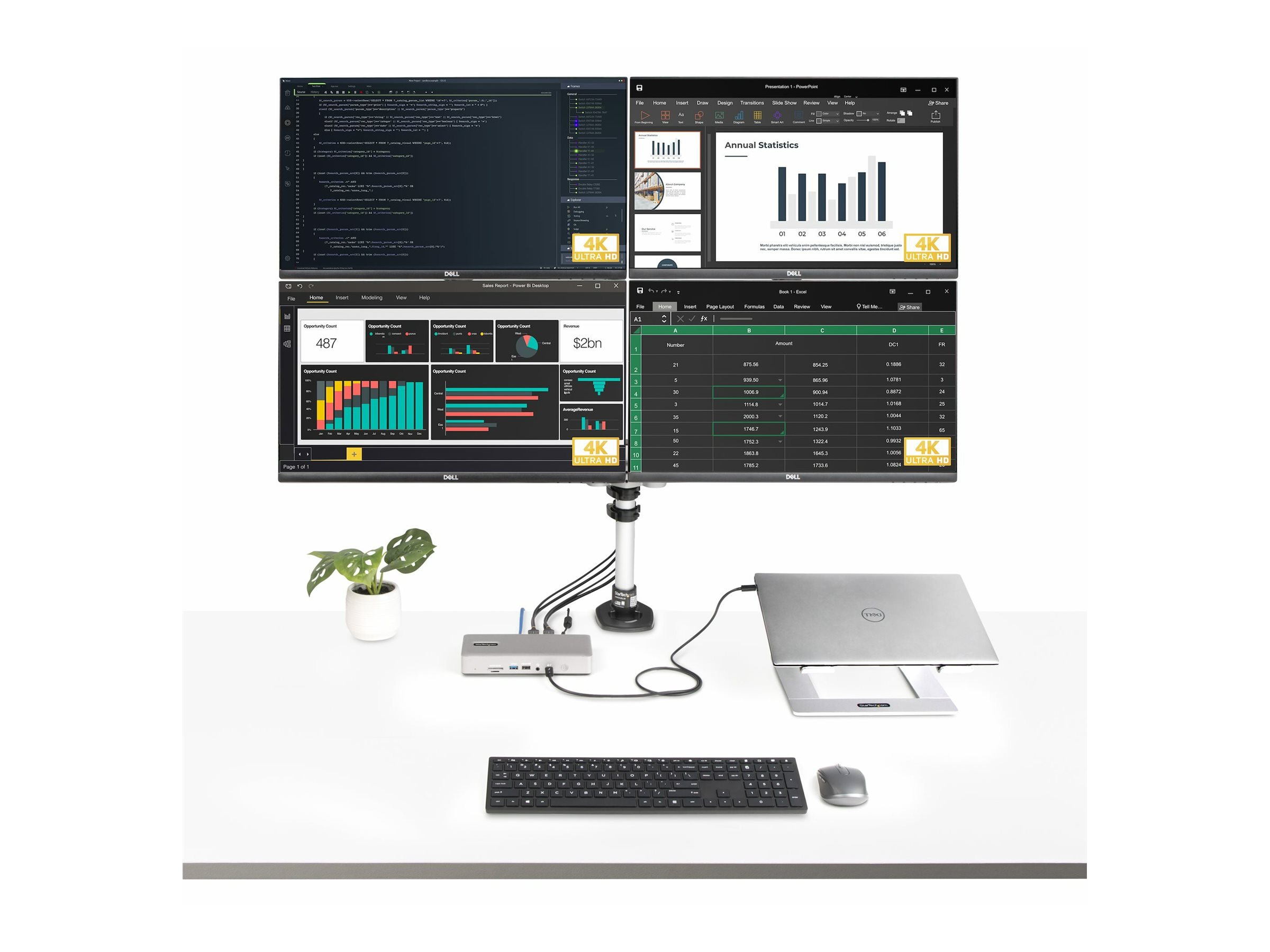

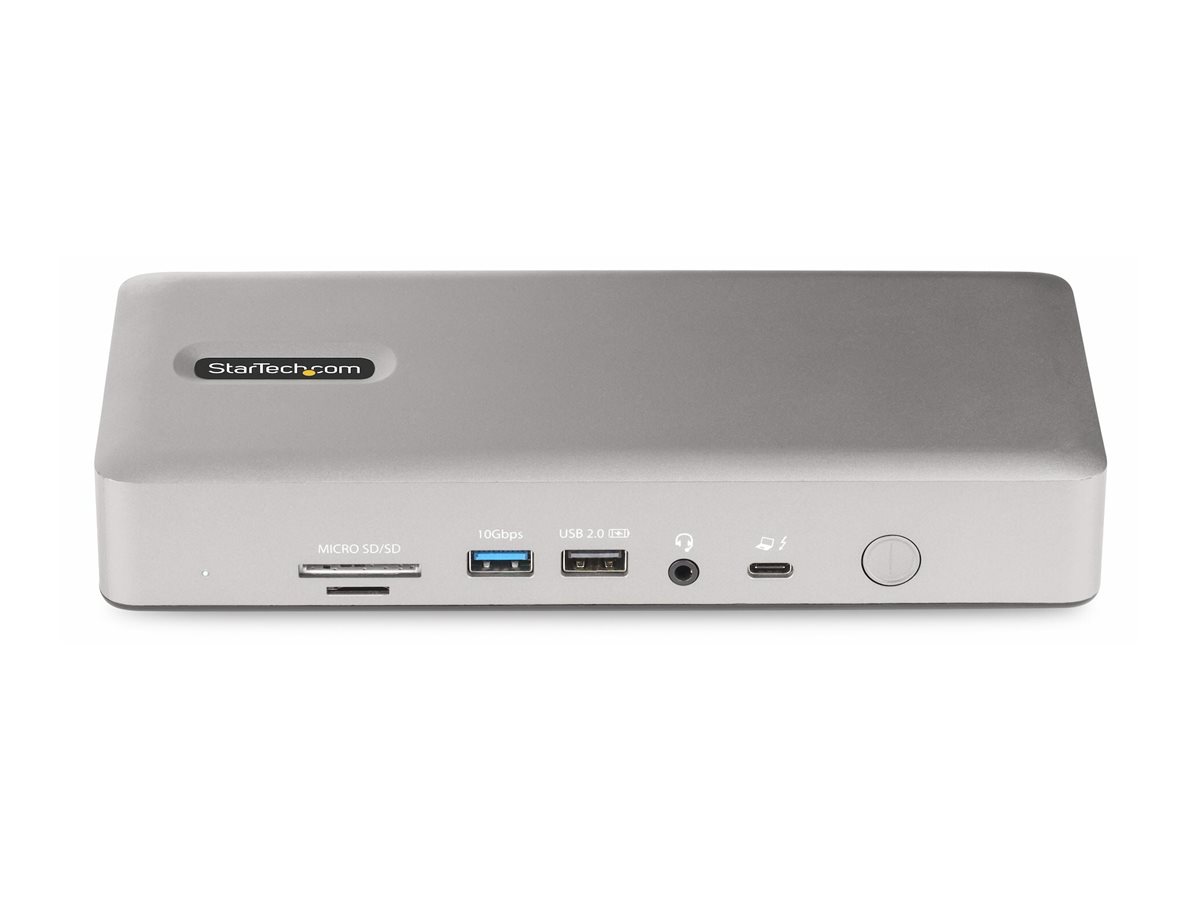

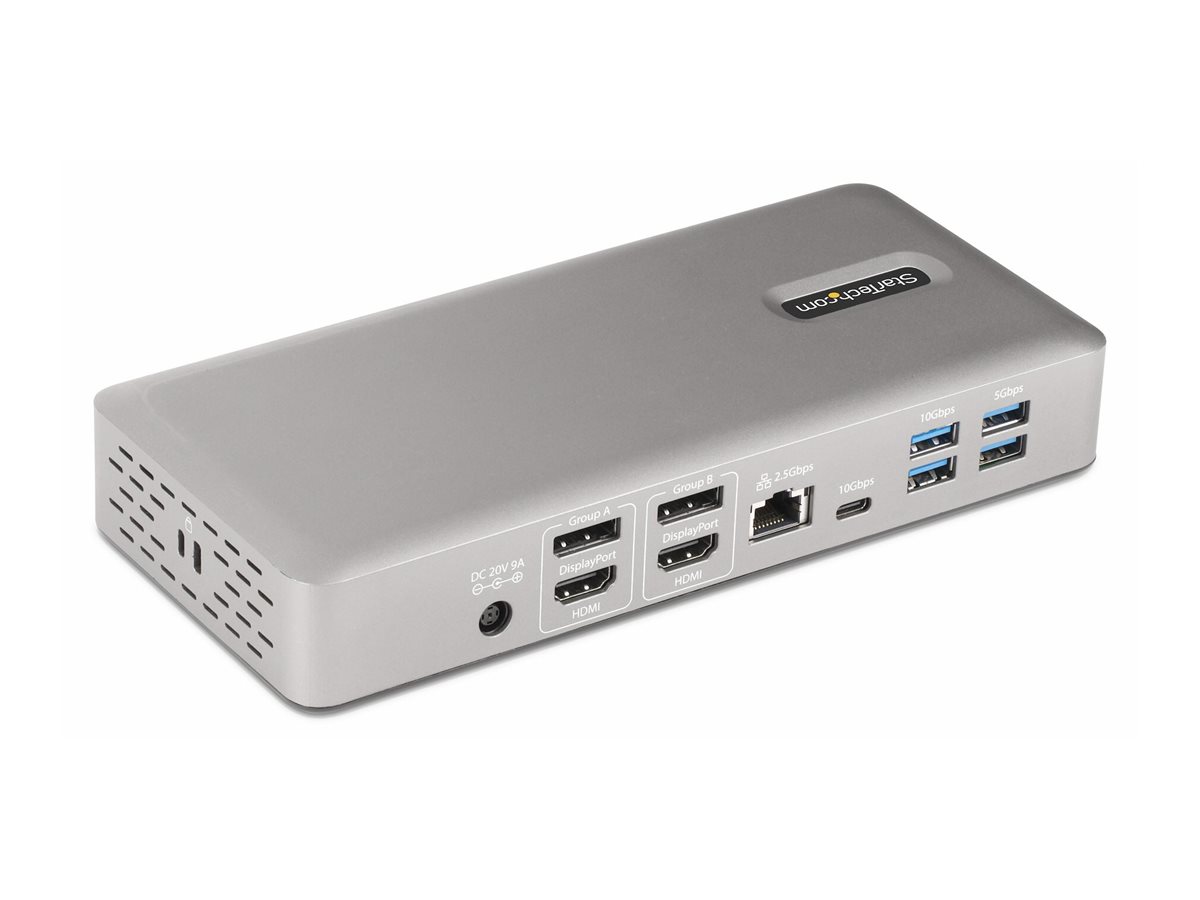

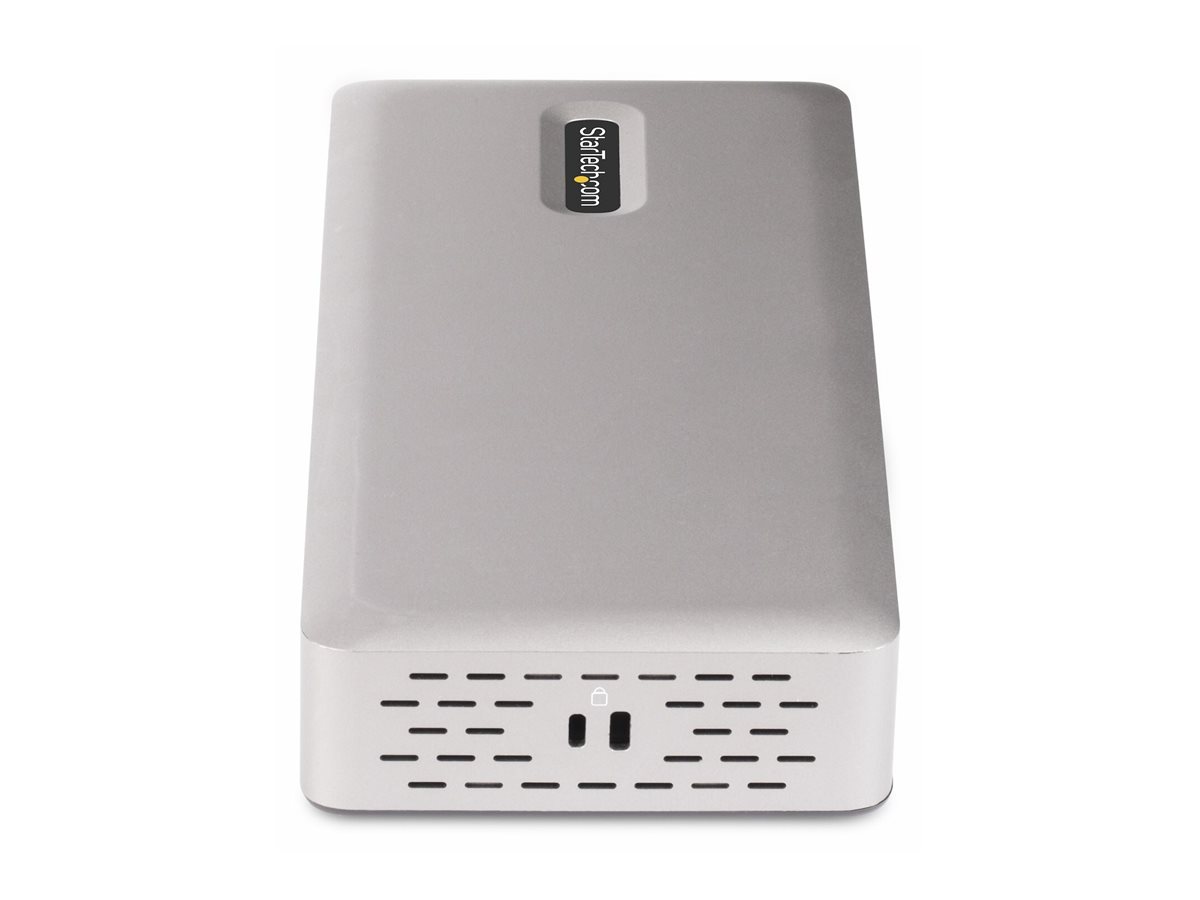

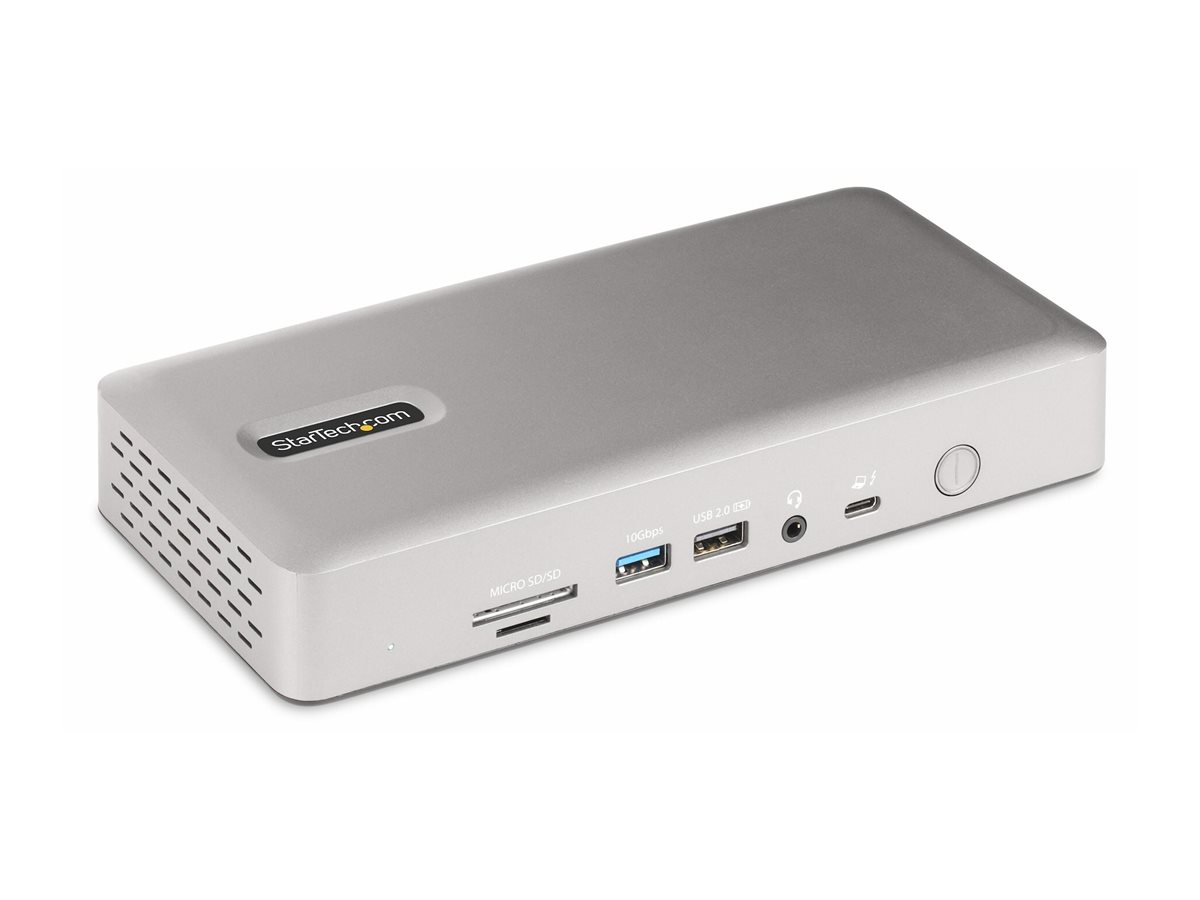

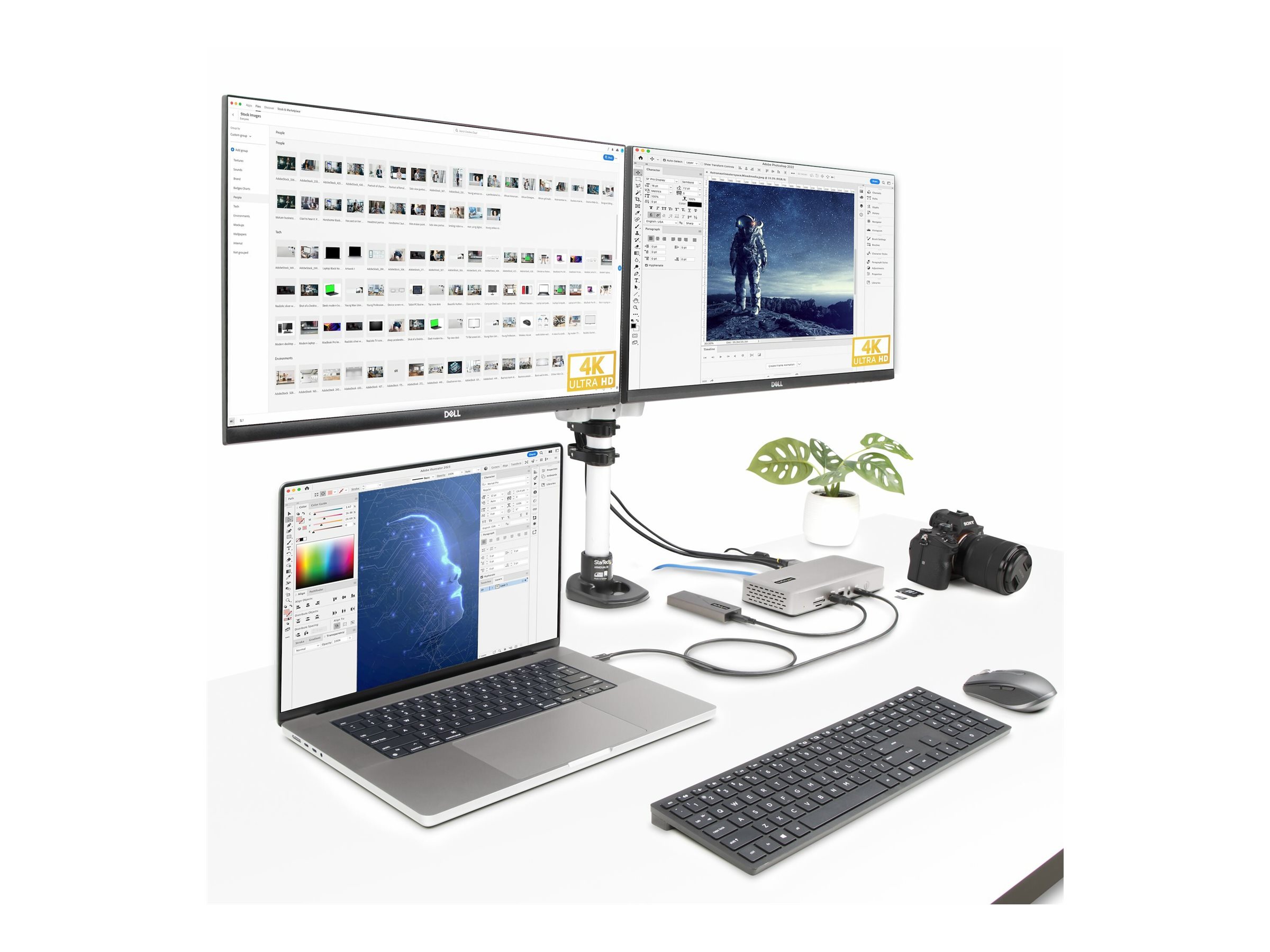

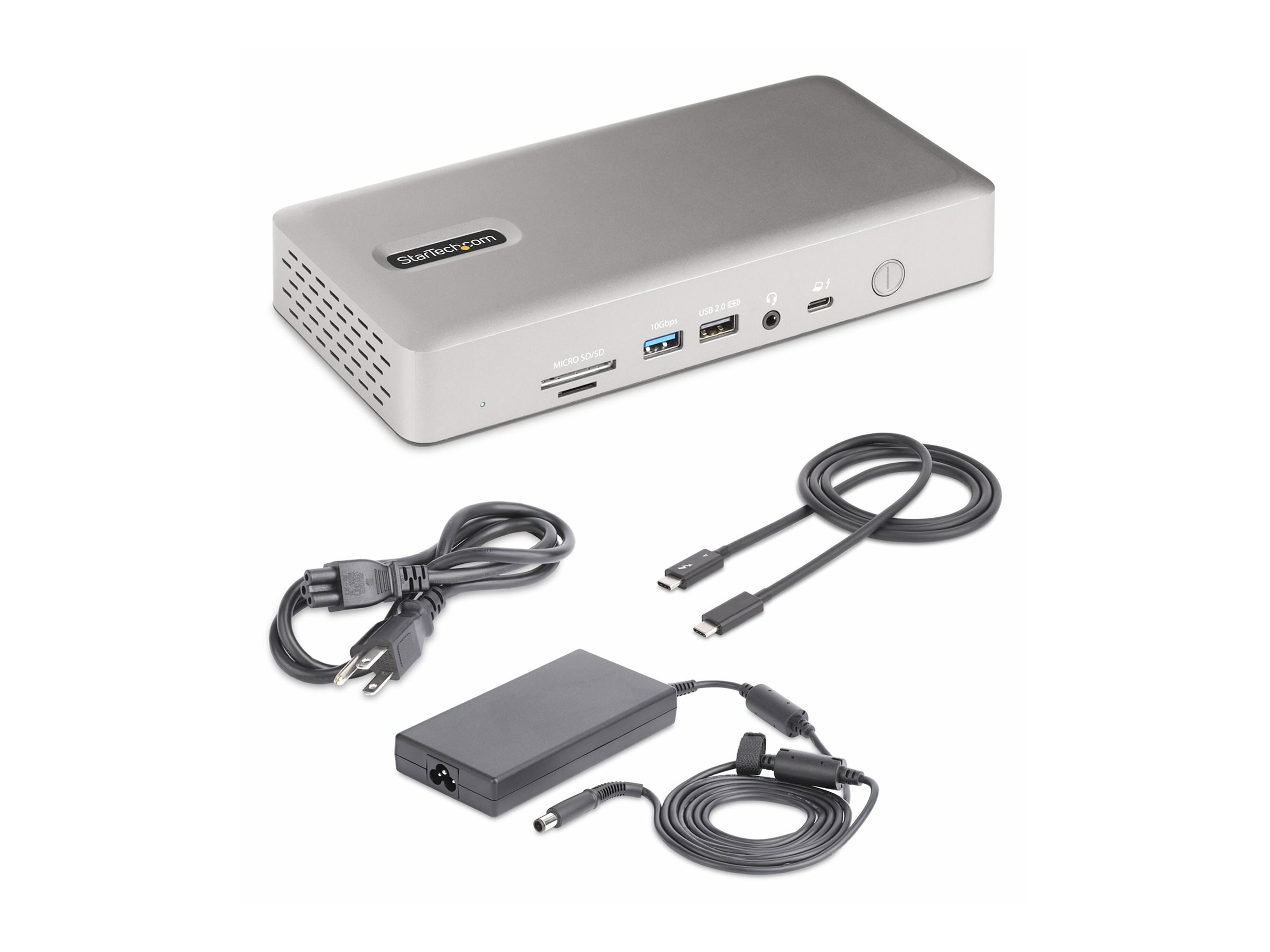

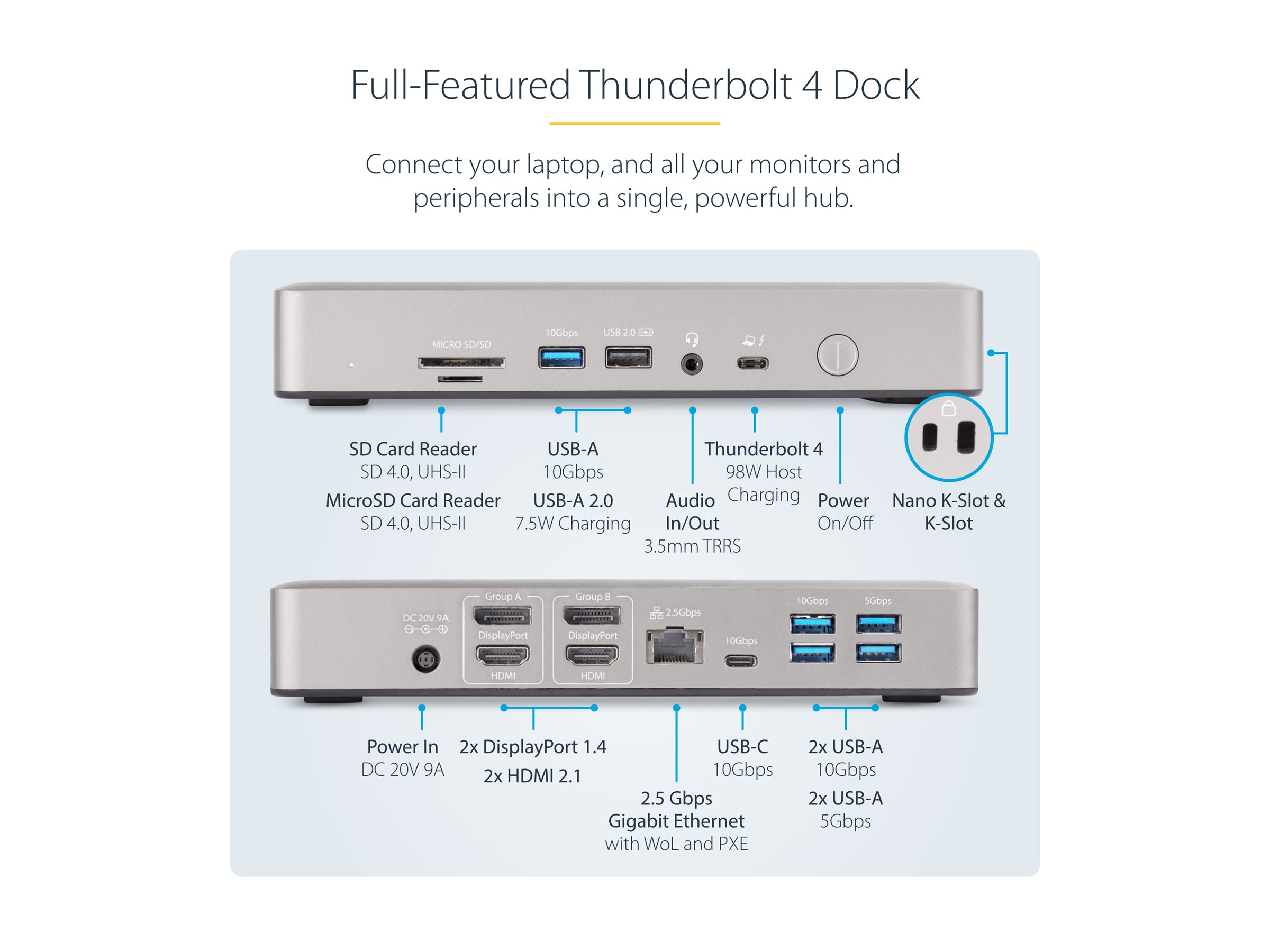

This Thunderbolt 4 Certified docking station uses a single Thunderbolt 3, Thunderbolt 4, USB4, or USB Type-C port on a host computer to add high-performance connectivity while charging the laptop. For rapid deployment, the dock includes a 3.3ft. (1m) Thunderbolt 4 cable that connects to the front-facing USB-C host port, and features two sizes of Kensington-style security slots. Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60Hz The dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports. Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor, as well as iPad Pros with M1 or later processors, a single display is supported. Port Connectivity The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports. The dock features: 2x HDMI ports to connect displays 2x DisplayPort ports to connect displays 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices 1x USB 3.2 Gen 2 (10Gbps) Type-C ports to connect USB peripheral devices 2x USB 3.2 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN) 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset 98W USB Power Delivery Certified The Thunderbolt 4 docking station includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices. Thunderbolt Certified This certification ensures the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1/M2/M3 Pro/Max MacBooks. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility : To setup and save custom windows layouts. Mac Address Pass-Through Utility : To improve network security. USB Event Monitoring Utility : To track and log connected USB devices Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
