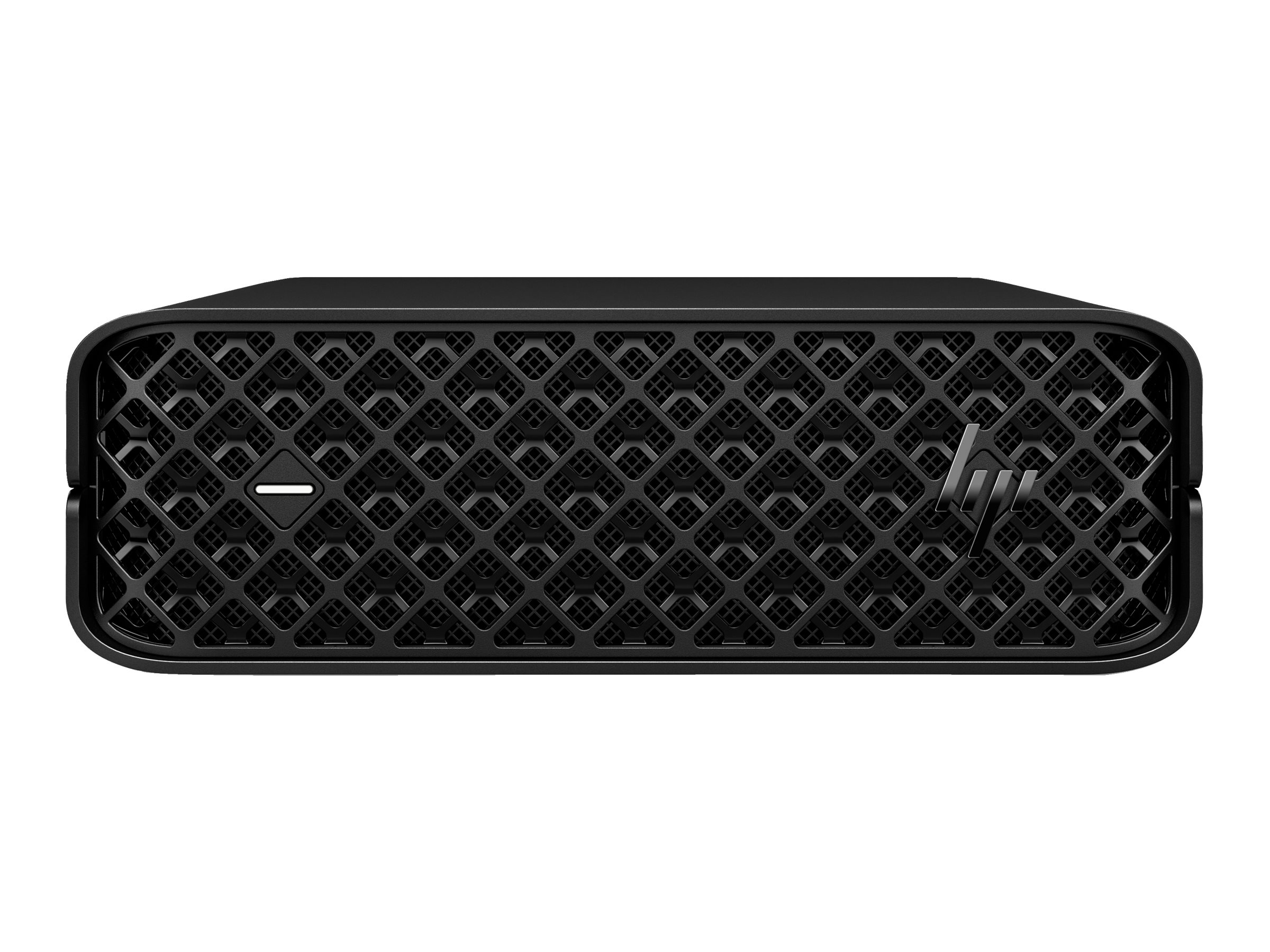

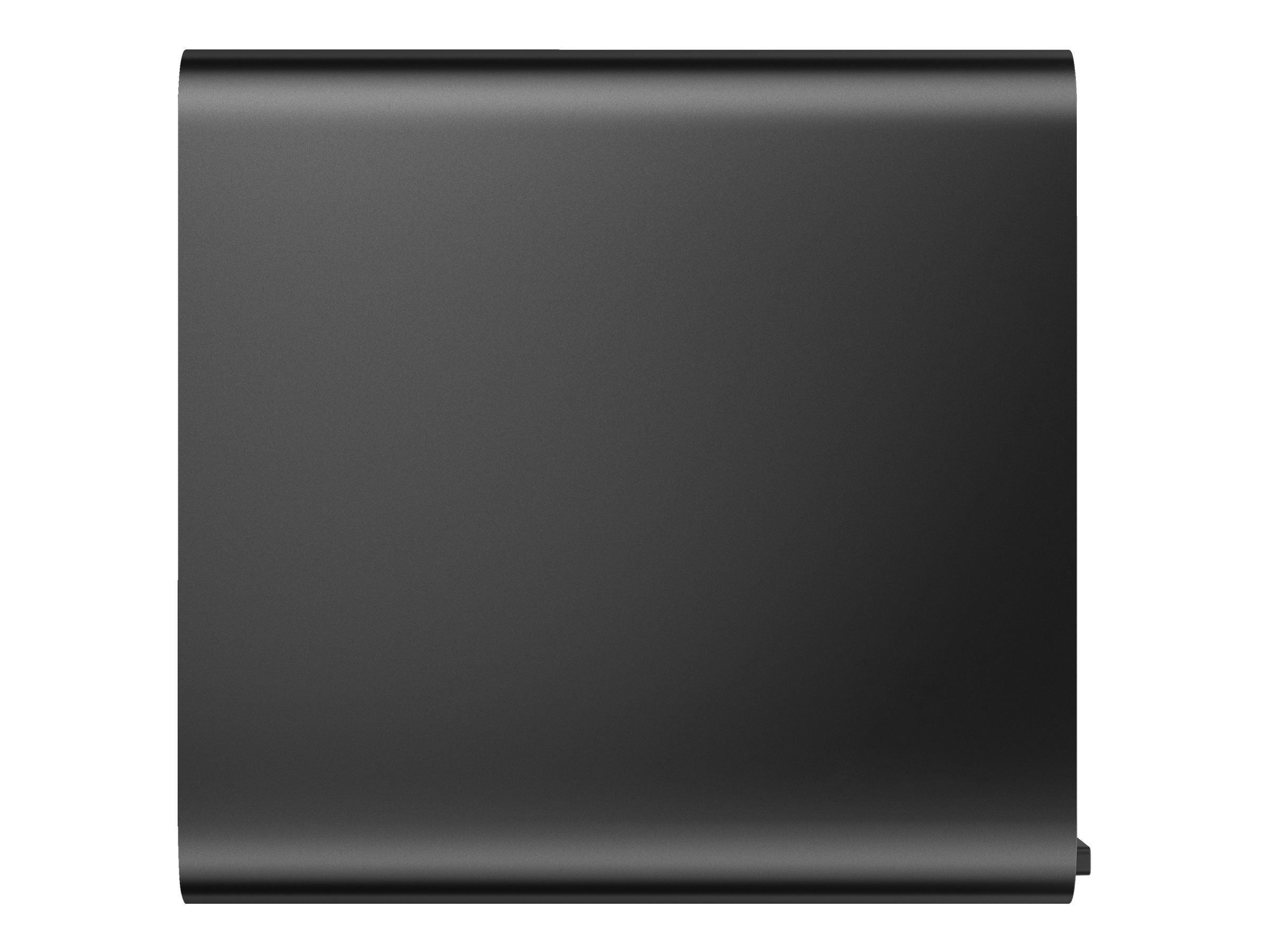

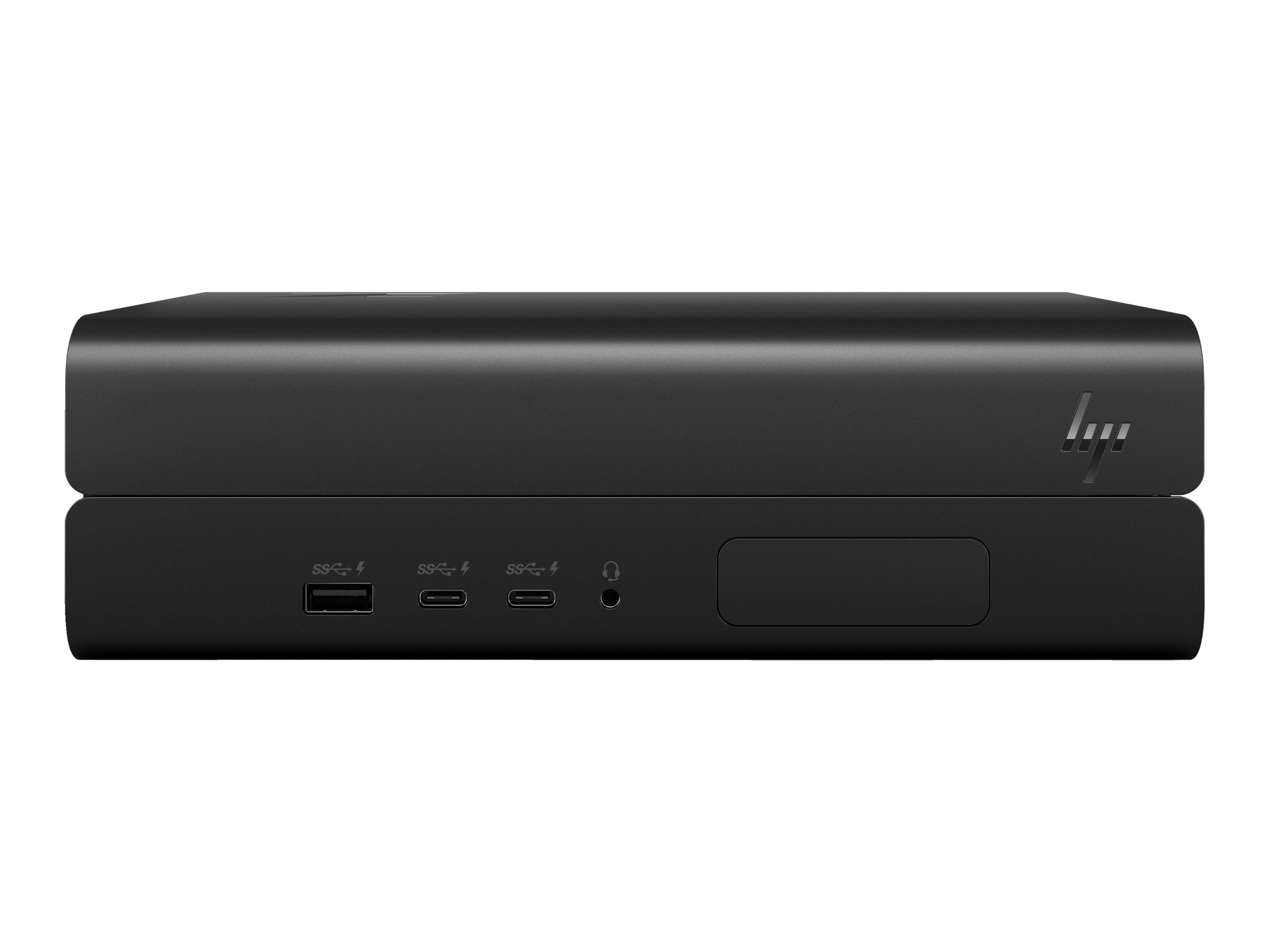

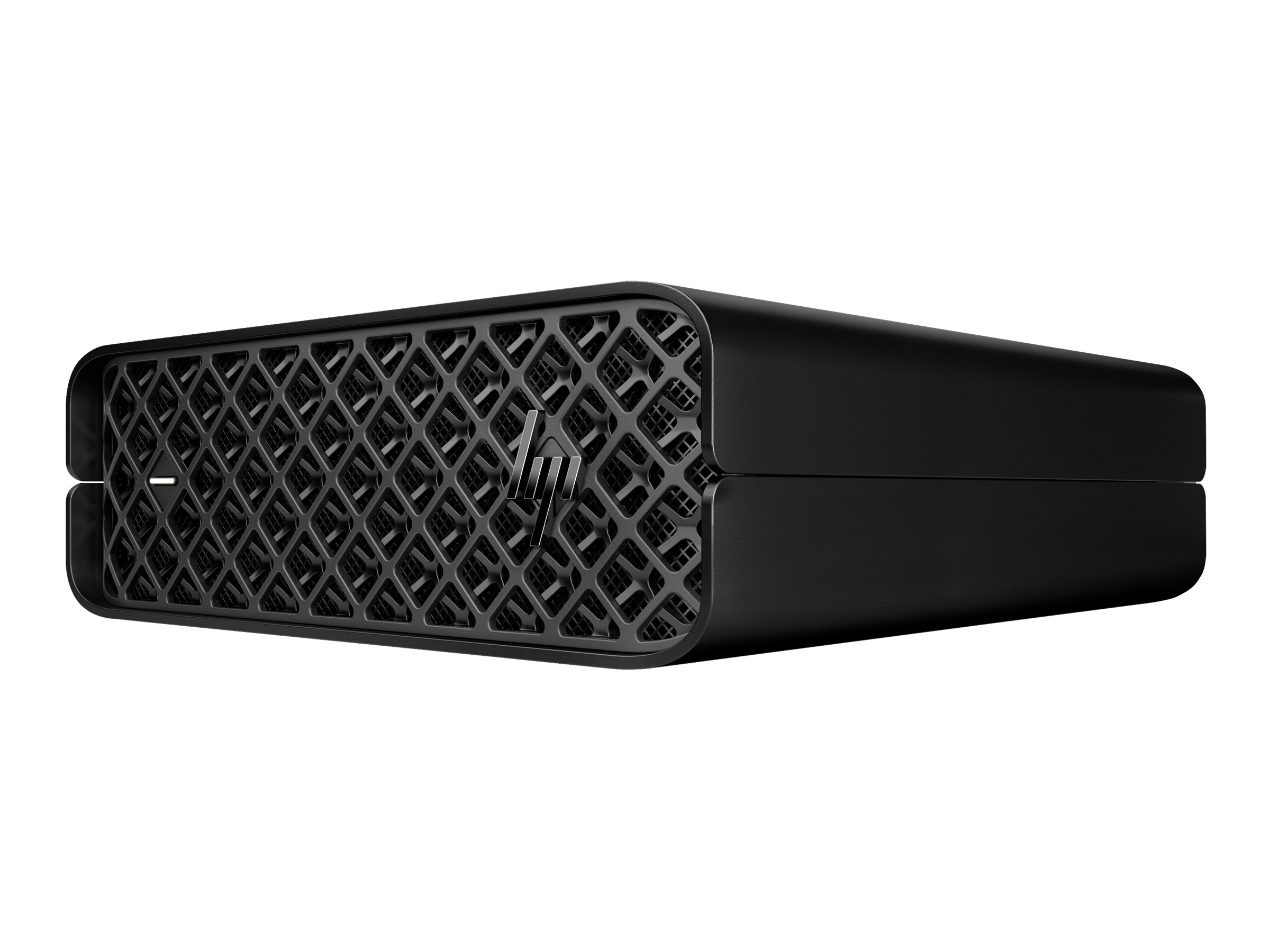

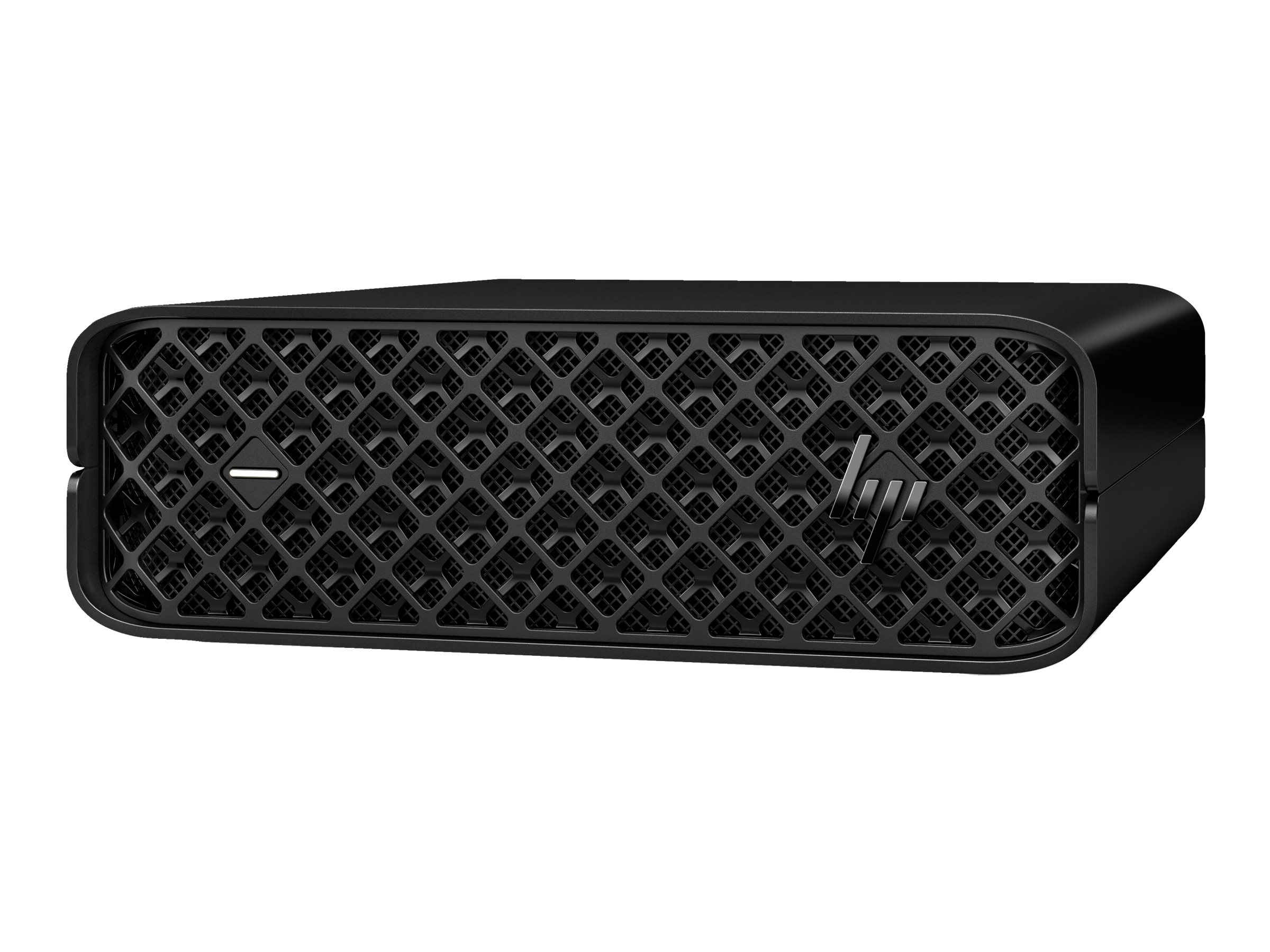

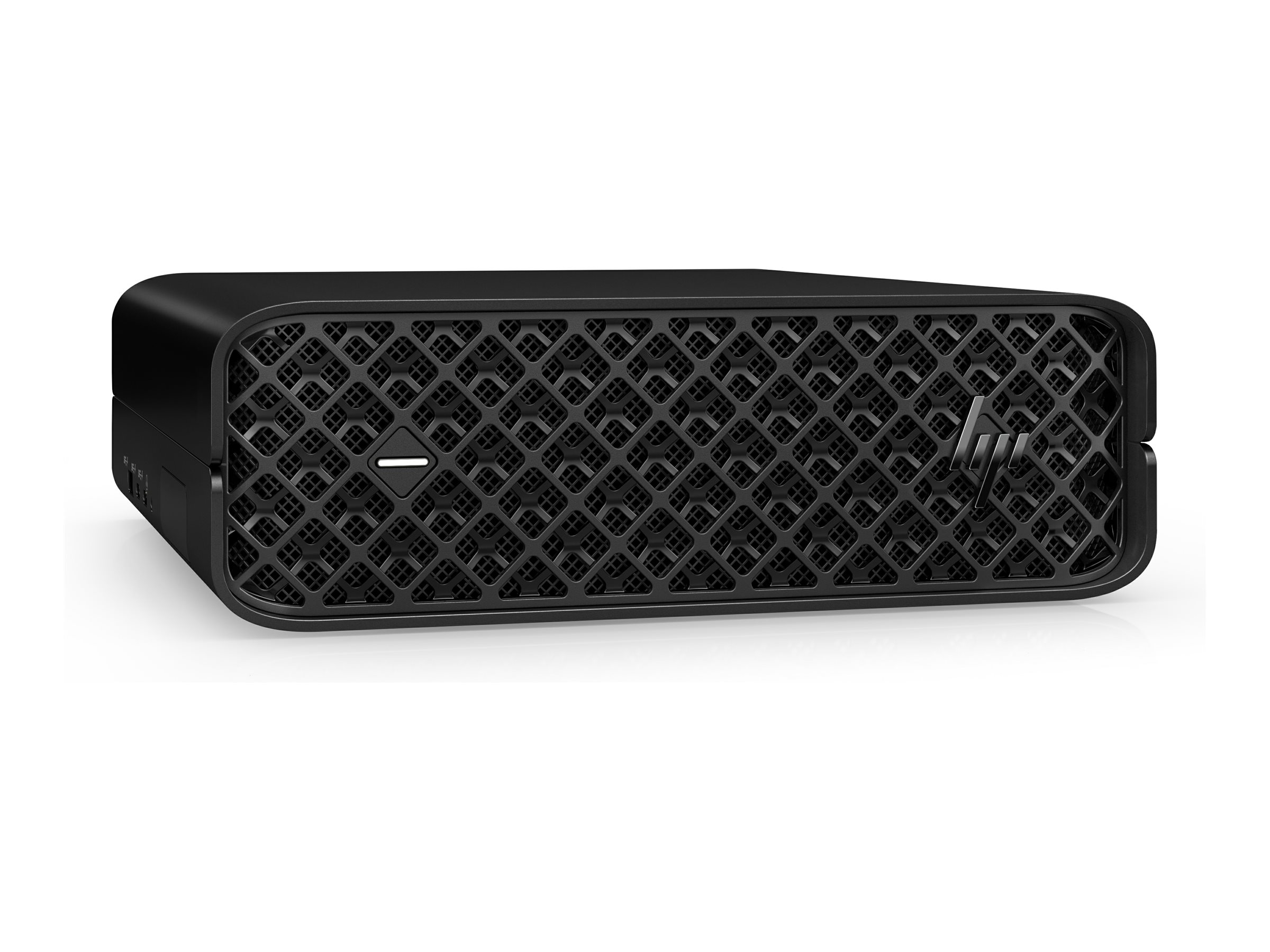

HP Workstation Z2 G9


Login for Price
HP Workstation Z2 G9

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Wolf Pro Security
  • mini 5U
  • 1 x Core i7 i7-14700 / up to 5.4 GHz
  • RAM 32 GB
  • SSD 1 TB
HP Workstation Z2 G9
  • Wolf Pro Security
  • mini 5U
  • 1 x Core i7 i7-14700 / up to 5.4 GHz
  • RAM 32 GB
  • SSD 1 TB
  • HP Z Turbo Drive, NVMe, TLC
  • T1000
  • Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • Smart Buy
  • with HP 1 year Wolf Pro Security Edition Service
  • with HP Wolf Pro Security Edition (1 year)
  Additional Details
Mfr Part #: A12M5UT#ABA
SHI Part #: 47947308
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware

Keyboards and Keypads

HP Desktop 320K - Keyboard
  • US
  • for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; EliteBook 840; ProBook x360
Login for Price
HP Desktop 320MK - Keyboard and mouse set
  • USB
  • US
  • Smart Buy
  • for Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 83X G8, 840, 84X G8, 85X G8
Login for Price
HP 125 - Keyboard - USB
  • US
  • Smart Buy
  • for HP 34; Elite Mobile Thin Client mt645 G7; Laptop 15; Pro Mobile Thin Client mt440 G3
Login for Price

Mice and Trackballs

HP 125 - Mouse - wired
  • USB
  • black
  • promo
  • for HP 34; Elite Mobile Thin Client mt645 G7; Pro 290 G9; Pro Mobile Thin Client mt440 G3
Login for Price
HP 128 - Mouse - laser
  • wired
  • black
  • for HP 34; Elite Mobile Thin Client mt645 G7; Laptop 15; Pro Mobile Thin Client mt440 G3
Login for Price
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 G9 - Wolf Pro Security - mini 5U - 1 x Core i7 i7-14700 / up to 5.4 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - T1000 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year)
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
A/V Interface TypePCI Express 3.0 x16
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth21.8 cm
Dimensions & Weight / Height6.9 cm
Dimensions & Weight / Weight2.4 kg
Dimensions & Weight / Width21.1 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0
Hard Drive / Interface TypePCI Express 4.0
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel W680
Mainboard / Processor SocketLGA1700 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 802.11ax
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax/be
  • Bluetooth 5.4
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed
  • 2.1 GHz
  • 3.2 GHz
  • 3.4 GHz
Processor / Generation14
Processor / ManufacturerIntel
Processor / Number of Cores
  • 20-core
  • 24-core
Processor / Processor Number
  • I7-14700
  • I7-14700K
  • I9-14900K
Processor / Type
  • Core i7
  • Core i9
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorSO-DIMM 262-pin
RAM / Memory Speed5600 MHz
RAM / TechnologyDDR5 SDRAM
Service & Support / Type1-year warranty
System / Hard Drive Capacity1 TB
System / TypeWorkstation
Video Memory / TechnologyGDDR6 SDRAM
Video Output / Graphics ProcessorNVIDIA T1000 / Intel UHD Graphics 770
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor33 MB
Installed SizeL3 cache - 33 MB
Dimensions & Weight
Depth21.8 cm
Height6.9 cm
Weight2.4 kg
Width21.1 cm
Dimensions & Weight (Shipping)
Shipping Depth49.9 cm
Shipping Height29.8 cm
Shipping Weight4.8 kg
Shipping Width17 cm
Environmental Parameters
Humidity Range Operating10 - 85% RH (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 1 x headphones/microphone (CTIA and OMTP headset support)
  • 4 x USB 3.2 Gen 2 (one of them is charging)
  • 2 x USB-C 3.2 Gen 2x2 (charging)
  • 2 x DisplayPort 1.4
  • 1 x LAN (Gigabit Ethernet) - RJ-45
  • 4 x Mini DisplayPort 1.4
Slots
  • 1 (total) / 0 (free) x PCIe 4.0 x16
  • 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode)
  • 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)
  • 1 (total) / 1 (free) x PCIe 4.0 x8 (low-profile)
General
Bundled ServicesHP 1 year Wolf Pro Security Edition Service
Bundled withHP Wolf Pro Security Edition (1 year)
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorMini - 5U
SensorsHP Tamper Lock
TypeWorkstation
Graphics Controller
Bandwidth160 GBps
Graphics ProcessorNVIDIA T1000 / Intel UHD Graphics 770
Interface TypePCIe 3.0 x16
Multi-GPU Configuration1 single GPU card / integrated GPU
Video InterfacesDisplayPort
Video Memory8 GB GDDR6 SDRAM
Hard Drive
Capacity1 x 1 TB
FeaturesHP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface TypePCI Express 4.0
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameHP 320K
Localization & LayoutUS
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, WEEE, CECP, low halogen
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor TypeNone.
Mouse
Mouse NameHP 320M
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 16
Interface (Bus) TypeM.2 2230
Wireless LAN SupportedYes
Wireless NICIntel WI-FI 7 BE200
Operating System / Software
OS ProvidedWindows 11 Pro English
SoftwareHP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Sure Start Gen7
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Efficiency90%
Power Factor CorrectionYes
Power Provided280 Watt
Voltage RequiredAC 115/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel W680
Clock Speed2.1 GHz (P-core) / 1.5 GHz (E-core)
CPUIntel Core i7 (14th Gen) i7-14700
CPU Qty1
CPU SocketLGA1700 Socket
CPU UpgradabilityUpgradable
L2 cache28 MB
Max CPU Qty1
Max Turbo Speed5.4 GHz (P-core) / 4.2 GHz (E-core)
Number of Cores20-core
Processor Main FeaturesIntel Turbo Boost Technology, 28 Threads
RAM
Configuration Features1 x 32 GB
Effective Memory Speed5600 MHz
Form FactorSO-DIMM 262-pin
Installed Size32 GB (installed) / 64 GB (max)
Rated Memory Speed5600 MHz
Slots2 (total) / 1 (empty)
TechnologyDDR5 SDRAM - non-ECC
Storage Controller
Controller Interface TypeNVM Express
RAID LevelRAID 0, RAID 1
Type1 x RAID
Sustainability Information
ENERGY STAR CertifiedYes
