Hardware Computers and Tablets Desktops and Workstations

Desktops and Workstations

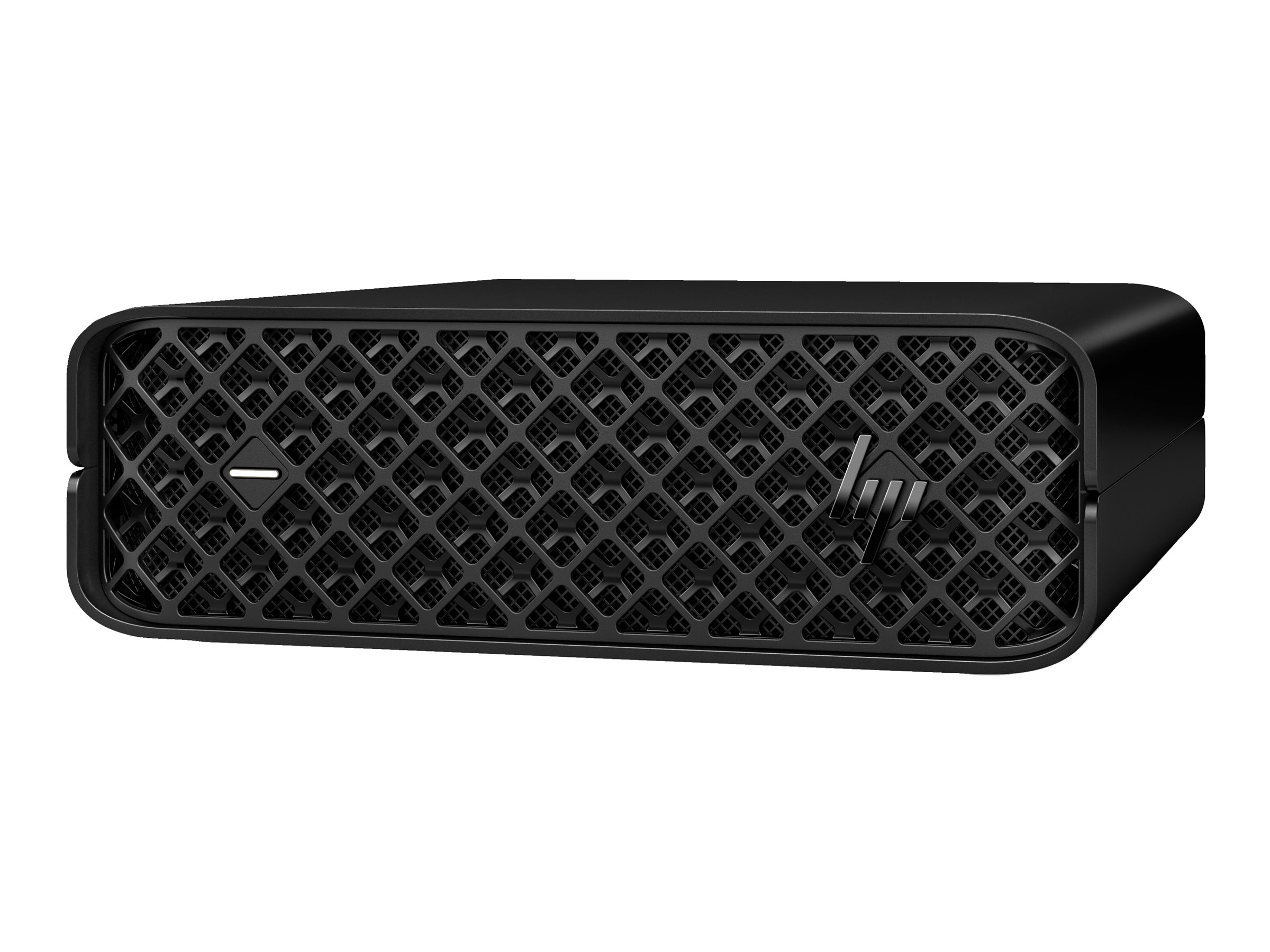

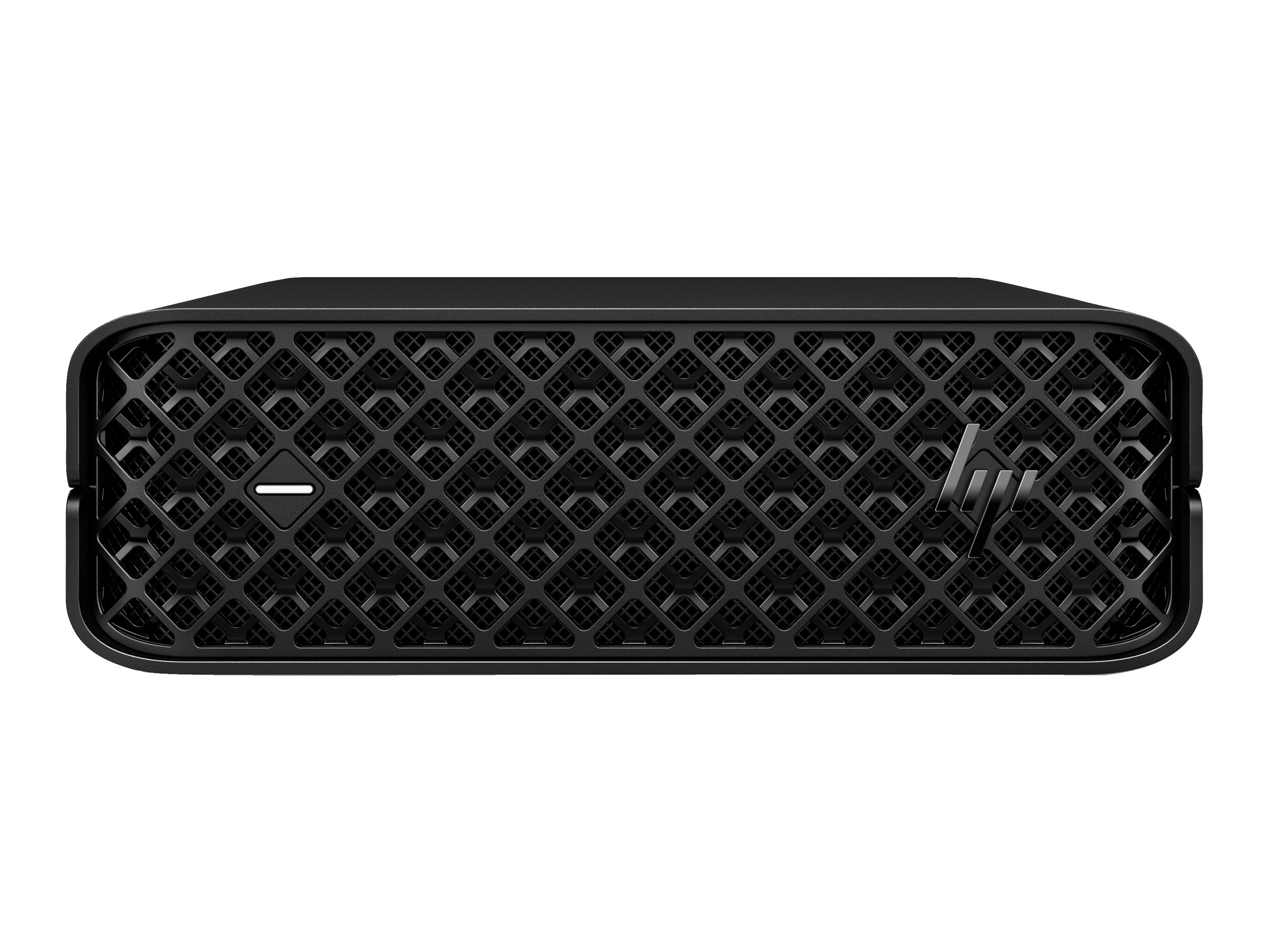

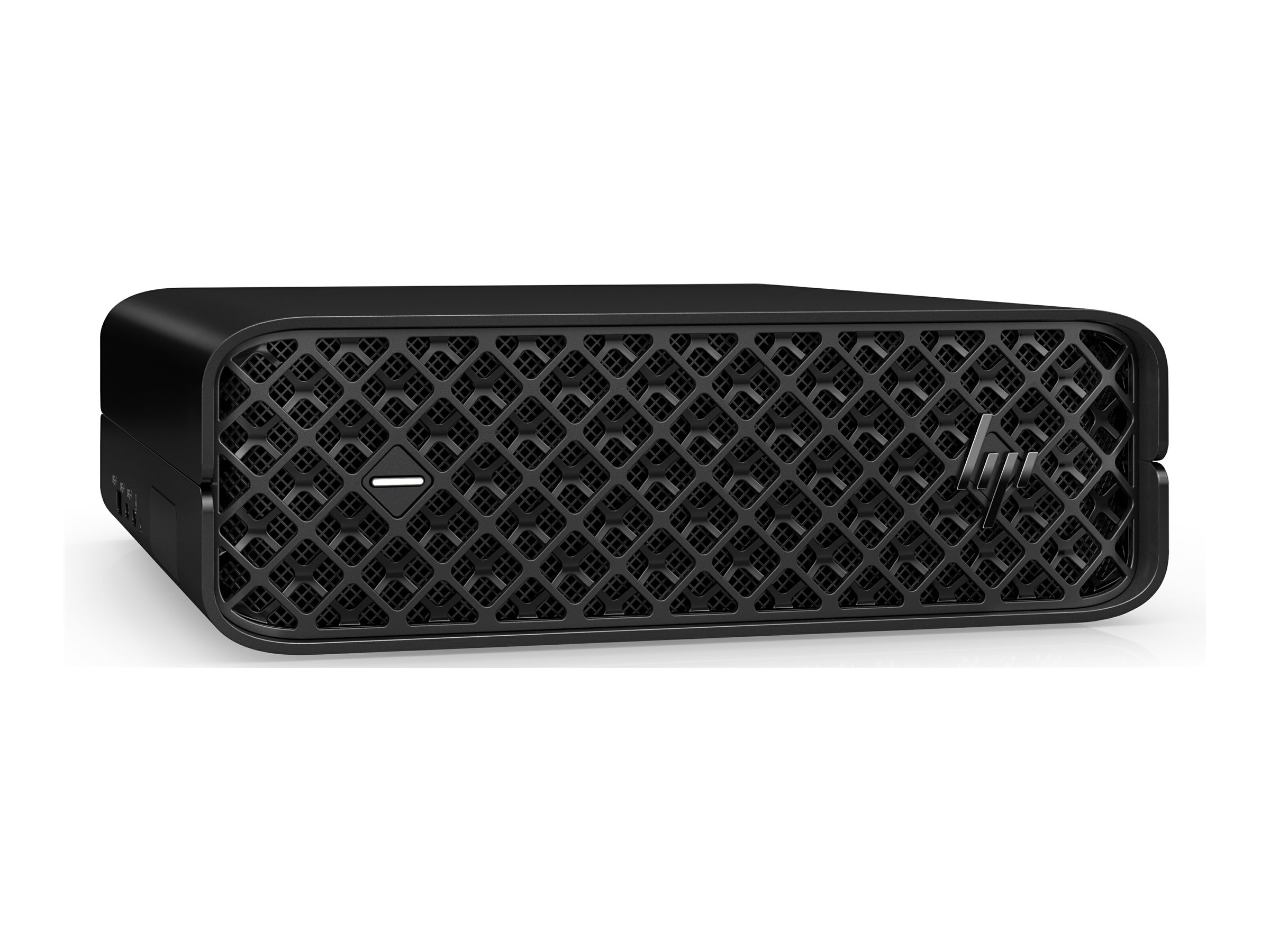

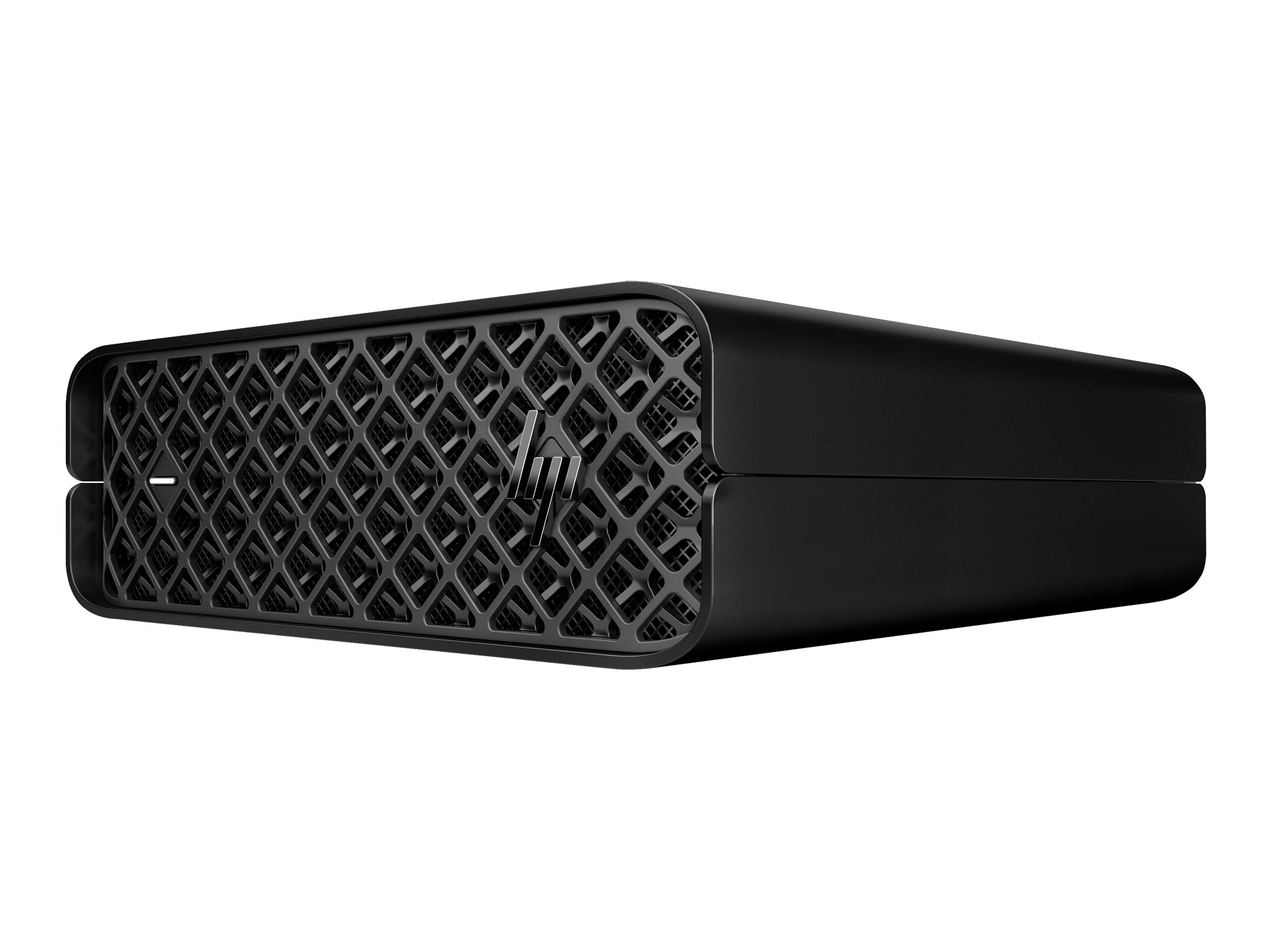

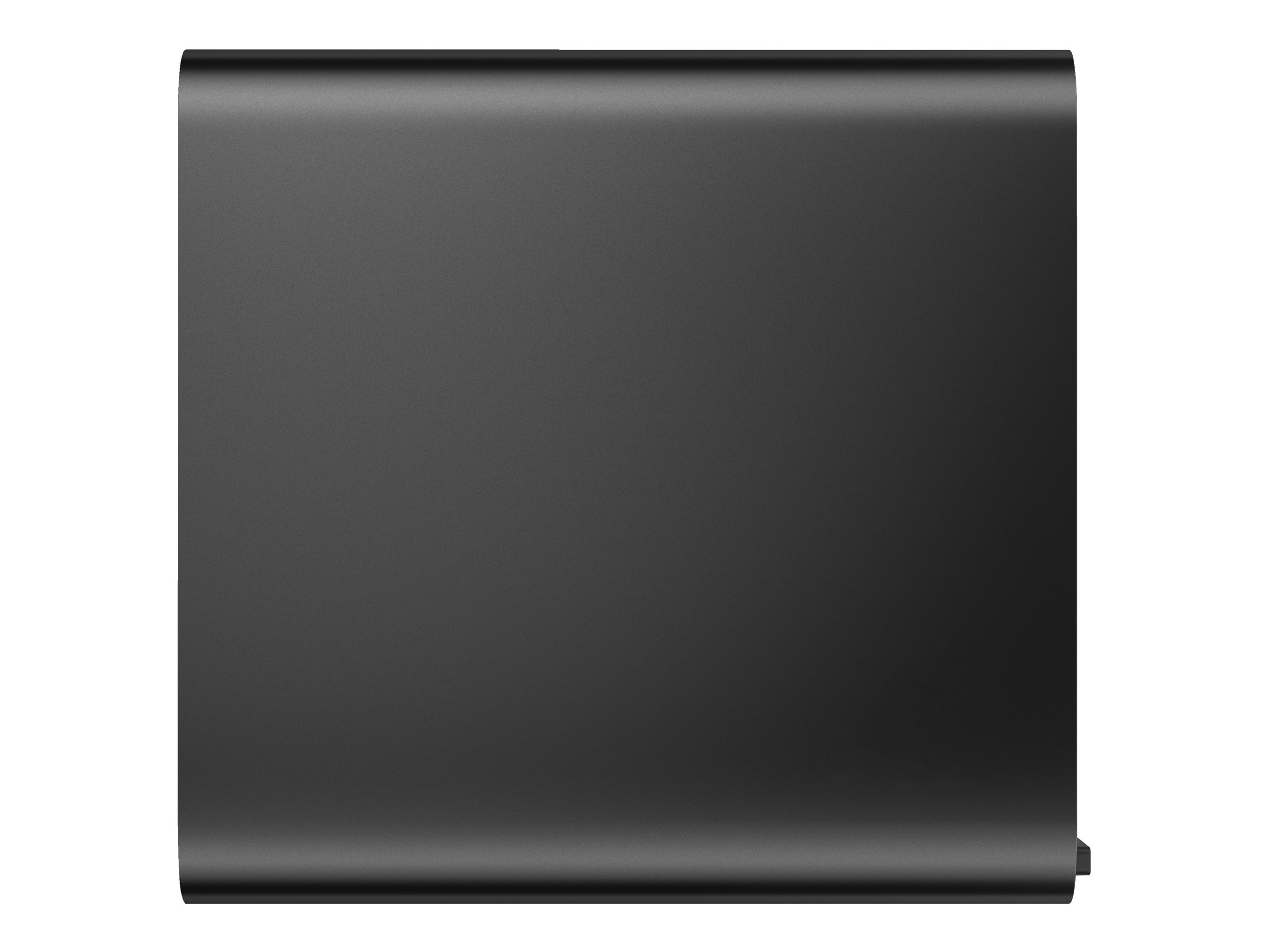

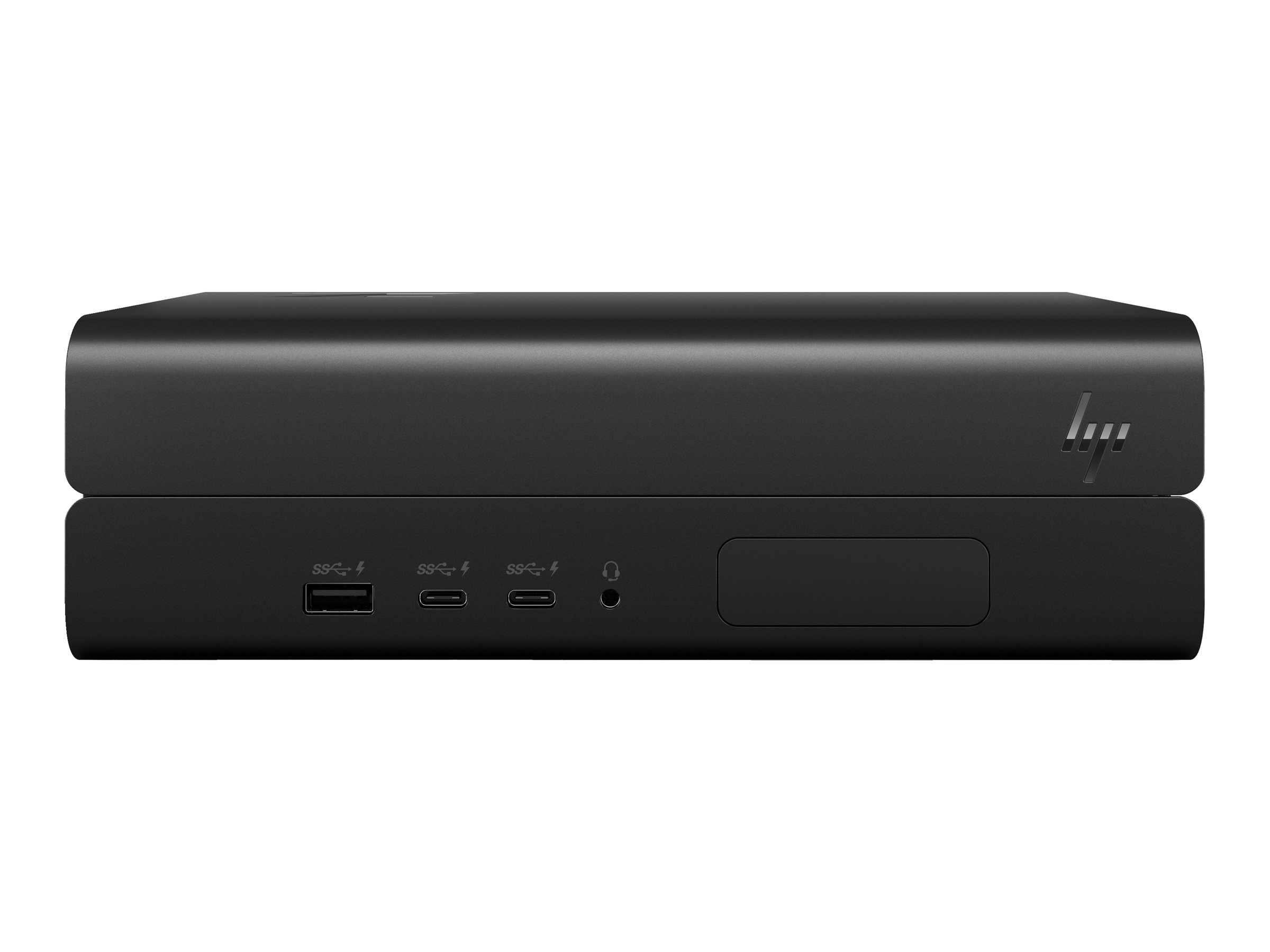

HP Workstation Z2 G9

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Wolf Pro Security mini 5U 1 x Core i7 i7-14700K / up to 5.6 GHz RAM 32 GB SSD 512 GB

HP Workstation Z2 G9

Wolf Pro Security
mini 5U
1 x Core i7 i7-14700K / up to 5.6 GHz
RAM 32 GB
SSD 512 GB
HP Z Turbo Drive, NVMe, TLC
RTX A2000
Gigabit Ethernet, IEEE 802.11be, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6)
Win 11 Pro
monitor: none
keyboard: US
Smart Buy
with HP 1 year Wolf Pro Security Edition Service
with HP Wolf Pro Security Edition (1 year)

Additional Details
Mfr Part #:	A12W1UT#ABA
SHI Part #:	47947315
Category:	Desktop computers
UNSPSC:	43211507
Manufacturer:	HP, Inc.
Product Type:	Hardware

Keyboards and Keypads

HP Desktop 320MK - Keyboard and mouse set

USB
US
Smart Buy
for Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 83X G8, 840, 84X G8, 85X G8

HP Desktop 320K - Keyboard

US
for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; EliteBook 840; ProBook x360

HP 125 - Keyboard - USB

US
Smart Buy
for HP 34; Elite Mobile Thin Client mt645 G7; Laptop 15; Pro Mobile Thin Client mt440 G3

Mice and Trackballs

HP Desktop 320M - Mouse

3 buttons
wired
USB
for HP 246 G7, 256 G8, 340 G7; EliteBook 745 G5, 830 G5, 840 G5; ZBook Studio G4

HP 125 - Mouse - wired

USB
black
promo
for HP 34; Elite Mobile Thin Client mt645 G7; Pro 290 G9; Pro Mobile Thin Client mt440 G3

Monitors and Displays

HP E24 G5 - E-Series

LED monitor
23.8"
1920 x 1080 Full HD (1080p) @ 75 Hz
IPS
250 cd/m²
1000:1

HP E24i G4 - E-Series

LED monitor
24"
1920 x 1200 WUXGA @ 60 Hz
IPS
250 cd/m²
1000:1

HP P27h G5 - P-Series

LED monitor
27"
1920 x 1080 Full HD (1080p) @ 75 Hz
IPS
250 cd/m²
1000:1

Audio/Video Cables

Poly DA85 - Headset cable

USB, 24 pin USB-C male to Quick Disconnect male
1.3 m
for OMEN 40L by HP GT21-1026nd; Poly DA70, DA75, DA80, DA85-M

Z2 Power Cord Kit

HP - DisplayPort adapter

Mini DisplayPort (M) to DisplayPort (F)
for Elite 800 G9; Workstation Z2 G8, Z2 G9, Z4 G5, Z6 G5; ZBook Fury 15 G8, 16 G9, 17 G8

Sound Cards

Poly DA75 - Sound card

USB-C / USB-A
for Victus by HP Laptop 16; Laptop 14, 15, 17; Pavilion Plus Laptop 14, 16

Poly DA85-M - Sound card

USB
for Victus by HP Laptop 16; Laptop 14, 15, 17; Pavilion Plus Laptop 14, 16

Audio/Visual

Poly Sync 60-M - Smart speakerphone

Bluetooth
wired, wireless
NFC
USB-A, USB-C
silver
Certified for Microsoft Teams, Zoom Certified

Poly IP Table Microphone

Microphone
for Poly G7500; Poly Telehealth Station G7500

General Information
Category	Desktop computers
Description	HP Workstation Z2 G9 - Wolf Pro Security - mini 5U - 1 x Core i7 i7-14700K / up to 5.6 GHz - RAM 32 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - RTX A2000 - Gigabit Ethernet, IEEE 802.11be, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6) - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year)
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
A/V Interface Type	PCI Express 4.0 x16
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	21.8 cm
Dimensions & Weight / Height	6.9 cm
Dimensions & Weight / Weight	2.4 kg
Dimensions & Weight / Width	21.1 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W680
Mainboard / Processor Socket	LGA1700 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	802.11ax Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.4 GHz
Processor / Generation	14
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	I7-14700K
Processor / Type	Core i7
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	SO-DIMM 262-pin
RAM / Memory Speed	5600 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	1-year warranty
System / Hard Drive Capacity	512 GB
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A2000 / Intel UHD Graphics 770
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	33 MB
Installed Size	L3 cache - 33 MB
Dimensions & Weight
Depth	21.8 cm
Height	6.9 cm
Weight	2.4 kg
Width	21.1 cm
Dimensions & Weight (Shipping)
Shipping Depth	49.9 cm
Shipping Height	29.8 cm
Shipping Weight	4.8 kg
Shipping Width	17 cm
Environmental Parameters
Humidity Range Operating	10 - 85% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Interfaces	1 x headphones/microphone (CTIA and OMTP headset support) 4 x USB 3.2 Gen 2 (one of them is charging) 2 x USB-C 3.2 Gen 2x2 (charging) 2 x DisplayPort 1.4 1 x LAN (Gigabit Ethernet) - RJ-45 4 x Mini DisplayPort 1.4
Slots	1 (total) / 0 (free) x PCIe 4.0 x16 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) 1 (total) / 1 (free) x PCIe 4.0 x8 (low-profile)
General
Bundled Services	HP 1 year Wolf Pro Security Edition Service
Bundled with	HP Wolf Pro Security Edition (1 year)
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	Mini - 5U
Sensors	HP Tamper Lock
Type	Workstation
Graphics Controller
Bandwidth	288 GBps
Graphics Processor	NVIDIA RTX A2000 / Intel UHD Graphics 770
Interface Type	PCIe 4.0 x16
Multi-GPU Configuration	1 single GPU card / integrated GPU
Video Interfaces	DisplayPort
Video Memory	12 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	HP 320K
Localization & Layout	US
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, WEEE, CECP, low halogen
Manufacturer Selling Program	HP Smart Buy
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 320M
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6)
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 16
Interface (Bus) Type	M.2 2230
Wireless LAN Supported	Yes
Wireless NIC	Intel WI-FI 7 BE200
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP SureStart Gen7, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	90%
Power Factor Correction	Yes
Power Provided	280 Watt
Voltage Required	AC 115/230 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W680
Clock Speed	3.4 GHz (P-core) / 2.5 GHz (E-core)
CPU	Intel Core i7 (14th Gen) i7-14700K
CPU Qty	1
CPU Socket	LGA1700 Socket
CPU Upgradability	Upgradable
L2 cache	28 MB
Max CPU Qty	1
Max Turbo Speed	5.6 GHz (P-core) / 4.3 GHz (E-core)
Number of Cores	20-core
Processor Main Features	Intel Turbo Boost Technology
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	5600 MHz
Form Factor	SO-DIMM 262-pin
Installed Size	32 GB (installed) / 64 GB (max)
Rated Memory Speed	5600 MHz
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Controller Interface Type	NVM Express
RAID Level	RAID 0, RAID 1
Type	1 x RAID
Sustainability Information
ENERGY STAR Certified	Yes
