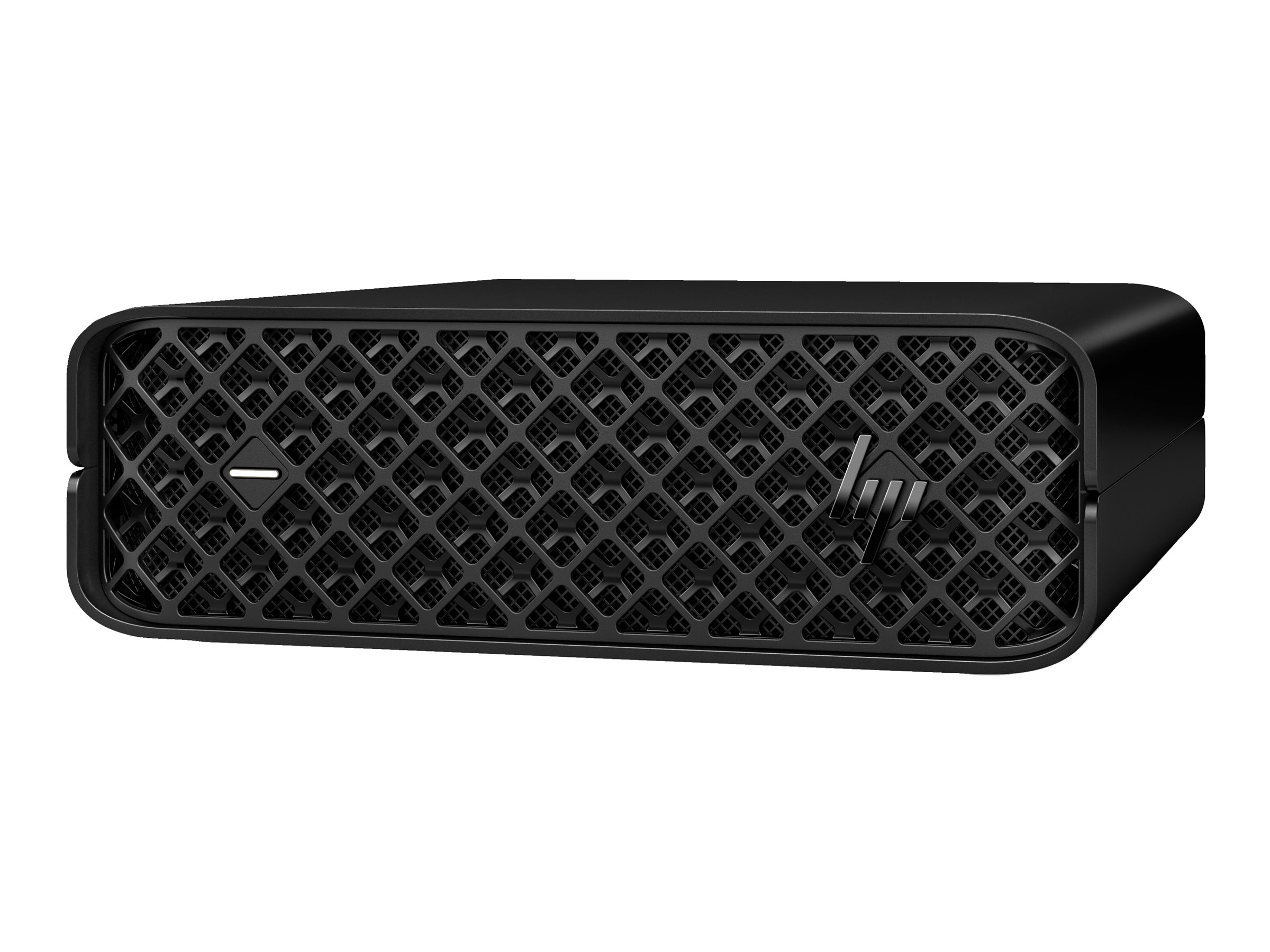

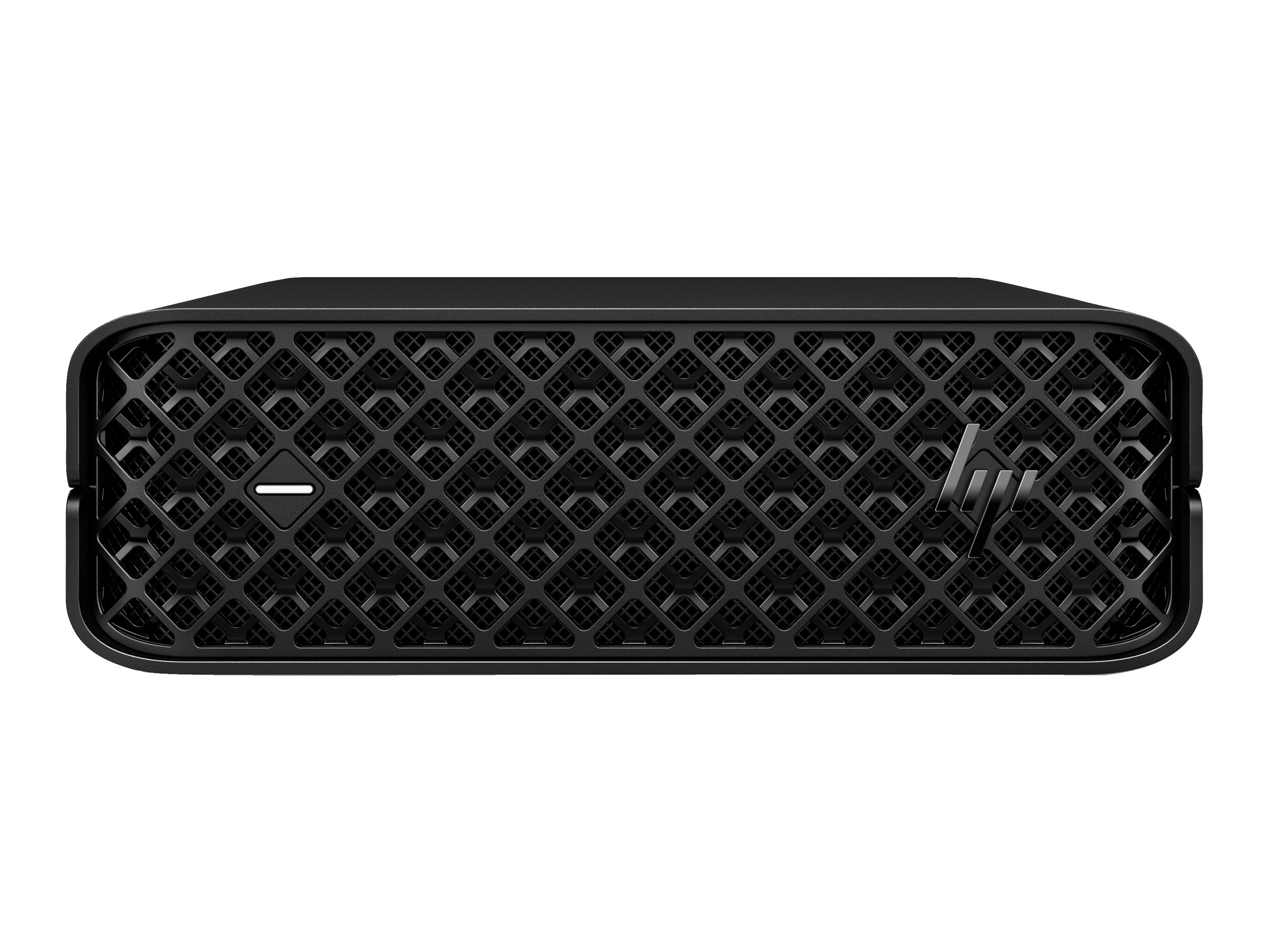

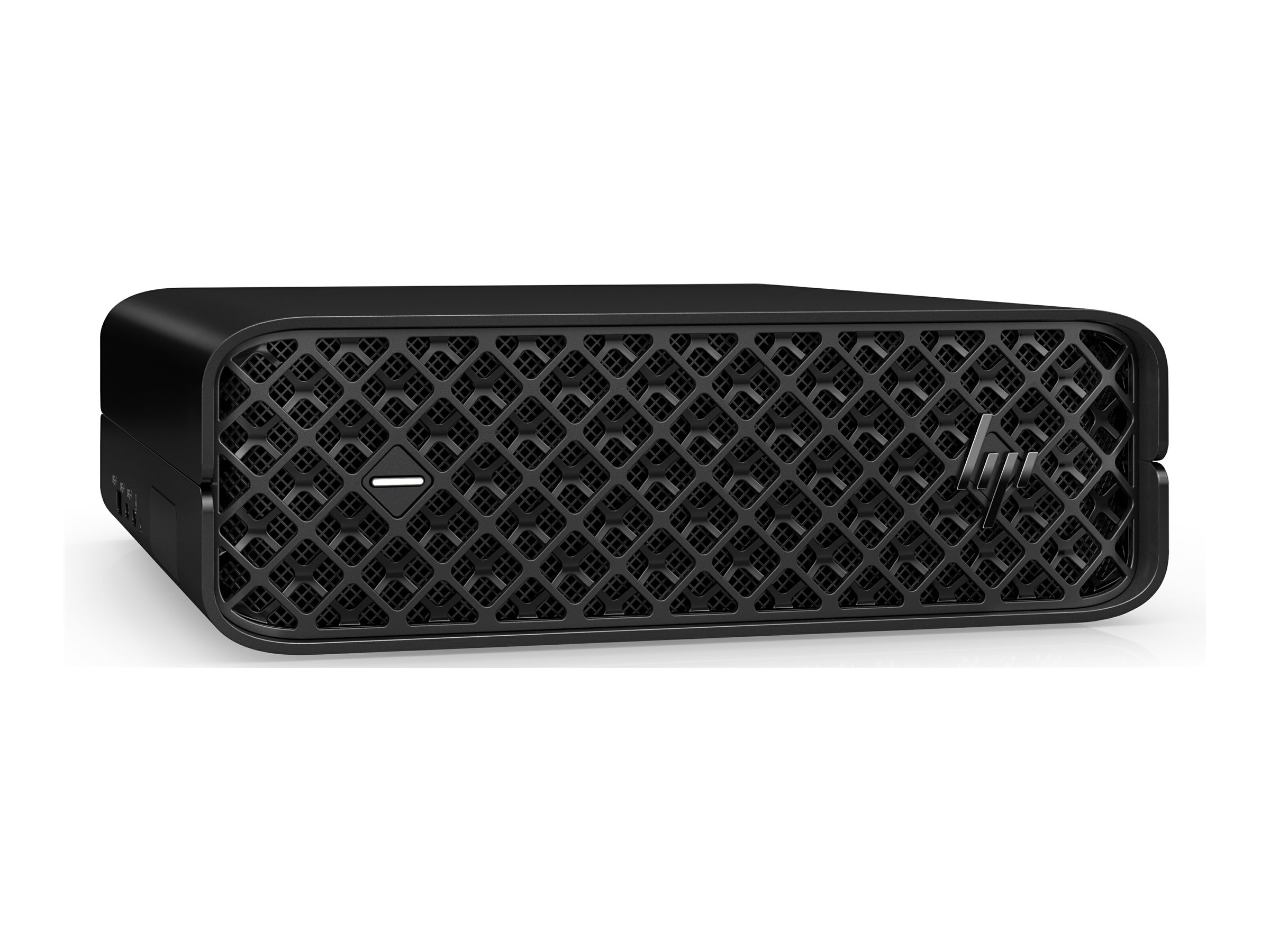

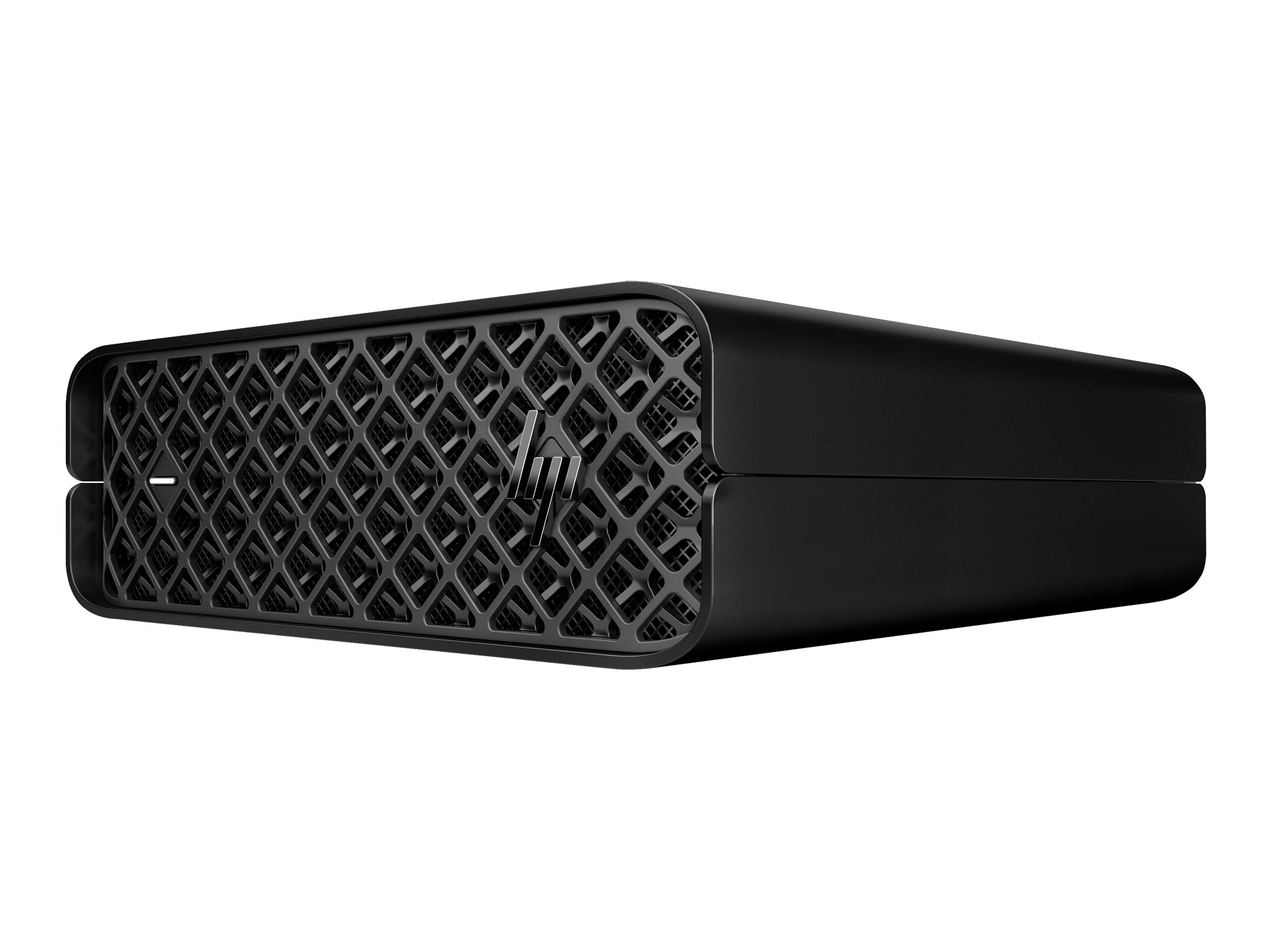

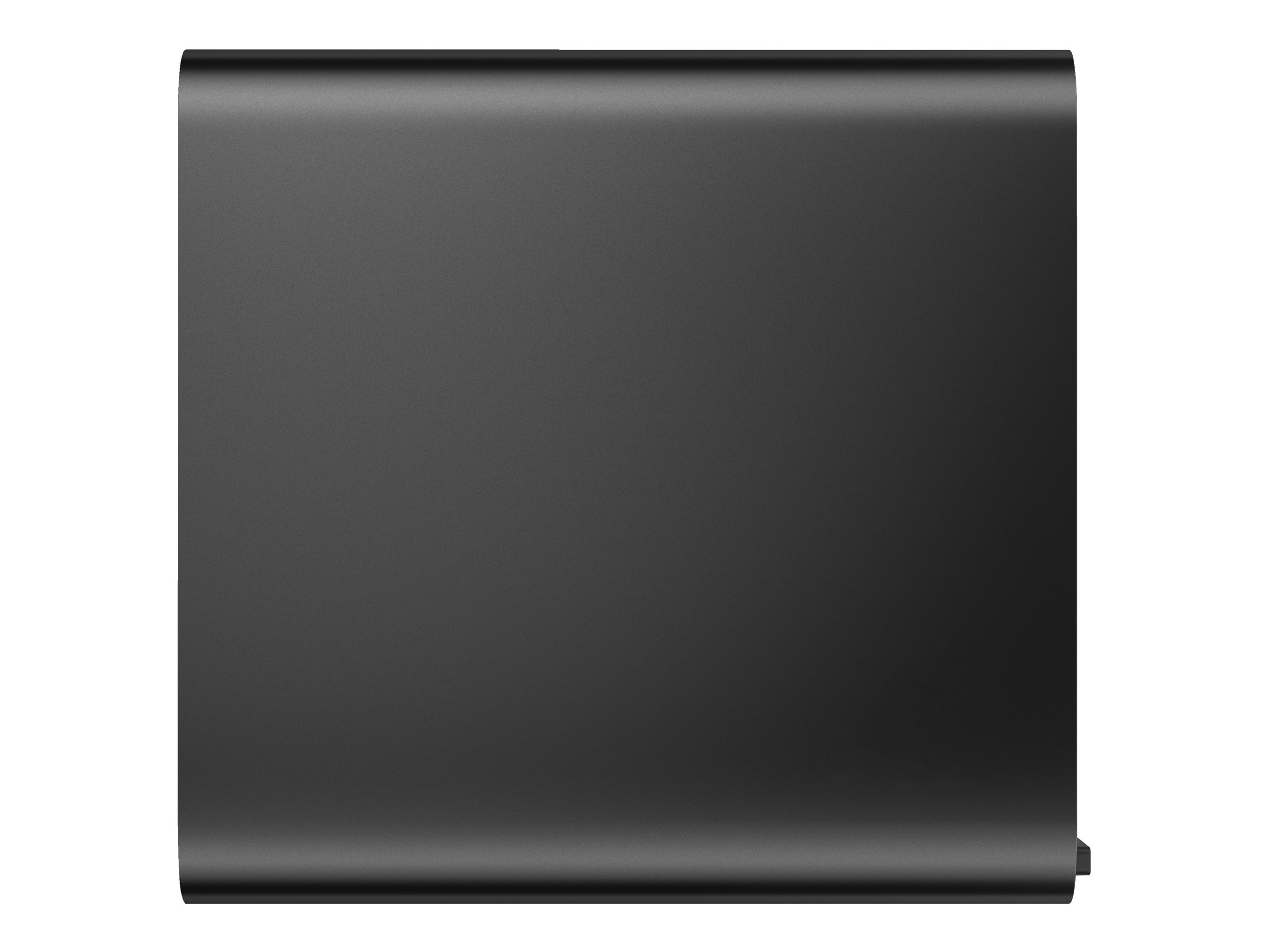

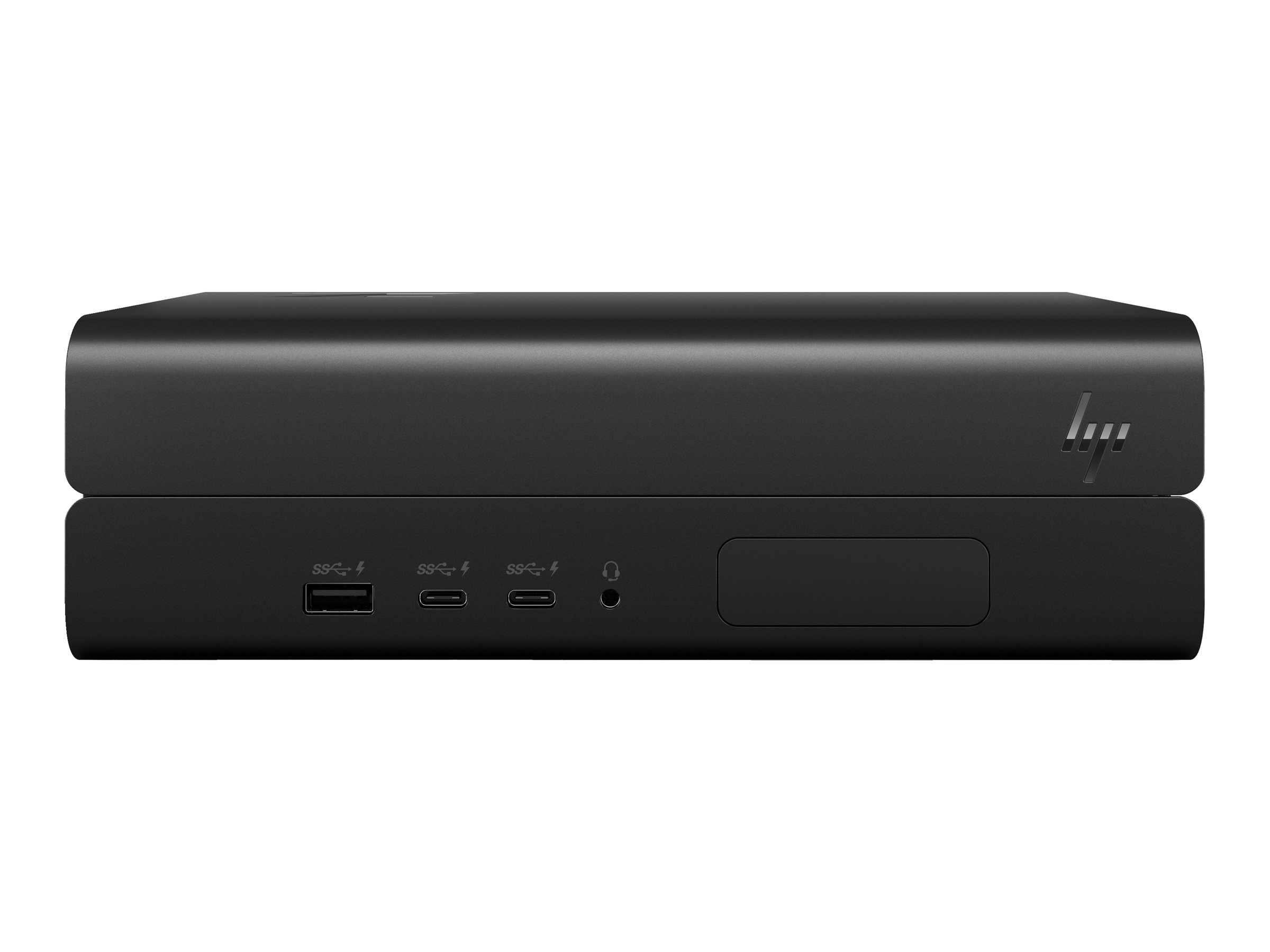

HP Workstation Z2 G9
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
Quick Details
|
---|
|
HP Workstation Z2 G9
- Wolf Pro Security
- mini 5U
- 1 x Core i7 i7-14700K / up to 5.6 GHz
- RAM 32 GB
- SSD 512 GB
- HP Z Turbo Drive, NVMe, TLC
- RTX A2000
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
- Win 11 Pro
- monitor: none
- keyboard: US
- Smart Buy
- with HP 1 year Wolf Pro Security Edition Service
- with HP Wolf Pro Security Edition (1 year)
Additional Details | |
---|---|
Mfr Part #: | A12W1UT#ABA |
SHI Part #: | 47947315 |
Category: | Desktop computers |
UNSPSC: | 43211507 |
Manufacturer: | HP, Inc. |
Product Type: | Hardware |
Keyboards and Keypads
- US
- for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; EliteBook 840; ProBook x360
- USB
- US
- Smart Buy
- for Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 83X G8, 840, 84X G8, 85X G8
- US
- Smart Buy
- for HP 34; Elite Mobile Thin Client mt645 G7; Laptop 15; Pro Mobile Thin Client mt440 G3
Mice and Trackballs
- USB
- black
- promo
- for HP 34; Elite Mobile Thin Client mt645 G7; Pro 290 G9; Pro Mobile Thin Client mt440 G3
General Information | |
---|---|
Category | Desktop computers |
Description | HP Workstation Z2 G9 - Wolf Pro Security - mini 5U - 1 x Core i7 i7-14700K / up to 5.6 GHz - RAM 32 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - RTX A2000 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year) |
Manufacturer | HP, Inc. |
UNSPSC | 43211507 |
Main Specifications | |
A/V Interface Type | PCI Express 4.0 x16 |
Chassis / Form Factor | Ultra small form factor |
Dimensions & Weight / Depth | 21.8 cm |
Dimensions & Weight / Height | 6.9 cm |
Dimensions & Weight / Weight | 2.4 kg |
Dimensions & Weight / Width | 21.1 cm |
Display / Type | None. |
Hard Drive / Capacity | 512 GB |
Header / Brand | HP |
Header / Country Kits | United States |
Header / Localization | English |
Mainboard / Chipset Type | Intel W680 |
Mainboard / Processor Socket | LGA1700 Socket |
Miscellaneous / Product Color | Black |
Networking / Data Link Protocol |
|
Networking / Wireless LAN Supported | Yes |
Networking / Wireless Protocol |
|
Optical Storage / Drive Type | No optical drive |
Optical Storage / Type | None |
OS Provided / Type | Windows 11 Pro |
Packaged Quantity | 1 |
Processor / Clock Speed | 3.4 GHz |
Processor / Generation | 14 |
Processor / Manufacturer | Intel |
Processor / Number of Cores | 20-core |
Processor / Processor Number | I7-14700K |
Processor / Type | Core i7 |
RAM / Data Integrity Check | Non-ECC |
RAM / Form Factor | SO-DIMM 262-pin |
RAM / Memory Speed | 5600 MHz |
RAM / Technology | DDR5 SDRAM |
Service & Support / Type | 1-year warranty |
System / Hard Drive Capacity | 512 GB |
System / Type | Workstation |
Video Memory / Technology | GDDR6 SDRAM |
Video Output / Graphics Processor | NVIDIA RTX A2000 / Intel UHD Graphics 770 |
Audio Output | |
Compliant Standards | High Definition Audio |
Cache Memory | |
Cache Per Processor | 33 MB |
Installed Size | L3 cache - 33 MB |
Dimensions & Weight | |
Depth | 21.8 cm |
Height | 6.9 cm |
Weight | 2.4 kg |
Width | 21.1 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 49.9 cm |
Shipping Height | 29.8 cm |
Shipping Weight | 4.8 kg |
Shipping Width | 17 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 85% RH (non-condensing) |
Max Operating Temperature | 35 °C |
Min Operating Temperature | 5 °C |
Expansion / Connectivity | |
Interfaces |
|
Slots |
|
General | |
Bundled Services | HP 1 year Wolf Pro Security Edition Service |
Bundled with | HP Wolf Pro Security Edition (1 year) |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Localization | Language: English / region: United States |
Product Form Factor | Mini - 5U |
Sensors | HP Tamper Lock |
Type | Workstation |
Graphics Controller | |
Bandwidth | 288 GBps |
Graphics Processor | NVIDIA RTX A2000 / Intel UHD Graphics 770 |
Interface Type | PCIe 4.0 x16 |
Multi-GPU Configuration | 1 single GPU card / integrated GPU |
Video Interfaces | DisplayPort |
Video Memory | 12 GB GDDR6 SDRAM |
Hard Drive | |
Capacity | 1 x 512 GB |
Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
Interface Type | PCI Express |
Type | SSD - M.2 2280 |
Input Device | |
Type | Mouse, keyboard |
Keyboard | |
Interface | USB |
Keyboard Name | HP 320K |
Localization & Layout | US |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 1 year - on-site |
Miscellaneous | |
Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen |
Manufacturer Selling Program | HP Smart Buy |
Security Slot Type | Kensington security slot |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
Monitor | |
Monitor Type | None. |
Mouse | |
Mouse Name | HP 320M |
Networking | |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
Ethernet Controller | Intel I219-LM |
Features | Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 16 |
Interface (Bus) Type | M.2 2230 |
Wireless LAN Supported | Yes |
Wireless NIC | Intel WI-FI 7 BE200 |
Operating System / Software | |
OS Provided | Windows 11 Pro English |
Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Sure Start Gen7 |
Optical Storage | |
Type | No optical drive |
Power | |
Device Type | Power adapter |
Efficiency | 90% |
Power Factor Correction | Yes |
Power Provided | 280 Watt |
Voltage Required | AC 115/230 V (50/60 Hz) |
Processor / Chipset | |
Chipset Type | Intel W680 |
Clock Speed | 3.4 GHz (P-core) / 2.5 GHz (E-core) |
CPU | Intel Core i7 (14th Gen) i7-14700K |
CPU Qty | 1 |
CPU Socket | LGA1700 Socket |
CPU Upgradability | Upgradable |
L2 cache | 28 MB |
Max CPU Qty | 1 |
Max Turbo Speed | 5.6 GHz (P-core) / 4.3 GHz (E-core) |
Number of Cores | 20-core |
Processor Main Features | Intel Turbo Boost Technology |
RAM | |
Configuration Features | 1 x 32 GB |
Effective Memory Speed | 5600 MHz |
Form Factor | SO-DIMM 262-pin |
Installed Size | 32 GB (installed) / 64 GB (max) |
Rated Memory Speed | 5600 MHz |
Slots | 2 (total) / 1 (empty) |
Technology | DDR5 SDRAM - non-ECC |
Storage Controller | |
Controller Interface Type | NVM Express |
RAID Level | RAID 0, RAID 1 |
Type | 1 x RAID |
Sustainability Information | |
ENERGY STAR Certified | Yes |
