Hardware Computers and Tablets Desktops and Workstations

Desktops and Workstations

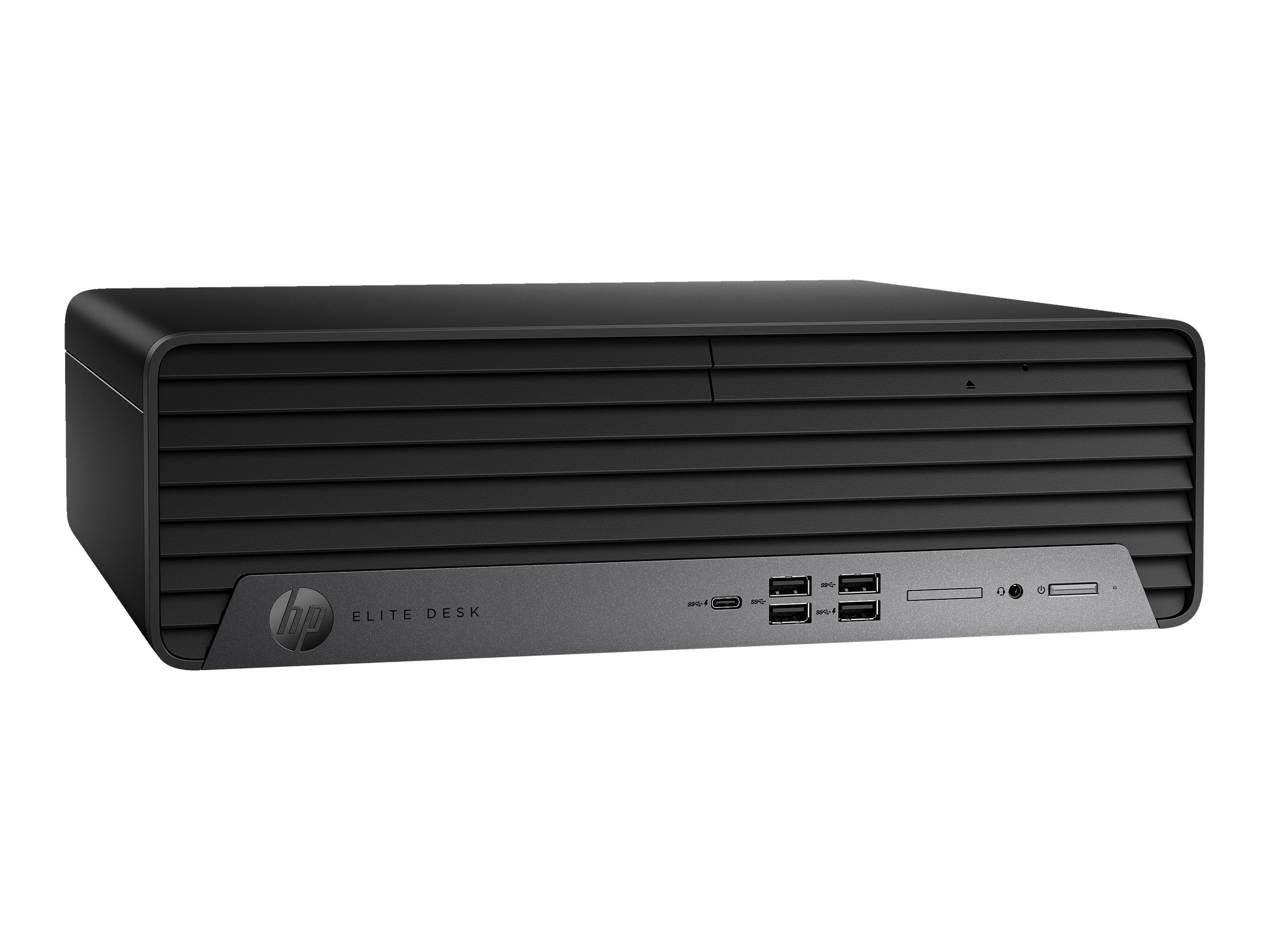

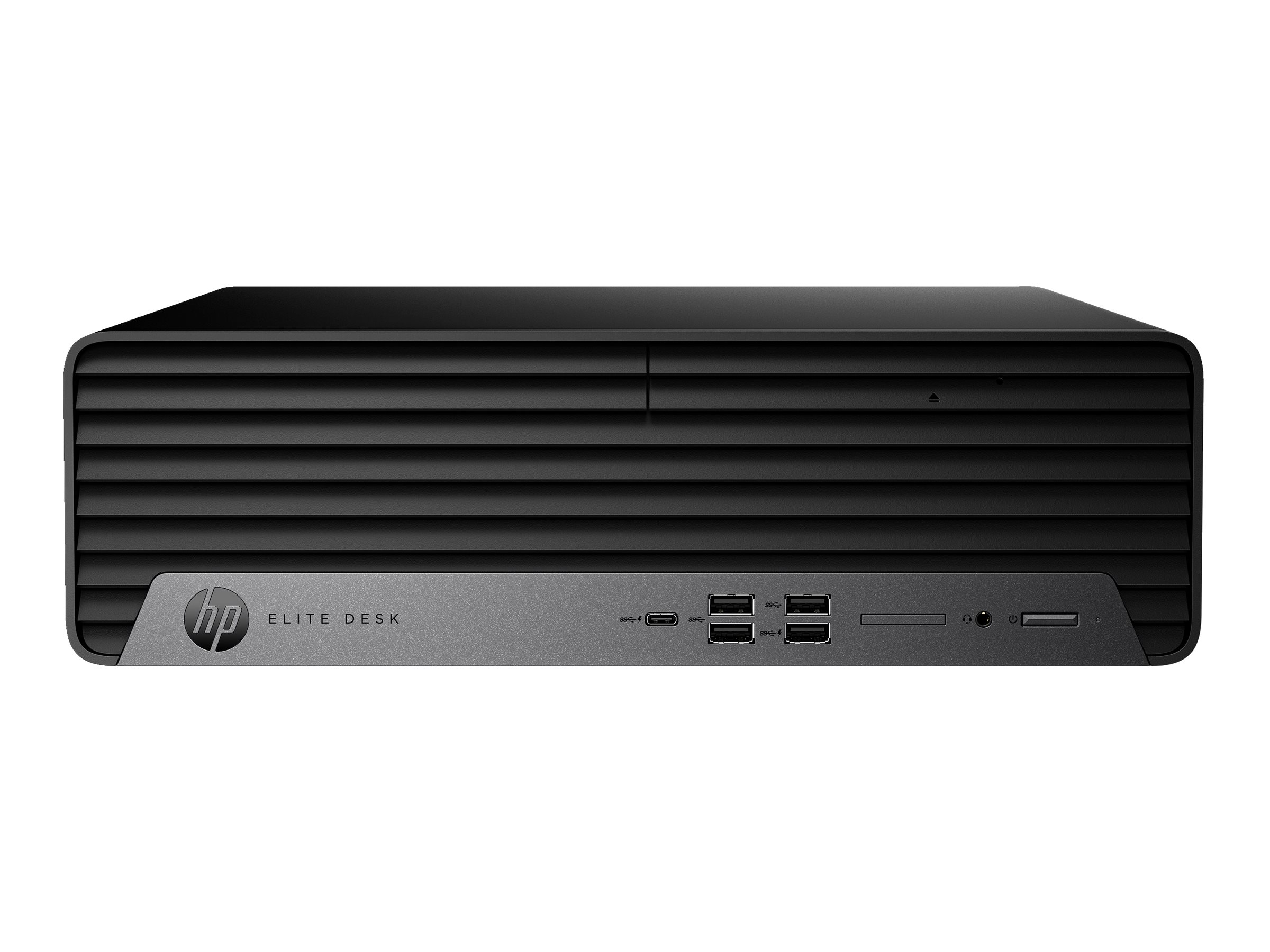

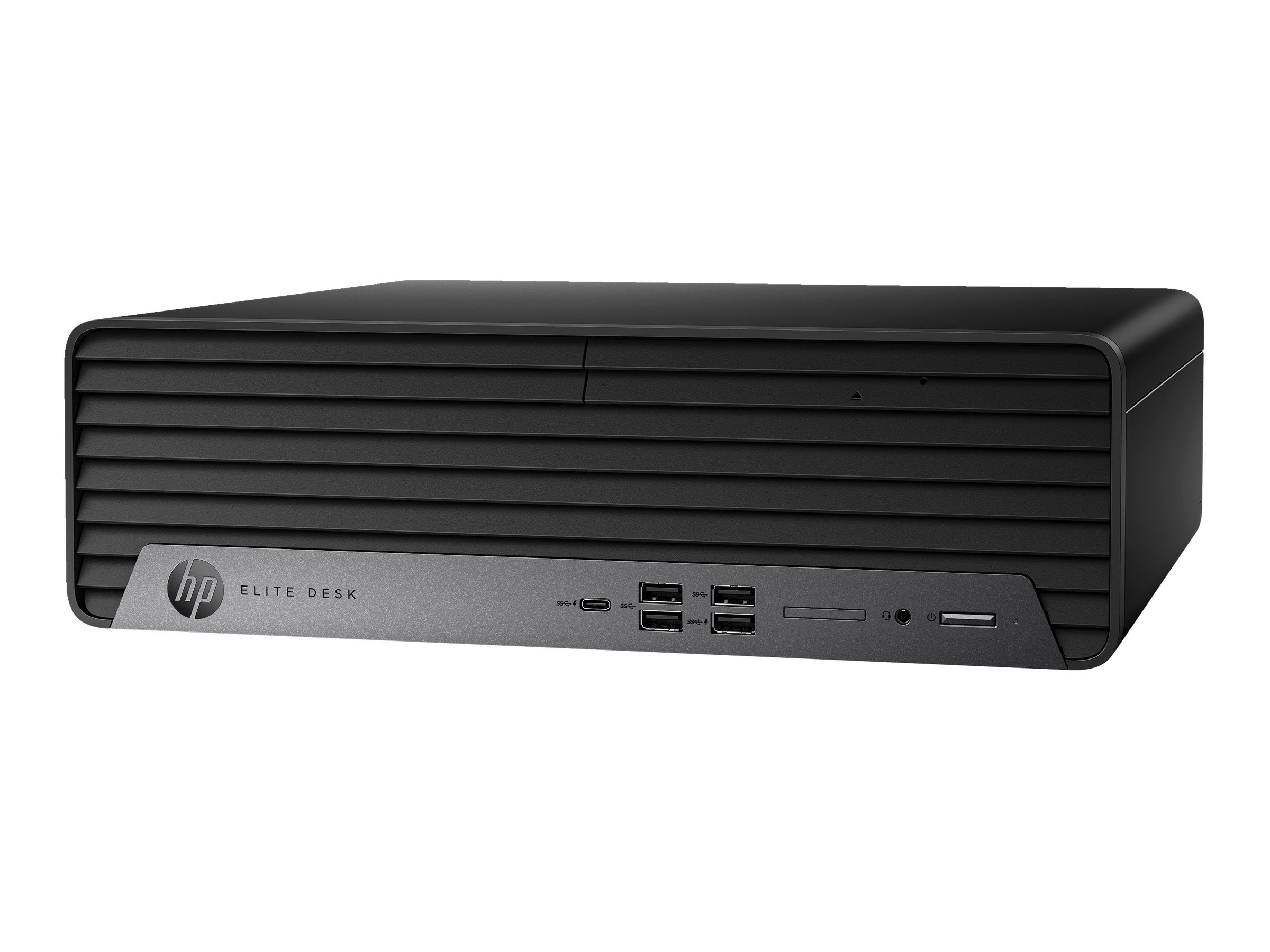

HP Elite 800 G9 - Wolf Pro Security

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
SFF Core i7 i7-14700 / up to 5.4 GHz RAM 32 GB SSD 512 GB NVMe, TLC UHD Graphics 770

HP Elite 800 G9 - Wolf Pro Security

SFF Core i7 i7-14700 / up to 5.4 GHz
RAM 32 GB
SSD 512 GB
NVMe, TLC
UHD Graphics 770
Gigabit Ethernet
Win 11 Pro
monitor: none
keyboard: US
Smart Buy
with HP 1 year Wolf Pro Security Edition Service
with HP Wolf Pro Security Edition (1 year)

Additional Details
Mfr Part #:	A12GXUT#ABA
SHI Part #:	47955502
Category:	Desktop computers
UNSPSC:	43211507
Manufacturer:	HP, Inc.
Product Type:	Hardware

Keyboards and Keypads

HP Desktop 320MK - Keyboard and mouse set

USB
US
Smart Buy
for Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 83X G8, 840, 84X G8, 85X G8

HP Desktop 320K - Keyboard

US
for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; EliteBook 840; ProBook x360

HP 125 - Keyboard - USB

US
Smart Buy
for HP 34; Elite Mobile Thin Client mt645 G7; Laptop 15; Pro Mobile Thin Client mt440 G3

Mice and Trackballs

HP Desktop 320M - Mouse

3 buttons
wired
USB
for HP 246 G7, 256 G8, 340 G7; EliteBook 745 G5, 830 G5, 840 G5; ZBook Studio G4

HP 125 - Mouse - wired

USB
black
promo
for HP 34; Elite Mobile Thin Client mt645 G7; Pro 290 G9; Pro Mobile Thin Client mt440 G3

Monitors and Displays

HP E24 G5 - E-Series

LED monitor
23.8"
1920 x 1080 Full HD (1080p) @ 75 Hz
IPS
250 cd/m²
1000:1

HP E24i G4 - E-Series

LED monitor
24"
1920 x 1200 WUXGA @ 60 Hz
IPS
250 cd/m²
1000:1

HP P27h G5 - P-Series

LED monitor
27"
1920 x 1080 Full HD (1080p) @ 75 Hz
IPS
250 cd/m²
1000:1

Audio/Video Cables

Poly DA85 - Headset cable

USB, 24 pin USB-C male to Quick Disconnect male
1.3 m
for OMEN 40L by HP GT21-1026nd; Poly DA70, DA75, DA80, DA85-M

HP - Display cable kit

DisplayPort (M) to DisplayPort (M)
2 m
for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550

HP - DisplayPort adapter

Mini DisplayPort (M) to DisplayPort (F)
for Elite 800 G9; Workstation Z2 G8, Z2 G9, Z4 G5, Z6 G5; ZBook Fury 15 G8, 16 G9, 17 G8

Control/Interface Boards

HP Flex IO V2 Card - HDMI port

for EliteDesk 800 G6, 805 G6; ProDesk 400 G6 (mini desktop), 400 G7, 405 G6, 600 G6; Workstation Z1 G6 Entry

HP SER PRT V3 FLEX IO

Sound Cards

Poly DA75 - Sound card

USB-C / USB-A
for Victus by HP Laptop 16; Laptop 14, 15, 17; Pavilion Plus Laptop 14, 16

Poly DA85-M - Sound card

USB
for Victus by HP Laptop 16; Laptop 14, 15, 17; Pavilion Plus Laptop 14, 16

General Information
Category	Desktop computers
Description	HP Elite 800 G9 - Wolf Pro Security - SFF Core i7 i7-14700 / up to 5.4 GHz - RAM 32 GB - SSD 512 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year)
Manufacturer	HP, Inc.
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	30.8 cm
Dimensions & Weight / Height	10 cm
Dimensions & Weight / Weight	5.4 kg
Dimensions & Weight / Width	33.8 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	HP
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q670
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.1 GHz
Processor / Generation	14
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	I7-14700
Processor / Type	Core i7
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	4800 MHz
RAM / Technology	DDR5 SDRAM
Service & Support / Type	1-year warranty
System / Hard Drive Capacity	512 GB
System / Type	Personal computer
Video Output / Graphics Processor	Intel UHD Graphics 770
Video Output / HDCP compatible	Yes
Audio Output
Compliant Standards	High Definition Audio
Max Sampling Rate	192 kHz
Sound Output Mode	Stereo
Speakers Included	1 x mixed channel
Cache Memory
Cache Per Processor	33 MB
Installed Size	L3 cache - 33 MB
Dimensions & Weight
Depth	30.8 cm
Height	10 cm
Weight	5.4 kg
Width	33.8 cm
Dimensions & Weight (Shipping)
Shipping Depth	49.9 cm
Shipping Height	23 cm
Shipping Weight	7.92 kg
Shipping Width	39.9 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	2 (total) / 2 (free) x internal 3.5" 1 (total) / 1 (free) x external 5.25" Slim Line
Interfaces	3 x USB 2.0 3 x USB 3.2 Gen 1 (one of them is fast-charging) 4 x USB 3.2 Gen 2 (4 in front) 1 x USB-C 3.2 Gen 2x2 2 x DisplayPort 1.4a 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) 1 x audio line-out/line-in (1 rear) 1 x LAN (Gigabit Ethernet) 1 x HDMI
Slots	1 (total) / 1 (free) x M.2 Card - 2230 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode) 2 (total) / 2 (free) x PCIe 3.0 x1 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) 1 (total) / 1 (free) x PCIe 4.0 x16
General
Built-in Devices	Speaker
Bundled Services	HP 1 year Wolf Pro Security Edition Service
Bundled with	HP Wolf Pro Security Edition (1 year)
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Product Form Factor	SFF
Type	Personal computer
Graphics Controller
Graphics Processor	Intel UHD Graphics 770 Dynamic Video Memory Technology
HDCP Compatible	Yes
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 512 GB
Features	NVM Express (NVMe), triple-level cell (TLC)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	HP 320K
Localization & Layout	US
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 1 year - on-site
Miscellaneous
Compliant Standards	FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1
Manufacturer Selling Program	HP Smart Buy
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Mouse Name	HP 125
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), ACPI support, PXE 2.1 support
Remote Management Protocol	SNMP 2
Operating System / Software
OS Provided	Windows 11 Pro English
Software	HP Support Assistant, HP PC Hardware Diagnostics UEFI, Microsoft 365 (Trial), HP Secure Erase, HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP BIOSphere Gen6, HP DriveLock, myHP, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP SureStart Gen7, HP Touchpoint Customizer, HP Easy Clean, HP Connect for Microsoft Endpoint Manager, HP SureRun Gen5, HP Sure Recover Gen5, HP Wolf Security for Business
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Efficiency	92%
Power Factor Correction	Yes (active)
Power Provided	260 Watt
Voltage Required	AC 90-264 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q670
Clock Speed	2.1 GHz (P-core) / 1.5 GHz (E-core)
CPU	Intel Core i7 (14th Gen) i7-14700
CPU Qty	1
CPU Upgradability	Upgradable
L2 cache	28 MB
Max CPU Qty	1
Max Turbo Speed	5.4 GHz (P-core) / 4.2 GHz (E-core)
Number of Cores	20-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	4800 MHz
Features	Unbuffered
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	4800 MHz
Slots	4 (total) / 3 (empty)
Technology	DDR5 SDRAM
Storage Controller
Channel Qty	4
Controller Interface Type	SATA-600 / NVMe
Type	1 x SATA/NVMe
Sustainability Information
Carbon Footprint	280 kg carbon emissions
ENERGY STAR Certified	Yes
EOL (kg CO2e)	2
Manufacturing (kg CO2e)	149
Use (kg CO2e)	126
