Tripp Lite PDU 3-Phase 200/220/230/240V 11.5kW C13 C19 IEC309 20A Red 0URM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite PDU 3-Phase 200/220/230/240V 11.5kW C13 C19 IEC309 20A Red 0URM
- Vertical rackmount
- power distribution unit (rack-mountable)
- 16 A
- AC 360/380/400/415 V
- 11.5 kW
- 3-phase
- Ethernet 10/100
- input: IEC 60309 20A
- output connectors: 48
- 0U
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | PDU3XVN6G20 |
| SHI Part #: | 29996722 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Tripp Lite PDU 3-Phase 200/220/230/240V 11.5kW C13 C19 IEC309 20A Red 0URM - Vertical rackmount - power distribution unit (rack-mountable) - 16 A - AC 360/380/400/415 V - 11.5 kW - 3-phase - Ethernet 10/100 - input: IEC 60309 20A - output connectors: 48 - 0U - TAA Compliant |
| Manufacturer | Eaton |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.3 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Weight | 6.1 kg |
| Dimensions & Weight / Width | 5.51 cm |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 360/380/400/415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 7.3 cm |
| Height | 177.8 cm |
| Weight | 6.1 kg |
| Width | 5.51 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17.5 cm |
| Shipping Height | 192.8 cm |
| Shipping Weight | 9.2 kg |
| Shipping Width | 24.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 1.83 m |
| Compliant Standards | FCC Class A certified, NOM, RoHS, UL 60950-1, EN 60950-1 |

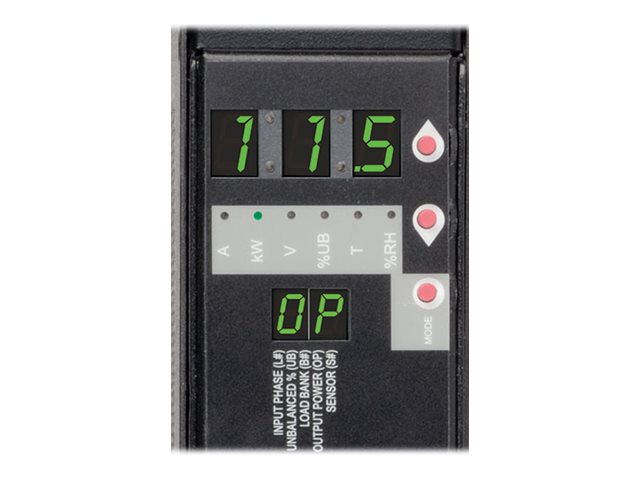

| Features | LED display, vertical orientation, digital power meter, digital ammeter |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS, SSH |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 20A |
| Input Voltage | AC 360/380/400/415 V |
| Input Wiring | 3-phase |
| Max Electric Current | 16 A |
| Output Voltage | AC 200/220/230/240 V 50/60 Hz |
| Power Capacity | 11.5 kW |
| Power Output Connectors Details |
|
