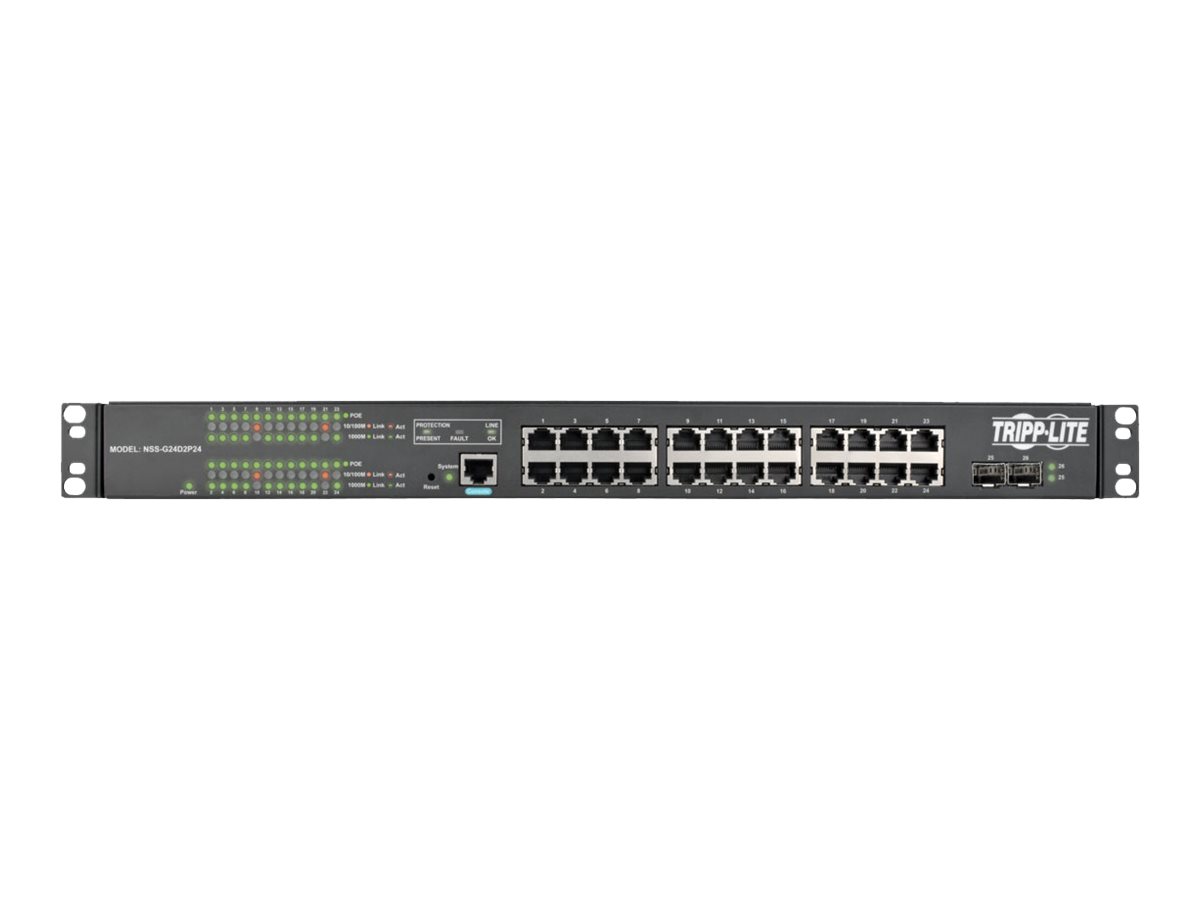

Tripp Lite 24-Port Gigabit Ethernet Switch L2 Managed PoE+ 10/100/1000Mbps 2 SFP Slots Web/CLI w/ 12-Outlet PDU
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite 24-Port Gigabit Ethernet Switch L2 Managed PoE+ 10/100/1000Mbps 2 SFP Slots Web/CLI w/ 12-Outlet PDU
- Switch
- L2+
- managed
- 24 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
- rack-mountable
- PoE+ (240 W)
| Additional Details | |
|---|---|
| Mfr Part #: | NSS-G24D2P24 |
| SHI Part #: | 32696105 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Audio/Video Cables
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 2.1 m
- UTP
- CAT 5e
- molded, snagless, stranded
MSRP $6.89
$6.00
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 3.05 m
- UTP
- CAT 6
- molded, snagless, stranded
MSRP $12.98
$7.00
- Patch cable
- LC single-mode (M) to LC single-mode (M)
- 1 m
- fiber optic
- duplex
- 9 / 125 micron
MSRP $24.09
$21.00
Network Cables
- Patch cable
- LC single-mode (M) to LC single-mode (M)
- 2 m
- fiber optic
- duplex
- 9 / 125 micron
MSRP $25.19
$22.00
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 1.5 m
- UTP
- CAT 5e
- molded, snagless, stranded
MSRP $5.92
$5.00
- Direct attach cable
- SFP+ (M) to SFP+ (M)
- 3 m
- twinaxial
- black
MSRP $129.92
$64.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | Tripp Lite 24-Port Gigabit Ethernet Switch L2 Managed PoE+ 10/100/1000Mbps 2 SFP Slots Web/CLI w/ 12-Outlet PDU - Switch - L2+ - managed - 24 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP - rack-mountable - PoE+ (240 W) |
| Manufacturer | Eaton |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31.5 cm |
| Dimensions & Weight / Height | 4.34 cm |
| Dimensions & Weight / Weight | 4.9 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 31.5 cm |
| Height | 4.34 cm |
| Weight | 4.9 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | PDU with 12 NEMA 5-15R AC outlets |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 24 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | Auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), full duplex mode, surge protection, STP support, RSTP support, DHCP snooping, ACL support, fanless, Port Security, IP-MAC binding, Energy Efficient Ethernet, tagged VLAN, metal housing, Storm Control |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 16000 entries |
| Performance | Switching capacity: 52 Gbps |
| PoE Budget | 240 W |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP, RMON, HTTP, CLI |
| Status Indicators | Status, link/activity, SFP |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | NOM, RoHS, UL 60950-1, FCC Part 15 A, REACH, UL 1449 Third Edition, CAN/CSA-C22.2 No. 60950-1 |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120 V |
