Hardware Monitors and Projectors Monitors and Displays

Monitors and Displays

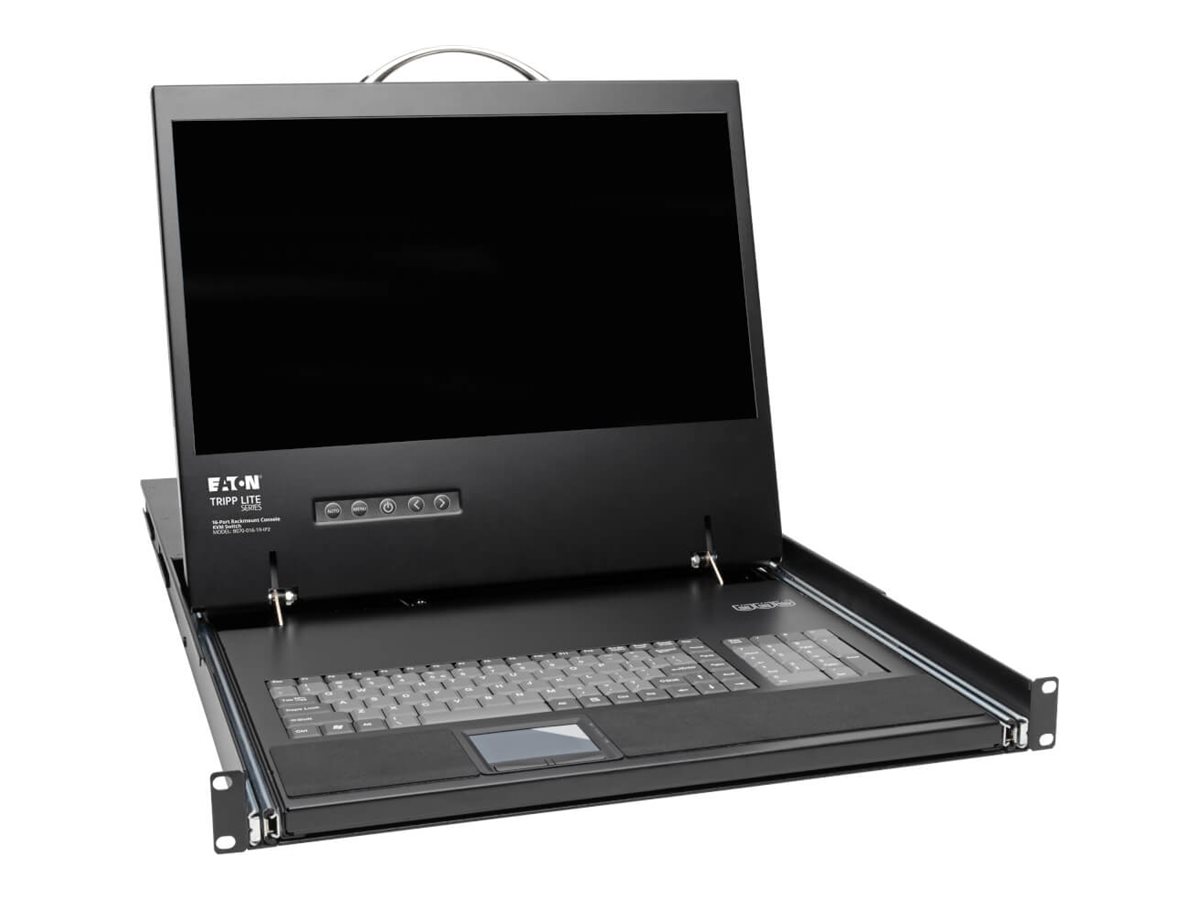

Tripp Lite 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 19 in. LCD, IP Remote Access

MSRP$4,748.80

$3,365.00

Tripp Lite 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 19 in. LCD, IP Remote Access

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 16 ports PS/2, USB 19" rack-mountable

Tripp Lite 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 19 in. LCD, IP Remote Access

KVM console with KVM switch
16 ports
PS/2, USB
19"
rack-mountable
1366 x 768
VGA
black
1U
TAA Compliant

Additional Details
Price:	$3,365.00
MSRP:	$4,748.80
Mfr Part #:	B070-016-19-IP2
SHI Part #:	33975371
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad

? Mounts in 1U of space in EIA-standard 19 in. rack

? Connects up to 16 computers/servers up to 100-ft. (30.5 m) away via Cat5e/6 cabling and B078 Series SIUs

? To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

? Fast Virtual Media KVM system: U.S. Patent #9,417,720

? BIOS-level control of any server brand and model

IP Remote Access for Fewer Trips to the Server Room

? Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection

? A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java

? Up to 3 users (1 local, 2 remote) can sign in simultaneously

? Up to 5 users can share a single session

? Supports both IPv4 and IPv6

? Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail

Simplifies IT Tasks

? Users can switch between ports via on-screen display, hotkeys or remote toolbar

? Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers

? Assign individual ports to an IP PDU port to power on/off the server connected to that port

? Virtual Media allows .iso file to be mounted to target server and accessed directly

? Supports RADIUS and LDAP/S authentication

? Log tracks events on your installation

Large 19 in. LCD Screen

? Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely

? DDC emulation allows for optimal output to LCD

Advanced Security Features

? Multi-level password protection-create administrator accounts with full access and user accounts with limited access

? Supports TLS 1.2 security protocol

Free NetCommander-AXS Management Software

? Access and manage all of your NetCommander IP KVM switches from one interface

? Access server ports on any KVM, power cycle or power on/off outlets of IP PDUs, and manage KVM settings

? Free download available at Technical Support link in right-hand column

TAA-Compliant

? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Audio/Video Cables

Tripp Lite USB Server Interface Unit 8 Pack KVM Switch HD15 USB RJ45 TAA

Keyboard / video / mouse / USB adapter
HD-15 (VGA) (M) to USB, RJ-45 (pack of 8)

MSRP $1,064.24

$900.00

Tripp Lite USB (2) Server Interface Unit Virtual Media KVM Switch HD15 USB RJ45

Keyboard / video / mouse / USB adapter
HD-15 (VGA) (M) to USB, RJ-45

MSRP $181.00

$153.00

Tripp Lite 25ft Cat6 Gigabit Molded Shielded Patch Cable STP RJ45 M/M Gray 25'

Patch cable
RJ-45 (M) to RJ-45 (M)
7.6 m
STP
CAT 6
molded, stranded

MSRP $53.01

$26.00

Control/Interface Boards

Tripp Lite USB Single Server Interface Unit Virtual Media KVM Switch HD15 USB RJ45 TAA

KVM extender
up to 30 m

MSRP $146.00

$113.00

General Information
Category	Flat panel displays
Description	Tripp Lite 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 19 in. LCD, IP Remote Access - KVM console with KVM switch - 16 ports - PS/2, USB - 19" - rack-mountable - 1366 x 768 - VGA - black - 1U - TAA Compliant
Manufacturer	Eaton
MSRP	$4,748.80
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	69.2 cm
Dimensions & Weight / Height	4.34 cm
Dimensions & Weight / Weight	12.9 kg
Dimensions & Weight / Width	47.7 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1366 x 768
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Touchpad
Miscellaneous / Compliant Standards	128-bit SSL GSA IEC 60950-1 IPv6 Ready RoHS UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	16
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Linux Microsoft Windows
Connectivity
Interfaces	16 x KVM (RJ-45) 2 x network (RJ-45) 2 x serial (RJ-45) USB VGA (HD-15)
Environmental Parameters
Humidity Range Operating	0 - 80% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Built-in Devices	16-port KVM switch
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	47.7 cm x 69.2 cm x 4.34 cm
Display Type	KVM console / TFT active matrix
Features	IP Remote Access
Height (Rack Units)	1U
Native Resolution	1366 x 768
Weight	12.9 kg
Input
Type	Keyboard, touchpad
KVM
Keyboard / Mouse Interface	PS/2, USB
Type	KVM switch - 16 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	IPv6 Ready, RoHS, 128-bit SSL, GSA, UL 60950-1, IEC 60950-1
Features	128-bit AES security
Rack Mounting Kit	Included
TAA Compliant	Yes
Power
Input Voltage	AC 120/230 V (50 - 60 Hz)
Software / System Requirements
OS Required	Linux, Microsoft Windows
