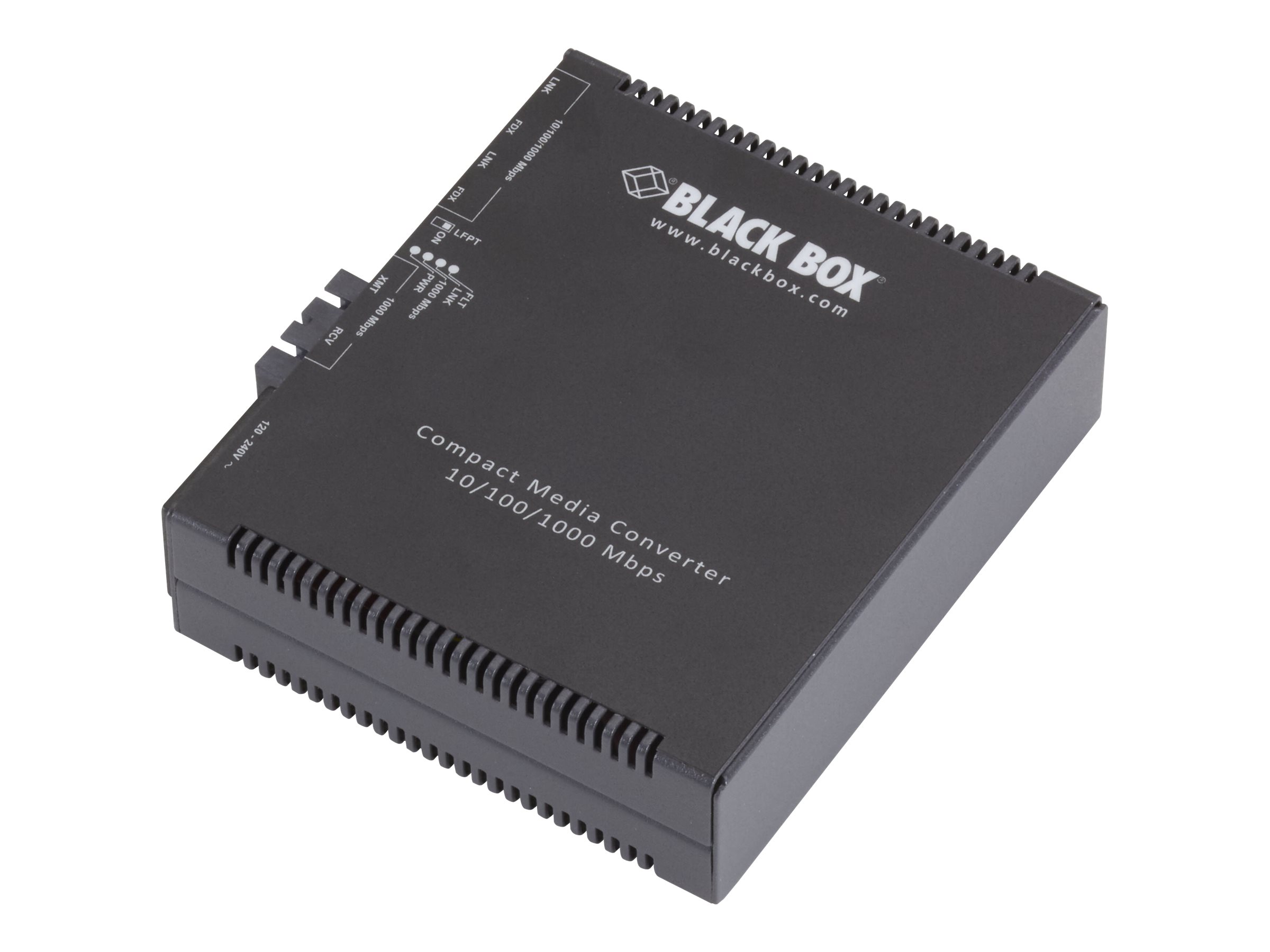

Black Box Compact Media Converter
MSRP$737.52
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Black Box Compact Media Converter
- Fiber media converter
- 1GbE
- 1000Base-LX, 1000Base-TX
- RJ-45 / SC multi-mode
- up to 550 m
- 850 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $737.52 |
| Mfr Part #: | LGC5151A |
| SHI Part #: | 35500628 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box Compact Media Converter - Fiber media converter - 1GbE - 1000Base-LX, 1000Base-TX - RJ-45 / SC multi-mode - up to 550 m - 850 nm |
| Manufacturer | Black Box |
| MSRP | $737.52 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.16 cm |
| Dimensions & Weight / Height | 2.032 cm |
| Dimensions & Weight / Weight | 300 g |
| Dimensions & Weight / Width | 10.16 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 10.16 cm |
| Height | 2.032 cm |
| Weight | 300 g |
| Width | 10.16 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, cUL, CSA |
| Networking | |
| Cabling Type | 1000Base-LX, 1000Base-TX |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Features | Auto-negotiation, built-in DIP switch |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Status Indicators | Fault, power, link/activity, 1000M device connected, port duplex mode |
| Power | |
| Power Consumption Operational | 7 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
