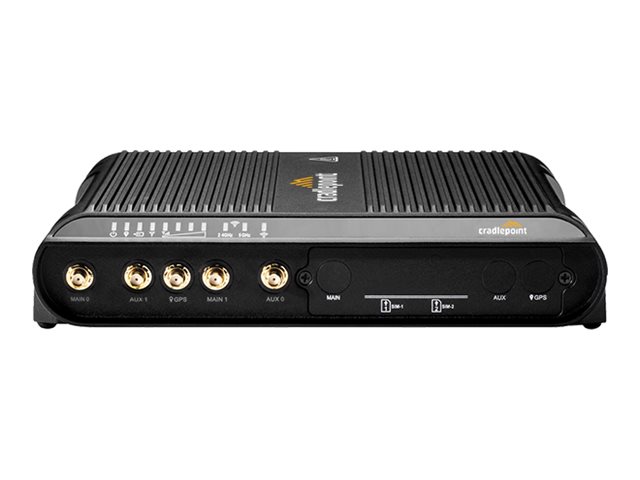

Cradlepoint NetCloud Essentials for Mobile Routers LTE Advanced Pro

MSRP$2,325.00

$2,159.00

In Stock

Cradlepoint NetCloud Essentials for Mobile Routers LTE Advanced Pro

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Subscription license (5 years) + 24x7 Support North America with IBR1700 router (1200Mbps modem), no AC power supply or antennas

Cradlepoint NetCloud Essentials for Mobile Routers LTE Advanced Pro

Subscription license (5 years) + 24x7 Support
North America
with IBR1700 router (1200Mbps modem), no AC power supply or antennas

Additional Details
Price:	$2,159.00
MSRP:	$2,325.00
Mfr Part #:	MA5-1700120B-NNA
SHI Part #:	38178326
Category:	Routers
UNSPSC:	43222609
Manufacturer:	Cradlepoint
Product Type:	Software Licenses

General Information
Category	Routers
Description	Cradlepoint NetCloud Essentials for Mobile Routers LTE Advanced Pro - Subscription license (5 years) + 24x7 Support - North America - with IBR1700 router (1200Mbps modem), no AC power supply or antennas
Manufacturer	Cradlepoint
MSRP	$2,325.00
UNSPSC	43222609
Main Specifications
Dimensions & Weight / Depth	19 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	1.7 kg
Dimensions & Weight / Width	22.43 cm
Header / Brand	CradlePoint
Header / Country Kits	North America (US and Canada)
Miscellaneous / Product Color	Black
Networking / Connectivity Technology	Wired Wireless
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac Wave 2 IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Form Factor	In-vehicle
Networking / Type	Wireless router
Networking / Wireless Protocol	802.11a/b/g/n/ac Wave 2
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Antenna
Antenna	External detachable
Communications
Cellular Band	LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B66, LTE B71, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, WCDMA B1, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B8, WCDMA B9, WCDMA B19
Cellular Protocol	LTE Advanced Pro, WCDMA, DC-HSPA+
Generation	3G, 4G
Max Transfer Rate	1.2 Gbps
Type	Wireless cellular modem
Dimensions & Weight
Depth	19 cm
Height	4.4 cm
Weight	1.7 kg
Width	22.43 cm
Environmental Parameters
Humidity Range Operating	5 - 95%
Max Operating Temperature	70 °C
Min Operating Temperature	-30 °C
Expansion / Connectivity
Expansion Slots	2 Mini-SIM
Interfaces	WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Antenna: 4 x SMA - LTE USB 2.0: 1 x 4 pin USB Type A Peripheral: 1 x GPIO Console: 1 x RS-232 - 9 pin D-Sub (DB-9) Antenna: 1 x SMA - GPS Antenna: 6 x RP-SMA - Wi-Fi
General
Built-in Devices	GPS, GLONASS, Beidou, Galileo
Bundled Services	5 years NetCloud Mobile Essentials Plan
Capacity	Concurrent VPN tunnels: 10 Concurrent TCP sessions: 32000 Typical client count: 30
Compliant Standards	Wi-Fi CERTIFIED, IP64, ISO 7637-2, UL, cUL, CB Scheme, EN 62368-1, E Mark, WEEE, RoHS, RoHS2, CP65, MIL-STD 810G, SAE J1455
Connectivity Technology	Wired, wireless
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Device Type	Wireless router - 4-port switch (integrated)
Enclosure Type	In-vehicle
Encryption Algorithm	WPA-Personal, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, WEP
Features	2x2 MU-MIMO technology, 4x4 MU-MIMO technology, reverse polarity protection, transient voltage protection, Ignition Sense, firewall protection, 3GPP Release 12
Frequency Band	2.4 GHz / 5 GHz
Performance	Stateful firewall throughput: 940 Mbps VPN throughput (IPSec): 20 Mbps
Status Indicators	Power, GPS, modem, signal strength, Wi-Fi, WAN
Line Properties
Line Coding Format	256 QAM
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Miscellaneous
Cables Included	1 x GPIO cable - 3 m
Localization	North America (US and Canada)
MTBF	286,853 hours
Power
Power Consumption Operational	14 watt
