Hardware Computer Components Motherboards

Motherboards

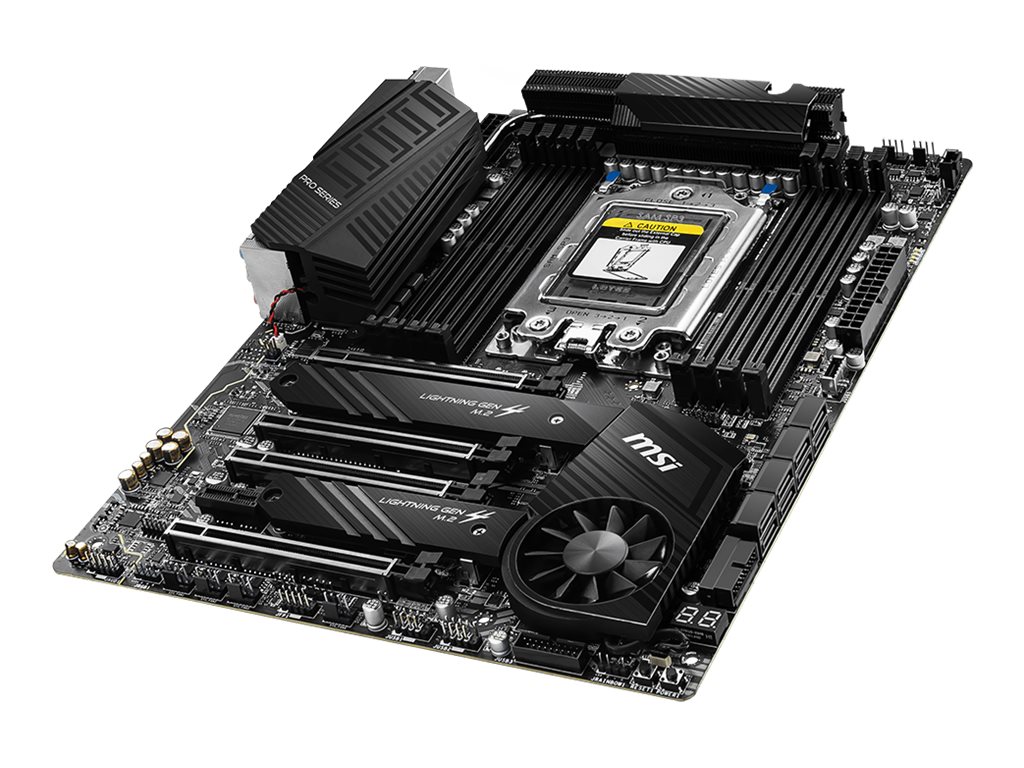

MSI TRX40 PRO WIFI - Motherboard

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
ATX Socket sTRX4 AMD TRX40 Chipset USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 Bluetooth, 2 x Gigabit LAN, Wi-Fi 6

MSI TRX40 PRO WIFI - Motherboard

ATX
Socket sTRX4
AMD TRX40 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
Bluetooth, 2 x Gigabit LAN, Wi-Fi 6
HD Audio (8-channel)

Additional Details
Mfr Part #:	TRX40 PRO WIFI
SHI Part #:	39312705
Category:	motherboards or daughterboards
UNSPSC:	43201513
Manufacturer:	MSI
Product Type:	Hardware

General Information
Category	motherboards or daughterboards
Description	MSI TRX40 PRO WIFI - Motherboard - ATX - Socket sTRX4 - AMD TRX40 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - Bluetooth, 2 x Gigabit LAN, Wi-Fi 6 - HD Audio (8-channel)
Manufacturer	MSI
UNSPSC	43201513
Main Specifications
Dimensions & Weight / Depth	24.4 cm
Dimensions & Weight / Width	30.4 cm
Header / Brand	MSI
Mainboard / Chipset Type	AMD TRX40
Mainboard / Compatible Processors	Ryzen ThreadRipper
Mainboard / Processor Socket	Socket sTRX4
Networking / Data Link Protocol	802.11ax Bluetooth 5.0 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11b IEEE 802.11g IEEE 802.11n
Packaged Quantity	1
Video Output / Type	None
Audio
Audio Codec	Realtek ALC1220
Compliant Standards	High Definition Audio
Type	HD Audio (8-channel)
Expansion / Connectivity
Expansion Slots	1 x CPU 8 x DIMM 288-pin 4 x PCIe 4.0 x16 (x16/x8/x16/x8 mode) 1 x PCIe 3.0 x1
Interfaces	1 x USB-C Gen2x2 4 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x TOSLINK 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 2 x LAN (Gigabit Ethernet) 3 x USB 3.2 Gen 2
Internal Interfaces	4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C Gen2 - header 1 x audio - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Storage Interfaces	SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Features
BIOS Features	M-Flash, MSI ClickBIOS 5
Hardware Features	NVIDIA 3-way SLI Technology Support, AMD 3-way CrossFireX technology support, Clear CMOS Button, Debug LED, MSI Steel Armor, MSI Audio Boost 4, M.2 Shield FROZR, Nahimic 3 Sound Technology, MSI Core Boost, AMD StoreMI technology, Extended Heatsink Design, Zero Frozr technology, AMD Turbo USB 3.2 Gen 2, Secure Erase+, Frozr Heatsink Design, 12+3 Phase Power Design
General
Chipset Type	AMD TRX40
Compatible Processors	Ryzen ThreadRipper (supports 3rd Generation Ryzen ThreadRipper)
Max Processors Qty	1
Processor Socket	Socket sTRX4
Product Type	Motherboard - ATX
LAN
Network Controller	2 x Intel I211-AT / Intel AX200
Network Interfaces	Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Miscellaneous
Cables Included	2 x Serial ATA cable
Depth	24.4 cm
Included Accessories	I/O back cover, MSI M.2 Xpander-Z Gen4 card
Software Included	Drivers & utilities
Width	30.4 cm
Supported RAM
Bus Clock	2400 MHz, 2133 MHz, 2666 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.)
Features	Intel Extreme Memory Profiles (XMP), quad channel memory architecture, A-XMP support
Max Size	256 GB
Registered or Buffered	Unbuffered
Supported RAM Integrity Check	Non-ECC, ECC
Technology	DDR4
