Vaddio EasyIP 20 Mixer Base Kit
MSRP$6,976.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

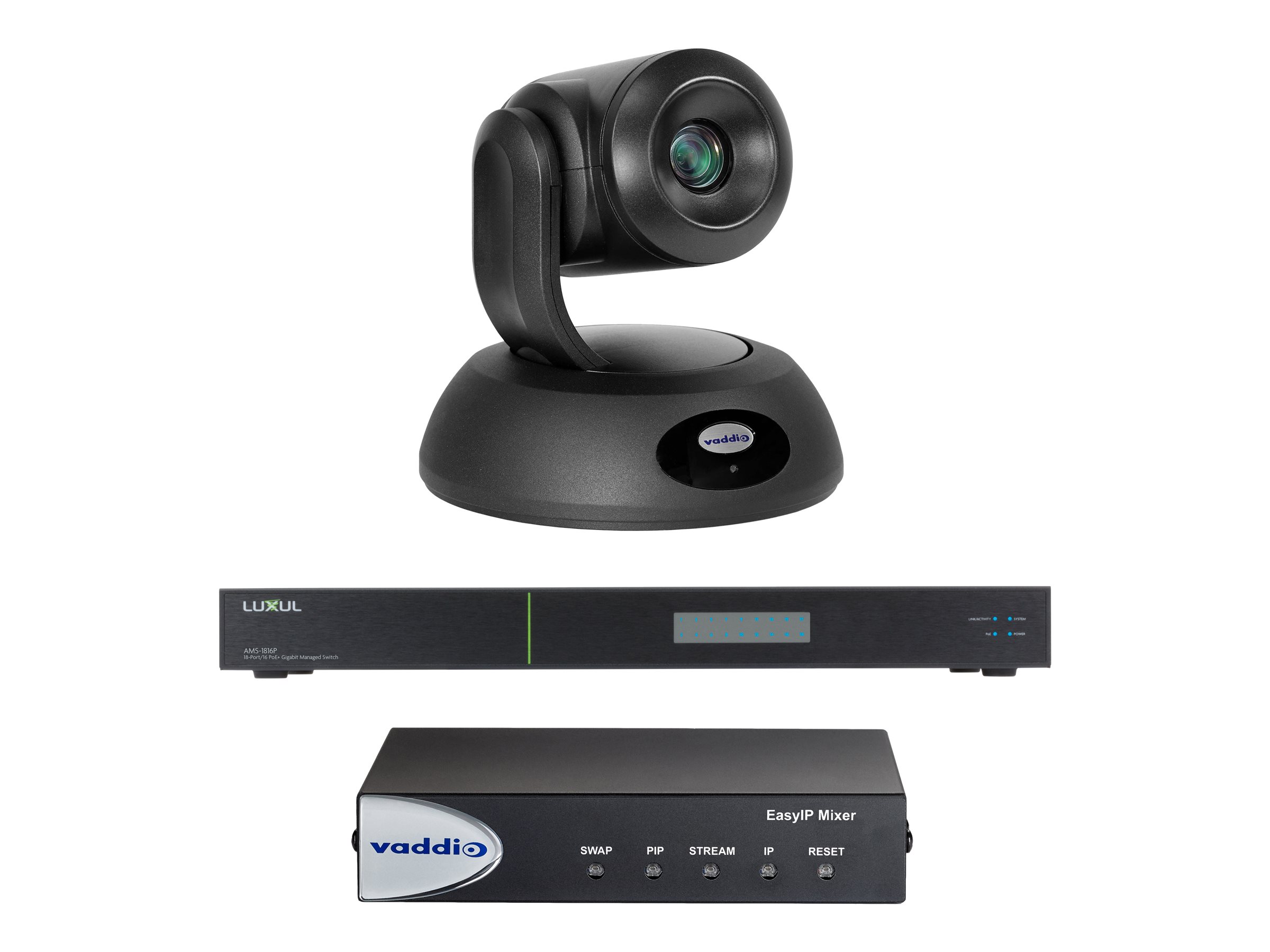

Vaddio EasyIP 20 Mixer Base Kit
- Includes PTZ Camera, Switcher, and Audio Matrix
- Black
- Mixer Base Kit

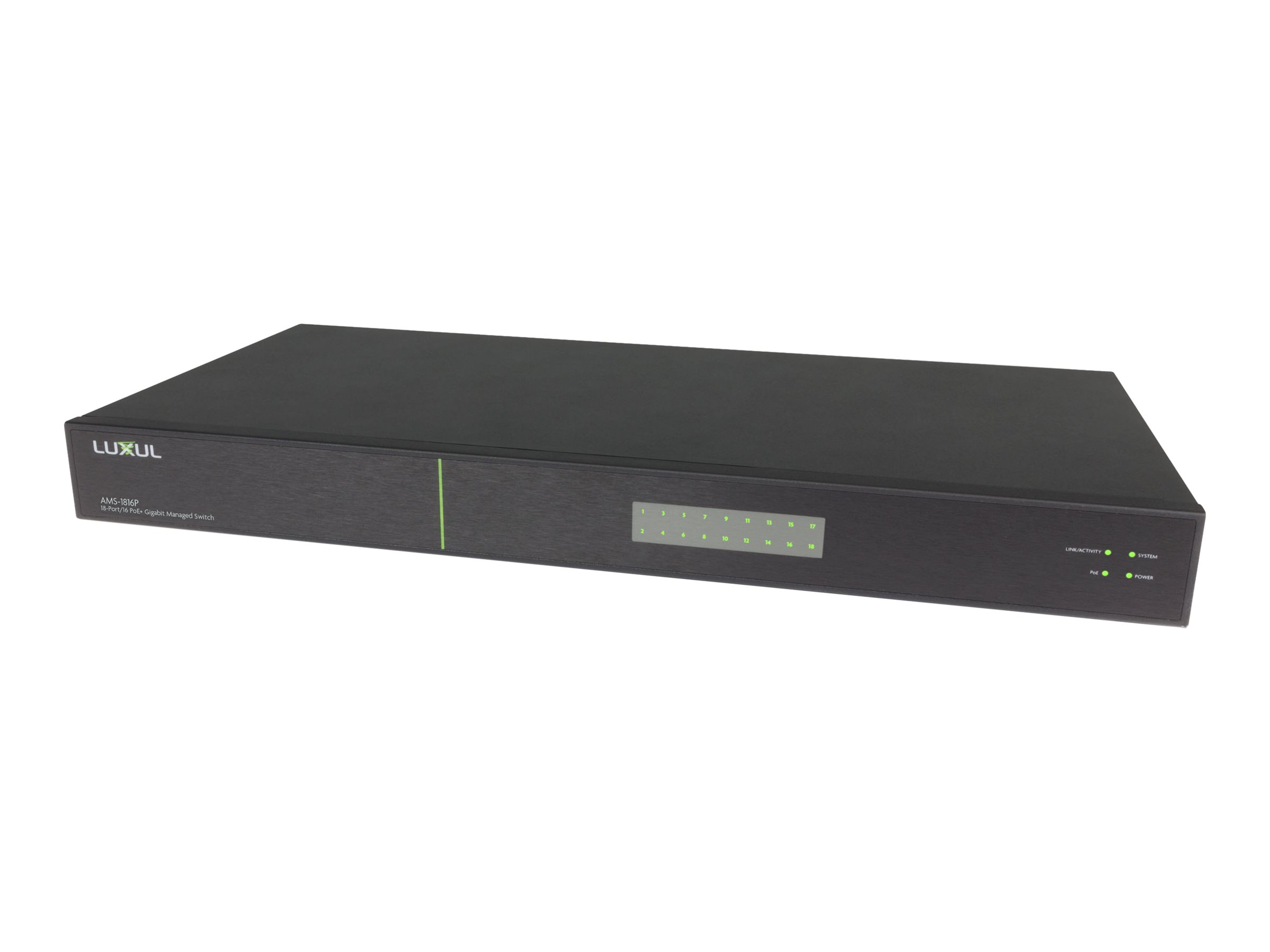

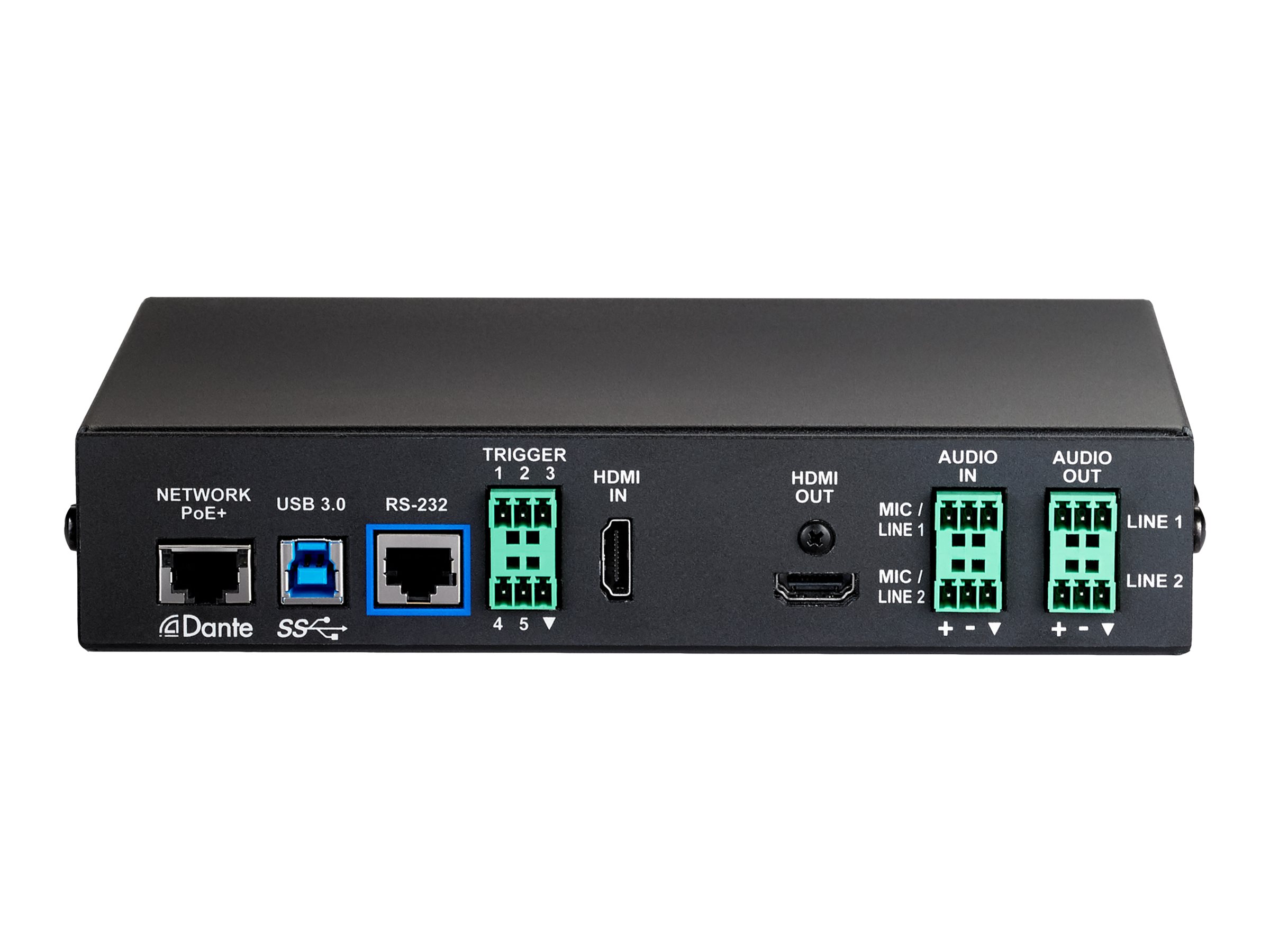

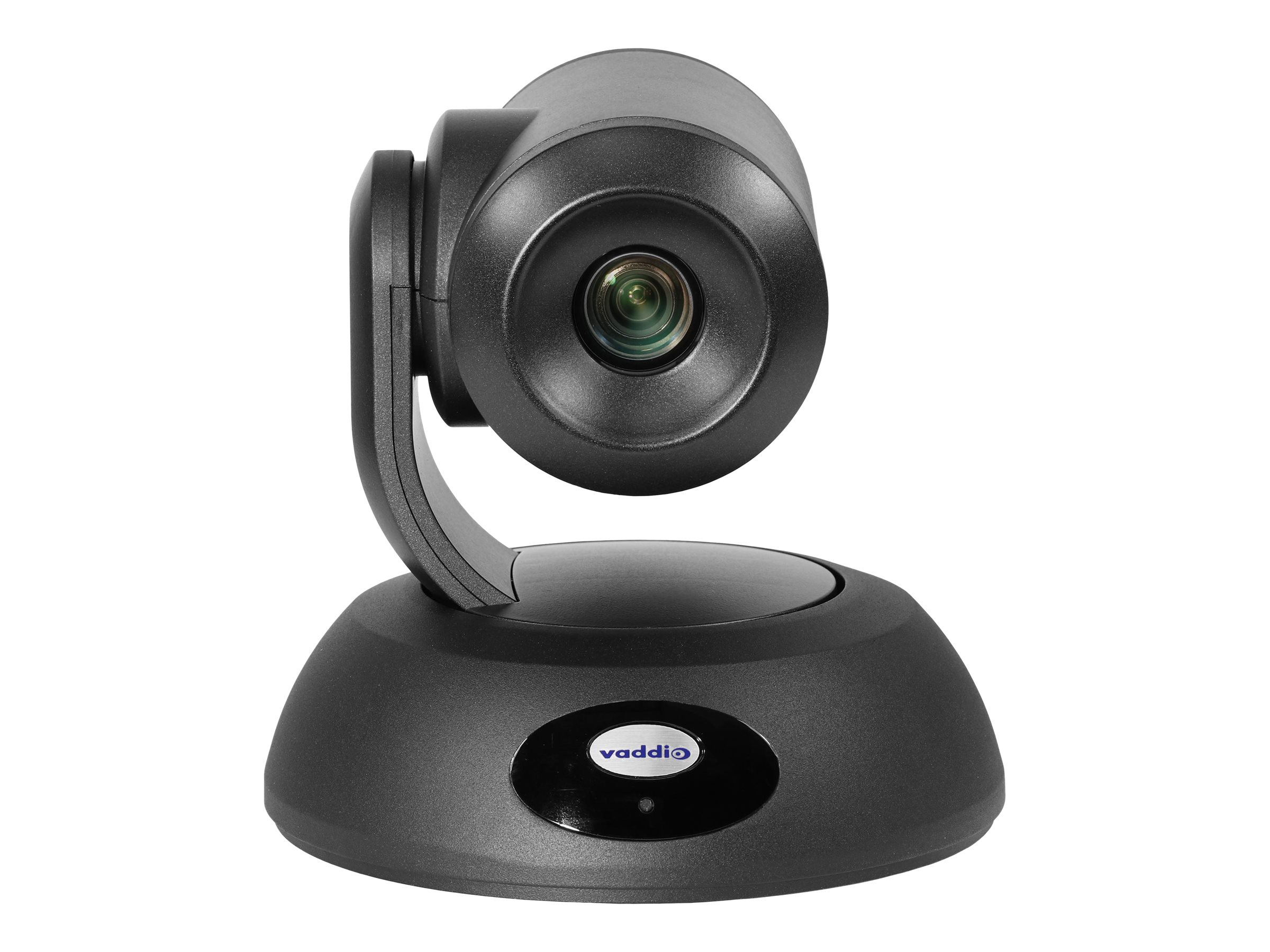

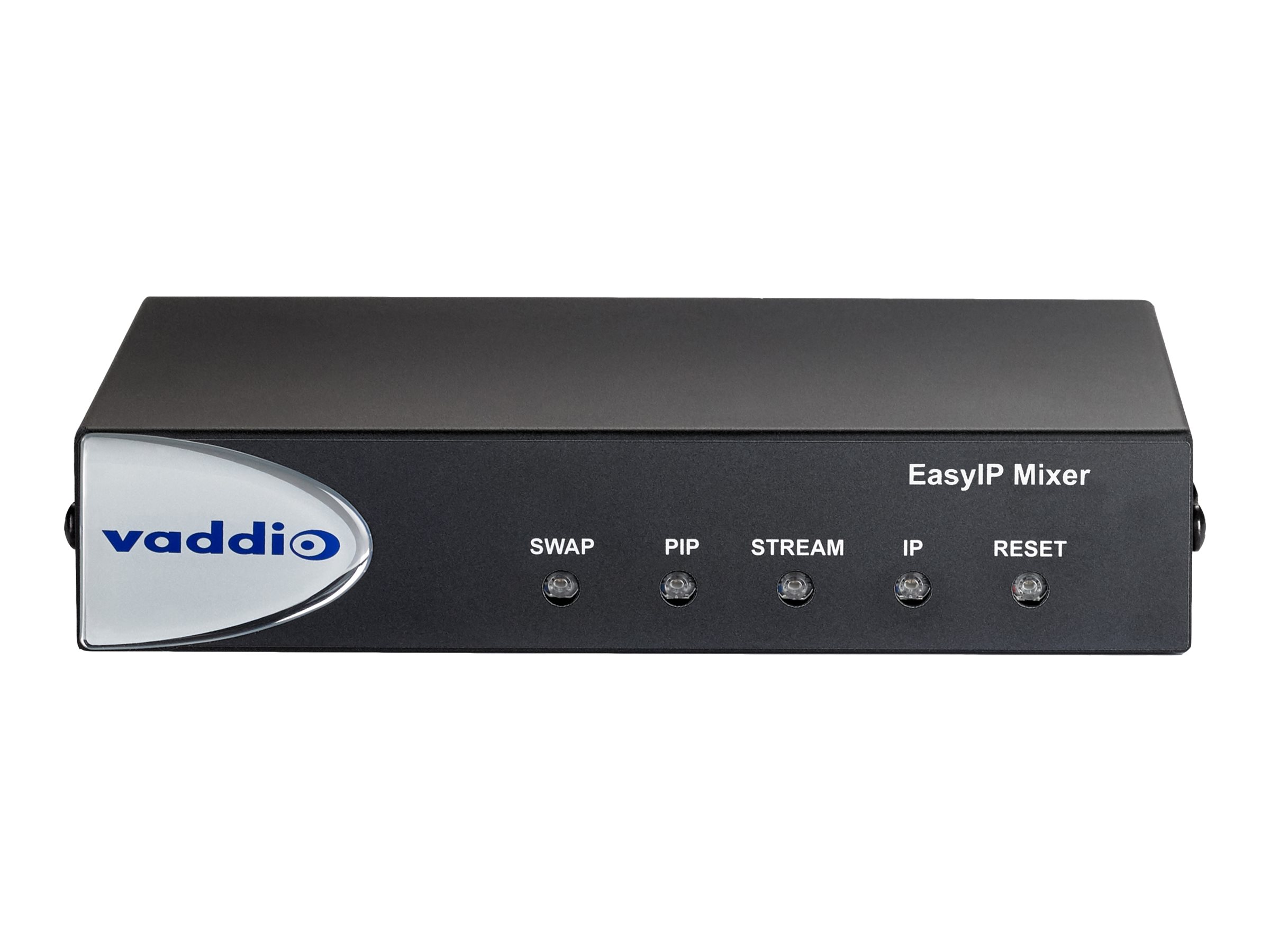

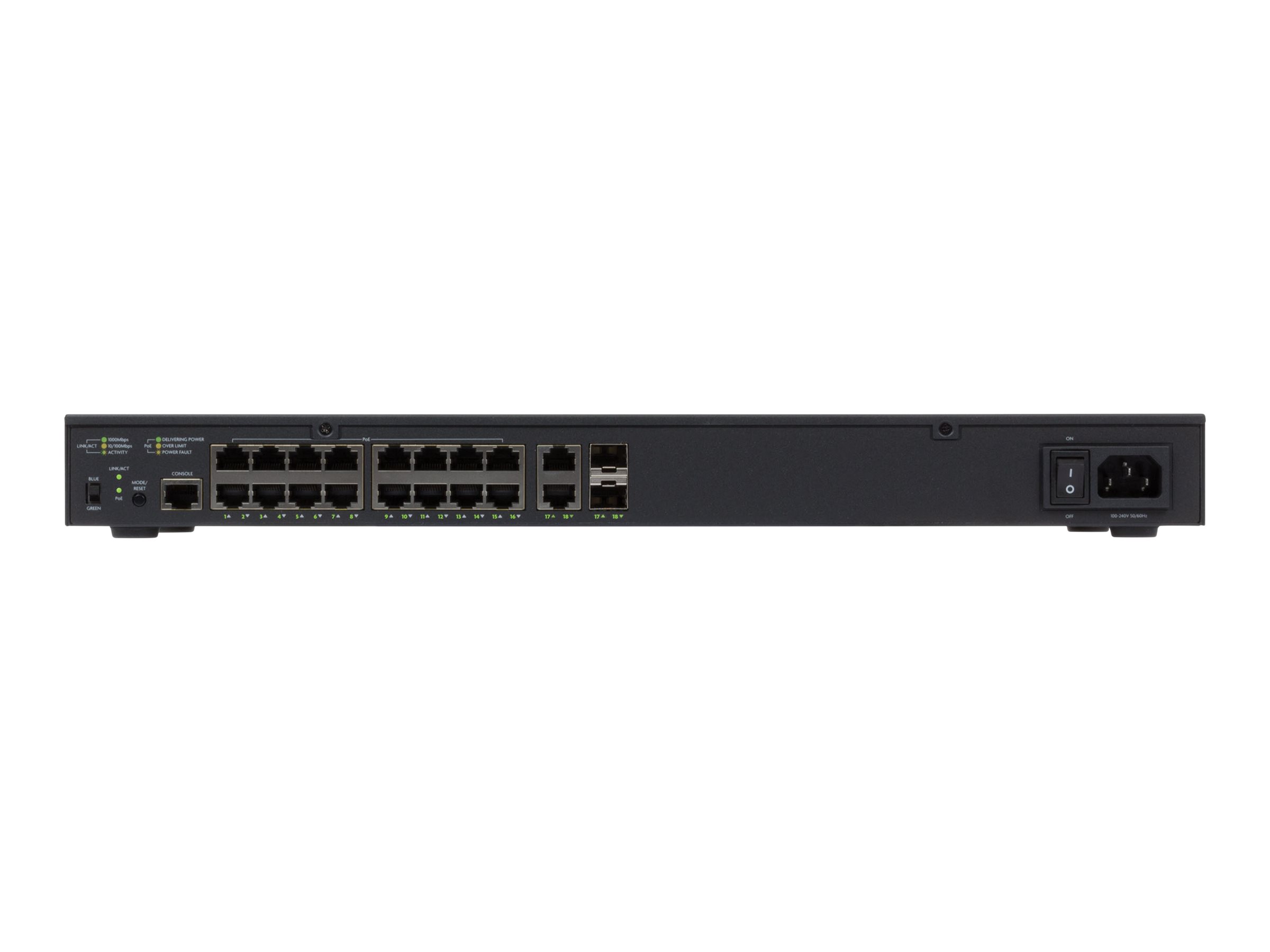

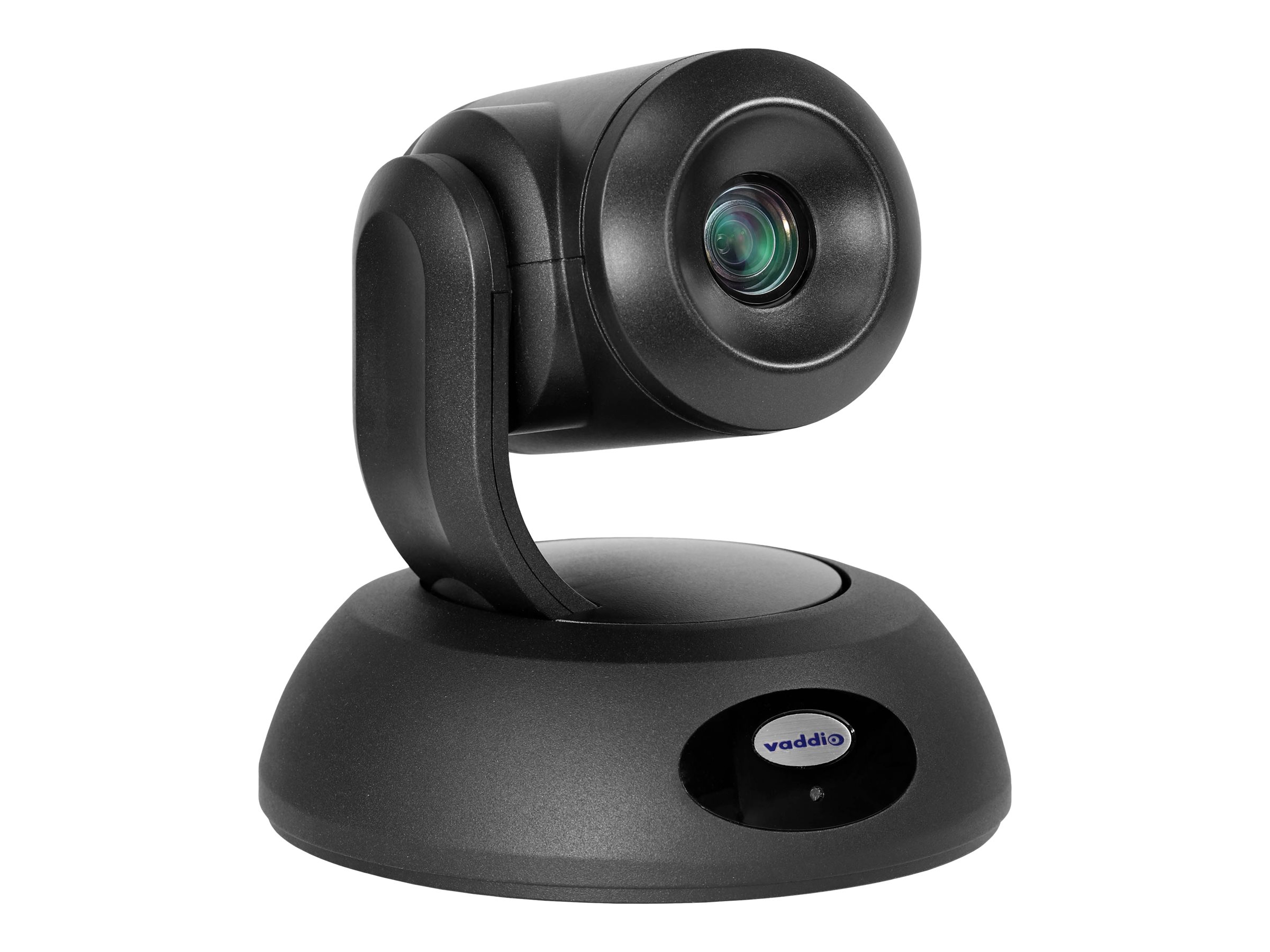

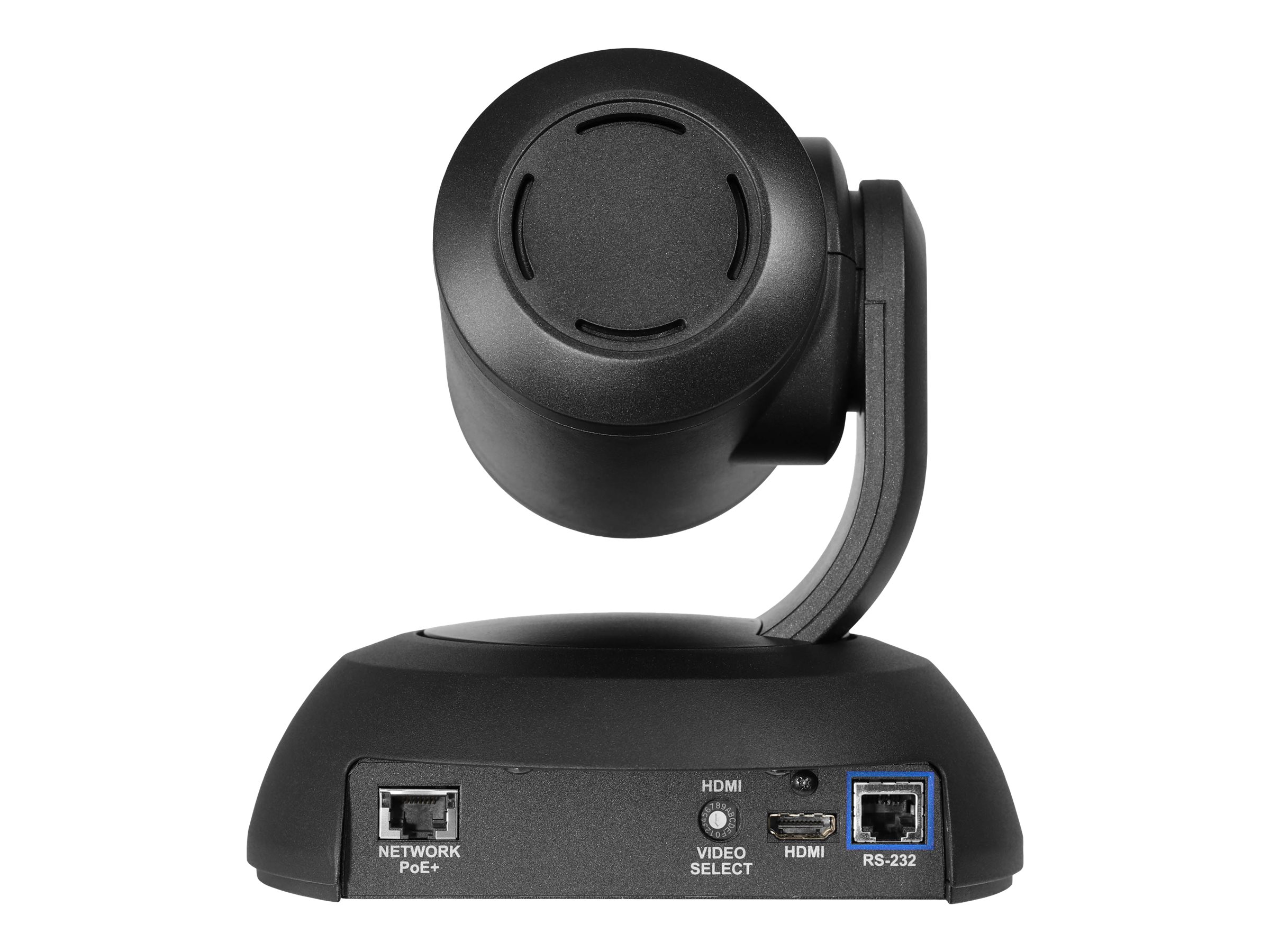

- video conferencing kit (camera, EasyIP Mixer, EasyIP Switch (Luxul AMS-1208p))
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $6,976.00 |
| Mfr Part #: | 999-30231-000 |
| SHI Part #: | 41049402 |
| Category: | Videoconferencing systems |
| UNSPSC: | 45111902 |
| Manufacturer: | Vaddio |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Videoconferencing systems |
| Description | Vaddio EasyIP 20 Mixer Base Kit - Includes PTZ Camera, Switcher, and Audio Matrix - Black - Mixer Base Kit - video conferencing kit (camera, EasyIP Mixer, EasyIP Switch (Luxul AMS-1208p)) - black - TAA Compliant |
| Manufacturer | Vaddio |
| MSRP | $6,976.00 |
| UNSPSC | 45111902 |
| Main Specifications | |
| Header / Brand | Vaddio |
| Header / Country Kits | North America |
| Input Device / Type | Remote control |
| Miscellaneous / Product Color | Black |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Audio Output | |
| Frequency Response | 20 - 20000 Hz |
| Total Harmonic Distortion (THD) | <0.02% |
| Type | Sound card |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video conferencing kit |
| Dimensions & Weight Details |
|
| Enclosure Color | Black |
| Kit Content | Camera, EasyIP Mixer, EasyIP Switch (Luxul AMS-1208p) |
| Localization | North America |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| Input Device | |
| Connectivity Technology | Wireless |
| Type | Remote control |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC |
| Included Accessories | Wall mount, mounting hardware, rack mount kit, 6 x 3 pin Phoenix connector |
| TAA Compliant | Yes |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Layer 3 switching, layer 2 switching, VLAN support, Weighted Round Robin (WRR) queuing, half duplex mode, full duplex mode, Quality of Service (QoS), PoE+, static routing, DSCP based CoS, VLAN trunking, 185W PoE power budget |
| Type | Switch |
| Video Input | |
| Angular Field Of View (max, degree) | 70.2 |
| Camera Mechanical Design | Pan / tilt / zoom |
| Digital Video Capture Resolution | 1080p |
| Features | Manual white balance, Backlight Compensation (BLC), manual gain control, auto gain control, auto white balance, noise reduction, Auto Focus, -30° / +90° tilt, 17 preset positions, PoE+ support, 1/2.5 Exmor R CMOS image sensor type, 8.57 megapixels, -150° / +150° pan, 0.35 - 120°/sec pan speed, 0.35 - 120°/sec tilt speed |
| Interface Type | Ethernet, HDMI |
| Optical Zoom | 20 |
| Type | Digital video camera (color) - external |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Video Output | |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Max External Resolution | 1920 x 1080 |
| Type | Codec board - external |
