SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery


MSRP$399.99
$314.00
SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Docking station
  • Thunderbolt 3
  • DP, Thunderbolt
  • 1GbE
  • 150 Watt
SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
  • Docking station
  • Thunderbolt 3
  • DP, Thunderbolt
  • 1GbE
  • 150 Watt
  • TAA Compliant
  Additional Details
Price: $314.00
MSRP: $399.99
Mfr Part #: JU-DK0K11-S1
SHI Part #: 41772117
Category: Docking stations
UNSPSC: 43211602
Manufacturer: SIIG
Product Type: Hardware
General Information
CategoryDocking stations
DescriptionSIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery - Docking station - Thunderbolt 3 - DP, Thunderbolt - 1GbE - 150 Watt - TAA Compliant
ManufacturerSIIG
MSRP$399.99
UNSPSC43211602
Main Specifications
Dimensions & Weight / Depth14.1 cm
Dimensions & Weight / Height4.24 cm
Dimensions & Weight / Weight898 g
Dimensions & Weight / Width14.9 cm
Header / BrandSIIG
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Service & Support / Type2-year warranty
System / Device Type (AI)Docking station
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots
  • 1 (total) / 1 (free) x SDXC UHS-II Memory Card

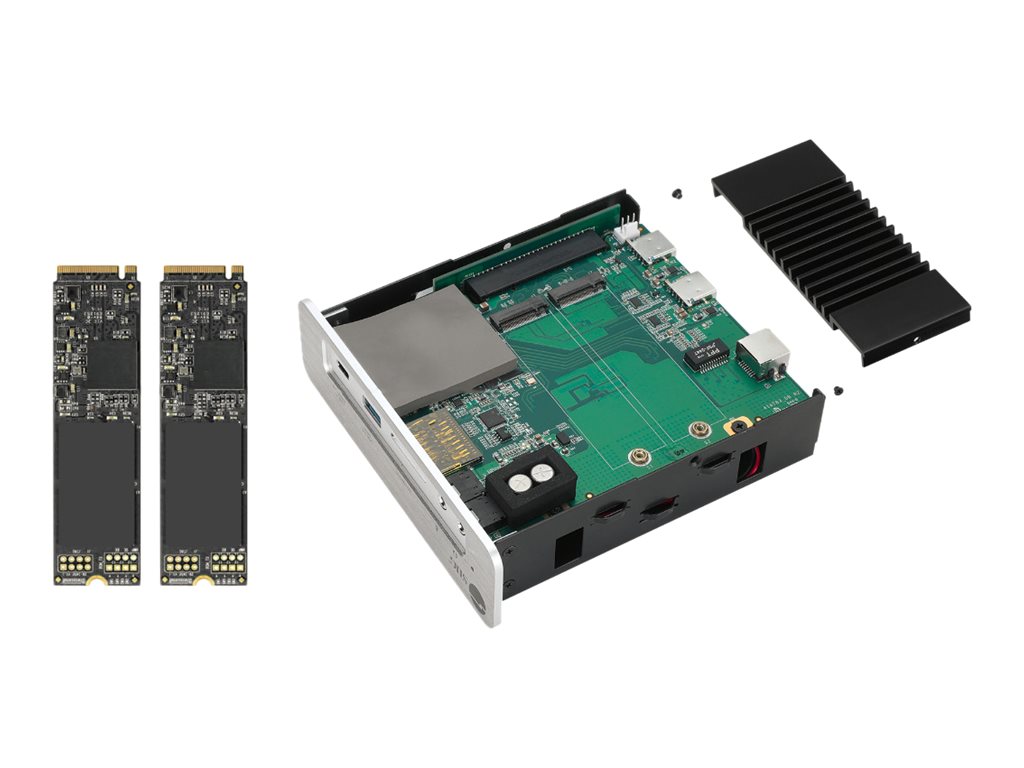

  • 1 (total) / 1 (free) x M.2 2280 (Key M)
Interfaces
  • 1 x USB-C 3.1 Gen 2 - 24 pin USB-C
  • 2 x USB 3.1 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A
  • 1 x USB 3.1 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A
  • 1 x display / video - DisplayPort - 20 pin DisplayPort
  • 1 x network - RJ-45
  • 1 x headphones - mini-phone stereo 3.5 mm
  • 1 x microphone - mini-phone 3.5 mm
  • 1 x USB-C / Thunderbolt 3
  • 1 x USB-C / Thunderbolt 3 with Power Delivery
General
Depth14.1 cm
Enclosure ColorBlack
Height4.24 cm
Product TypeDocking station
Weight898 g
Width14.9 cm
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous

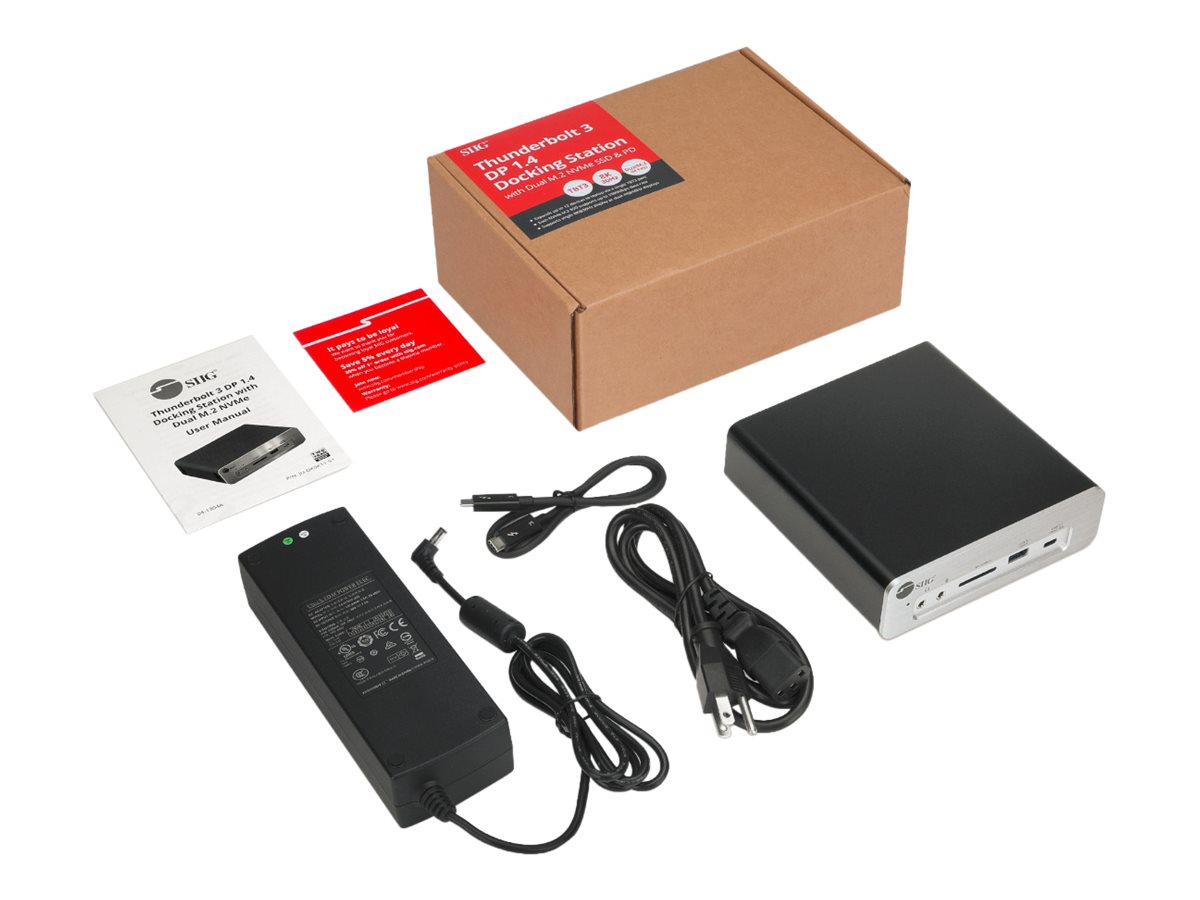

Cables Included1 x Thunderbolt 3 cable - 50 cm
Compliant StandardsFCC, RoHS, DisplayPort 1.4
TAA CompliantYes
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Power
Power DevicePower adapter
Power Provided150 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Storage
Storage ControllerPCI Express
System Requirements
OS RequiredWindows 10 (32/64 bits), Apple macOS 10.12 or later
