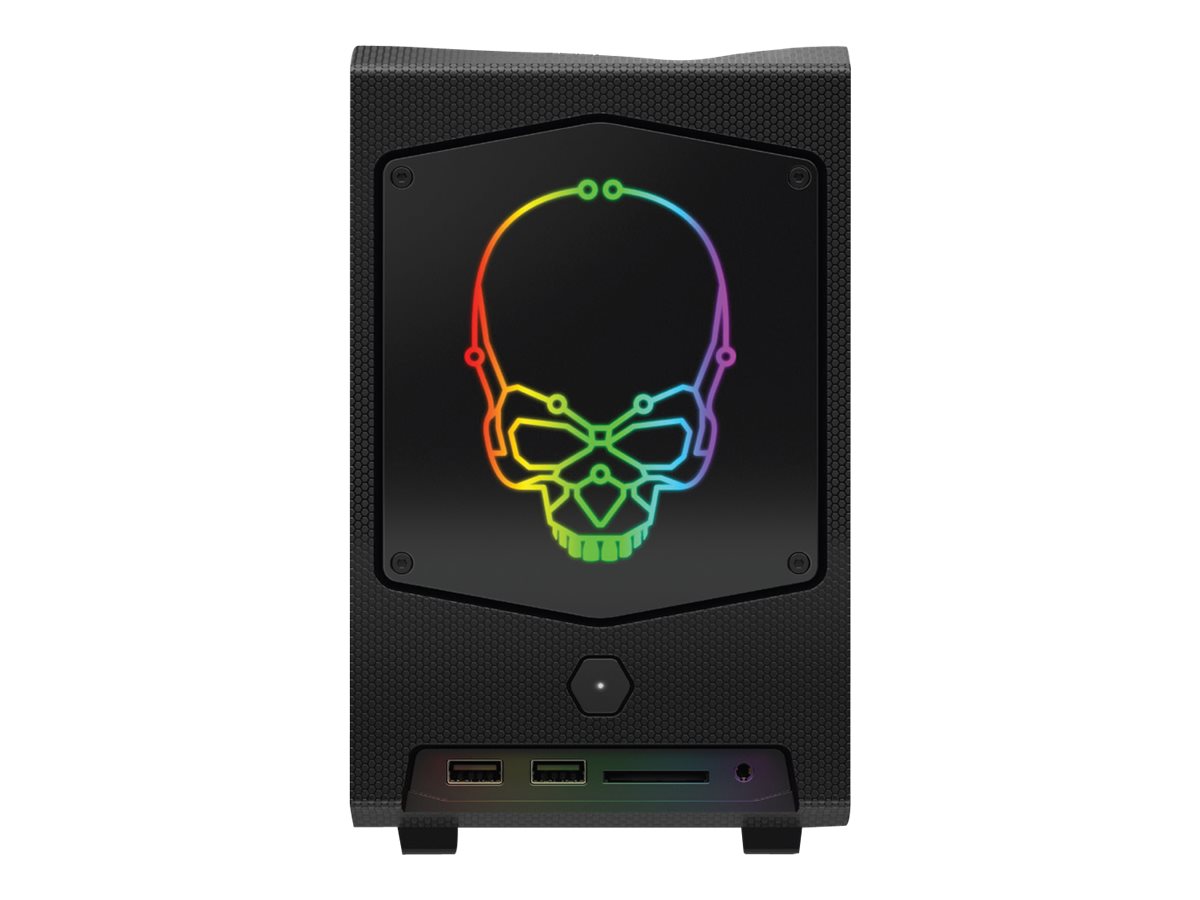

NUC 11 EXTRM KIT NUC11BTMI7 W/ NO CORD 1PK MM#99A8VJ BEAST C
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NUC 11 EXTRM KIT NUC11BTMI7 W/ NO CORD 1PK MM#99A8VJ BEAST C
| Additional Details | |
|---|---|
| Mfr Part #: | RNUC11BTMI70000 |
| SHI Part #: | 43249392 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | NUC 11 EXTRM KIT NUC11BTMI7 W/ NO CORD 1PK MM#99A8VJ BEAST C |
| Manufacturer | Intel |
| UNSPSC | 43211507 |
| Main Specifications | |
| A/V Interface Type | Thunderbolt 4 / HDMI |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 35.7 cm |
| Dimensions & Weight / Height | 18.9 cm |
| Dimensions & Weight / Width | 12 cm |
| Display / Type | None. |
| Header / Brand | Intel |
| Mainboard / Chipset Type | Intel WM590 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Generation | 11 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | I7-11700B |
| Processor / Type | Core i7 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Video Output / Graphics Processor | Intel UHD Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 24 MB |
| Installed Size | 24 MB |
| Card Reader | |
| Supported Flash Memory Cards | SDXC UHS-II Memory Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 35.7 cm |
| Height | 18.9 cm |
| Width | 12 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Interface Type | Thunderbolt 4 / HDMI |
| Max Monitors Supported | 3 |
| Video Interfaces | USB-C, HDMI |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, CISPR 32, EN 55032, EN55024, ICES-003, VCCI 32, BSMI CNS 13438, KN32, AS/NZS CISPR 32, EN 300 328, EN 301 893, EN 300.440, EN 62311, AS/NZS 4268, AS/NZS 2772.2, ARPANSA, EU RoHS, China RoHS, Taiwan BSMI RoHS, REACH, KN35, EN 301 489-1, EN 301 489-3, EN 301 489-17 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Bluetooth 5.2, Wi-Fi CERTIFIED 6 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2 |
| Ethernet Controller | Intel I225-LM |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 210 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Gold |
| Device Type | Power supply |
| Power Provided | 650 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel WM590 |
| Clock Speed | 3.2 GHz |
| CPU | Intel Core i7 (11th Gen) 11700B |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 8-core |
| Processor Main Features | Intel Virtualization Technology, Intel Platform Trust Technology (PTT), Intel AES New Instructions |
| RAM | |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x SATA/NVMe |
