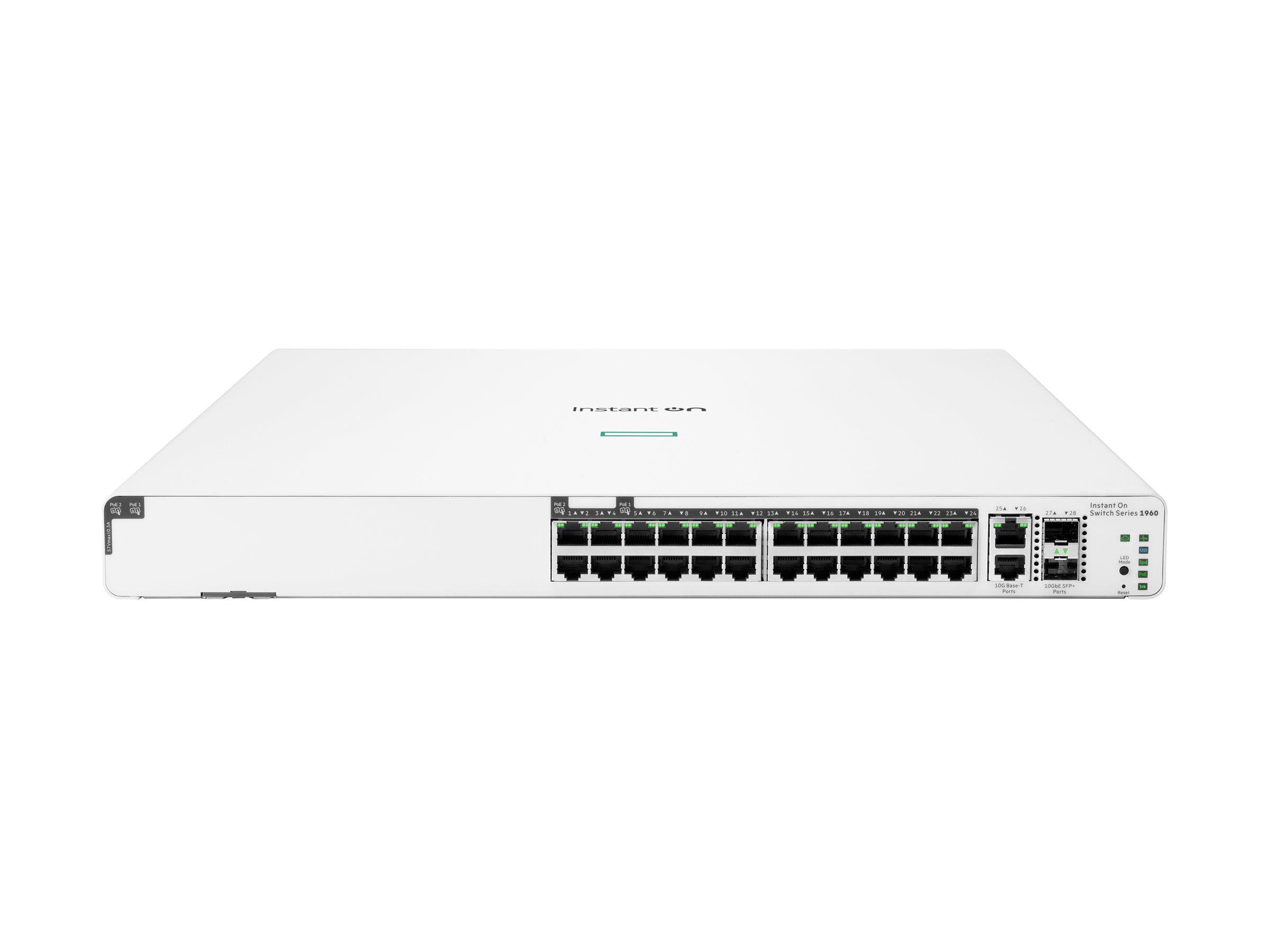

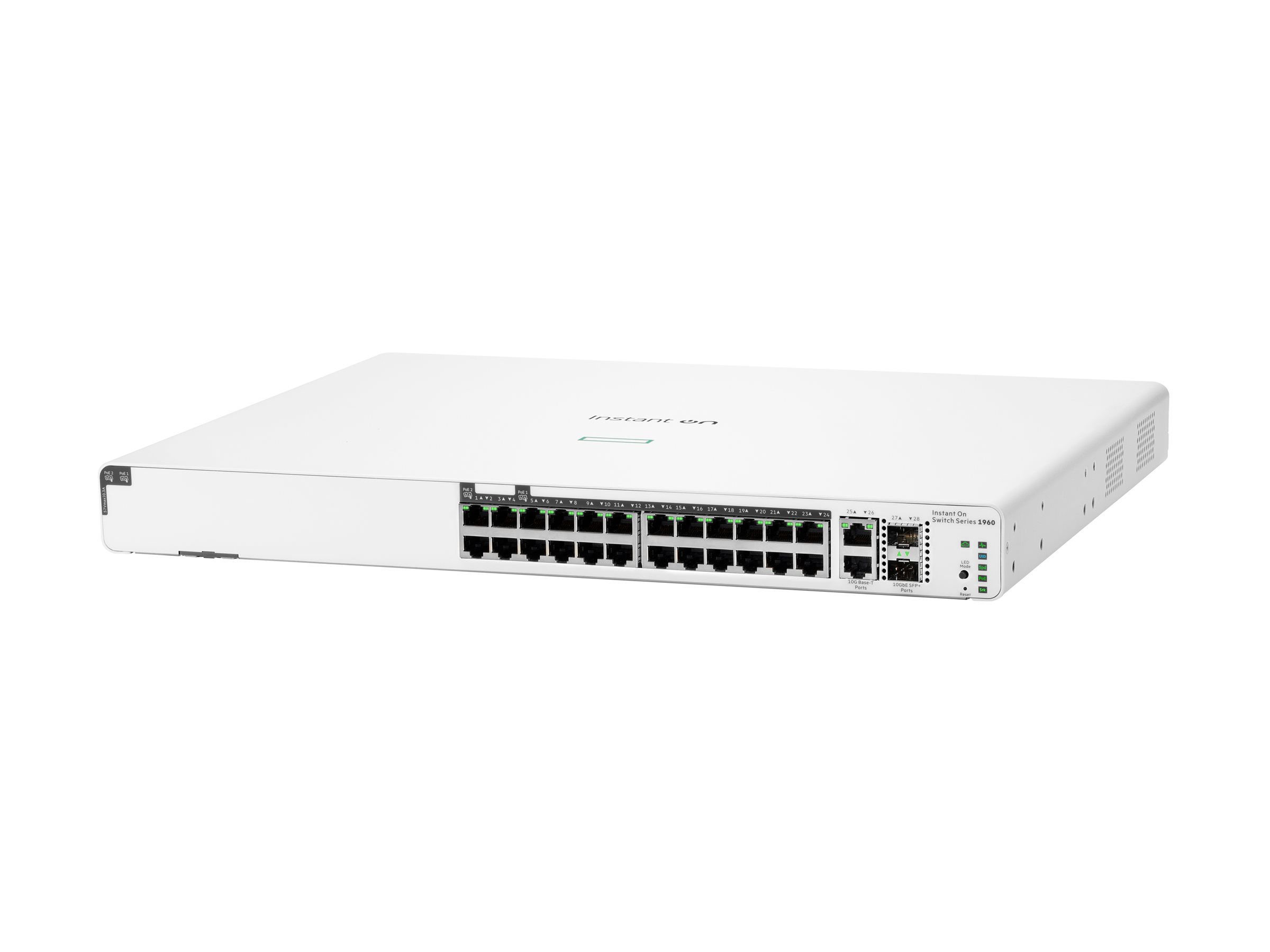

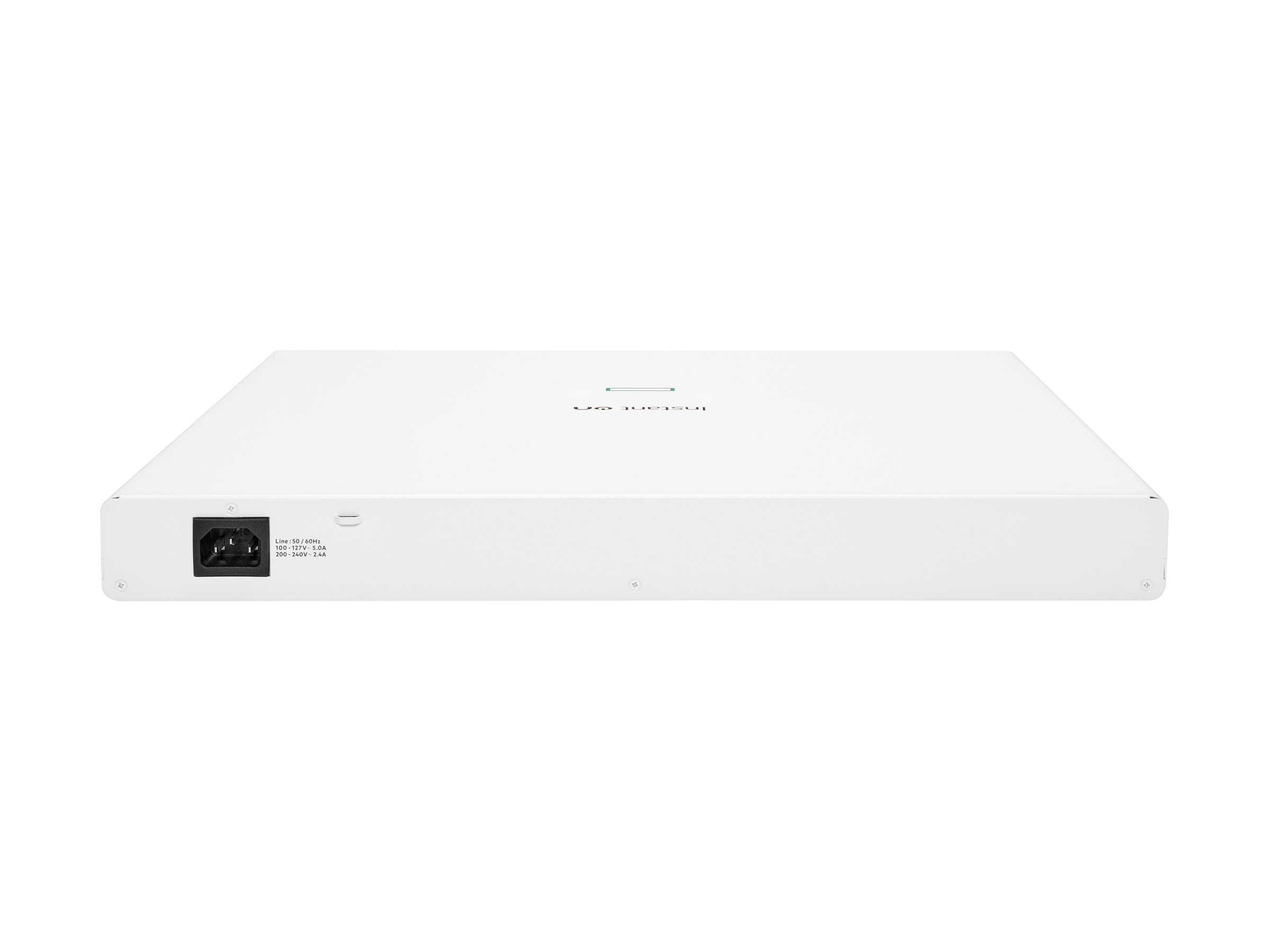

HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch

MSRP$1,472.00

$1,275.00

HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Switch managed 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T rack-mountable PoE (370 W)

HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch

Switch
managed
24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
rack-mountable
PoE (370 W)

Additional Details
Price:	$1,275.00
MSRP:	$1,472.00
Mfr Part #:	JL807A#ABA
SHI Part #:	43914627
Category:	Network switches
UNSPSC:	43222612
Manufacturer:	Hewlett Packard Enterprise
Product Type:	Hardware

Network Cables

HPE Aruba Direct Attach Copper Cable

10GBase direct attach cable
SFP+ (M) to SFP+ (M)
3 m
twinaxial
passive
for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360

MSRP $215.00

$165.00

HPE Networking Instant On

10GBase direct attach cable
SFP+ to SFP+
1 m
for P/N: JL684B#ACC, JL686B#ACC

MSRP $72.00

$61.00

HPE Networking Instant On

10GBase direct attach cable
SFP+ to SFP+
3 m
for P/N: JL684B#ACC, JL686B#ACC

MSRP $98.00

$80.00

Routers

HPE Aruba - SFP (mini-GBIC) transceiver module

GigE
1000Base-SX
LC multi-mode
up to 500 m
for OfficeConnect 1820; HPE Aruba 2930F 12, 2930F 8G, 2930M 40, 6300, 6405 48, 6405 96, 64XX

MSRP $480.00

$168.00

Networking and Security

HPE Networking Instant On

SFP+ transceiver module
10GbE
10GBase-SR
SFP+ / LC multi-mode
up to 300 m
for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360

MSRP $1,454.00

$1,164.00

HPE Aruba - SFP (mini-GBIC) transceiver module

1GbE
1000Base-SX
LC multi-mode
up to 500 m
for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360

MSRP $480.00

$172.00

HPE Networking Instant On

SFP+ transceiver module
10GbE
10GBase-LR
SFP+ / LC single-mode
up to 10 km
for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360

MSRP $4,078.00

$1,650.00

General Information
Category	Network switches
Description	HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch - Switch - managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T - rack-mountable - PoE (370 W)
Manufacturer	Hewlett Packard Enterprise
MSRP	$1,472.00
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	35.05 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	4.7 kg
Dimensions & Weight / Width	44.25 cm
Header / Brand	HPE
Header / Country Kits	United States
Header / Localization	English
Miscellaneous / Product Color	White
Networking / Form Factor	Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	35.05 cm
Height	4.4 cm
Weight	4.7 kg
Width	44.25 cm
Environmental Parameters
Humidity Range Operating	15 - 95% (40 °C)
Max Operating Temperature	40 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Expansion / Connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 370 W 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ 2 x 10GBase-T RJ-45
General
Authentication Method	RADIUS
Capacity	MAC address entries: 16000 IPv4 routes (static): 32 IPv6 routes (static): 32
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Device Type	Switch - 24 ports - managed - stackable
Enclosure Type	Rack-mountable 1U
Features	EEE, ARP support, auto-uplink (auto MDI/MDI-X), DHCP support, TPM, VLAN support, auto voice VLAN, LLDP-MED, LACP, STP support, BPDU Filter, flow control, IPv6 support, auto-negotiation, ACL support, CoS, port mirroring, full duplex mode, half duplex mode
Jumbo Frame Support	9216 bytes
MAC Address Table Size	16000 entries
Performance	Throughput: 95 Mpps Switching capacity: 128 Gbps Latency (100 Mbps): 4.4 µs Latency (1 Gbps): 2.2 µs Latency (10 Gbps): 1.1 µs
PoE Budget	370 W
Ports	24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
Power Over Ethernet (PoE)	PoE
Processor	1 x ARM: 800 MHz
Remote Management Protocol	RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS
Routing Protocol	Static IP routing
Status Indicators	Port status, power
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Miscellaneous
Compliant Standards	IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class A, CISPR 32:2015 Class A, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, EN 55035, CISPR 35, KN35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3
Localization	English / United States
MTBF	65.3 years
Power
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
