Hardware Cameras and Camcorders Digital Cameras and Camcorders

Digital Cameras and Camcorders

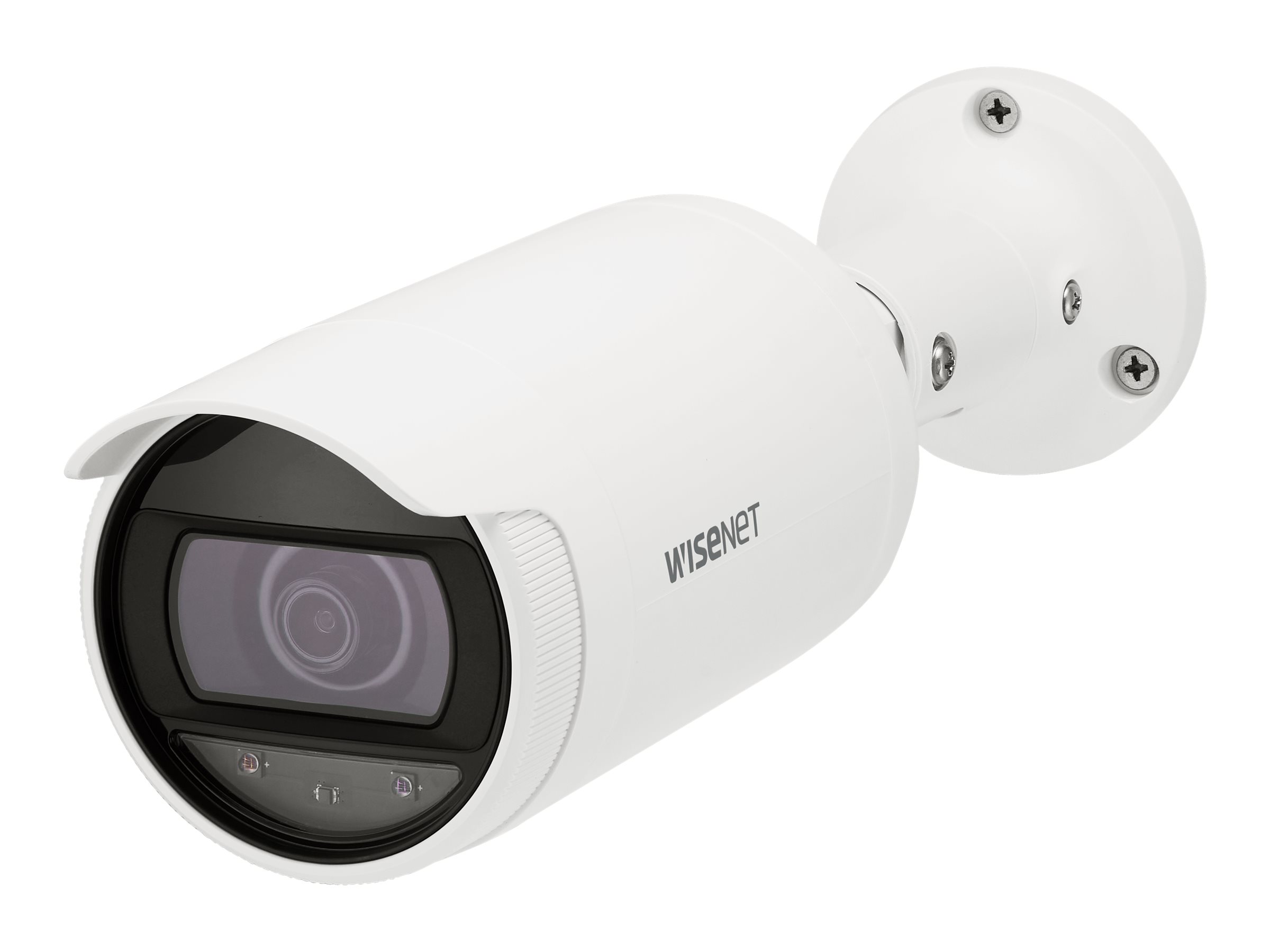

Hanwha Vision WiseNet ANO-L7012R

MSRP$253.00

$186.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Network surveillance camera bullet indoor, outdoor color (Day&Night) 4 MP

Hanwha Vision WiseNet ANO-L7012R

Network surveillance camera
bullet
indoor, outdoor
color (Day&Night)
4 MP
2560 x 1440
fixed focal
LAN 10/100
H.264, H.265, MJPEG
PoE Class 3

Additional Details
Price:	$186.00
MSRP:	$253.00
Mfr Part #:	ANO-L7012R
SHI Part #:	44888229
Category:	Digital cameras
UNSPSC:	45121504
Manufacturer:	HANWHA VISION
Product Type:	Hardware

General Information
Category	Digital cameras
Description	Hanwha Vision WiseNet ANO-L7012R - Network surveillance camera - bullet - indoor, outdoor - color (Day&Night) - 4 MP - 2560 x 1440 - fixed focal - LAN 10/100 - H.264, H.265, MJPEG - PoE Class 3
Manufacturer	HANWHA VISION
MSRP	$253.00
UNSPSC	45121504
Main Specifications
Dimensions & Weight / Depth	7.8 cm
Dimensions & Weight / Height	26.2 cm
Dimensions & Weight / Weight	390 g
Dimensions & Weight / Width	7.8 cm
Header / Brand	Hanwha Techwin
Miscellaneous / Product Color	White
Packaged Quantity	1
Camera
Digital Video Format	H.264, H.265, MJPEG
Exposure Range	1/5 sec - 1/12000 sec
Features	Backlight Compensation (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, Privacy Mask Function, Motion Detection Technology, Lens Distortion Compensation (LDC), image flip, image mirror, auto gain control, auto white balance, tamper-detection, Hallway View, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, anti-flicker, Virtual Line detection, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming, Defocus Detection, IP address filtering, entrance / exit detection, direction detection, WiseStream II support
Infrared Distance	20 m
Infrared LEDs	Yes
Max Digital Video Resolution	2560 x 1440
Minimum Illumination	0.13 lux - color - F1.6 - shutter 1/30 sec 0 lux - B&W - infrared LEDs on
Motion Detection	Yes
Type	Color - Day&Night - fixed - indoor, outdoor
Video Capture	2560 x 1440 @ 30 fps 1920 x 1080 @ 30 fps 1280 x 960 @ 30 fps 1280 x 720 @ 30 fps 800 x 600 @ 30 fps 800 x 448 @ 30 fps 720 x 576 @ 30 fps 720 x 480 @ 30 fps 640 x 480 @ 30 fps 640 x 360 @ 30 fps 320 x 240 @ 30 fps
Environmental Parameters
Max Operating Temperature	55 °C
Min Operating Temperature	-30 °C
Relative Humidity (operating)	0 - 95% RH
Expansion / Connectivity
Supported Memory Cards	microSD Card, microSDHC Card, microSDXC Card
General
Connectivity Technology	Wired
Depth	7.8 cm
Device Type	Network surveillance camera
Form Factor	Bullet
Height	26.2 cm
Weight	390 g
Width	7.8 cm
Image Sensor
Type	4 MP CMOS 1/3"
Interfaces
Network Interface	Ethernet 10Base-T/100Base-TX
Network Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM
Lens Construction
Diagonal Field of View (degree)	114.6
Focal Length	3 mm
Focus Adjustment	Fixed focus
Horizontal Field of View (degree)	98.3
Lens Iris	F/1.6
Min Focus Distance	1.1 m
Type	Fixed focal
Vertical Field of View (degree)	54.2
Miscellaneous
Color	White
Compliant Standards	IP66, IEEE 802.3af
Power
Power Device	5.7 Watt
Power Requirements	PoE Class 3
