Micron 5400 Boot - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

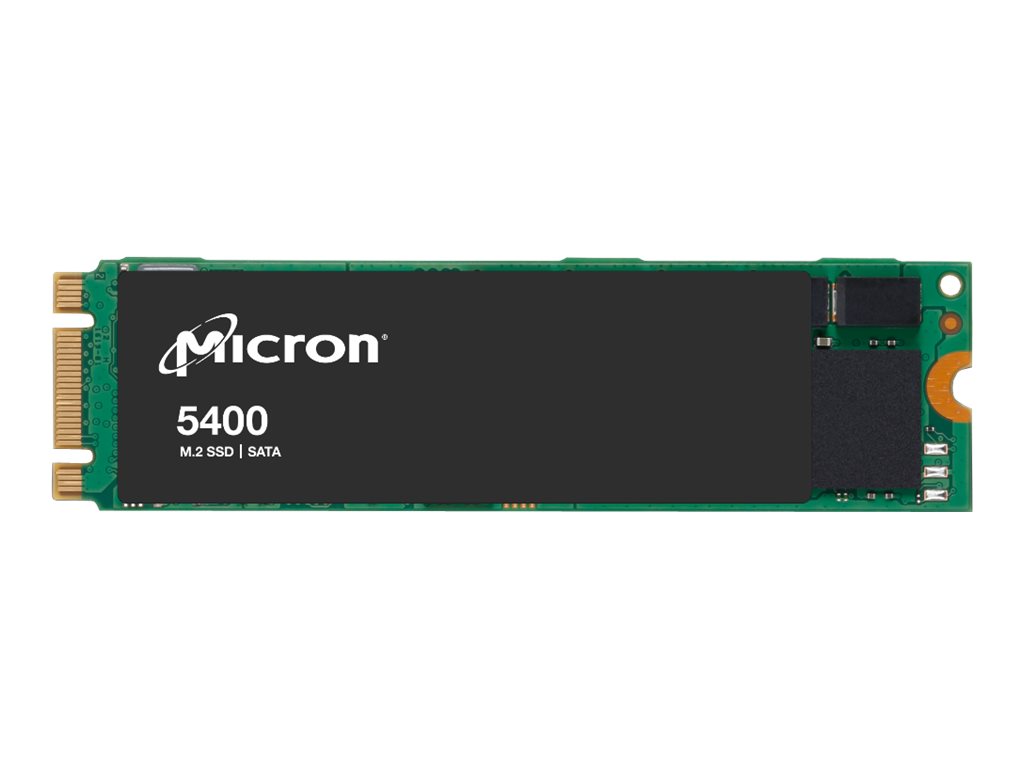

Micron 5400 Boot - SSD
- 240 GB
- internal
- M.2 2280
- SATA 6Gb/s
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MTFDDAV240TGC-1BC1ZABYYR |
| SHI Part #: | 45192191 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Micron Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 5400 Boot - SSD - 240 GB - internal - M.2 2280 - SATA 6Gb/s |
| Manufacturer | Micron Technology |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 3.8 mm |
| Dimensions & Weight / Weight | 10 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 240 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Micron |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| General | |
| Capacity | 240 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | Non-SED, 176-layer 3D NAND technology, RAIN technology, Hot-Plug Support, Thermal Monitoring, power loss data protection |
| Form Factor | M.2 2280 |
| Height | 3.8 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 10 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Performance | |
| 4KB Random Read | 62000 IOPS |
| 4KB Random Write | 12000 IOPS |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 540 MBps (read) / 290 MBps (write) |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 3,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
