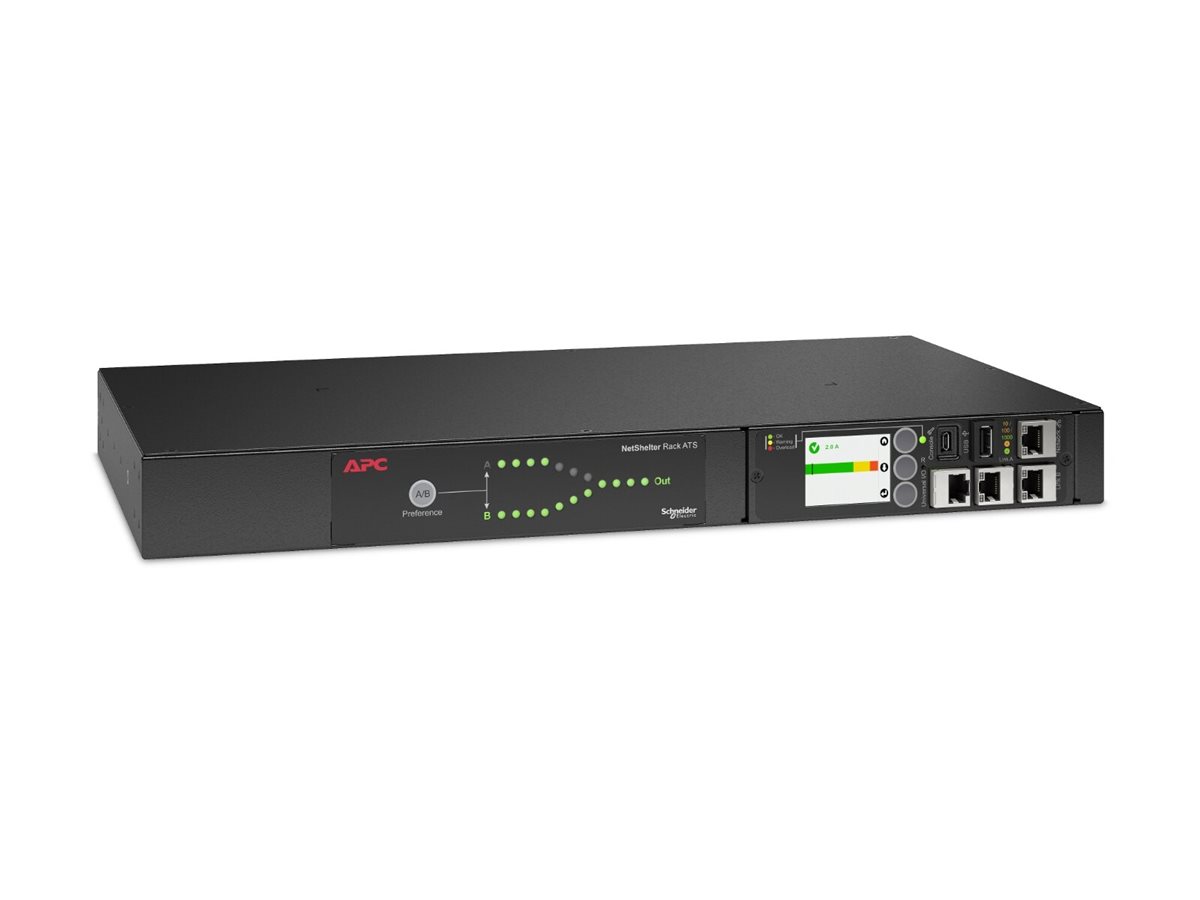

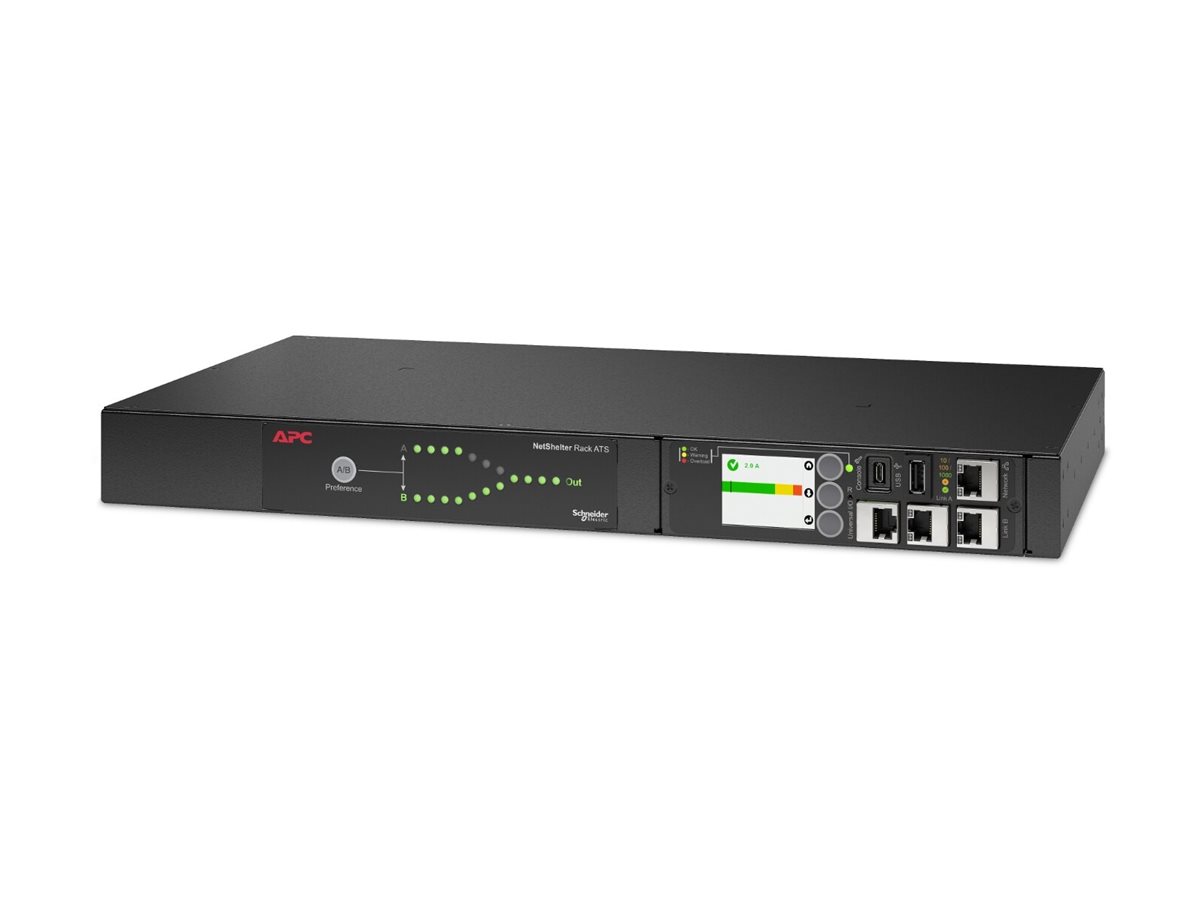

APC NetShelter - Automatic transfer switch (rack-mountable)
MSRP$2,350.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC NetShelter - Automatic transfer switch (rack-mountable)
- 1920 VA
- input: NEMA L5-30P
- output connectors: 10 (NEMA 5-20R)
- 1U
- 2.44 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,350.00 |
| Mfr Part #: | AP4452A |
| SHI Part #: | 45411958 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Cables
- for P/N: SMT1000RM1U, SRTL10KRM4UT, SRTL5KRM2UI-HW, SRTL5KRM2UT-HW, SRTL8KRM4UT
MSRP $137.00
$108.00
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter - Automatic transfer switch (rack-mountable) - 1920 VA - input: NEMA L5-30P - output connectors: 10 (NEMA 5-20R) - 1U - 2.44 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $2,350.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.6 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.4 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 10 |
| Power Device / Power Capacity (VA) | 1920 VA |
| Product Type |
|
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 4.4 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.6 cm |
| Shipping Height | 11.4 cm |
| Shipping Weight | 6.17 kg |
| Shipping Width | 60 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| General | |
| Color | Black |
| Cord Length | 2.44 m |
| Device Type | Automatic transfer switch - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | EN 55022 Class A, FCC Part 15 A, WEEE, EU RoHS, REACH, CP65 |
| Features | Horizontal orientation, front and rear mounting profile, temperature monitoring |
| Included Accessories | Mounting hardware |
| Rack Mounting Kit | Included |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA L5-30P |
| Input Voltage Range | AC 108 - 132 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1920 VA |
| Power Output Connectors Details | 10 x power NEMA 5-20R 16 A |
