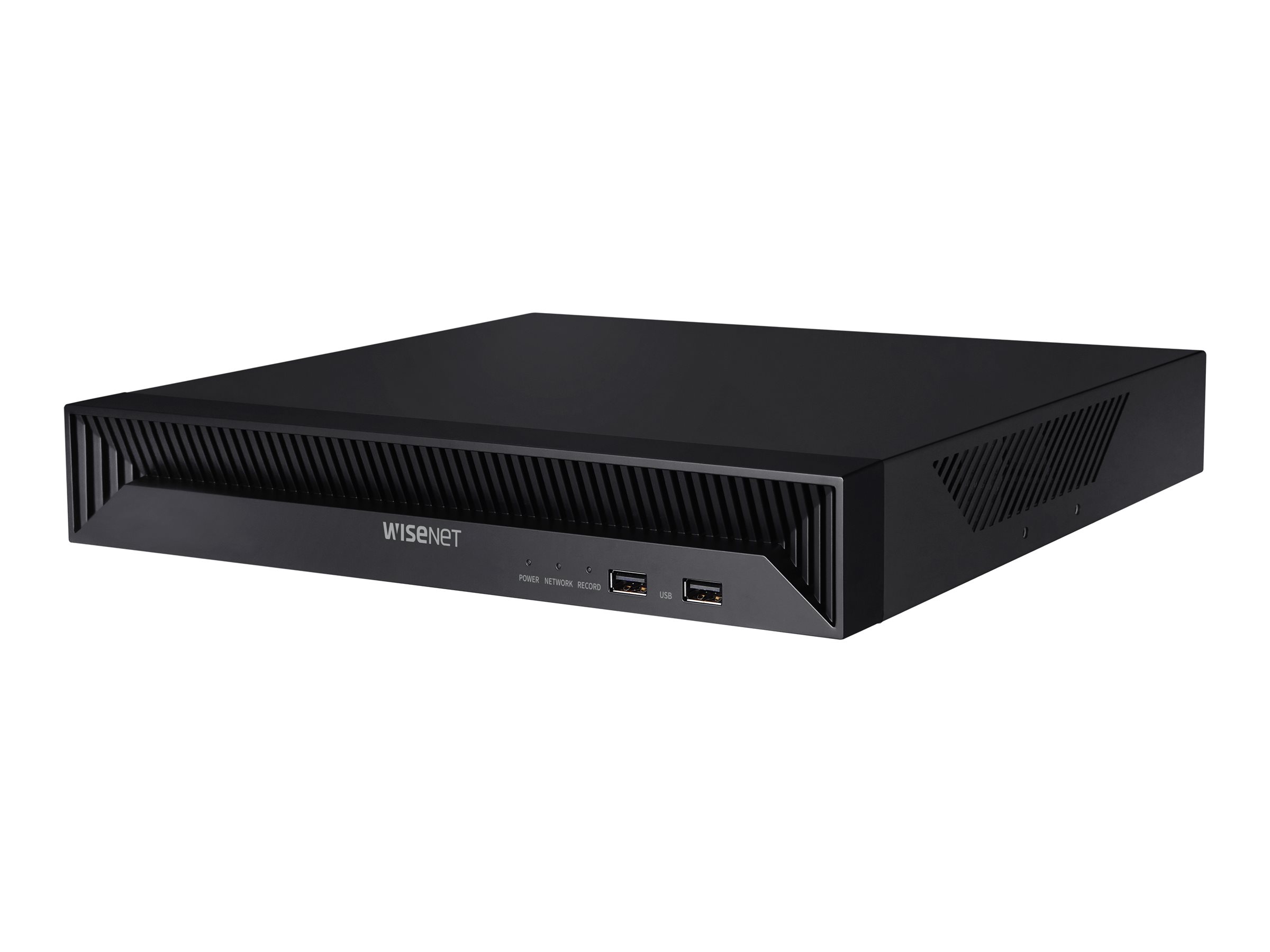

Hanwha Vision WiseNet Q QRN-830S
MSRP$1,840.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet Q QRN-830S
- NVR
- 8 channels
- 1 x 6 TB
- networked
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,840.00 |
| Mfr Part #: | QRN-830S-6TB |
| SHI Part #: | 45978104 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision WiseNet Q QRN-830S - NVR - 8 channels - 1 x 6 TB - networked |
| Manufacturer | HANWHA VISION |
| MSRP | $1,840.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.89 cm |
| Dimensions & Weight / Height | 4.76 cm |
| Dimensions & Weight / Weight | 1.32 kg |
| Dimensions & Weight / Width | 30 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Network Port | 10/100Base-TX x 8 (PoE) / 1000Base-T x 1 |
| Other Ports | USB 2.0 x 2 |
| Video Output Ports | HDMI x 1 |
| Dimensions & Weight | |
| Depth | 23.89 cm |
| Height | 4.76 cm |
| Weight | 1.32 kg |
| Width | 30 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 8 |
| Color | Black |
| Compliant Standards | Plug and Play, FCC, cULus, CE/EAC, NDAA |
| Compression Format | MJPEG, H.265, H.264, AVI, JPEG, G.711, G.726, AAC |
| Device Type | NVR |
| Image Resolution | 3840x2160 |
| IP Cameras Supported | 8 |
| OS Provided | Linux |
| Video Channels | 8 |
| Hard Drive | |
| Capacity | 6 TB |
| Interface | Serial ATA |
| Quantity Installed | 1 |
| Quantity Supported | 1 |
| Supported Max Total Capacity | 6 TB |
| Networking | |
| DDNS Support | Yes |
| Features | ONVIF support, multicast mode, IP address filtering, Hanwha DDNS, 802.1x authentication, GOP control, Hallway view |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, SSM, CGI |
| Power | |
| Power Consumption | 84 Watt |
| Voltage | 54 V |
| Security DVR | |
| Display Modes | 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens |
| Features | Auto Recovery Backup (ARB), recording data rate up to 80 Mbps, Fisheye Dewarp function, 2-way audio communication, Webviewer, SmartViewer, 300 PTZ position presets, smartphone support, metal housing, Pan/Tilt/Zoom support, Mobile Viewer, brightness adjustment, contrast adjustment, Power over Ethernet (PoE) |
| Frame Rate (Playback) | 60 fps, 240 fps |
| Networked | Yes |
| Playback Search | Date/time, event, text, smart search |
| Record Events | Alarm, scheduled, event, continuous, video loss, motion detection, analytics, defocus detection, audio detection |
| System Requirements | |
| Browser | Edge/Safari/Google Chrome |
| Operating Systems | Windows 10, Apple macOS 11, Android, Apple iOS |
| Video Server | |
| Features | Dual stream support |
