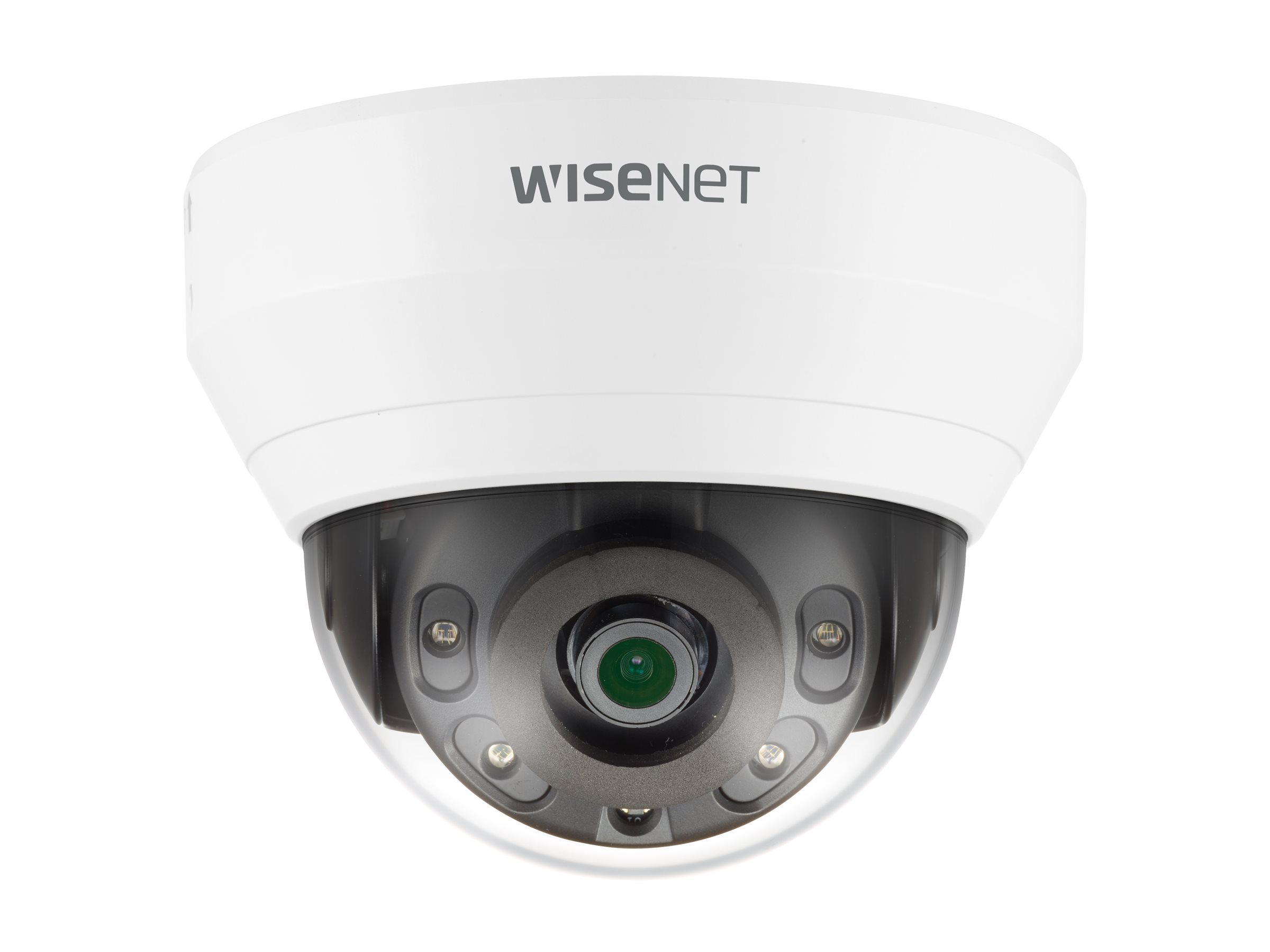

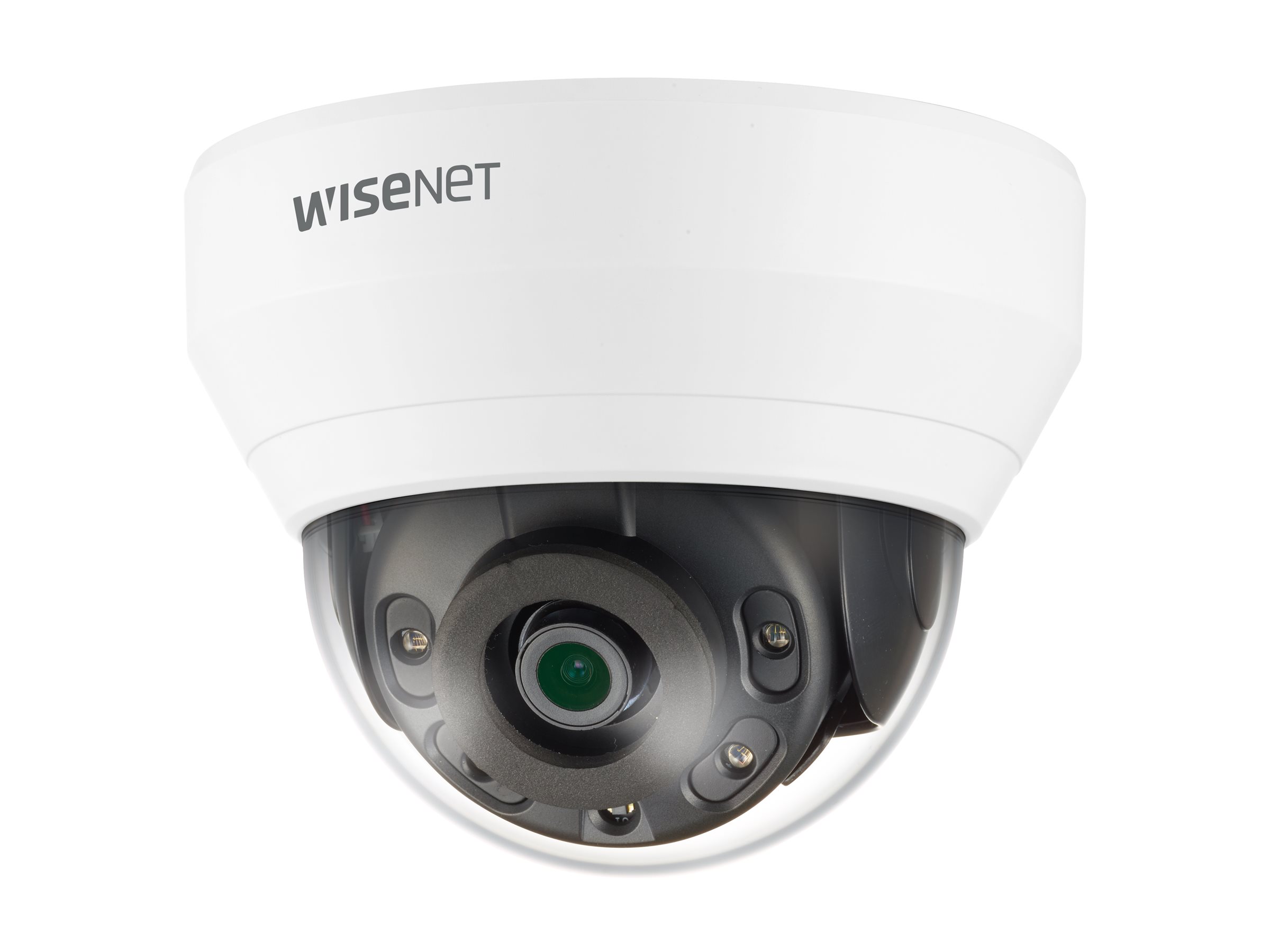

Hanwha Vision WiseNet Q QND-6022R1
MSRP$320.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet Q QND-6022R1
- Network surveillance camera
- dome
- color (Day&Night)
- 2 MP
- 1920 x 1080
- fixed focal
- composite
- LAN 10/100
- H.265, H.264, MJPEG
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $320.00 |
| Mfr Part #: | QND-6022R1 |
| SHI Part #: | 46400389 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QND-6022R1 - Network surveillance camera - dome - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - composite - LAN 10/100 - H.265, H.264, MJPEG - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $320.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 255 g |
| Dimensions & Weight / Width | 11 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | H.265, H.264, MJPEG |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Motion detection, tamper-detection, Defocus Detection, Hallway View, Lens Distortion Compensation (LDC), Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Privacy Mask Function, auto gain control, auto white balance, image flip, image mirror, Directional Detection, Motion Detection Technology, Virtual Line detection, WiseStream II support, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support |
| Flash Memory | 256 MB |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 11 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 8.6 cm |
| Weight | 255 g |
| Width | 11 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 104.5 |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 87.6 |
| Lens Iris | F/1.6 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 46.4 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 7.4 watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 67 |
