Hanwha Vision WiseNet X XNF-9013RV
MSRP$1,470.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

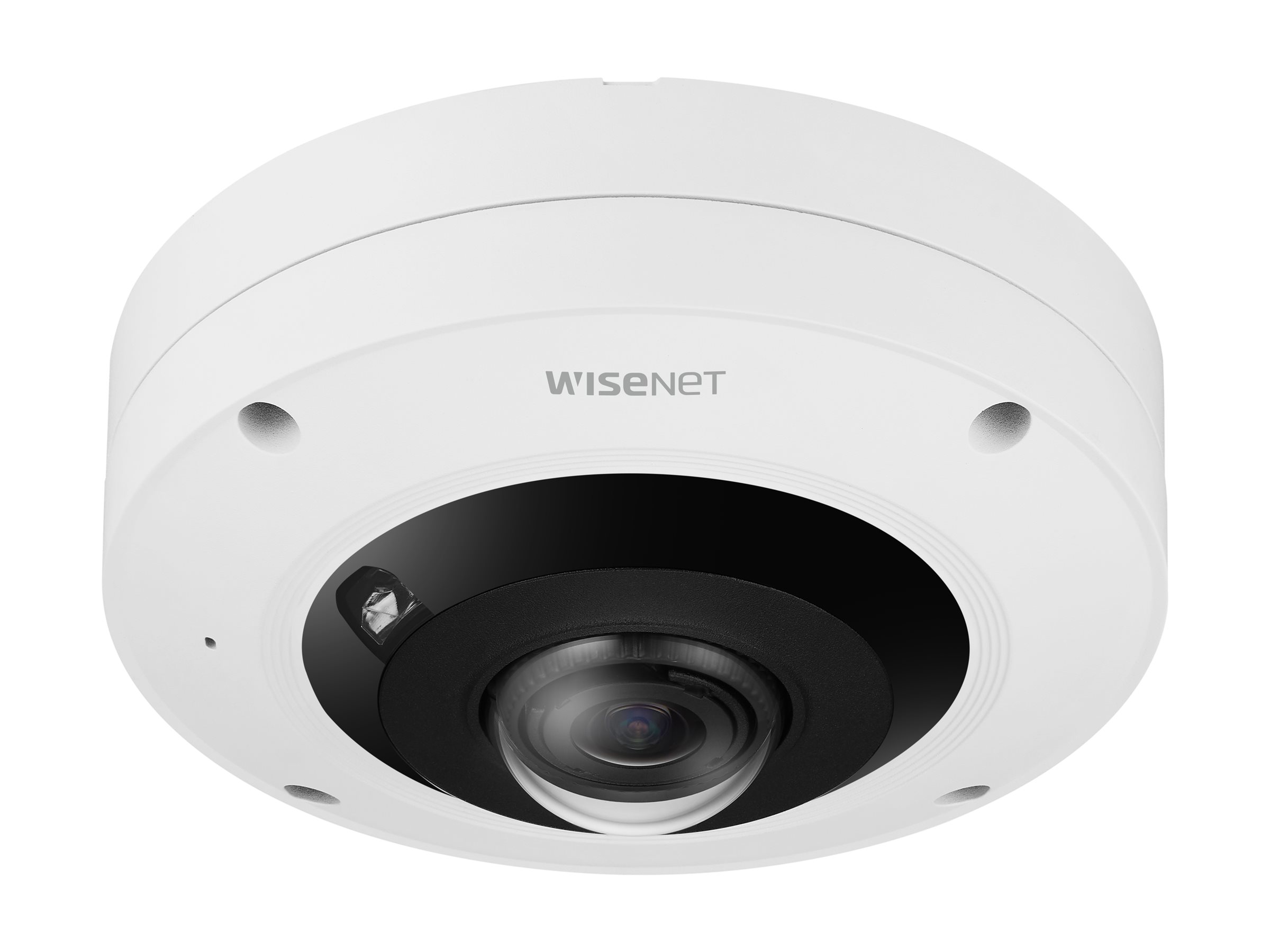

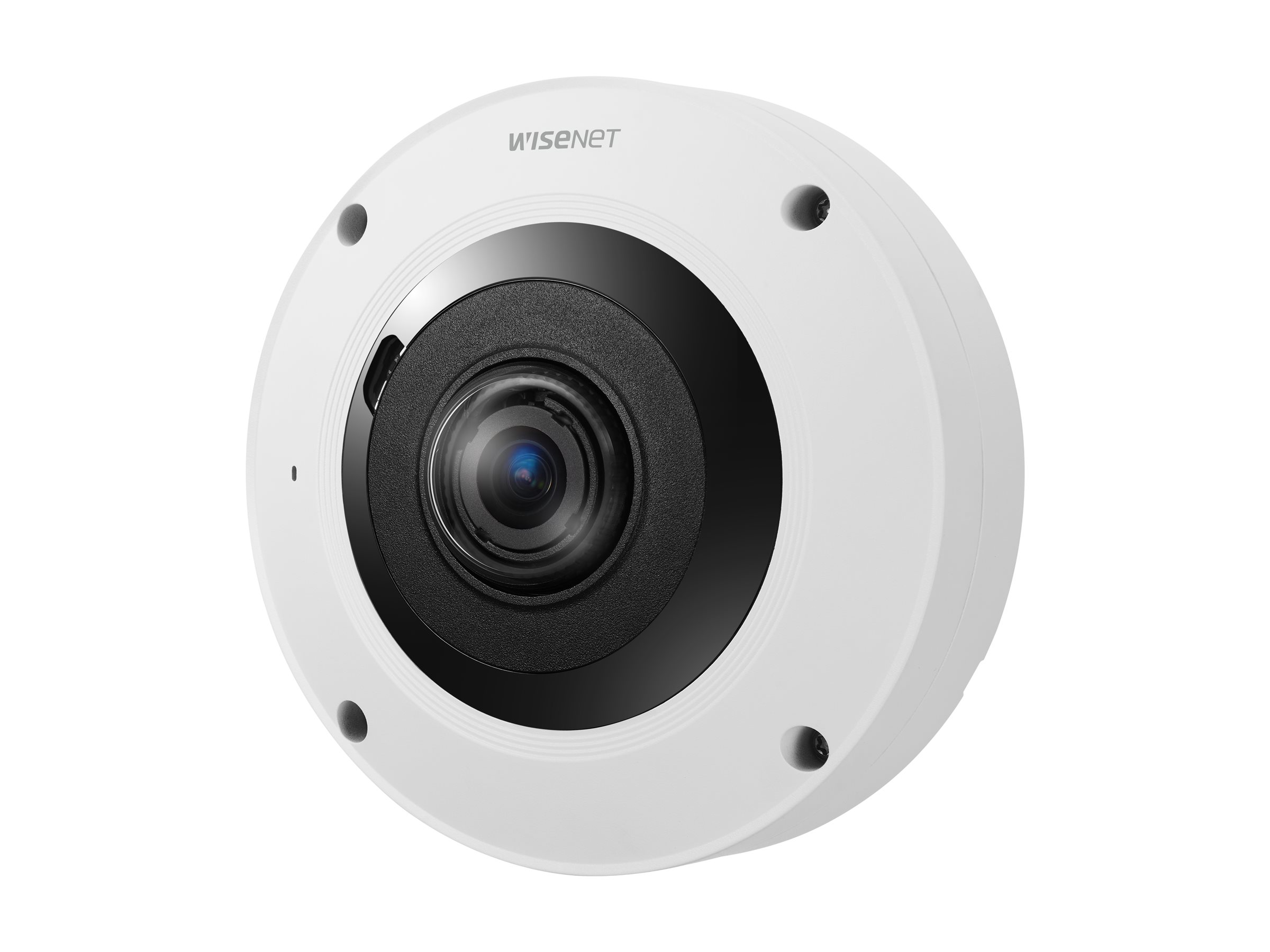

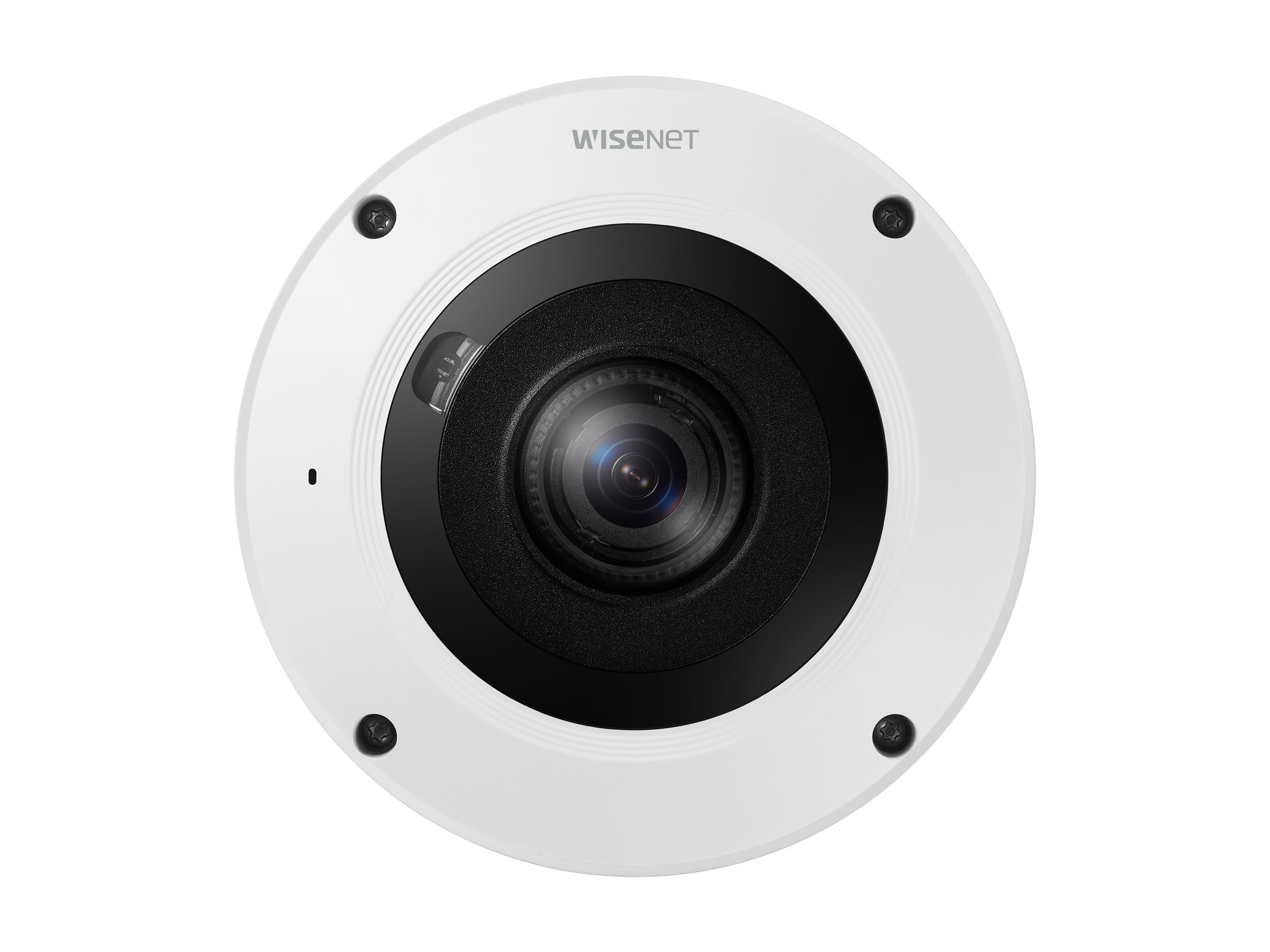

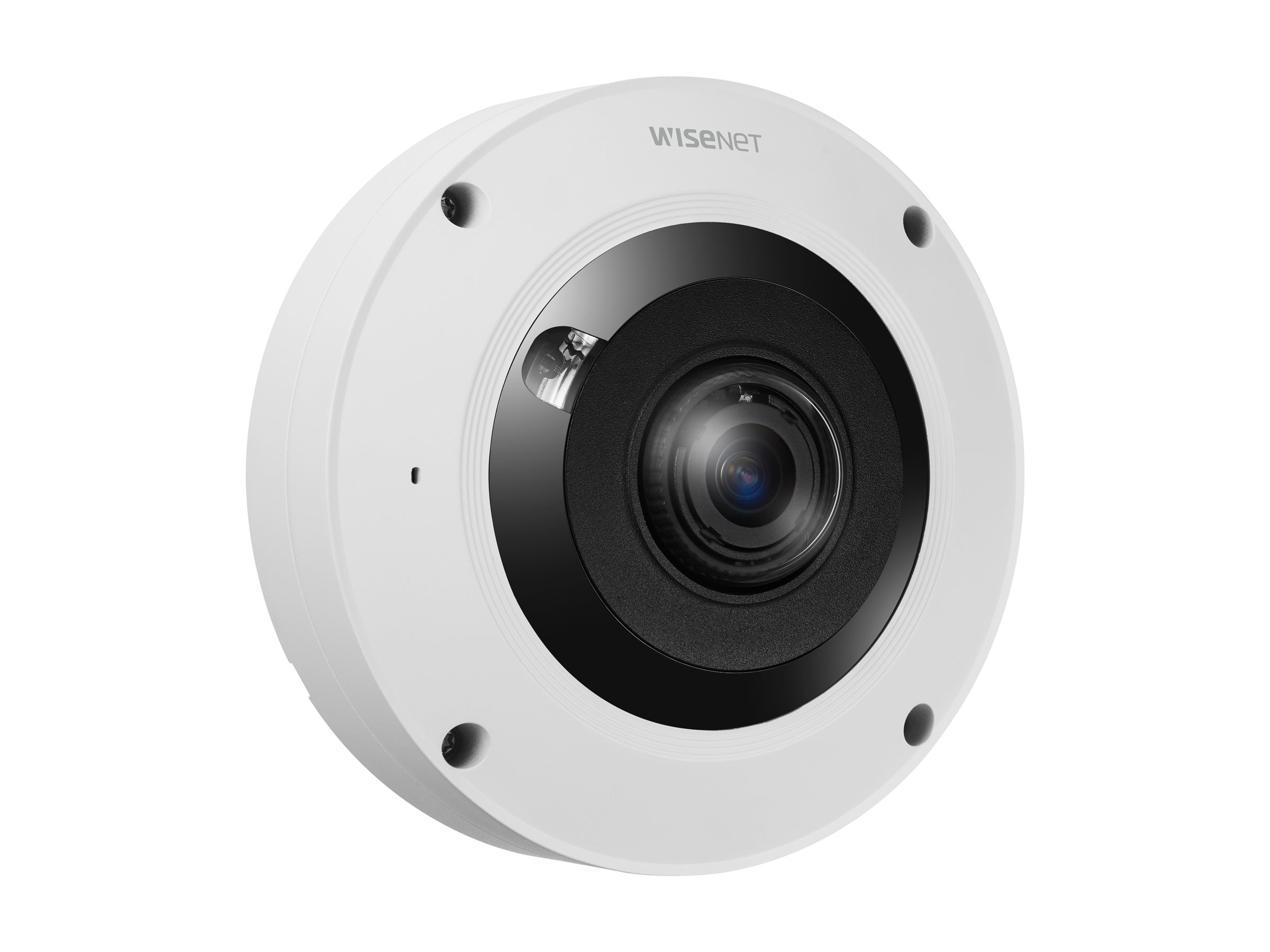

Hanwha Vision WiseNet X XNF-9013RV
- Network surveillance camera
- fisheye
- outdoor
- color (Day&Night)
- 12 MP
- 3008 x 3008
- fixed focal
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,470.00 |
| Mfr Part #: | XNF-9013RV |
| SHI Part #: | 46400413 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNF-9013RV - Network surveillance camera - fisheye - outdoor - color (Day&Night) - 12 MP - 3008 x 3008 - fixed focal - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,470.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 7.2 cm |
| Dimensions & Weight / Weight | 1.17 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Camera Tampering Detection, Audio Detection, Multicast Streaming, auto gain control, auto white balance, Defocus Detection, Extreme WDR, auto ICR, WiseNR II, Samsung Super Noise Reduction (SSNRV), motion detection, Gain Control, white balance, anti-flicker, Object Detection, Virtual Line detection, entrance / exit detection, appearing / disappearing detection, intrusion detection, fog detection, sound classification, people counting, queue management, Heat Map, notification picture to E-mail, notification picture to FTP, Handover, WiseIR, WiseStream II support, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), IP address filtering, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, hard-coated dome, TPM 2.0 module |
| Flash Memory | 512 MB |
| Infrared Distance | 13 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3008 x 3008 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed - outdoor |
| Video Capture | 3008 x 3008 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Fisheye |
| Height | 7.2 cm |
| Weight | 1.17 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 12 MP CMOS 1/2.3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 187 |
| Focal Length | 1.08 mm |
| Horizontal Field of View (degree) | 187 |
| Lens Iris | F/2.2 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 187 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835, UL 62368-1, IEC/EN 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA250 Type 4X, IEEE 802.3af, IEEE 802.1x, NDAA, FIPS 140-2 |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
