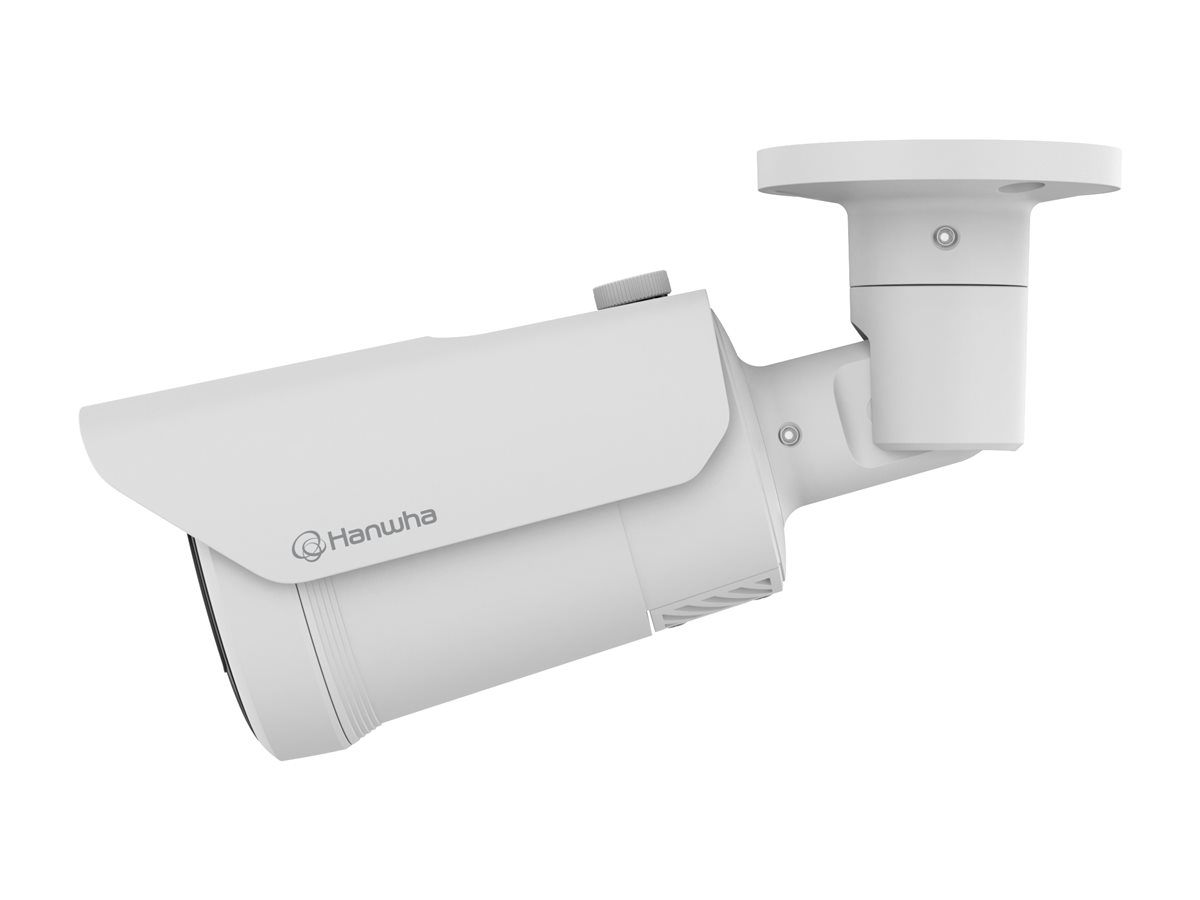

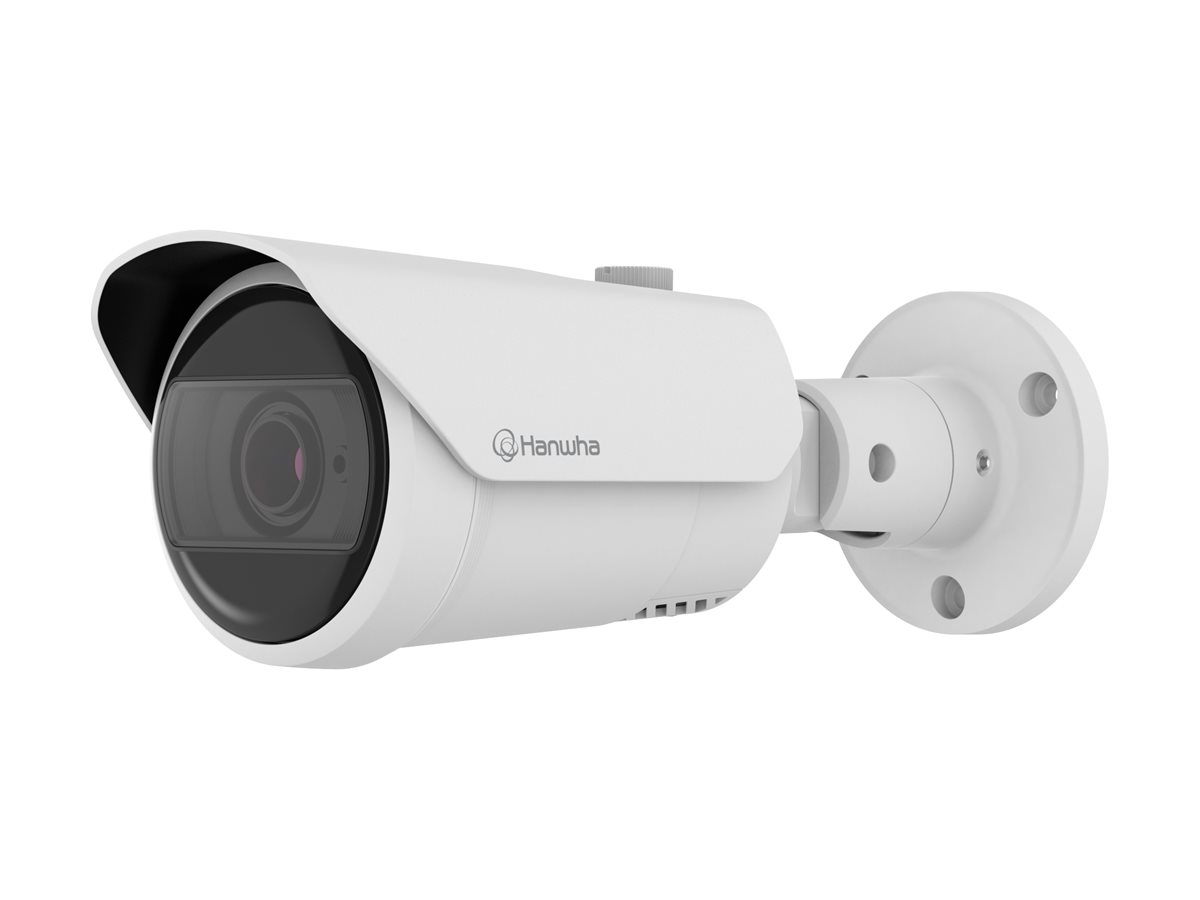

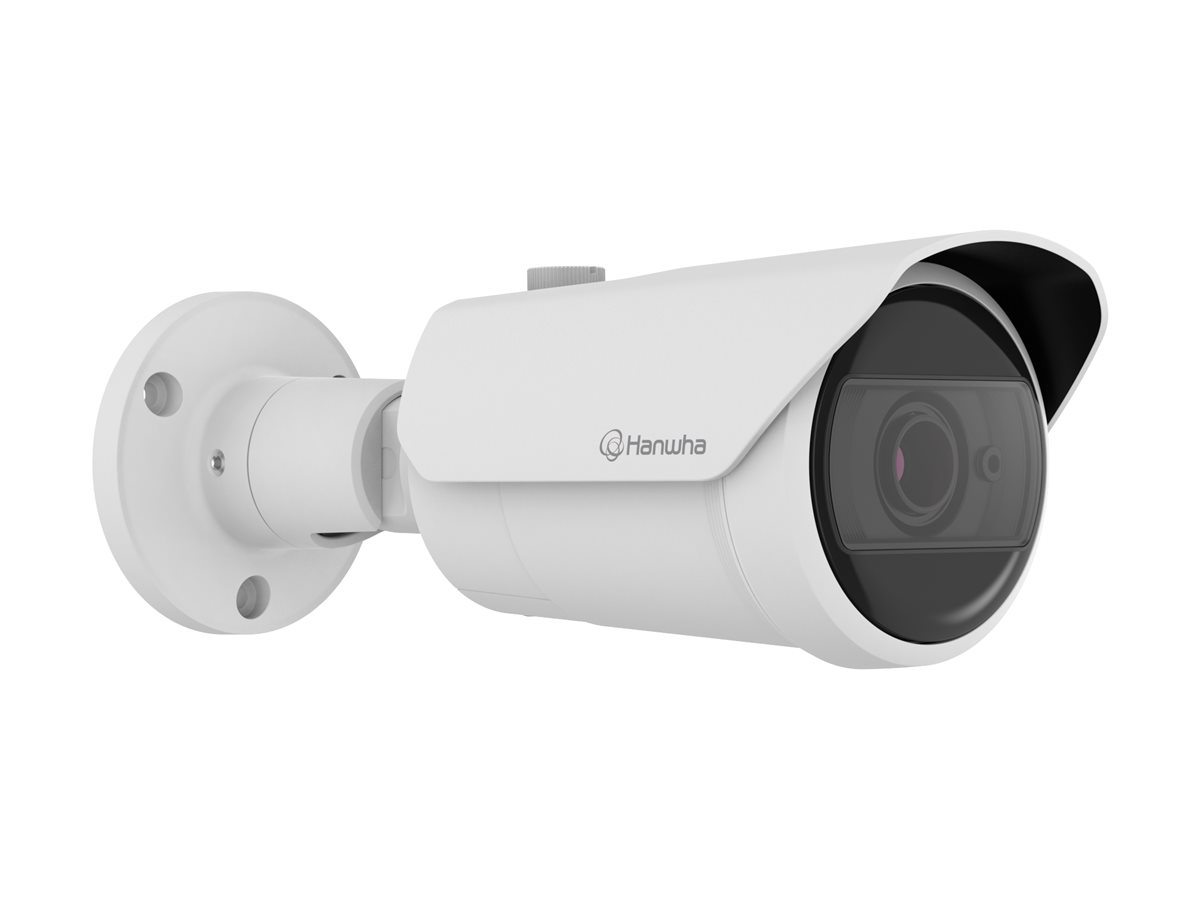

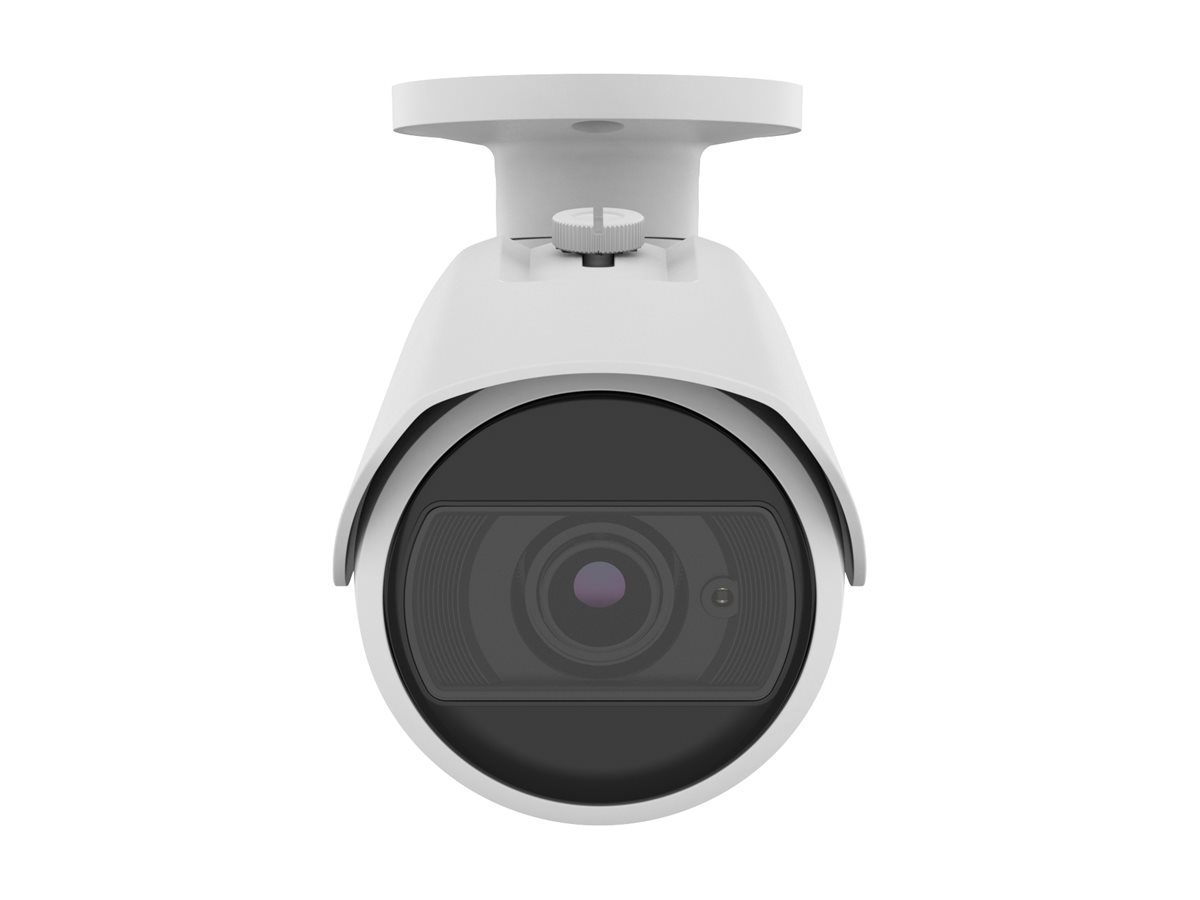

Hanwha Vision WiseNet Q QNO-C9083R
MSRP$970.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet Q QNO-C9083R
- Network surveillance camera
- PTZ
- bullet
- color (Day&Night)
- 8 MP
- 3840 x 2160
- 4K UHD (3840 x 2160)
- auto iris
- motorized
- audio
- LAN 10/100
- USB
- MJPEG, H.264, H.265
- PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $970.00 |
| Mfr Part #: | QNO-C9083R |
| SHI Part #: | 46475448 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNO-C9083R - Network surveillance camera - PTZ - bullet - color (Day&Night) - 8 MP - 3840 x 2160 - 4K UHD (3840 x 2160) - auto iris - motorized - audio - LAN 10/100 - USB - MJPEG, H.264, H.265 - PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $970.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.58 cm |
| Dimensions & Weight / Height | 9.34 cm |
| Dimensions & Weight / Weight | 930 g |
| Dimensions & Weight / Width | 9.34 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1520, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | 0° / 360° rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), WiseNR II, Privacy Mask Function, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), electronic shutter, reverse function (flip and mirror), Hallway View, Person Detection, Vehicle Detection, vehicle type classification, Object Detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, notification picture to E-mail, notification picture to FTP, Handover, WiseStream III support, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), user access log, alarm function, digest authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 4K UHD (3840 x 2160) |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 24.58 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.34 cm |
| Weight | 930 g |
| Width | 9.34 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Computer Interface | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 35 - 124 |
| Focal Length | 3.2 mm - 10.2 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 31 - 104 |
| Lens Iris | F/1.6-3.1 auto iris (DC) |
| Min Focus Distance | 1.2 m |
| Optical Zoom | 3.2 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 17 - 55 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, CISPR-32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, EN 62676-4 |
| Panning | |
| Range (degree) | 360 |
| Power | |
| Power Device | 12 watt |
| Power Requirements | PoE |
| Tilting | |
| Range (degree) | 0 to 100 |
