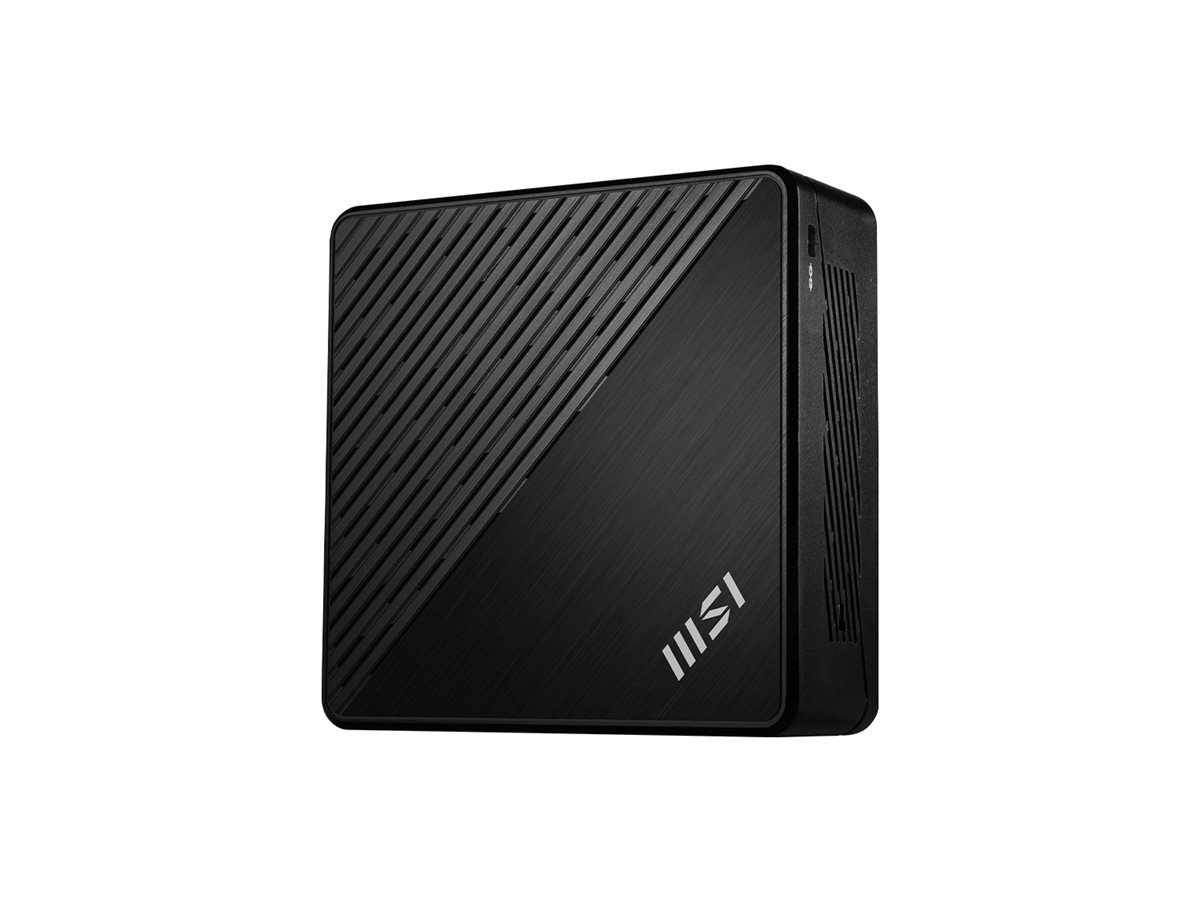

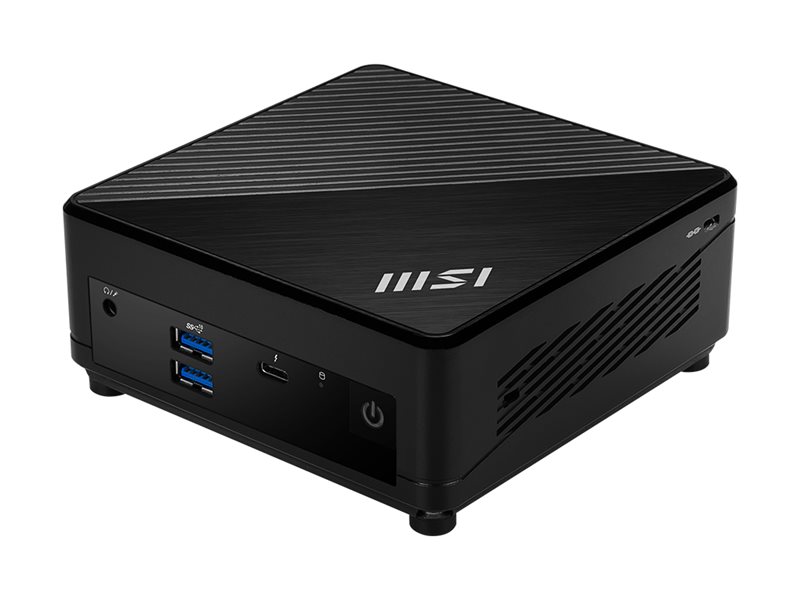

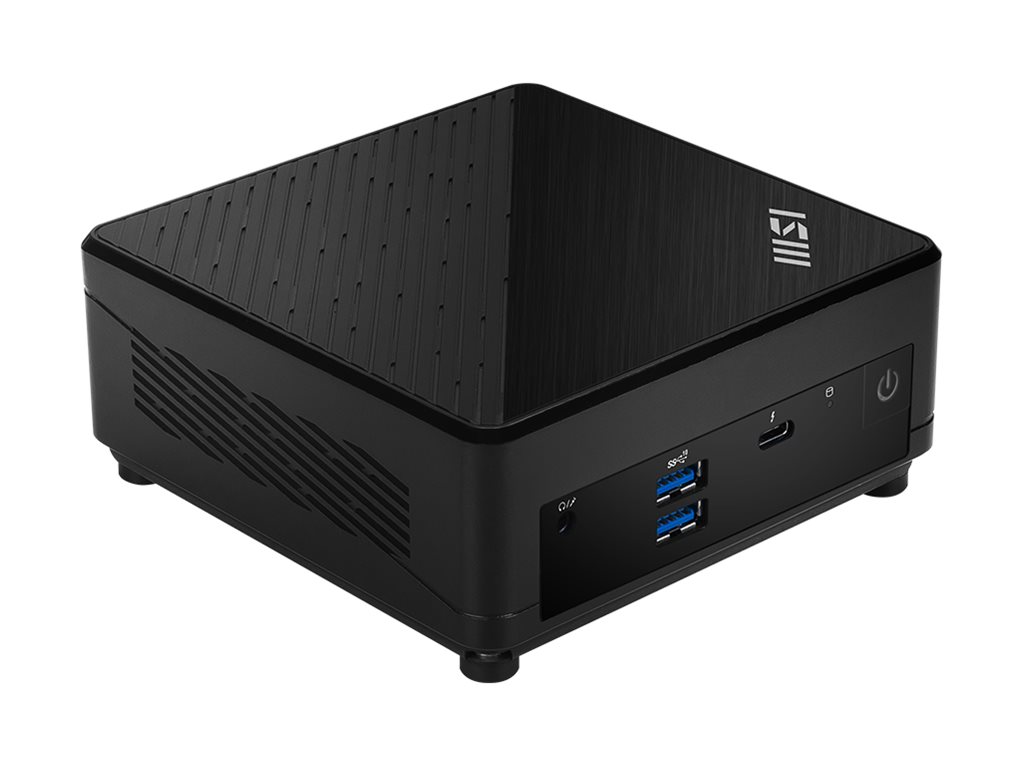

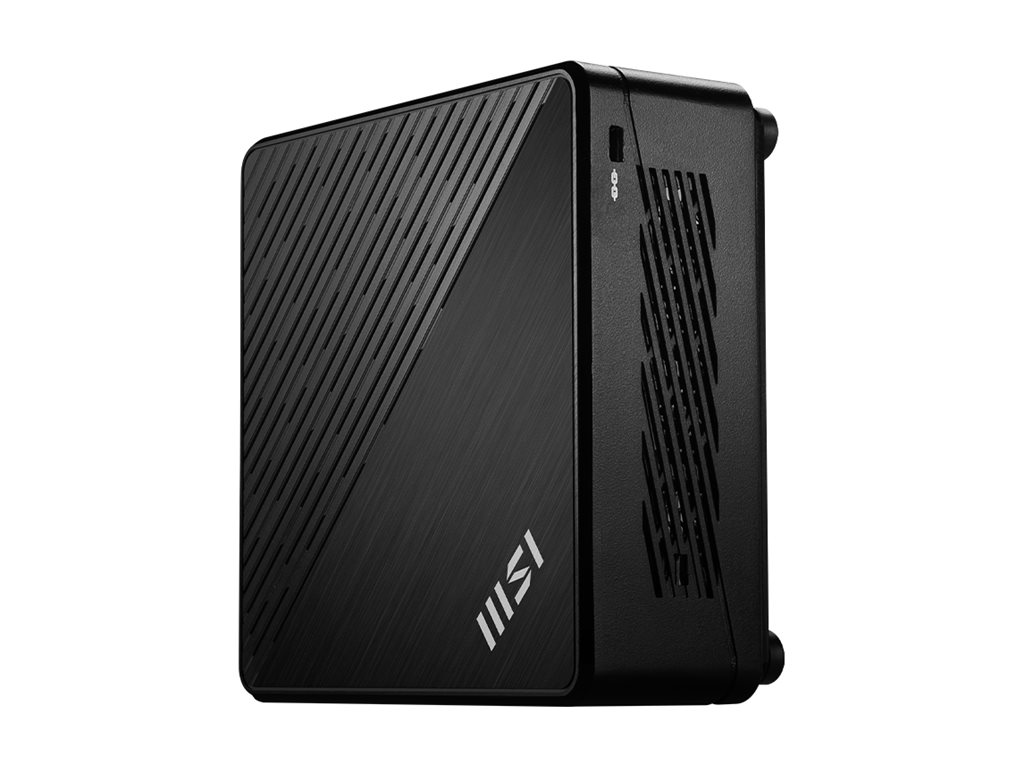

MSI Cubi 5 12M 265US

$1,234.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Mini PC Core i7 1255U / up to 4.7 GHz RAM 16 GB SSD 1 TB NVMe Intel Iris Xe Graphics

MSI Cubi 5 12M 265US

Mini PC Core i7 1255U / up to 4.7 GHz
RAM 16 GB
SSD 1 TB
NVMe
Intel Iris Xe Graphics
IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2
Win 11 Home
monitor: none

Additional Details
Price:	$1,234.00
Mfr Part #:	CUBI512M265
SHI Part #:	47434991
Category:	Desktop computers
UNSPSC:	43211507
Manufacturer:	MSI
Product Type:	Hardware

General Information
Category	Desktop computers
Description	MSI Cubi 5 12M 265US - Mini PC Core i7 1255U / up to 4.7 GHz - RAM 16 GB - SSD 1 TB - NVMe - Intel Iris Xe Graphics - IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2 - Win 11 Home - monitor: none
Manufacturer	MSI
MSRP	$1,149.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	12.4 cm
Dimensions & Weight / Height	5.37 cm
Dimensions & Weight / Weight	548 g
Dimensions & Weight / Width	12.4 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Header / Brand	MSI
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	2.5 Gigabit Ethernet Bluetooth 5.2 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6E) IEEE 802.11b IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax (Wi-Fi 6E) Bluetooth 5.2
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Home
Packaged Quantity	1
Processor / Clock Speed	1.7 GHz
Processor / Generation	12
Processor / Manufacturer	Intel
Processor / Number of Cores	6-core
Processor / Processor Number	I7-1255U
Processor / Type	Core i7
RAM / Form Factor	SO-DIMM 260-pin
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Type	Personal computer
Video Output / Graphics Processor	Intel Iris Xe Graphics
Audio Output
Compliant Standards	High Definition Audio
Sound Output Mode	2.1 channel surround
Cache Memory
Cache Per Processor	12 MB
Installed Size	12 MB
Dimensions & Weight
Depth	12.4 cm
Height	5.37 cm
Weight	548 g
Width	12.4 cm
Dimensions & Weight (Shipping)
Shipping Weight	1.39 kg
Expansion / Connectivity
Bays	1 (total) / 1 (free) x internal 2.5"

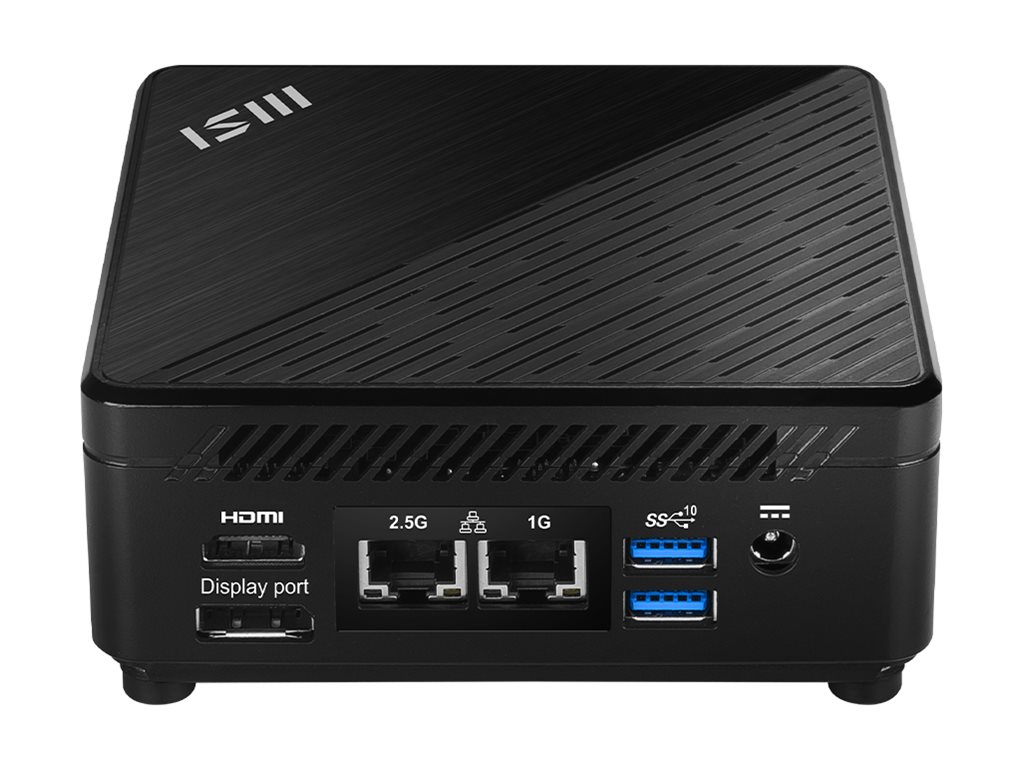

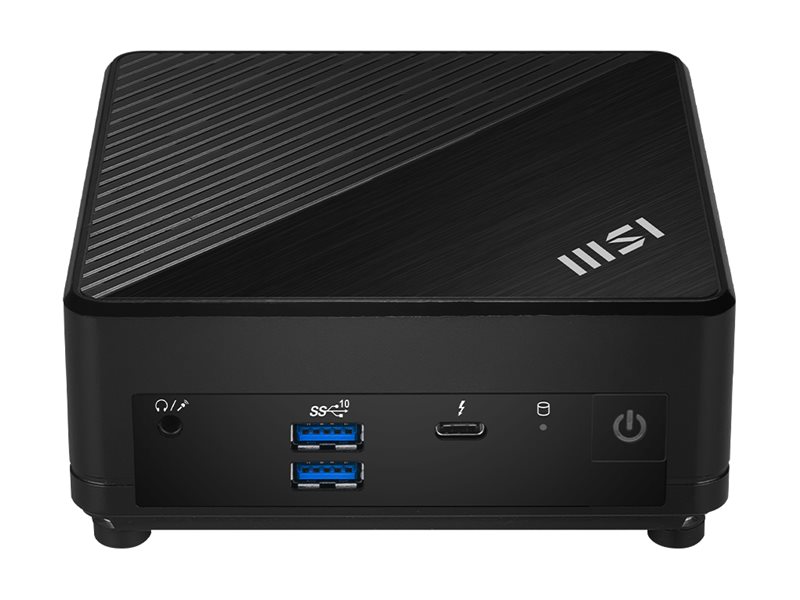

Interfaces	1 x Thunderbolt 4 (1 in front) 4 x USB 3.2 Gen 2 (2 front, 2 rear) 1 x headphones/microphone (1 in front) 1 x HDMI (1 rear) 1 x DisplayPort 1.4 output (1 rear) 1 x LAN (Gigabit Ethernet) (1 rear) 1 x LAN (2.5Gigabit Ethernet) (1 rear)
Slots	1 (total) / 0 (free) x M.2 Card
General
Embedded Security	Firmware Trusted Platform Module (TPM) Security Chip
Product Form Factor	Mini PC
Type	Personal computer
Graphics Controller
Graphics Processor	Intel Iris Xe Graphics
Max Monitors Supported	3
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 1 TB
Features	NVM Express (NVMe)
Interface Type	PCI Express
Type	SSD - M.2
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Compliant Standards	cUL, BSMI, VCCI, RCM, FCC, CB
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
VESA Mounting Interface	100 x 100 mm
Monitor
Monitor Type	None.
Networking
Data Link Protocol	IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, Ethernet, Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2
Ethernet Ports	1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet
Wireless LAN Supported	Yes
Wireless NIC	Intel Wi-Fi 6E AX 211
Operating System / Software
OS Provided	Windows 11 Home
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Power Provided	65 watt
Voltage Required	AC 120/230 V
Processor / Chipset
Clock Speed	1.7 GHz (P-core) / 1.2 GHz (E-core)
CPU	Intel Core i7 (12th Gen) 1255U
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4.7 GHz (P-core) / 3.5 GHz (E-core)
Number of Cores	6-core
Processor Main Features	Intel Smart Cache
RAM
Configuration Features	2 x 8 GB
Effective Memory Speed	3200 MT/s
Form Factor	SO-DIMM 260-pin
Installed Size	16 GB (installed) / 64 GB (max)
Rated Memory Speed	3200 MT/s
Slots	2 (total) / 0 (empty)
Technology	DDR4 SDRAM
Storage Controller
Type	1 x SATA
