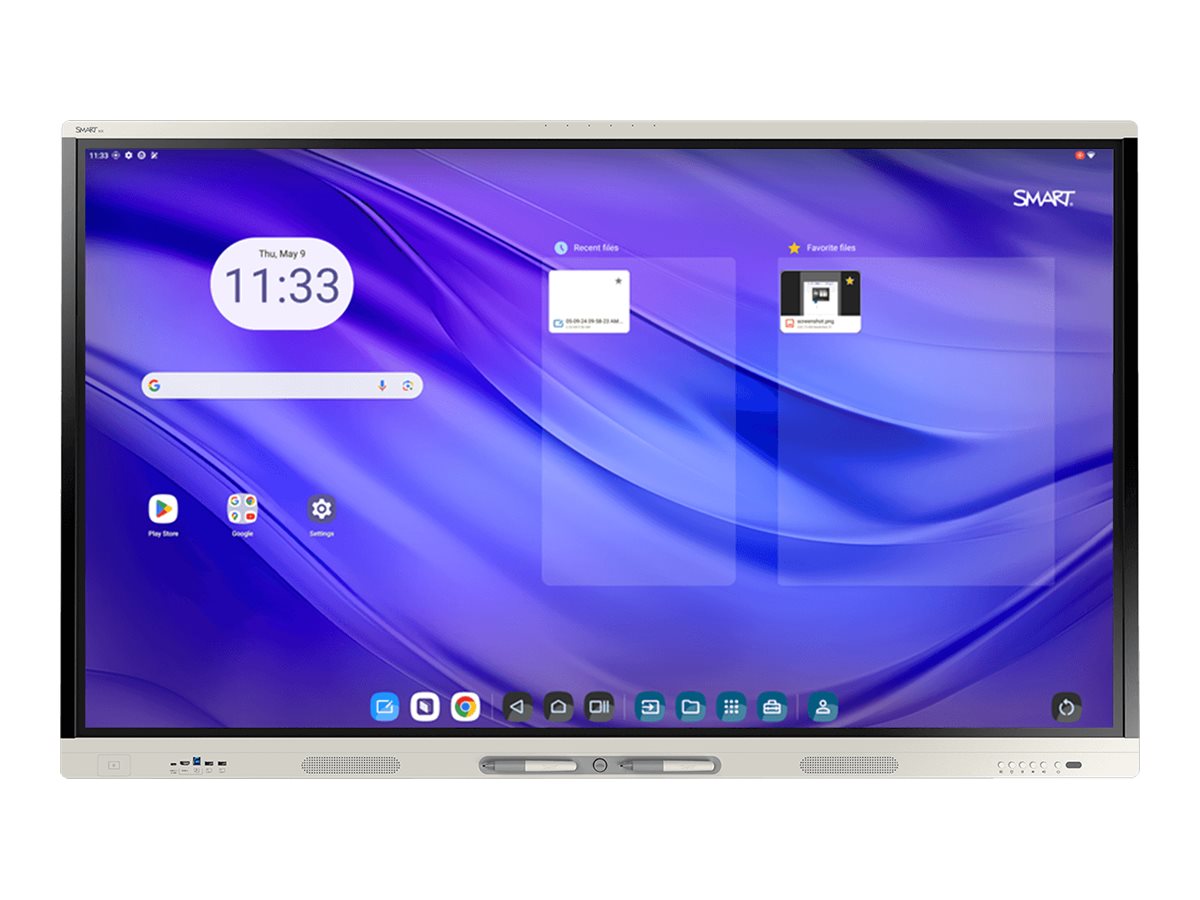

MX086-V5 PRO IQ
MSRP$7,499.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MX086-V5 PRO IQ
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $7,499.00 |
| Mfr Part #: | MX286-V5-PW |
| SHI Part #: | 48262185 |
| Category: | Monitors and displays |
| UNSPSC: | 43211900 |
| Manufacturer: | Smart |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Monitors and displays |
| Description | MX086-V5 PRO IQ |
| Manufacturer | Smart |
| MSRP | $7,499.00 |
| UNSPSC | 43211900 |
| Main Specifications | |
| Height | 6.00 |
| Length | 84.50 |
| UPC | 0628012403406 |
| Width | 57.00 |
| Audio System | |
| Additional Features | Echo cancellation, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC) |
| Output Power / Total | 40 watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 20 watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 16 cm |
| Height (Shipping) | 144.5 cm |
| Weight (Shipping) | 94 kg |
| Width (Shipping) | 216.5 cm |
| Display | |
| Additional Features | Split screen, Personalized Home Screen, Object Awareness, Over-the-Air Update (OTA), Silktouch, simultaneous tool differentiation, HyPr Touch (Hybrid Precision Touch) technology with Advanced IR, picture-in-picture (PIP) |
| Backlight Life | 50,000 hour(s) |
| Brightness | 400 cd/m² |
| Coating | Anti-glare, heat-tempered glass |
| Commercial Features | Open Pluggable Standard (OPS) support |
| Display Format | 4K UHD (2160p) |
| Display Menu Language | Danish, Hungarian, Czech, Basque, Slovenian, Slovak, Chinese (traditional), Chinese (simplified), Vietnamese, Ukrainian, Galician, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Latvian, Lithuanian, Estonian, Romanian, Catalan, Japanese, Korean, Valencian, Welsh |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Touchpoints Qty | 40 |
| Viewing Angle | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 80% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch), 6-microphone array, RFID NFC reader/writer CCID |
| Commercial Use | Yes - interactive |
| Depth | 8.9 cm |
| Diagonal Class | 86" |
| Enclosure Color | White |
| HDMI Ports Qty | 4 ports |
| Height | 144.5 cm |
| Operating System | Android OS 13 |
| PC Interface | VGA (HD-15), USB-C |
| Platform | Android |
| Power Consumption Operational | 149 watt |
| Product Type | LED-backlit LCD flat panel display |
| Protection | Bonded glass |
| Sensors | Ambient light sensor (ALS), Infrared (IR) |
| Series | MX (V5) Pro Series with iQ |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 68 kg |
| Width | 198.2 cm |
| Media Player | |
| Configuration | Octa-Core - 8 GB DDR4 - 64 GB |
| Supported Memory Cards | microSD |
| USB Port | Yes |
| USB Ports Qty | 13 |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | UL, CB, FCC, ISO 14443 type A, RoHS, WEEE, ISO 14443 type B, ISO 15693, REACH, LVD, RCM, TSCA, CP65, DisplayPort 1.2, HDCP 1.3, HDCP 1.4, ISED, RSM, CONEG, HDCP 2.3, POP, UKCA, EMCD, Google Play Protect certified |
| Included Accessories | 2 antennas, 2 pens, SMART Meeting Pro software, SMART Ink, SMART Product Drivers, SMART Remote Management |
| Network & Internet Multimedia | |
| Application Store | Google Play |
| Bluetooth Version | Bluetooth 5.2 |
| Connect & Share | Screen Share |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Encryption | WPA2, WPA, WEP, WPA3 |
| Functionality | WEB browsing, whiteboard |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11ax (Wi-Fi 6E) |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.2 watt |
| Power Device | Power supply |
| Remote Control | |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
