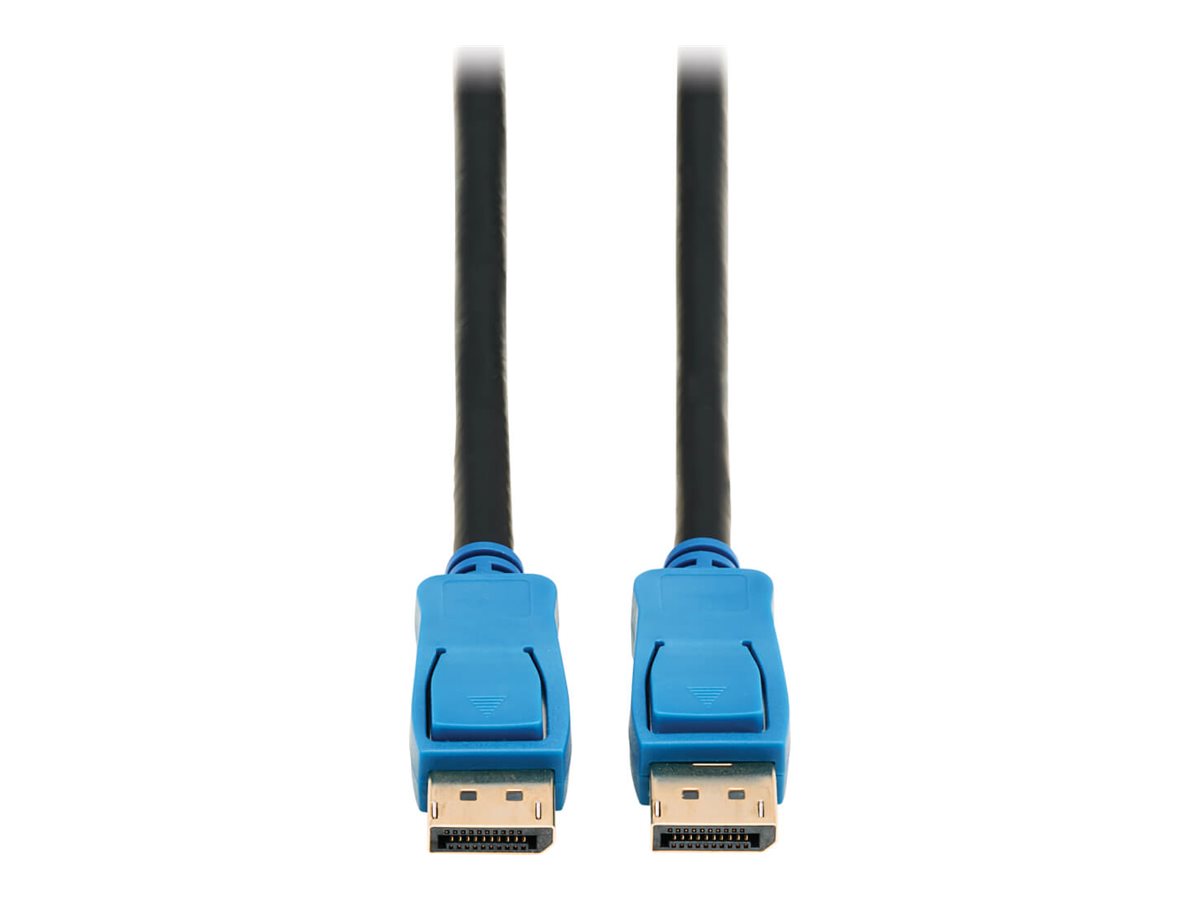

Eaton Tripp Lite Series DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, 30 ft. (9.1 m), Black

MSRP$154.50
$76.00
Eaton Tripp Lite Series DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, 30 ft. (9.1 m), Black
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • DisplayPort cable
  • DisplayPort (M) to DisplayPort (M)
  • DisplayPort 1.4
  • 9.15 m
  • passive, 8K UHD (7680 x 4320) support
Eaton Tripp Lite Series DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, 30 ft. (9.1 m), Black
  • DisplayPort cable
  • DisplayPort (M) to DisplayPort (M)
  • DisplayPort 1.4
  • 9.15 m
  • passive, 8K UHD (7680 x 4320) support
  • black
  • for P/N: B156E-002-8K-K, B156E-003-8K-K
  Additional Details
Price: $76.00
MSRP: $154.50
Mfr Part #: P580-030-8K6
SHI Part #: 48722360
Category: Signal cable
UNSPSC: 26121604
Manufacturer: Eaton
Product Type: Hardware
General Information
CategorySignal cable
DescriptionEaton Tripp Lite Series DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, 30 ft. (9.1 m), Black - DisplayPort cable - DisplayPort (M) to DisplayPort (M) - DisplayPort 1.4 - 9.15 m - passive, 8K UHD (7680 x 4320) support - black - for P/N: B156E-002-8K-K, B156E-003-8K-K
ManufacturerEaton
MSRP$154.50
UNSPSC26121604
Main Specifications
Cable TypeDisplayPort cable
Header / BrandEaton
Left Connector Type20 pin DisplayPort
Length9.15 m
Miscellaneous / Product Color
  • Black
  • Blue
Packaged Quantity1
Right Connector Type20 pin DisplayPort
Service & Support / TypeLimited lifetime warranty
Compatibility Information
Designed ForP/N: B156E-002-8K-K, B156E-003-8K-K
Connectivity
Connector20 pin DisplayPort - male
Connector (Second End)20 pin DisplayPort - male
Dimensions & Weight (Shipping)
Service & SupportLimited lifetime warranty
Shipping Depth1.27 cm
Shipping Height43.2 cm
Shipping Weight730 g
Shipping Width35.6 cm
General
American Wire Gauge (AWG)26
ColorBlack
FeaturesPassive cable, 8K UHD (7680 x 4320) support, EMI/RFI protection, maximum resolution 7680x4320 at 60Hz, HDR support, bidirectional, High Bit Rate 3 (HBR3), Chroma subsampling (4:4:4), BT.2020, 24-bit True Color, up to 32.4 Gbps bandwidth
Jacket MaterialPVC
Length9.15 m
Outside Diameter7.3 mm
Plated ConnectorGold
TechnologyDouble shielded
TypeDisplayPort cable
Weight730 g
Miscellaneous
Compliant StandardsDisplayPort 1.4, RoHS, WEEE, HDCP 2.2, UKCA
Package DetailsPolybag
