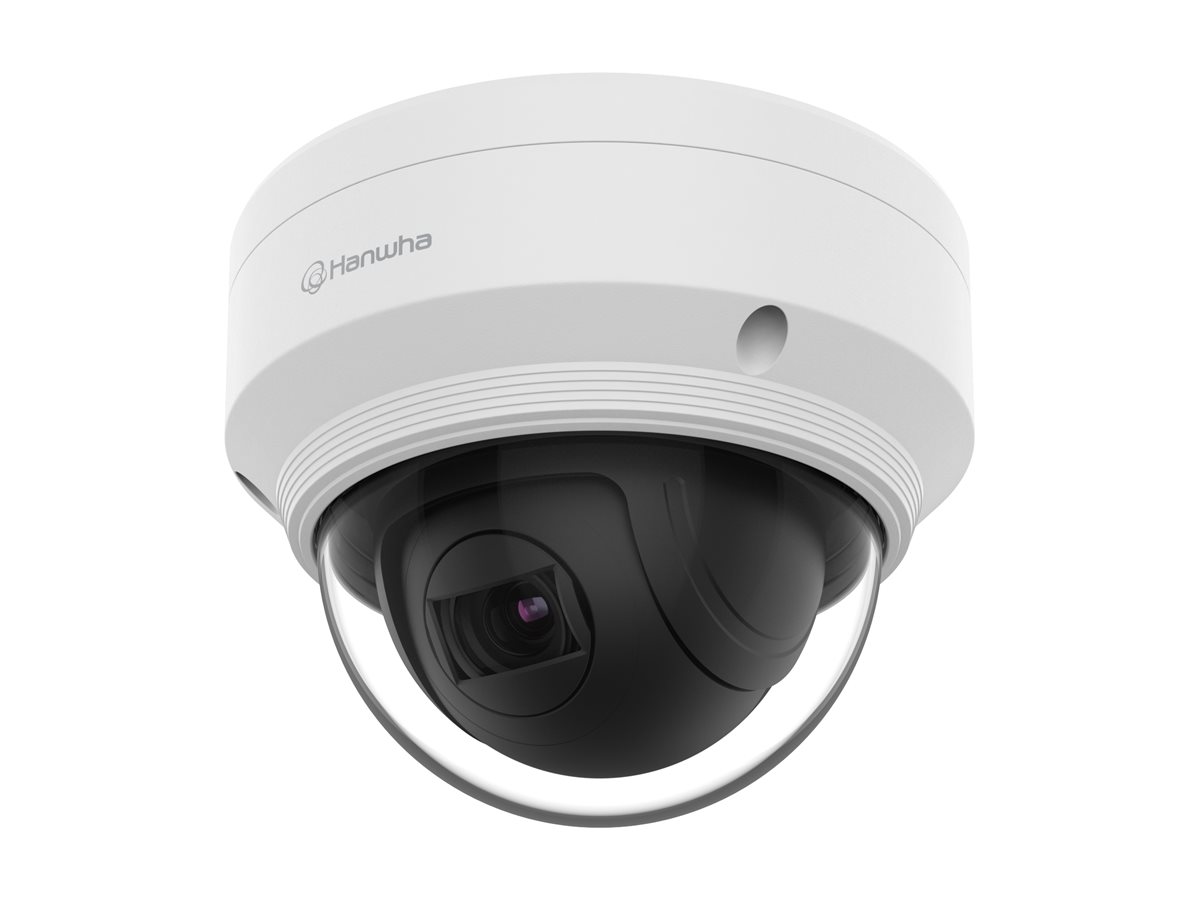

Hanwha Vision XNP-6040HW
MSRP$1,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision XNP-6040HW
- Network surveillance camera
- PTZ
- color (Day&Night)
- 2 MP
- 1920 x 1080
- 1080p
- auto iris
- audio
- composite
- LAN 10/100
- USB
- MJPEG, H.264, H.265
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,200.00 |
| Mfr Part #: | XNP-6040HW |
| SHI Part #: | 48748380 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision XNP-6040HW - Network surveillance camera - PTZ - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - auto iris - audio - composite - LAN 10/100 - USB - MJPEG, H.264, H.265 - DC 12 V / PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $1,200.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.6 cm |
| Dimensions & Weight / Height | 10.6 cm |
| Dimensions & Weight / Weight | 780 g |
| Dimensions & Weight / Width | 13.6 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, Motion Detection Technology, Privacy Mask Function, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, anti-flicker, image flip, image mirror, direction detection, fog detection, face detection, motion detection, appearing / disappearing detection, enter area detection, exit detection, loitering detection, tamper-detection, Audio Detection, sound classification, network disconnection, FTP alerts, e-mail alerts, auto tracking, Smart Codec, WiseStream II support, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, digest authentication, IP address filtering, user access log, 802.1x authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, built-in gyroscope |
| Flash Memory | 256 MB |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Capture | 1920 x 1080 @ 60 fps |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 13.6 cm |
| Device Type | Network surveillance camera |
| Height | 10.6 cm |
| Weight | 780 g |
| Width | 13.6 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Computer Interface | USB |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, SRTP, NTCIP, SUNAPI |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 32 - 142.1 |
| Focal Length | 2.8 mm - 12 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Lens Iris | F/1.4 auto iris (DC) |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 4.3 x |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, IP66, IK10, IEEE 802.3af |
| Panning | |
| Range (degree) | 0 to 350 |
| Speed (degree/sec) | Up to 60 |
| Power | |
| Power Device | 9.6 Watt |
| Power Requirements | DC 12 V / PoE |
| Tilting | |
| Range (degree) | 0 to 90 |
| Speed (degree/sec) | Up to 60 |
