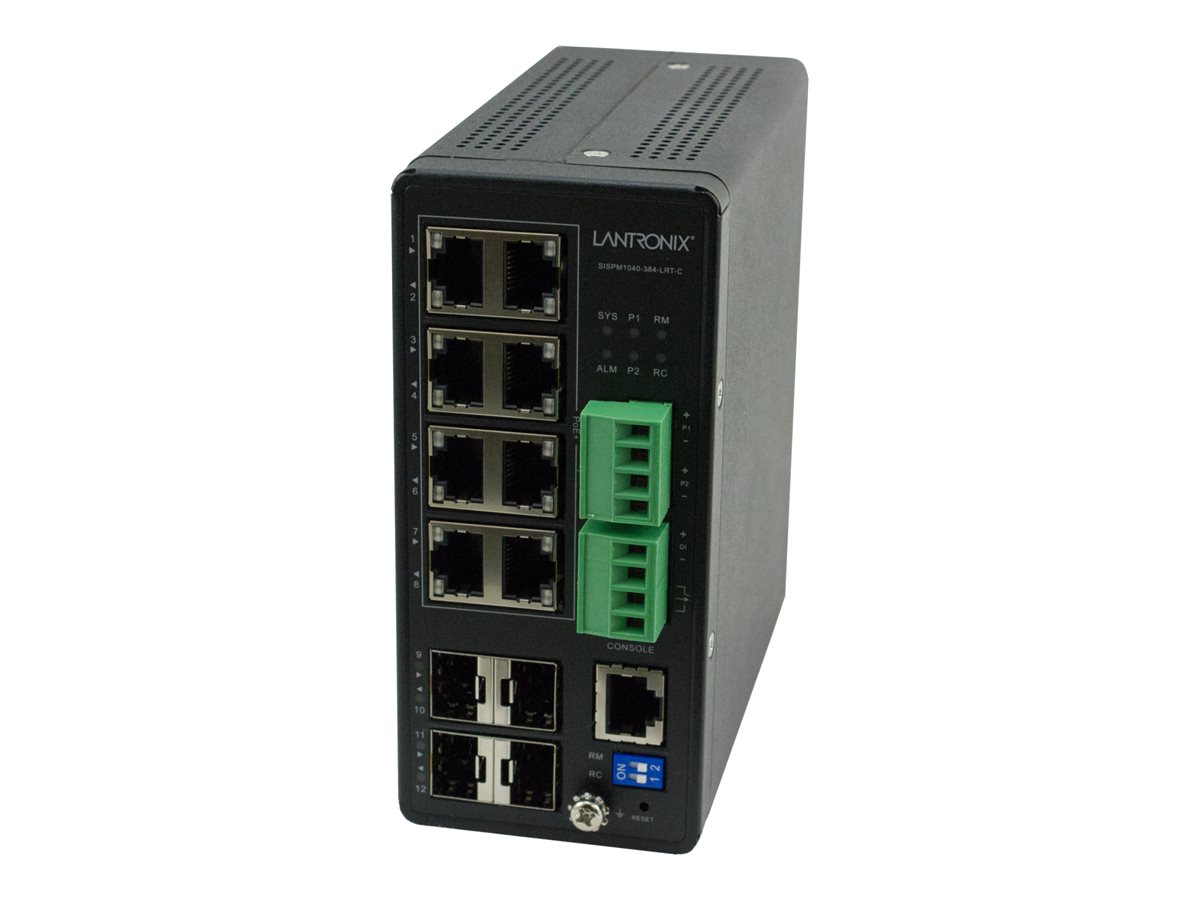

Lantronix SISPM1040-582-LRT

MSRP$1,663.94
$1,263.00
Lantronix SISPM1040-582-LRT
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • hardened
  • managed
  • 8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP
  • DIN rail mountable
Lantronix SISPM1040-582-LRT
  • Switch
  • hardened
  • managed
  • 8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP
  • DIN rail mountable
  • PoE++ (480 W)
  • TAA Compliant
  Additional Details
Price: $1,263.00
MSRP: $1,663.94
Mfr Part #: SISPM1040-582-LRT
SHI Part #: 49080712
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Lantronix
Product Type: Hardware
General Information
CategorySwitch matrixes
DescriptionLantronix SISPM1040-582-LRT - Switch - hardened - managed - 8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP - DIN rail mountable - PoE++ (480 W) - TAA Compliant
ManufacturerLantronix
MSRP$1,663.94
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth13 cm
Dimensions & Weight / Height13.5 cm
Dimensions & Weight / Width6.2 cm
Header / BrandLantronix
Miscellaneous / Product ColorBlack
Networking / Form FactorDIN rail mountable
Networking / Ports Qty8
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth13 cm
Height13.5 cm
Width6.2 cm
Environmental Parameters
Max Operating Temperature75 °C
Min Operating Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 8 x 1000Base-T RJ-45 PoE++ - 60 W
  • 2 x 1000Base-X SFP
  • 1 x console RJ-45 management
General
Authentication MethodRADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
CapacityQueues: 8
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3ag, IEEE 802.1D, IEEE 1588v2, ITU-T Y.1731, ITU-T G.8032
Device TypeSwitch - 8 ports - managed
Enclosure TypeDIN rail mountable
FeaturesHardened, fanless, PTP, topology view, floor plan view, web-based management, built-in DIP switch, over-current protection, reverse polarity protection, DMS, Store-and-forward technology, LLDP support, SCP, reset button, ERPS, EPSRing, WDT, port mirroring, APR, DHCP support, PoE scheduling, port based access control, Q-in-Q tunneling, MAC based VLAN, VLAN management, PVE, Voice VLAN, GVRP, VLAN ID filtering, IP address filtering, DSCP Marking, loop protection, QoS, IPv4 and IPv6 dual stack, static routing, IP source guard, Syslog support, SNMP trap, DHCP client, DHCP server, DHCP relay, DHCP Option 82, MRP, wall mountable, CSMA/CD
Jumbo Frame Support9KB
MAC Address Table Size8K entries
PerformanceBackplane switching capacity: 20 Gbps
PoE Budget480 W
Ports8 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP
Power Over Ethernet (PoE)PoE++
Remote Management ProtocolWeb GUI, SFTP, HTTPS, SCP, UDP, TCP/IP, SMTP, SNMP 1, SNMP 2c, SNMP 3, Telnet, CLI
Routing ProtocolStatic IP routing, IGMP, IGMPv2, IGMPv3
Status IndicatorsSystem, power 1, ring master, coupling, power 2, alarm, port status, polarity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsNDAA, IP30, FCC Class A certified, NEMA TS-2, UL 2108, EN 62368-1, UL 62368-1
Included AccessoriesDIN-rail bracket
MTBF82,976 hours
TAA CompliantYes
Power
Power Consumption Operational13 Watt
Power DeviceInternal power supply
Voltage RequiredDC 52 - 57 V
Software / System Requirements
Software IncludedPercepxion IoT Edge Solutions Platform
