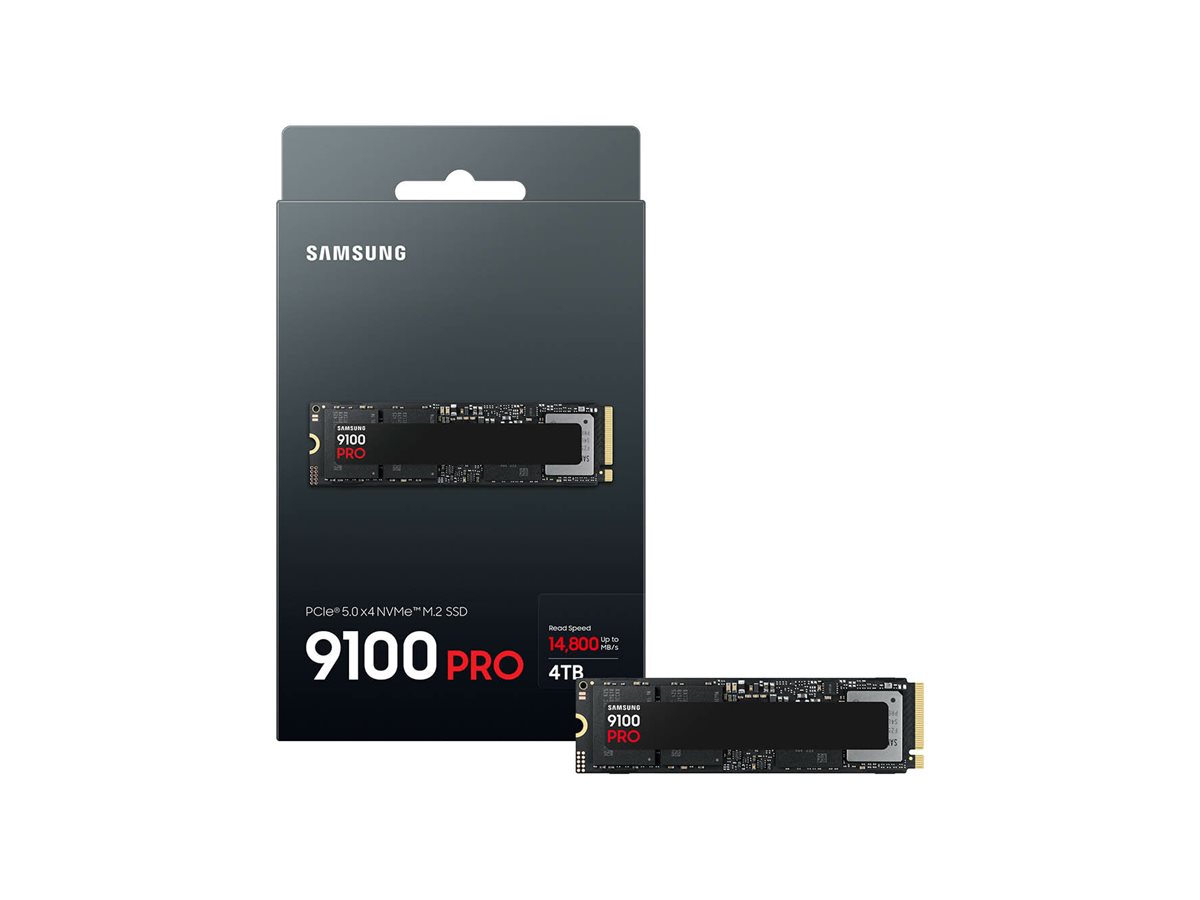

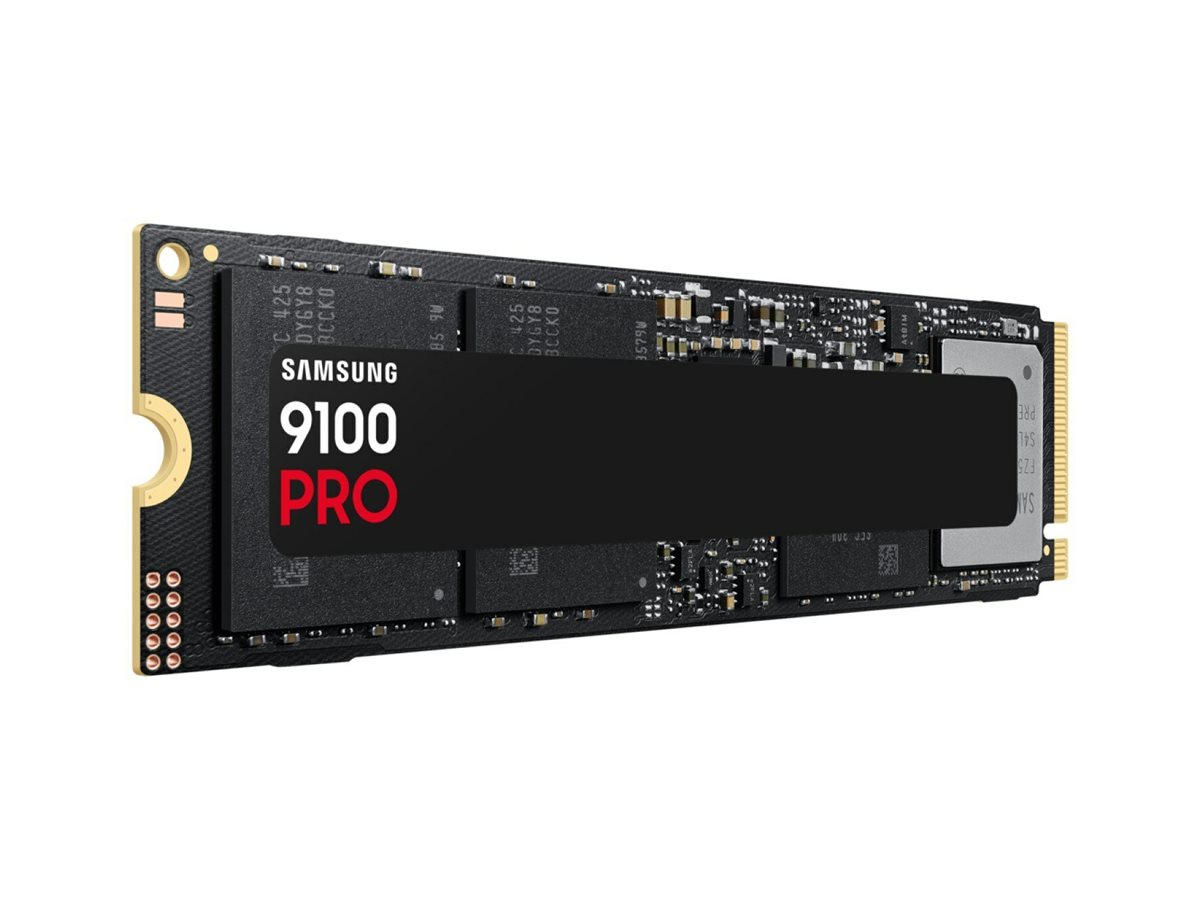

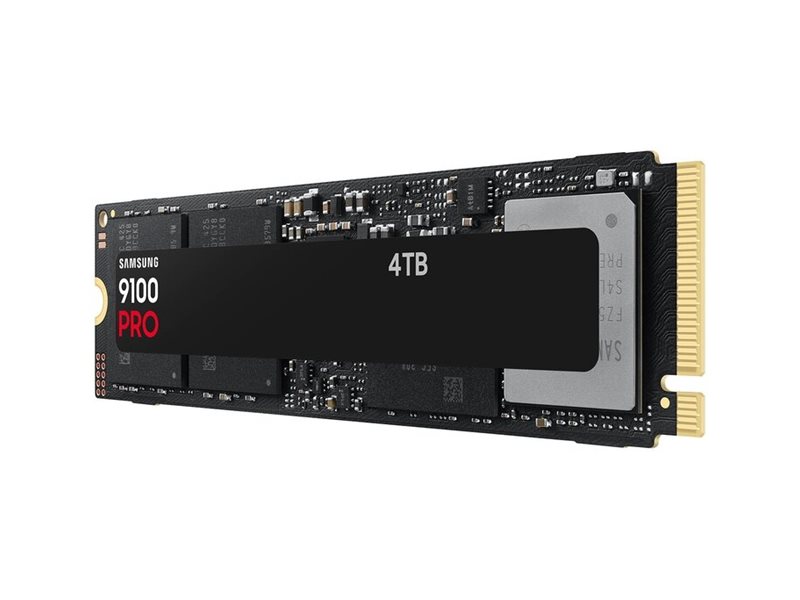

Samsung 9100 PRO MZ-VAP4T0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung 9100 PRO MZ-VAP4T0
- SSD
- encrypted
- 4 TB
- internal
- M.2 2280
- PCI Express 5.0 x4 (NVMe)
- 256-bit AES
- TCG Opal Encryption 2.0
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MZ-VAP4T0B/AM |
| SHI Part #: | 49834031 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Samsung 9100 PRO MZ-VAP4T0 - SSD - encrypted - 4 TB - internal - M.2 2280 - PCI Express 5.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption 2.0 |
| Manufacturer | Samsung |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 81.3 mm |
| Dimensions & Weight / Height | 2.29 mm |
| Dimensions & Weight / Weight | 9.07 g |
| Dimensions & Weight / Width | 22.9 mm |
| Hard Drive / Capacity | 4 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 5.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 5.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 2.29 cm |
| Shipping Height | 14.2 cm |
| Shipping Weight | 72.6 g |
| Shipping Width | 9.91 cm |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| General | |
| Capacity | 4 TB |
| Depth | 81.3 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, Samsung V-NAND TLC Technology, integrated heatsink, Intelligent TurboWrite 2.0 Technology, NVMe 2.0, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 2.29 mm |
| Interface | PCI Express 5.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 9.07 g |
| Width | 22.9 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years / 2400 TBW |
| Miscellaneous | |
| Compliant Standards | IEEE 1667 |
| Package Details | Hanging box |
| Performance | |
| Internal Data Rate | 14800 MBps (read) / 13400 MBps (write) |
| Maximum 4KB Random Read | 2200000 IOPS |
| Maximum 4KB Random Write | 2600000 IOPS |
| SSD Endurance | 2400 TB |
| Power | |
| Power Consumption |
|
| Software & System Requirements | |
| Software Included | Samsung Magician Software |
