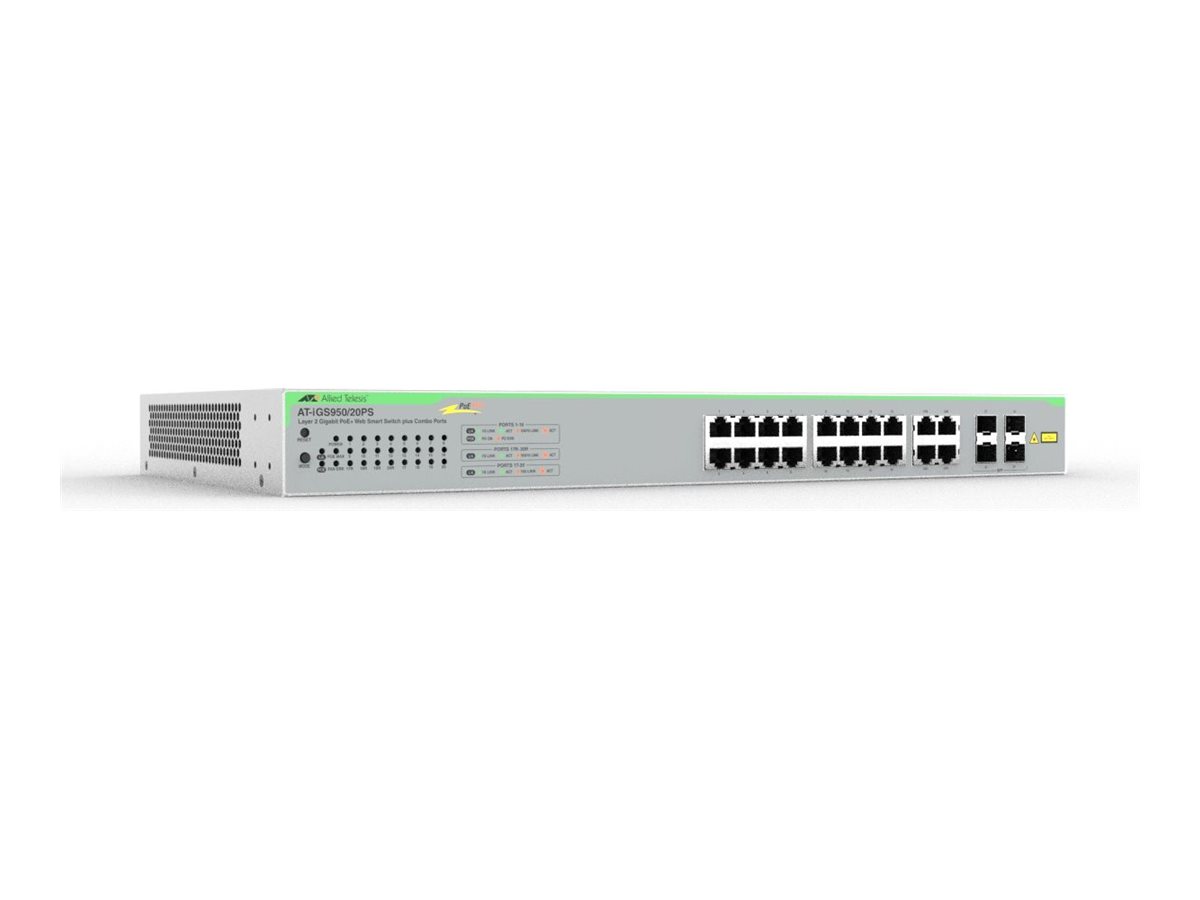

Allied Telesis AT iGS950/20PS
MSRP$862.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Allied Telesis AT iGS950/20PS
- Switch
- smart
- 16 x 10/100/1000 (PoE+) + 4 x combo 100/1000 SFP/RJ-45
- side to side airflow
- desktop, wall-mountable, rack-mountable
- PoE+ (370 W)
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $862.00 |
| Mfr Part #: | AT-IGS950/20PS-910 |
| SHI Part #: | 50286550 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Allied Telesis |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Allied Telesis AT iGS950/20PS - Switch - smart - 16 x 10/100/1000 (PoE+) + 4 x combo 100/1000 SFP/RJ-45 - side to side airflow - desktop, wall-mountable, rack-mountable - PoE+ (370 W) - TAA Compliant |
| Manufacturer | Allied Telesis |
| MSRP | $862.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.89 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Allied Telesis |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Silver |
| Networking / Form Factor |
|
| Networking / Ports Qty | 20 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 25 cm |
| Height | 4.4 cm |
| Weight | 3.89 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS, Secure Shell (SSH) |
| Built-in Devices | 2 x fans |
| Capacity |
|
| Compliant Standards | IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3az |
| Device Type | Switch - 20 ports - smart |
| Enclosure Type | Side to side airflow desktop, wall-mountable, rack-mountable |
| Encryption Algorithm | MD5, SSL |
| Features | VLAN support, QoS, port-based priority, STP support, 802.1x authentication, dynamic VLAN assignment, port mirroring, egress rate limiting, ingress rate limiting, MAC filtering, Broadcast Storm Control, firmware upgradable, DHCP client, NDP, SNTP, EEE, Link Aggregation, tagged VLAN, flow control, mode button, reset button |
| Flash Memory | 32 MB |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Performance |
|
| PoE Budget | 370 W |
| Ports | 16 x 10/100/1000 (PoE+) + 4 x combo 100/1000 SFP/RJ-45 |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 256 MB |
| Remote Management Protocol | IPv4, Telnet, Syslog, SNMP 1, SNMP 2c, SNMP 3, MIB 2, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, HTTP, SNMP |
| Routing Protocol | IGMP, IGMPv2 |
| Status Indicators | Fan failure, link/activity, PoE max, power |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | RoHS, China RoHS, EU RoHS, UL 62368, CB 62368, FCC, UKCA, ICES, RCM |
| Included Accessories | Rubber feet, power cord |
| Localization | United States |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Power | |
| Electric Current Required | 7 A |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
