Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

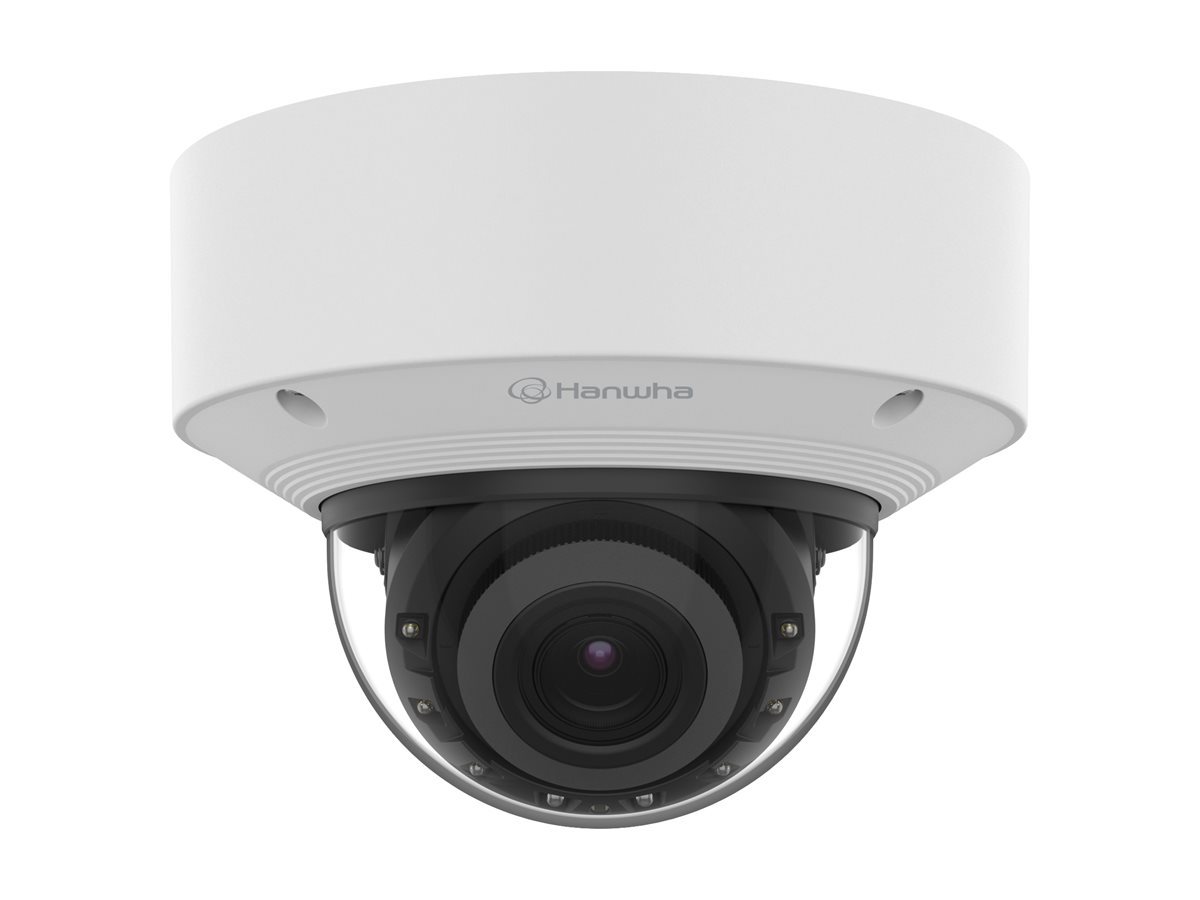

Hanwha Vision X Gen 2 XNV-A9084R

MSRP$1,650.00
$1,208.00
Hanwha Vision X Gen 2 XNV-A9084R
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • PTRZ
  • dome
  • outdoor
  • vandal-proof
Hanwha Vision X Gen 2 XNV-A9084R
  • Network surveillance camera
  • PTRZ
  • dome
  • outdoor
  • vandal-proof
  • color (Day&Night)
  • 8 MP
  • 3840 x 2160
  • motorized
  • audio
  • USB
  • Ethernet 10Base-T/100Base-T
  • H.265, H.264, MJPEG
  • PoE Class 3
  Additional Details
Price: $1,208.00
MSRP: $1,650.00
Mfr Part #: XNV-A9084R
SHI Part #: 50294536
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionHanwha Vision X Gen 2 XNV-A9084R - Network surveillance camera - PTRZ - dome - outdoor - vandal-proof - color (Day&Night) - 8 MP - 3840 x 2160 - motorized - audio - USB - Ethernet 10Base-T/100Base-T - H.265, H.264, MJPEG - PoE Class 3
ManufacturerHANWHA VISION
MSRP$1,650.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth16 cm
Dimensions & Weight / Height11.8 cm
Dimensions & Weight / Weight1.22 kg
Dimensions & Weight / Width16 cm
Header / BrandHanwha Vision
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video Capture Resolution3840 x 2160, 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1512, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Digital Video FormatH.265, H.264, MJPEG
Exposure Range2 sec - 1/30000 sec
Features60Hz frame rate, 355° rotation, auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, WiseNR II, Image Stabilization, Defog, dynamic privacy masking, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), electronic shutter, image flip, image mirror, Hallway View, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, gender recognition, clothes color detection, age recognition, mask detection, glasses detection, vehicle color recognition, Best Shot Selector (BSS), Virtual Line detection, Line Crossing Detection, Directional Detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, social distancing detection, Defocus Detection, Tampering detection, shock detection, people counting, vehicle counting, Crowd Density, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Smart Codec, Constant Bitrate (CBR), Variable Bitrate (VBR), WiseStream support, Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, Access Control, aluminum housing, hard-coated dome, dual NPU architecture, alarm notifications, color identification, Audio Detection
Flash Memory8 GB
Frame Rate (max)30 frames per second
Infrared Distance40 m
Infrared LEDsYes
Max Digital Video Resolution3840 x 2160
Minimum Illumination
  • 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
  • 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec
  • 0 lux - B&W - infrared LEDs on
Motion DetectionYes
RAM4 GB
TypeColor - Day&Night - pan / tilt / roll / zoom - outdoor - vandal-proof
Environmental Parameters
Max Operating Temperature50 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)0 - 100% (condensing)
Expansion / Connectivity
Encryption AlgorithmEAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2
Ports
  • USB - 24-pin USB-C
  • 2 x alarm I/O
  • Audio line-in/microphone
  • Audio line out
  • LAN/power - RJ-45
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.711, PCM, G.726, ADPCM, AAC-LC, OPUS
Audio SupportYes
Connectivity TechnologyWired
Depth16 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height11.8 cm
Weight1.22 kg
Width16 cm
Image Sensor
Type8 MP CMOS 1/1.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-T
Network ProtocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, Syslog, SUNAPI
VideoUSB
Lens Construction
Diagonal Field of View (degree)138
Focal Length4.4 mm - 9.3 mm
Focus AdjustmentManual
Horizontal Field of View (degree)113
Lens IrisF/1.3 (wide) / f/2.15 (telephoto) (P-Iris)
Min Focus Distance50 cm
Optical Zoom2.1 x
TypeMotorized zoom
Vertical Field of View (degree)58
Miscellaneous
ColorWhite, RAL 9003
Compliant StandardsFCC, cULus, EAC, NDAA, IEEE 802.1x, ETSI EN 303 645, FIPS 140-3 Level 3, CC EAL6+, NEMA TS-2 (2.2.7.2-8.2.2.8, 2.2.9), IEEE 802.3af, ROHS Directive 2011/65/EU, EN/IEC 63000:2018, REACH 1907/2006/CE, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 62676-4
Panning
Range (degree)0 to 360
Power
Power Device11.2 Watt
Power RequirementsPoE Class 3
Tilting
Range (degree)0 to -75
