Eaton Tripp Lite series

2-Port HDMI Switch with Remote Connects 2 Sources to One 8K HDMI Display

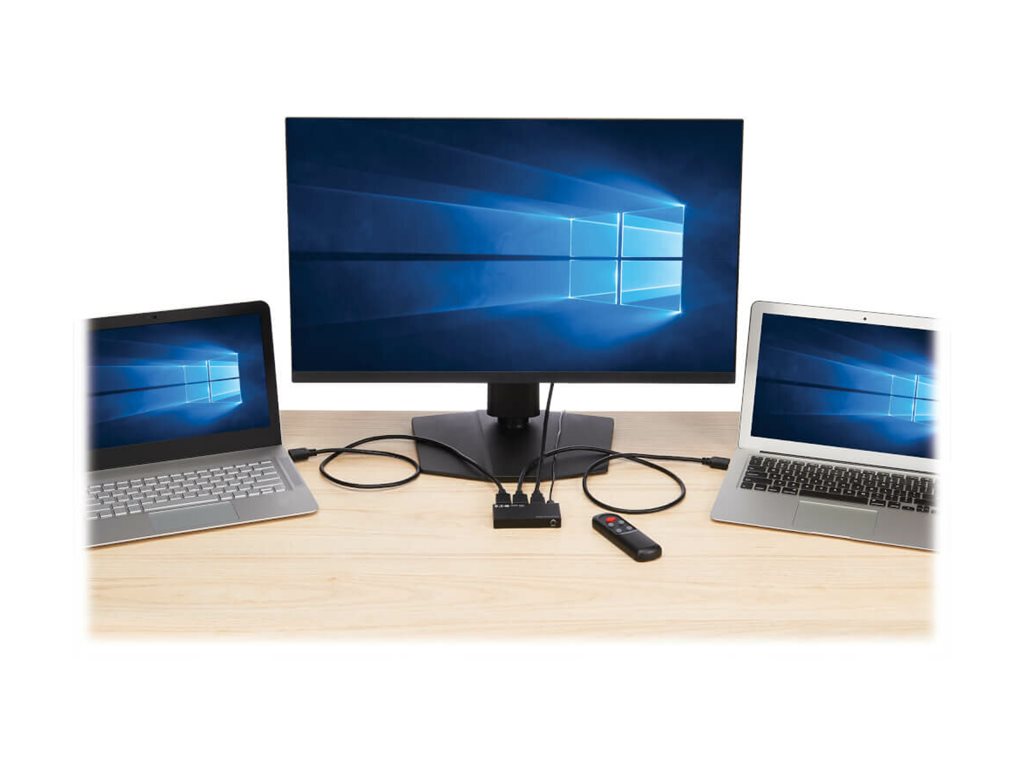

The B119-002-8K6 allows you to connect two separate HDMI audio/video sources to your 8K television, projector or monitor's HDMI input and switch between them. For instance, connect a media server and a Blu-ray player or an Xbox and a laptop to your 8K HDTV, and use the manual push button or included remote control to switch between one input and the other.

Transmits 8K Video with HDR10+ and 4:4:4 Color

This two-port HDMI switch supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz with 36-bit Deep Color and DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It supports HDR10+ and Dolby Vision, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.3 encryption allows you to stream 8K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

3 Different Switching Modes for Hassle-Free Operation

The B119-002-8K6 simplifies switching with three different modes to fit your application. You can use the push button on the unit to switch manually between HDMI sources or the included remote to control the inputs at a distance. You can also activate automatic port switching, which enables the most recently used source to be displayed automatically. The B119-002-8K6 also features an IR receiver on/off function.

Backward Compatible with Legacy A/V Equipment

This HDMI switch supports 8K at 60 Hz, as well as 4K at 120 Hz and 1080p at 240 Hz. Because the B119-002-8K6 is backward compatible with 4K and high-definition 1080p, you will be able to use it with any video source connected to your home theater or digital signage application.

Note

: Make sure your source devices, cabling and displays can all support the resolution and refresh rate you need to output. Standard HDMI 2.1-compatible cabling is necessary to achieve 8K specifications.

Ready to Use Right from the Package, So You Can Plug and Play Immediately

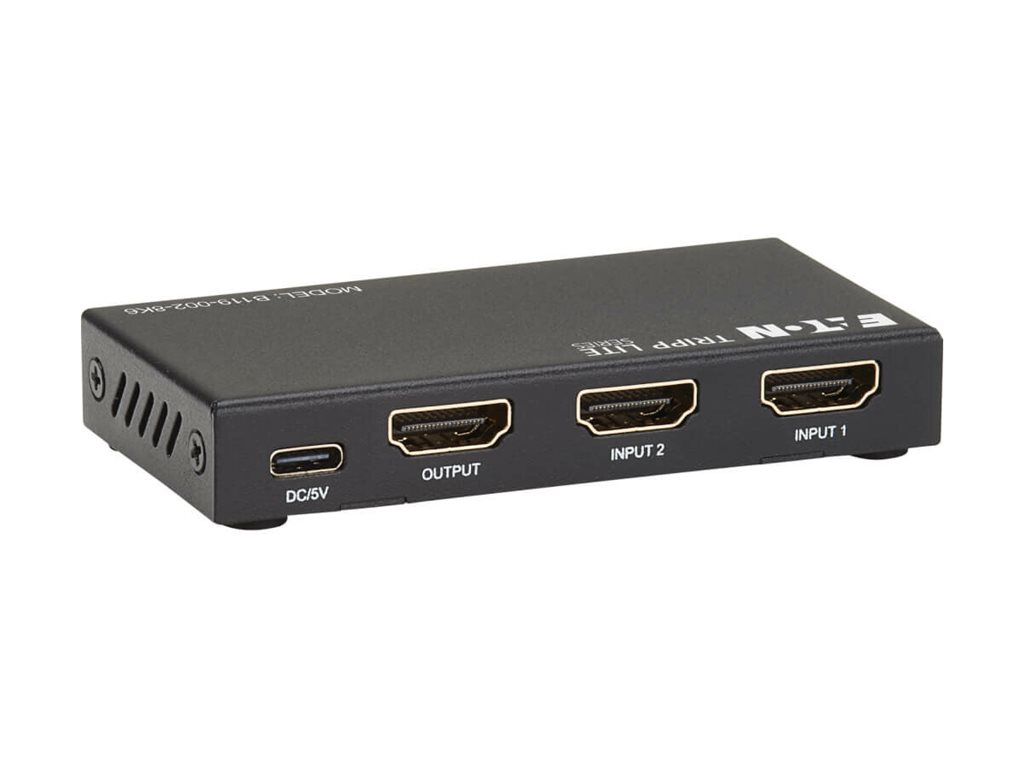

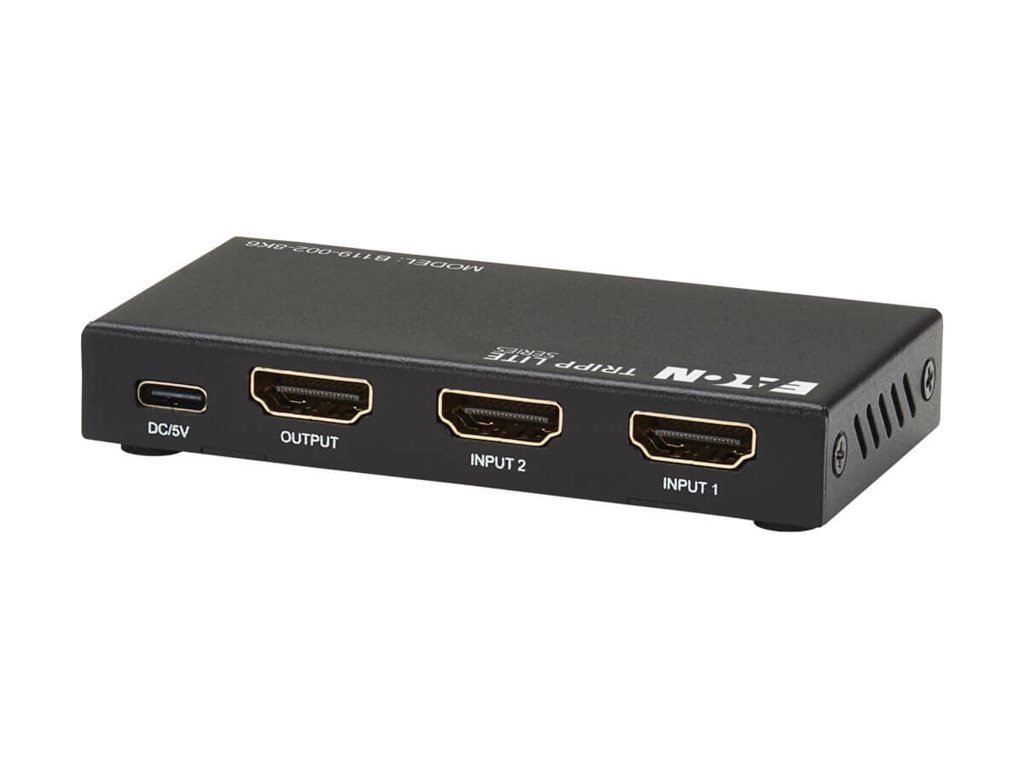

The rugged metal switch requires no extra software to download and install. Connect your devices to the HDMI ports with user-supplied 8K-compatible HDMI cables (such as P568-xxx-8K6), and plug the included power cable into a user-supplied USB charging adapter. The B119-002-8K6's compact form factor allows you to place the switch out of sight, keeping your AV project aesthetically pleasing.

Note

: The USB charging adapter must be certified for safety and must be suitable for the region in which the HDMI switch is used.
