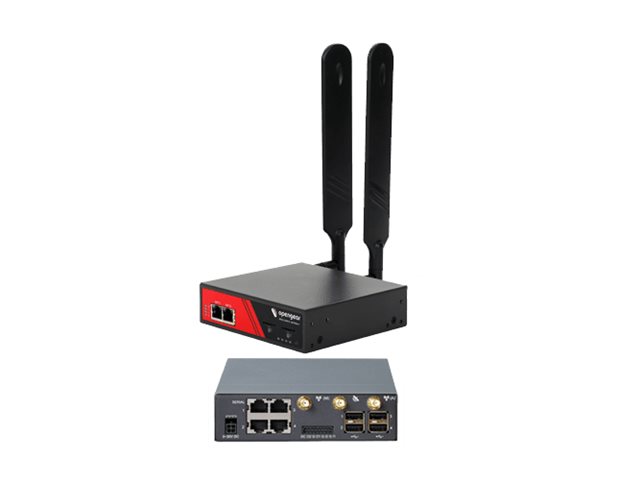

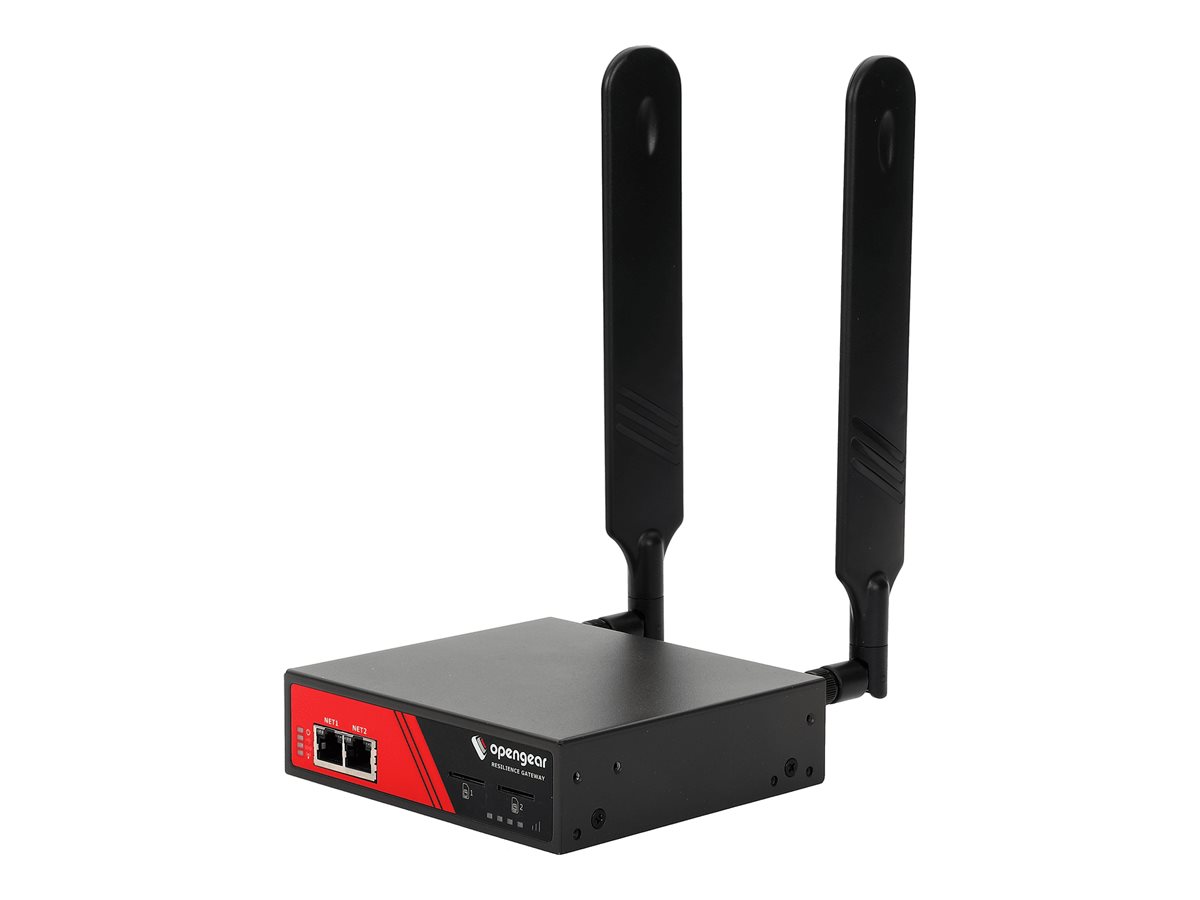

Opengear ACM7004-2-L-GLB
MSRP$1,349.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Opengear ACM7004-2-L-GLB
- Console server
- 4 ports
- 1GbE, RS-232
- 4G
- 4G LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66 / HSPA+ B1/B2/B4/B5/B6/B8/B9/B19
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,349.00 |
| Mfr Part #: | ACM7004-2-L-GLB |
| SHI Part #: | 50387517 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Opengear |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Opengear ACM7004-2-L-GLB - Console server - 4 ports - 1GbE, RS-232 - 4G - 4G LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66 / HSPA+ B1/B2/B4/B5/B6/B8/B9/B19 |
| Manufacturer | Opengear |
| MSRP | $1,349.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 3.5 cm |
| Dimensions & Weight / Weight | 600 g |
| Dimensions & Weight / Width | 13 cm |
| Header / Brand | Opengear |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Ports Qty | 4 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Communications | |
| Cellular Band | 4G LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66 / HSPA+ B1/B2/B4/B5/B6/B8/B9/B19 |
| Cellular Protocol | HSPA+, LTE |
| Generation | 4G |
| Mobile Broadband Access | Yes |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -25 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Mini SIM card |
| Interfaces |
|
| General | |
| Depth | 12 cm |
| Device Type | Console server |
| Height | 3.5 cm |
| Weight | 600 g |
| Width | 13 cm |
| Miscellaneous | |
| Cables Included | 1 x DB-9 to RJ-45 adapter |
| Compliant Standards | EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015, ICES-003 issue 5, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2008, EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004, UL 1950, TUV, C-Tick, RoHS, PCI DSS 3.2, NERC-CIP, FIPS 140-2, AS/NZS CISPR22:2009+A1:2010, FCC, GCF, JRF, JPA, NCC, PTCRB |
| Included Accessories | Rack mount kit, terminal block connector, 2 x cellular antennas, 4 rubber feet, power adapter, cellular antenna extender |
| MTBF | 100,000 hours |
| Networking | |
| Authentication Method | TACACS+, Kerberos, RADIUS, LDAP, PAP, CHAP, Secure Shell v.2 (SSH2) |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Encryption Algorithm | SSL |
| Features | 4KV AC surge protection, ESD Protector, VPN support, DHCP server, firewall protection, port forwarding, IP address filtering, Sierra Wireless EM7565 modem |
| Form Factor | External |
| Network / Transport Protocol | IPSec, OpenVPN, DDNS, TFTP, FTP |
| Performance |
|
| Ports Qty | 4 |
| Remote Management Protocol | HTTPS, SSH |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V |
| Processor / Memory / Storage | |
| Flash Memory | 32 MB |
| Hard Drive | SSD 4 GB |
| Max Supported Qty | 1 |
| Processors Installed | 1 x Marvell 88F6W11 800 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Software / System Requirements | |
| OS Provided | Linux |
