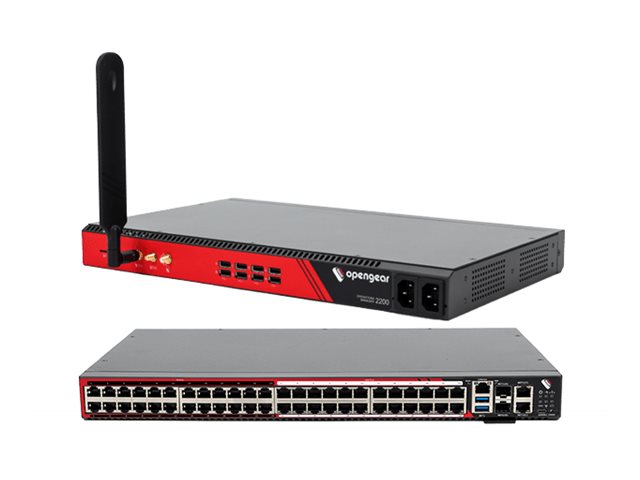

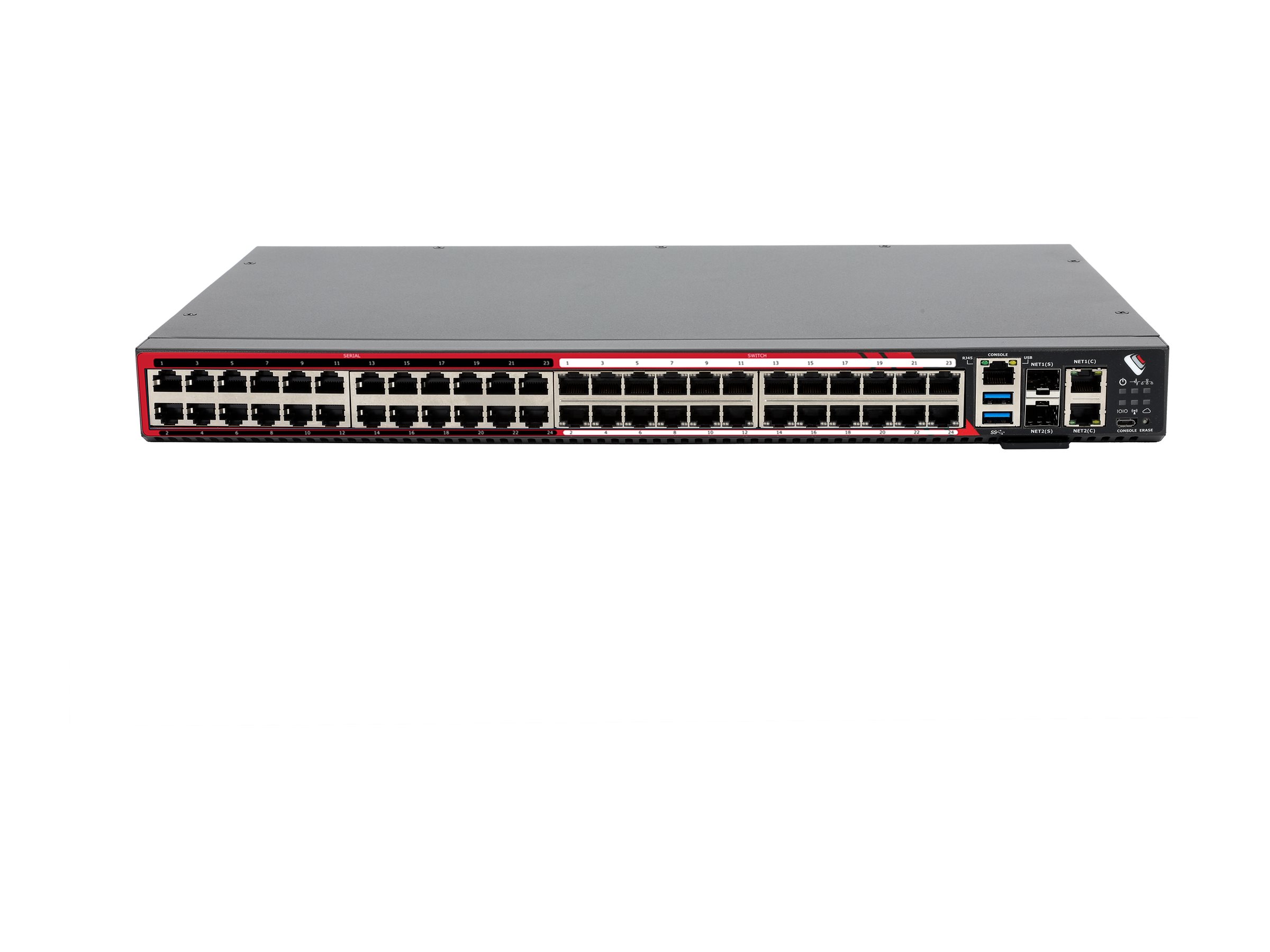

Opengear OM2224-24E-L

MSRP$6,799.00
$5,508.00
Opengear OM2224-24E-L
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Console server
  • 24 ports
  • 1GbE, RS-232
  • 3G, 4G
  • HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Opengear OM2224-24E-L
  • Console server
  • 24 ports
  • 1GbE, RS-232
  • 3G, 4G
  • HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
  • 1U
  • rack-mountable
  Additional Details
Price: $5,508.00
MSRP: $6,799.00
Mfr Part #: OM2224-24E-L
SHI Part #: 50387577
Category: Servers
UNSPSC: 43211501
Manufacturer: Opengear
Product Type: Hardware

Power Cables

Opengear - Power cable
Opengear - Power cable
  • 1.8 m
  • black
  • United Kingdom
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$11.00
General Information
CategoryServers
DescriptionOpengear OM2224-24E-L - Console server - 24 ports - 1GbE, RS-232 - 3G, 4G - HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9 - 1U - rack-mountable
ManufacturerOpengear
MSRP$6,799.00
UNSPSC43211501
Main Specifications
Dimensions & Weight / Depth26 cm
Dimensions & Weight / Height4.5 cm
Dimensions & Weight / Weight3.5 kg
Dimensions & Weight / Width44 cm
Header / BrandOpengear
Miscellaneous / Product Color
  • Black
  • Red
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • RS-232
Networking / Data Transfer Rate230.4 Kbps
Networking / Form FactorRack-mountable
Networking / Ports Qty24
Networking / TypeConsole server
Packaged Quantity1
Service & Support / Type4-year warranty
Communications
Cellular BandHSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Cellular ProtocolLTE Advanced Pro
Generation3G, 4G
Mobile Broadband AccessYes
Environmental Parameters
Humidity Range Operating5 - 90%
Max Operating Temperature50 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 2 x Ethernet 1000 - SFP (mini-GBIC)
  • 1 x console - RJ-45
  • 24 x RS-232 - RJ-45
  • 24 x 1000Base-T - RJ-45
  • 3 x antenna - SMA
General
Built-in Devices24-port switch
Depth26 cm
Device TypeConsole server
Height4.5 cm
Height (Rack Units)1U
Weight3.5 kg
Width44 cm
Manufacturer Warranty
Service & Support
  • Limited warranty - 4 years
  • Technical support - 4 years
Miscellaneous
Cables Included
  • 1 x network cable - 1.83 m
  • 1 x crossover cable
Compliant StandardsEN 55032:2015 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11:2010, EN 61000-4-2, EN 61000-4-28:2010, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-4-4:2007, EN 61000-4-5:2014, EN 61000-4-6:2008, EN 61000-4-8:2009, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, FCC, GCF, IC, JRF, JPA, NCC, PTCRB
Included AccessoriesRack mount kit, 2 x cellular antennas, 2 power cords (C13 to C14)
MTBF100,000 hour(s)
Networking
Authentication MethodTACACS+, Secure Shell (SSH), RADIUS, Active Directory, LDAP, Kerberos
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232
Data Transfer Rate230.4 Kbps
FeaturesSmart Out-of-Band, Python runtime, Docker Support, Trusted Platform Module 2.0 (TPM 2.0), firewall protection, passive cooling, Quad-core CPU, Authentication, Authorization and Accounting (AAA), Management Information Base (MIB), password protection
Form FactorRack-mountable
Network / Transport ProtocolOpenVPN
Ports Qty24
Remote Management ProtocolSSH, SNMP
Power
Installed Qty2
Max Supported Qty2
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Memory / Storage
Flash Memory16 MB
Hard DriveSSD 64 GB x 1 - SATA 6Gb/s - M.2
Max Supported Qty1
Processors Installed1 x AMD GX-412TC 1.4 GHz
RAM8 GB DDR3 SDRAM
