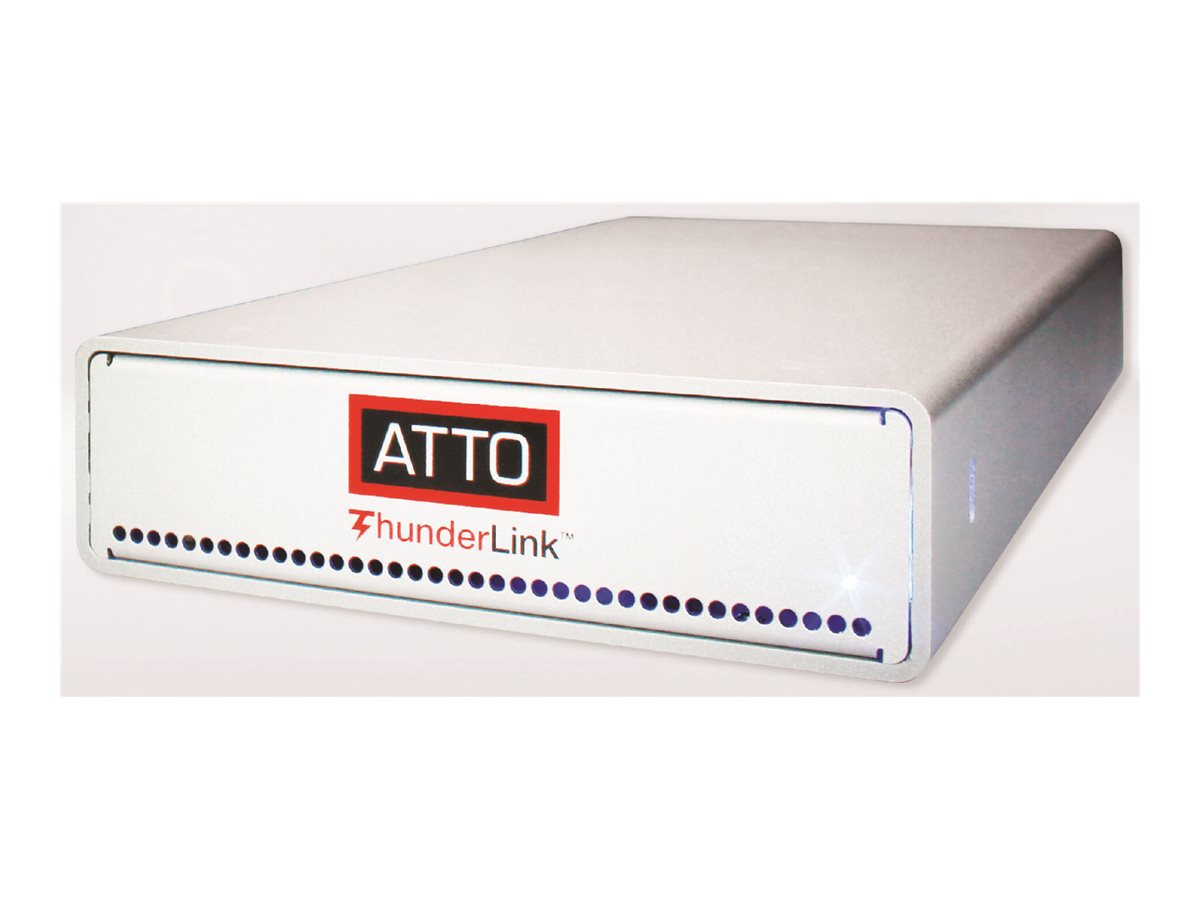

ATTO ThunderLink FC-5642
MSRP$5,495.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATTO ThunderLink FC-5642
- Network adapter
- Thunderbolt 5
- 64Gb Fibre Channel (Short Wave) x 2
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,495.00 |
| Mfr Part #: | TLFC-5642-D00 |
| SHI Part #: | 50403750 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | ATTO |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | ATTO ThunderLink FC-5642 - Network adapter - Thunderbolt 5 - 64Gb Fibre Channel (Short Wave) x 2 - TAA Compliant |
| Manufacturer | ATTO |
| MSRP | $5,495.00 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24 cm |
| Dimensions & Weight / Height | 3.51 cm |
| Dimensions & Weight / Width | 10.3 cm |
| Header / Brand | ATTO |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Silver |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 64Gb Fibre Channel (Short Wave) |
| Networking / Data Transfer Rate | 64 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 24 cm |
| Height | 3.51 cm |
| Width | 10.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Network adapter |
| Form Factor | Desktop |
| Interface (Bus) Type | Thunderbolt 5 |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B Class B., cTUVus, EN 60825-1, EN 60825-2, EN55022 Class B, EN55024, IEC 62368-1, RoHS 2011/65/EC, RoHS 2015/863/EU |
| TAA Compliant | Yes |
| Networking | |
| Capacity | Default buffer credits per port: 80 |
| Connectivity Technology | Wired |
| Data Link Protocol | 64Gb Fibre Channel (Short Wave) |
| Data Transfer Rate | 64 Gbps |
| Features | Auto-negotiation, PtP link mode, FDMI, NPIV technology, Virtual Fabric mode, load balancing |
| Fibre Channel | FC-FS, FCP |
| Ports | 64Gb Fibre Channel (Short Wave) x 2 |
| Status Indicators | Link/activity, speed |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS, Windows, Linux |
| Software Included | ATTO360 |
