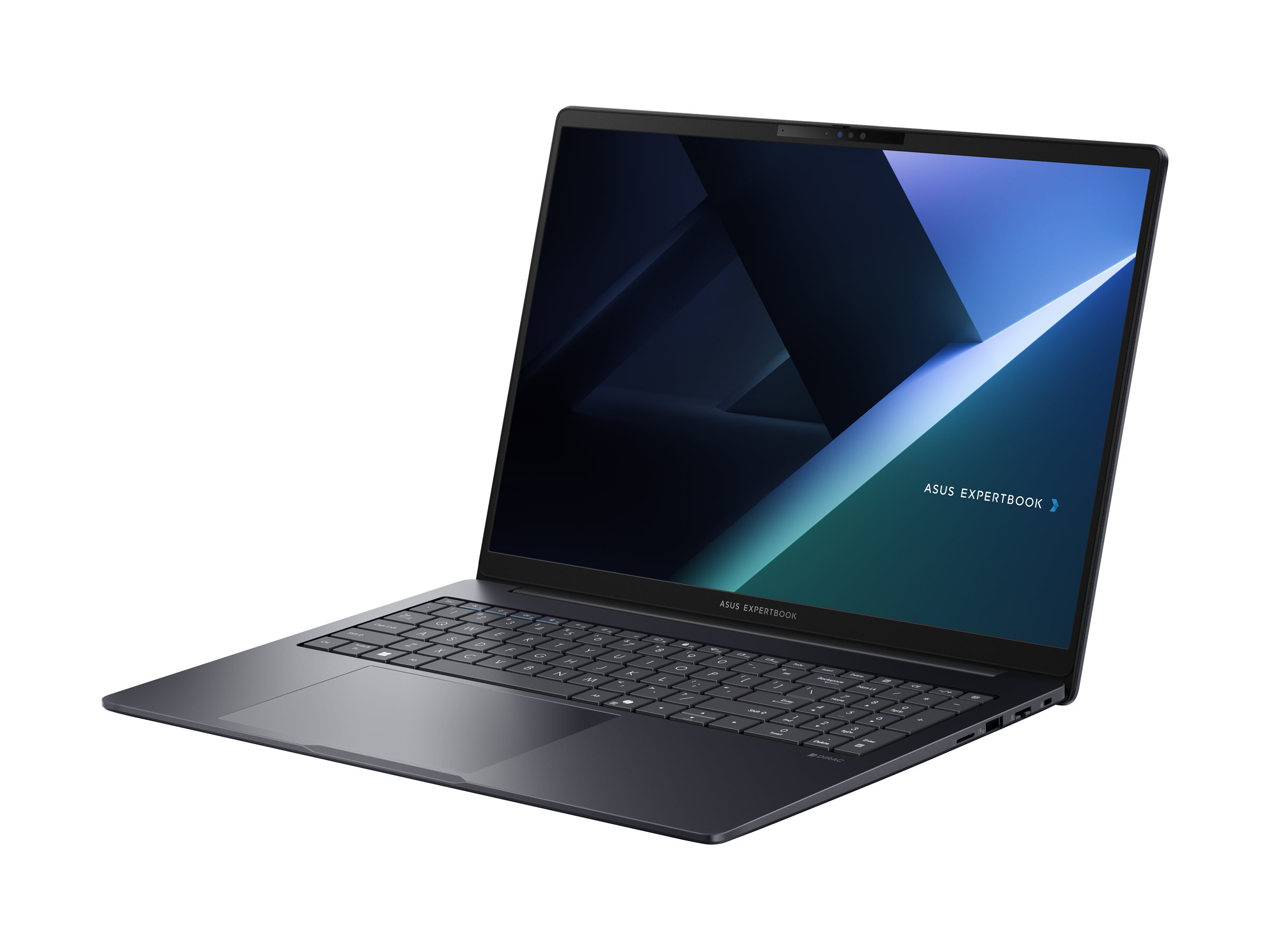

ASUS ExpertBook B5 B5605CCA-XS76
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS ExpertBook B5 B5605CCA-XS76
- Intel Core Ultra 7
- 255H / up to 5.1 GHz
- Win 11 Pro
- Arc Graphics 140T
- 32 GB RAM
- 512 GB SSD NVMe
- 16" 2560 x 1600 (WQXGA)
- Gigabit Ethernet
- Wi-Fi 7, Bluetooth
- gentle gray
| Additional Details | |
|---|---|
| Mfr Part #: | B5605CCA-XS76 |
| SHI Part #: | 50460336 |
| Category: | Notebook computers |
| UNSPSC: | 43211503 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | ASUS ExpertBook B5 B5605CCA-XS76 - Intel Core Ultra 7 - 255H / up to 5.1 GHz - Win 11 Pro - Arc Graphics 140T - 32 GB RAM - 512 GB SSD NVMe - 16" 2560 x 1600 (WQXGA) - Gigabit Ethernet - Wi-Fi 7, Bluetooth - gentle gray |
| Manufacturer | ASUS |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | Microphone |
| Dimensions & Weight / Depth | 25.39 cm |
| Dimensions & Weight / Height | 1.79 cm |
| Dimensions & Weight / Weight | 1.75 kg |
| Dimensions & Weight / Width | 35.84 cm |
| Display / Diagonal Size | 16 in |
| Display / Diagonal Size (metric) | 40.6 cm |
| Display / Native Resolution | 2560 x 1600 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 512 GB |
| Header / Brand | ASUS |
| Input Device / Type |
|
| Miscellaneous / Product Color | Gray |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 255H |
| Processor / Type | Core Ultra 7 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology |
|
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Notebook Type | Notebook |
| System / Security Devices |
|
| Video Output / Graphics Processor | Intel Arc Graphics 140T |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 Watt, 20 V, 3.25 A |
| Audio & Video | |
| Audio Features |
|
| Camera | Yes - 1080p |
| Camera Features | Privacy shutter, IR camera, Windows Hello |
| Graphics Processor | Intel Arc Graphics 140T - up to 74 TOPS |
| Sound | Dual speakers, microphone |
| Battery | |
| Capacity | 63 Wh |
| Technology | 3-cell lithium ion |
| Communications | |
| Features | Dual stream (2x2) |
| Network Interface | Gigabit Ethernet |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Connections & Expansion | |
| Interfaces Details |
|
| Dimensions & Weight | |
| Dimensions (WxDxH) | 35.84 cm x 25.39 cm x 1.79 cm |
| Weight | 1.75 kg |
| Display | |
| Color Gamut | 139% sRGB |
| Features | Anti-glare, WideView, 85% screen-to-body ratio |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 400 cd/m² |
| Resolution | 2560 x 1600 (WQXGA) |
| Type | 16" |
| Widescreen | Yes |
| General | |
| Operating System | Windows 11 Pro |
| Product Type | Notebook |
| Input | |
| Features | Spill-resistant, chiclet keyboard, 1.5mm travel distance |
| Keyboard Backlight | Yes |
| Type | Keyboard, touchpad |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Memory | |
| Empty Slots | 0 |
| Form Factor | SO-DIMM 262-pin |
| RAM | 32 GB (2 x 16 GB) |
| Slots Qty | 2 |
| Technology | DDR5 SDRAM |
| Miscellaneous | |
| Color | Gentle gray |
| Compliant Standards | RoHS, REACH, FSC, Energy Star 8.0 |
| Features | MIL-STD-810H tested, BIOS protection, Computrace ready from BIOS, Absolute Persistence 2.0 (Computrace) technology, CSME BIOS redundancy assistance |
| Included Accessories | USB-C power adapter |
| Security | Trusted Platform Module (TPM 2.0) with Microsoft Pluton Secured-core PC (Level 2) Security Chip, fingerprint reader, smart card reader |
| Security Slot Type | Kensington nano security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 96 TOPS |
| Windows Studio Effects Support | Yes |
| Processor / Chipset | |
| Cache | 24 MB |
| CPU | Intel Core Ultra 7 (Series 2) 255H / 2 GHz |
| Efficient Cores | 8 |
| Features | Intel Smart Cache, Intel Boot Guard |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 16-core |
| Performance Cores | 6 |
| Storage | |
| Main Storage | 512 GB SSD M.2 2280 PCIe 4.0 - NVM Express (NVMe) |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Climate+ | Yes |
| EPEAT Compliant | EPEAT Gold |
| TCO Certified | - TCO Certified, generation 10, for notebooks |
