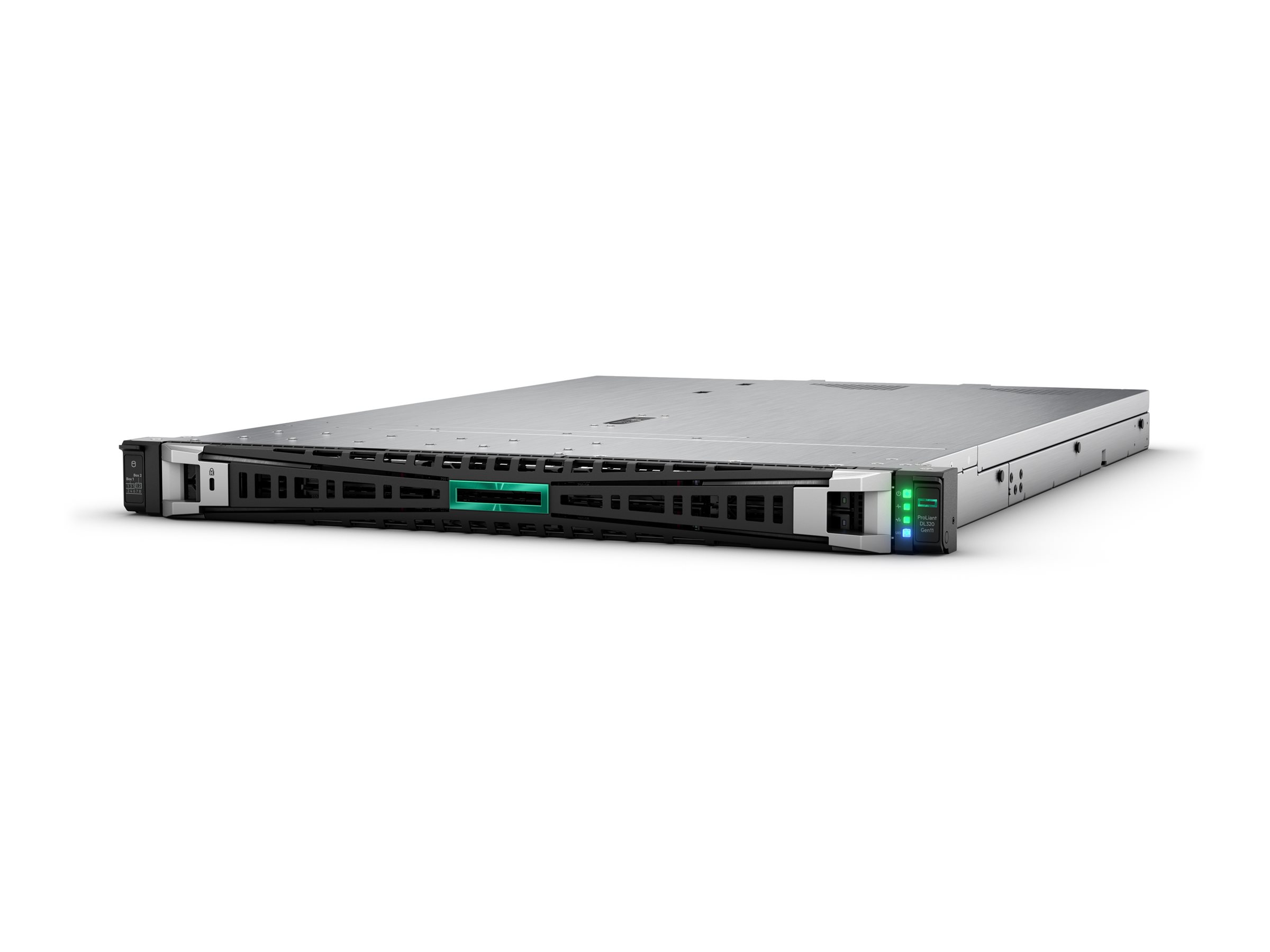

HPE ProLiant DL320 Gen11
MSRP$9,914.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL320 Gen11
- Server
- rack-mountable 1U
- 1-way
- 1 x Xeon Silver 4514Y / up to 3.4 GHz
- RAM 64 GB
- SATA/SAS/NVMe
- hot-swap 2.5" bay(s)
- no HDD
- Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $9,914.00 |
| Mfr Part #: | P84107-005 |
| SHI Part #: | 50514640 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL320 Gen11 - Server - rack-mountable 1U - 1-way - 1 x Xeon Silver 4514Y / up to 3.4 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $9,914.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/NVMe |
| Dimensions & Weight / Depth | 60.51 cm |
| Dimensions & Weight / Height | 4.28 cm |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Mainboard / Chipset Type | Intel C741 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 4514Y |
| Processor / Type | Xeon Silver |
| RAM / Data Integrity Check | Advanced ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | L3 cache - 30 MB |
| Dimensions & Weight | |
| Depth | 60.51 cm |
| Height | 4.28 cm |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | ACPI 6.3, PCIe 5.0, SMBIOS 3.2, Redfish API, AES, Triple DES, TLS v1.2, DMTF, Active Directory v1.0, ASHRAE Class A4, ASHRAE Class A3, UEFI 2.7, FIPS 140-2, WEEE 2002/95/EC, IPv6 Ready, PCI DSS |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Remote Management Controller | Integrated Lights-Out 6 |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| Chipset Type | Intel C741 |
| Clock Speed | 2 GHz |
| CPU | Intel Xeon Silver 4514Y |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| Processor Main Features | Intel Turbo Boost Technology |
| RAM | |
| Configuration Features | 2 x 32 GB |
| Effective Memory Speed | 4800 MT/s |
| Features | Registered, HPE SmartMemory, slots 9 - 16 are available in two-processor configuration only |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 2.04 TB (max) |
| Rated Memory Speed | 4800 MT/s |
| Slots | 16 (total) / 14 (empty) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Storage Controller | |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Storage Controller Name | HPE NS204i-u |
| Type | 1 x RAID |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
