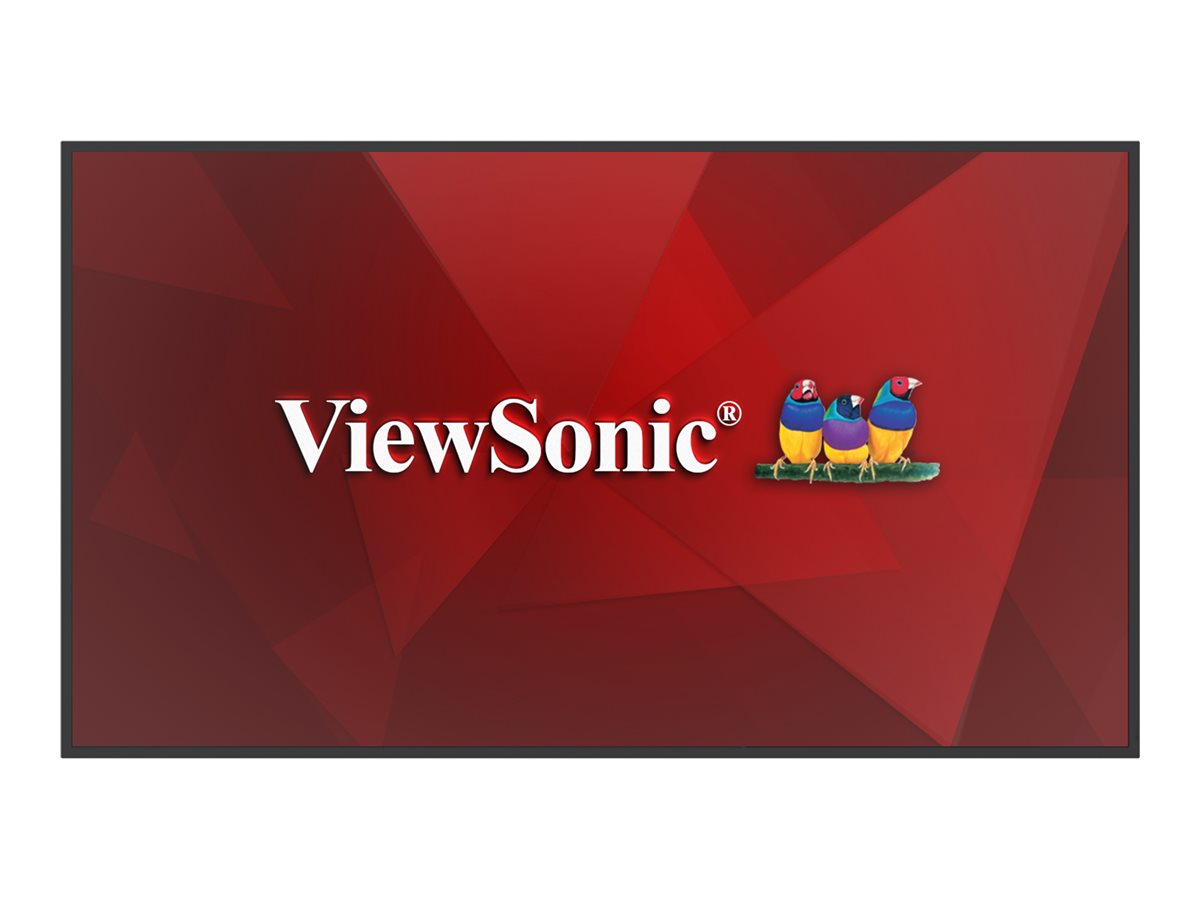

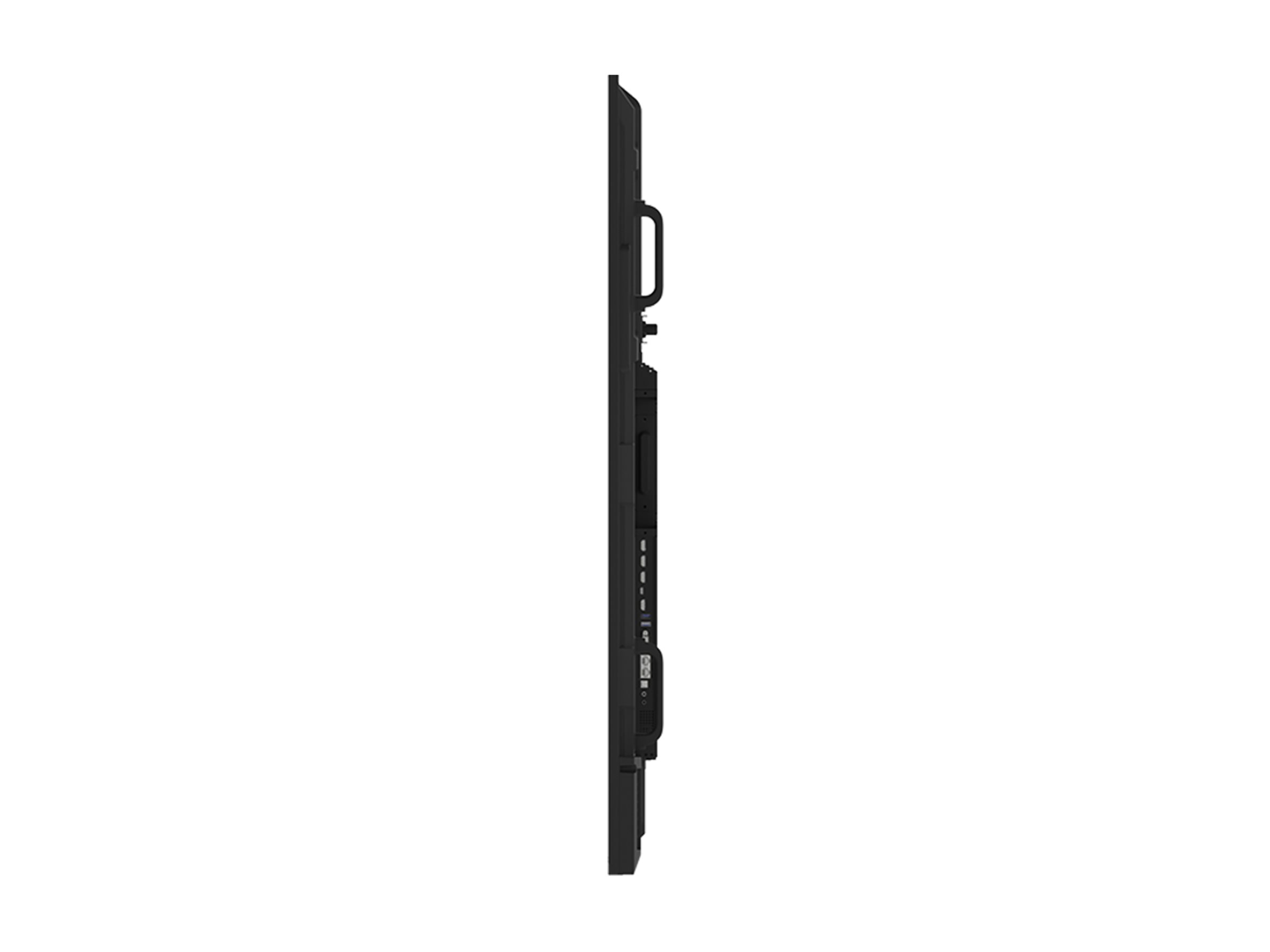

86IN 4K COMMERCIAL DISPLAY 500NITS 5000:1 8GB RAM/32GB STORAGE
MSRP$4,199.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
86IN 4K COMMERCIAL DISPLAY 500NITS 5000:1 8GB RAM/32GB STORAGE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,199.00 |
| Mfr Part #: | CDE8631 |
| SHI Part #: | 50547380 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | ViewSonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | 86IN 4K COMMERCIAL DISPLAY 500NITS 5000:1 8GB RAM/32GB STORAGE |
| Manufacturer | ViewSonic |
| MSRP | $4,199.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Height | 8.50 |
| Length | 82.90 |
| UPC | 0766907034745 |
| Width | 49.10 |
| Audio System | |
| Additional Features | Audio Return Channel (ARC) |
| Output Power / Total | 16 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 16 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 22.5 cm |
| Height (Shipping) | 1.247 m |
| Weight (Shipping) | 56.95 kg |
| Width (Shipping) | 2.11 m |
| Display | |
| Additional Features | Dimming Control (DCR), Low Blue Light Technology, Crestron Connected Compatible, Flicker free technology, OPS Slot, WiFi slot, 24/7 operation time, 8-bit+FRC |
| Backlight Life | 50,000 hours |
| Brightness | 500 cd/m² |
| Coating | Anti-glare, 3H Hard, 25% haze |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 5000:1 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1200:1 |
| LCD Backlight Technology | Direct LED |
| Operation Hours / Days | 24 / 7 |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Combined With | Built-in SoC media player |
| Commercial Use | Yes - digital signage |
| Depth | 7.62 cm |
| Diagonal Class | 86" |
| Diagonal Size | 85.6" |
| Enclosure Color | Black |
| Energy Class | Class F |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2370869 |
| HDMI Ports Qty | 3 ports |
| Height | 1.1017 m |
| Modes | Portrait mode, landscape mode |
| Operating System | Android OS 14 |
| PC Interface | Serial RS-232, USB-C |
| Picture Enhancements | Blue Light Filter |
| Platform | Android |
| Power Consumption (Max) | 146.5 Watt |
| Power Consumption Operational | 104.21 Watt |
| Power Consumption SDR (On mode) | 152 kWh/1000h |
| Product Type | LED-backlit LCD flat panel display |
| Series | CDE31 Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 42 kg |
| Width | 1.9308 m |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Media Player | |
| Configuration | ARM Cortex-A73 Quad-Core - 8 GB DDR4 - 32 GB |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Miscellaneous | |
| Cables Included | HDMI cable - 3 m |
| Compliant Standards | CB, FCC, WEEE, cTUVus, REACH, UkrSEPRO, EAC, RCM, EEI, CE/EMC, RoHS DoC, ICE-003, SCIP, Green BOM, ErP-Eco, Annex I, TPCH DoC, Annex II |
| Included Accessories | Remote control, 2 AAA batteries, 4 mounting screws, 5 clamps, RS232 adapter |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Gigabit Ethernet |
| Power | |
| Input Voltage | AC 100-240 V |
| On / Off Switch | Yes |
| Power Device | Power supply |
| Remote Control | |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
| Stand | Optional |
| VESA Compatibility | Yes |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| EPEAT Compliant | EPEAT Gold |
| Video Features | |
| Input Video Formats | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p, 4K |
