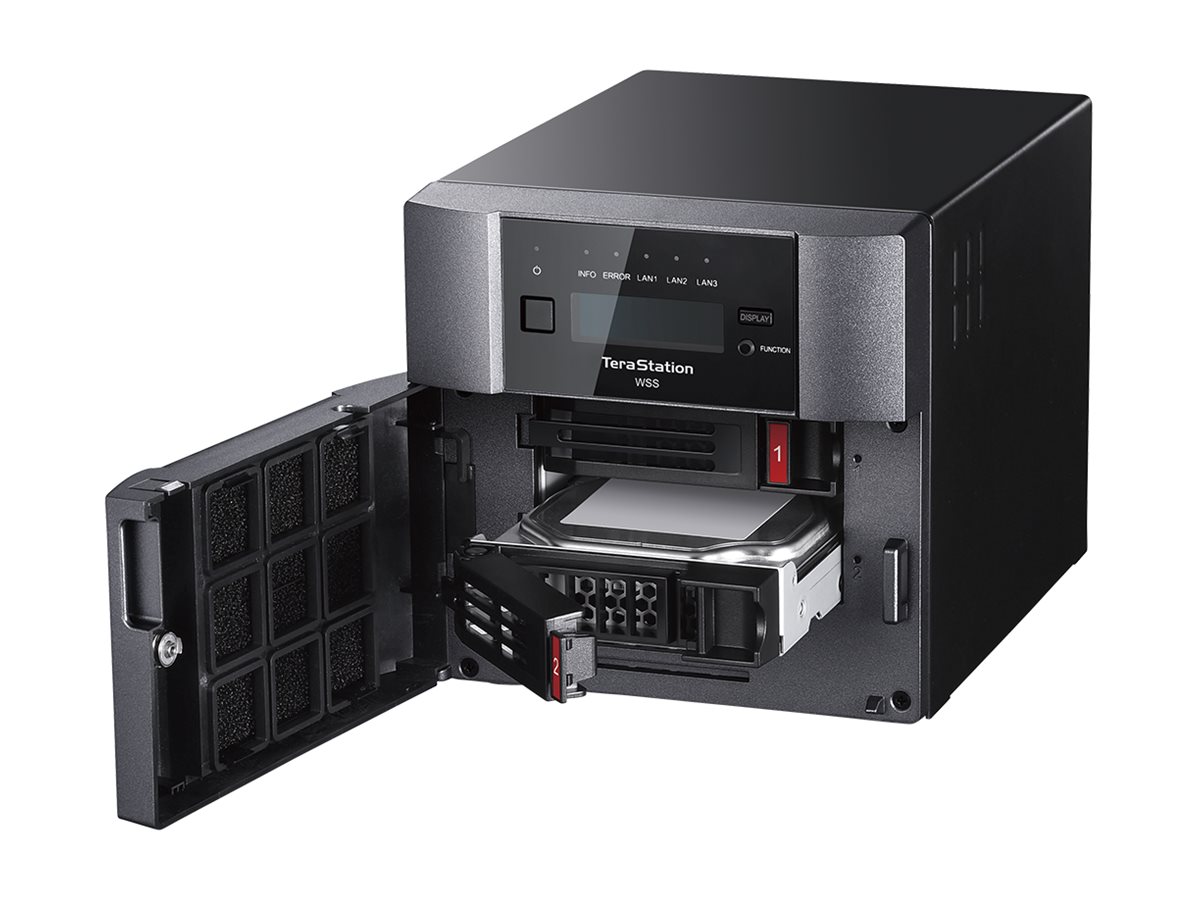

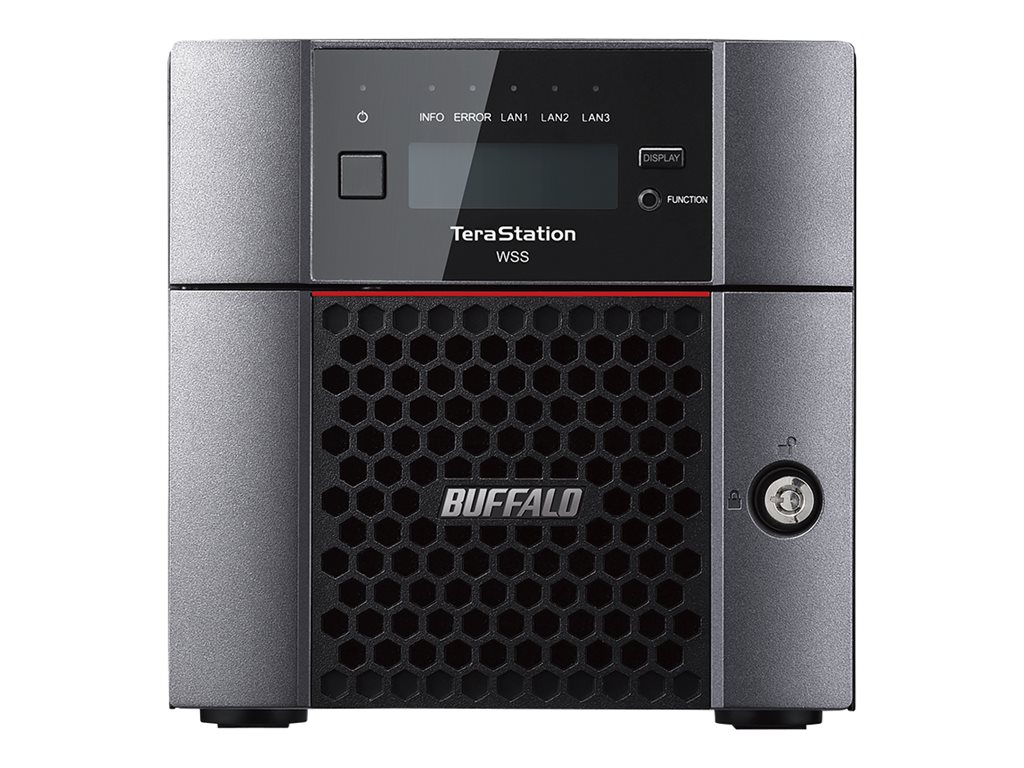

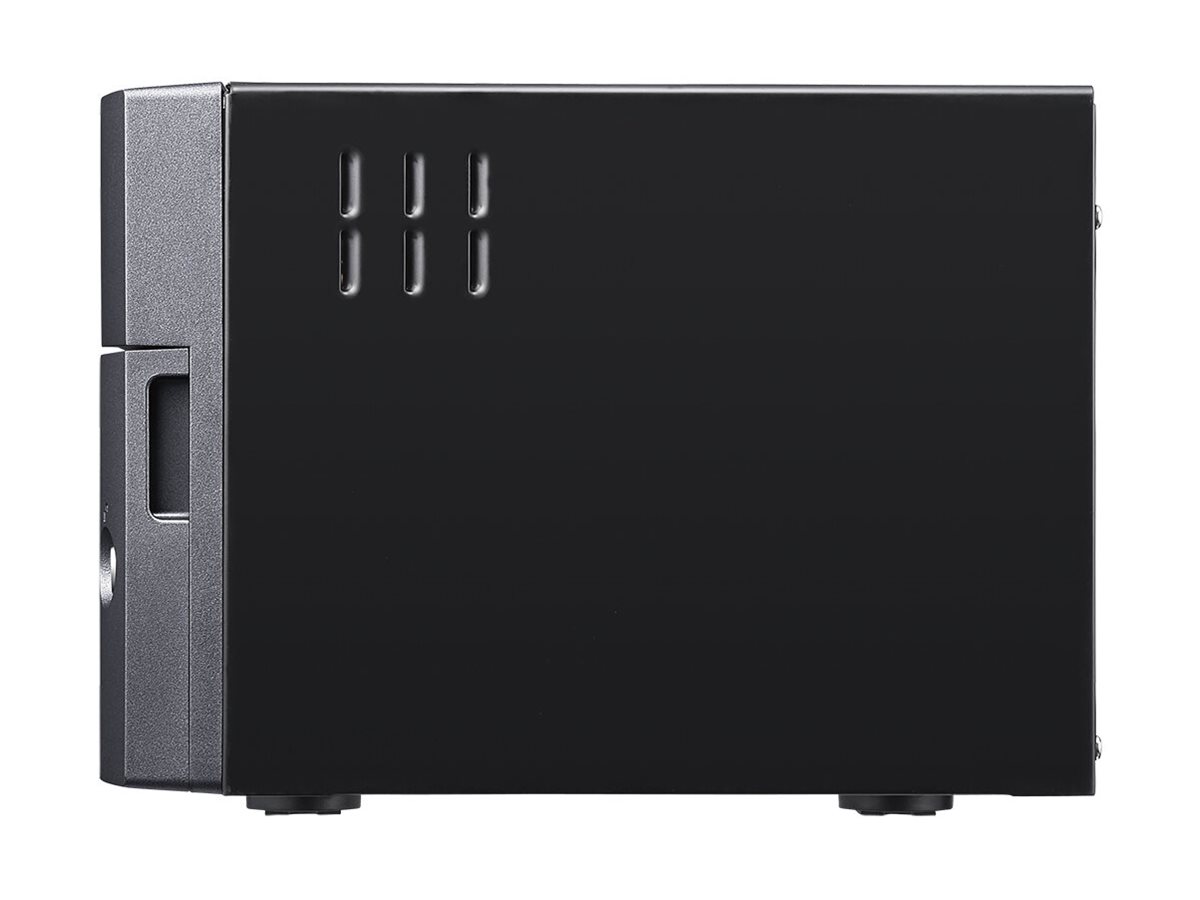

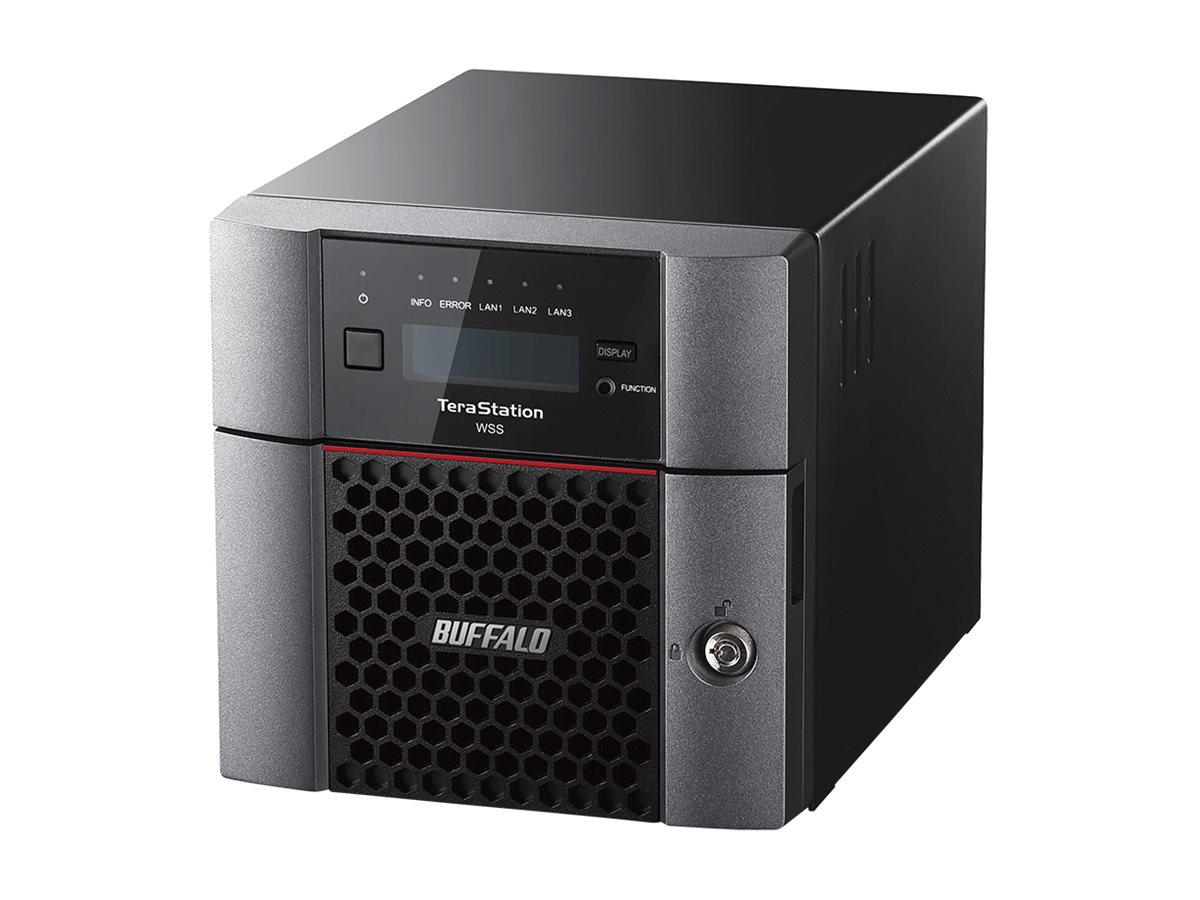

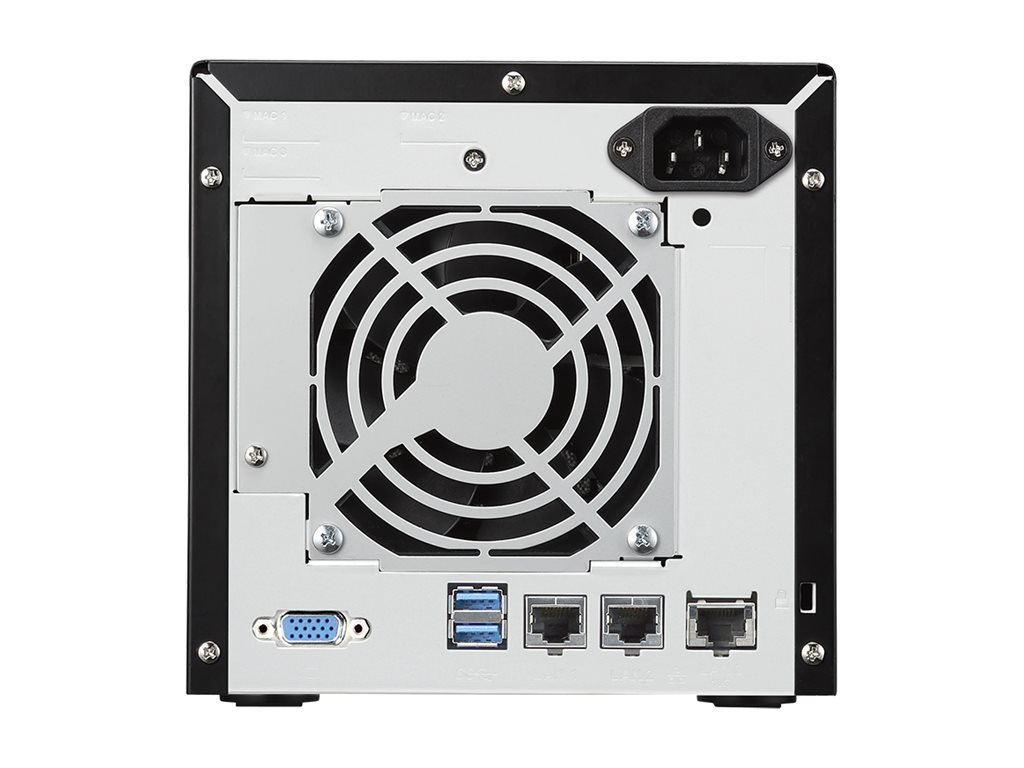

BUFFALO TeraStation WS5020 IoT Series WS5220DN
MSRP$1,747.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
BUFFALO TeraStation WS5020 IoT Series WS5220DN
- NAS server
- 2 bays
- 4 TB
- SATA 6Gb/s
- HDD 2 TB x 2
- RAID 0, 1
- RAM 8 GB
- Gigabit Ethernet / 10 Gigabit Ethernet
- iSCSI support
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,747.99 |
| Mfr Part #: | WS5220DN04W5 |
| SHI Part #: | 50616531 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | Buffalo Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | BUFFALO TeraStation WS5020 IoT Series WS5220DN - NAS server - 2 bays - 4 TB - SATA 6Gb/s - HDD 2 TB x 2 - RAID 0, 1 - RAM 8 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - TAA Compliant |
| Manufacturer | Buffalo Technology |
| MSRP | $1,747.99 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.1 cm |
| Dimensions & Weight / Height | 17 cm |
| Dimensions & Weight / Weight | 4.71 kg |
| Dimensions & Weight / Width | 17 cm |
| Hard Drive / Capacity | 2 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | Buffalo |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | C3338 |
| Processor / Type | Atom |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35.8 cm |
| Shipping Height | 32 cm |
| Shipping Weight | 5 kg |
| Shipping Width | 31 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 0 (free) |
| Interfaces |
|
| General | |
| Depth | 23.1 cm |
| Device Type | NAS server |
| Height | 17 cm |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 2 (installed) / 2 (max) |
| Total Storage Capacity | 4 TB |
| Weight | 4.71 kg () |
| Width | 17 cm |
| Hard Drive | |
| Capacity | 2 x 2 TB |
| Features | RAID 1 - factory configured |
| Interface Type | SATA 6Gb/s |
| Type | HDD |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Included Accessories | Front panel key |
| TAA Compliant | Yes |
| Networking | |
| Compliant Standards | IEEE 802.3an, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Features | WOL, Microsoft Azure support, Microsoft OneDrive support, port trunking |
| Network / Transport Protocol | TCP/IP, SMB, FTP, CIFS, SFTP, NFS |
| Network Services Compatibility | Server Message Block (SMB), Microsoft Active Directory (AD) |
| Remote Management Protocol | SNMP |
| Power | |
| Power Consumption Operational | 85 Watt |
| Power Consumption Stand by | 6.1 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Memory | |
| Features | ECC |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.2 GHz |
| Number of Cores | Dual-Core |
| Processors Installed | 1 x Intel Atom C3338 1.5 GHz |
| RAM | 8 GB DDR4 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8.1 / 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012, Apple macOS 10.12 or later |
| Software Included | NAS Navigator2, NovaBACKUP Buffalo Edition (1 server and 10 workstations) |
| Storage Operating System | Windows Server IoT 2025 for Storage Workgroup Edition |
| TAA Compliant | Yes |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Type | RAID |
