SIIG - KVM / audio / USB extender
MSRP$159.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

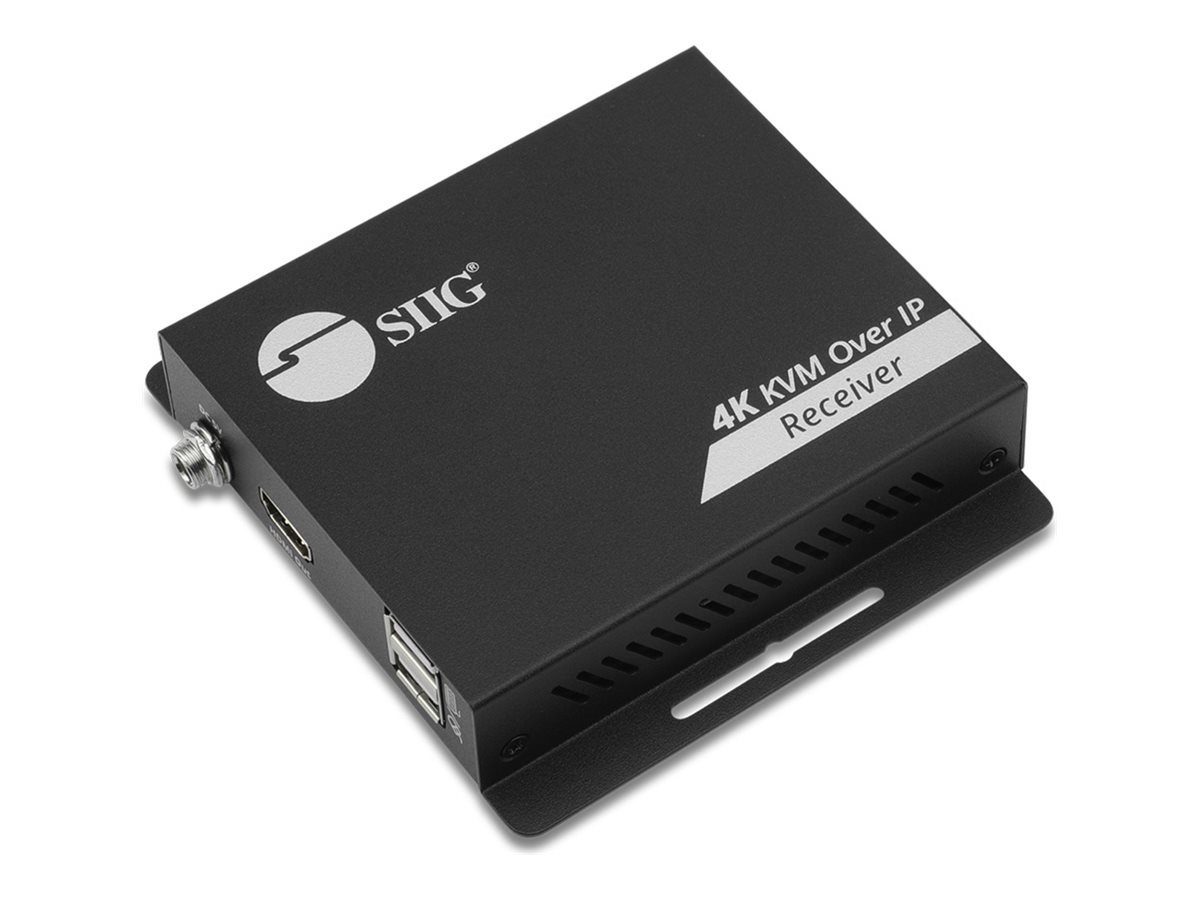

SIIG - KVM / audio / USB extender
- receiver
- HDMI
- over CAT 6/7
- USB
- up to 120 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $159.99 |
| Mfr Part #: | CE-H3KE01-S1 |
| SHI Part #: | 50654971 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | SIIG |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | SIIG - KVM / audio / USB extender - receiver - HDMI - over CAT 6/7 - USB - up to 120 m |
| Manufacturer | SIIG |
| MSRP | $159.99 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.2 cm |
| Dimensions & Weight / Height | 2.31 cm |
| Dimensions & Weight / Weight | 213 g |
| Dimensions & Weight / Width | 10.4 cm |
| Header / Brand | SIIG |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDMI |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | External |
| Networking / Type | KVM / audio / USB extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 11.2 cm |
| Height | 2.31 cm |
| Weight | 213 g |
| Width | 10.4 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18.7 cm |
| Shipping Height | 5.59 cm |
| Shipping Weight | 463 g |
| Shipping Width | 20.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | KVM / audio / USB extender (receiver) |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS, UL E470034 Level VI |
| Networking | |
| Compliant Standards | HDCP 1.4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.2 Gbps |
| Features | Low-latency signal transmission, metal housing |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 30 Hz |
| Max Transfer Distance | 120 m |
| Max Video Bandwidth | 340 MHz |
| Status Indicators | Power, KVM |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
