Eaton Tripp Lite Series

Directly Connects Your Computer's DisplayPort Output to an 8K HDMI Monitor or TV

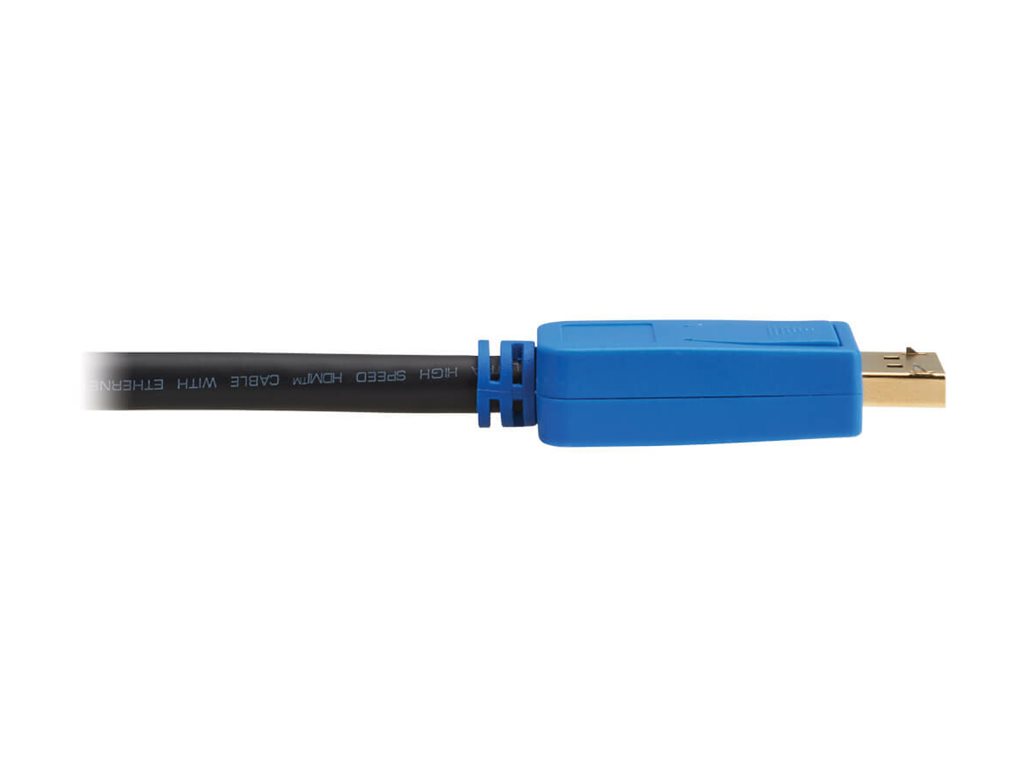

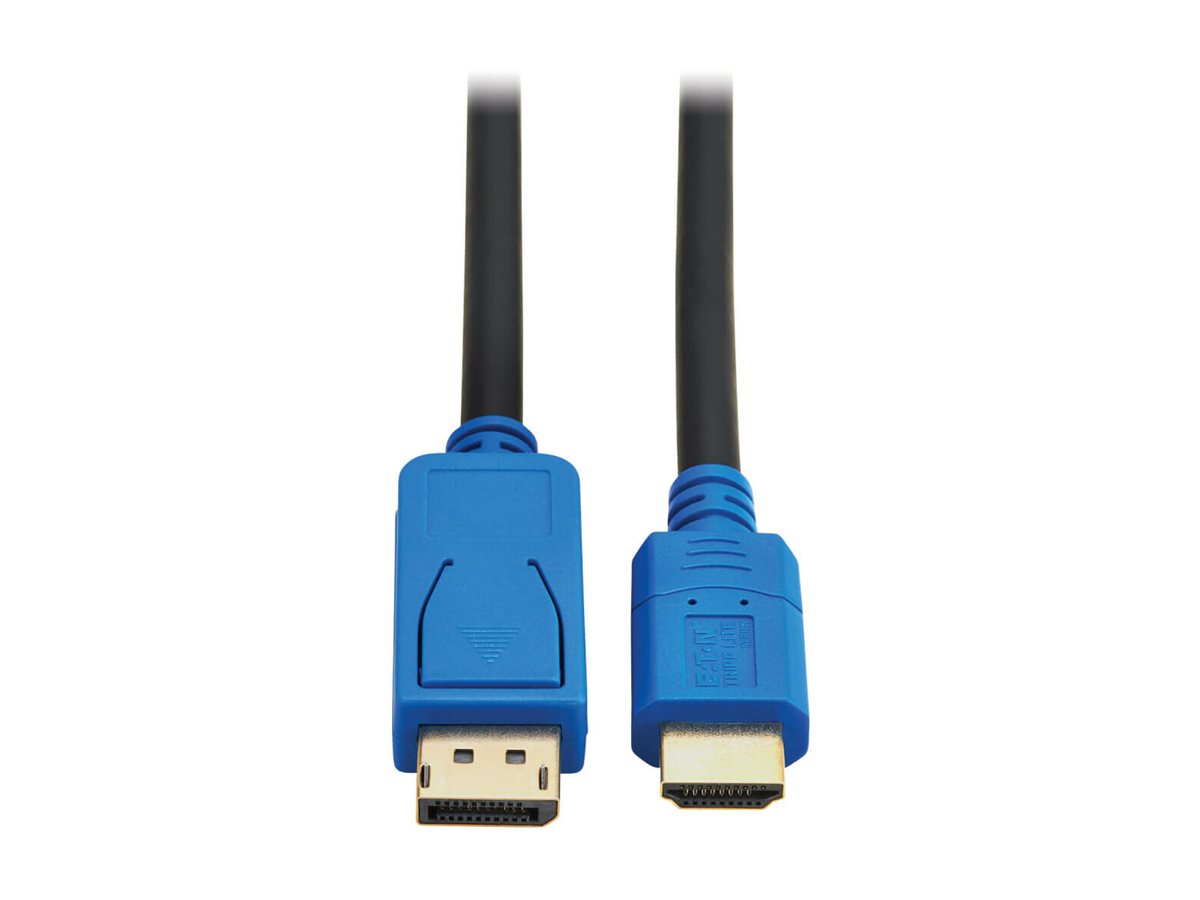

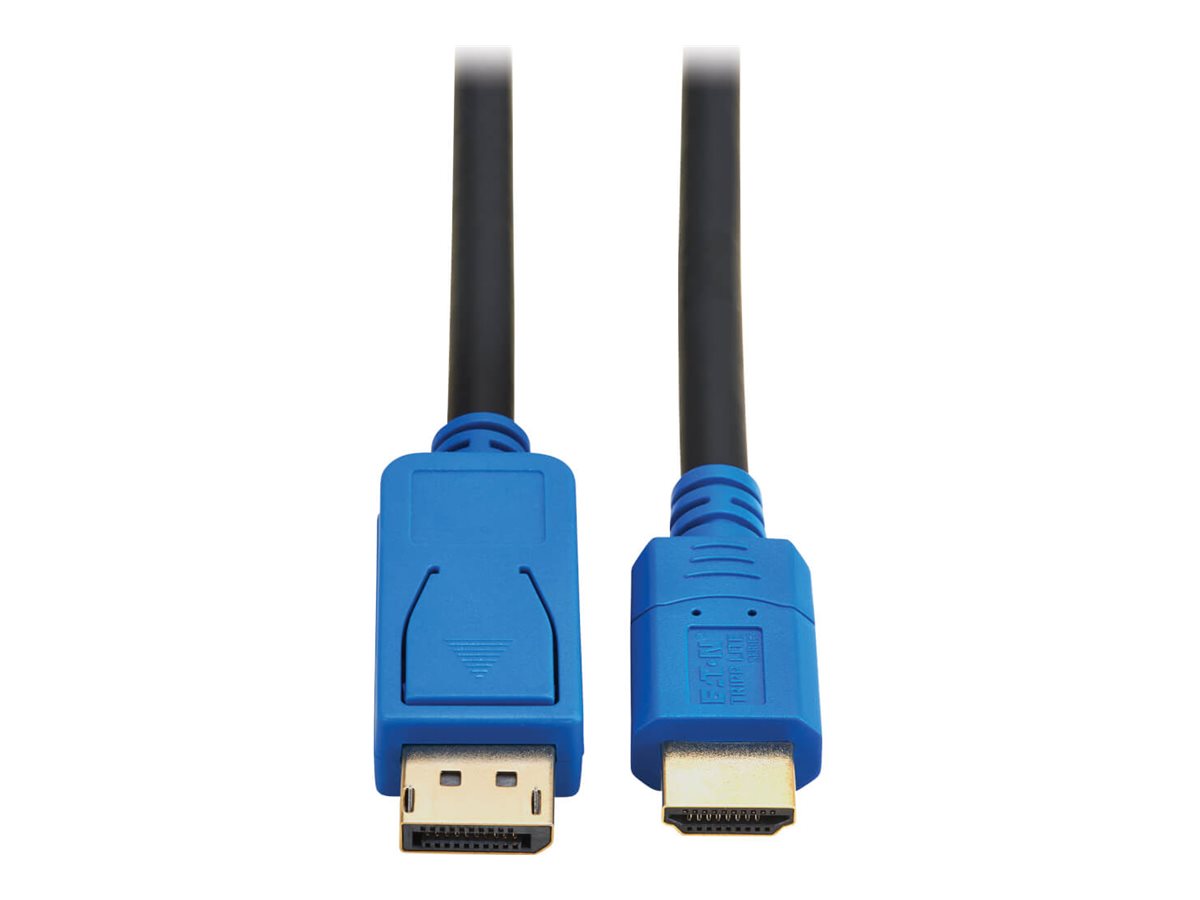

This active adapter cable (M/M) connects a PC, laptop or other device with a DisplayPort connector to an HDMI monitor, television or projector capable of 8K video resolutions. Because the P582-006-8K6 is an active adapter, it converts single-mode and dual-mode (DP++) DisplayPort output and can be used with graphics cards that don't transmit DP++ signals. Male connectors on both ends eliminate the need for a separate DisplayPort adapter and HDMI cable, giving you an all-in-one 8K cable solution.

Ideal for High-Definition and 8K Video Applications

The active converter transmits digital video plus audio from your Surface, Chromebook, PC, laptop or other device with a female DisplayPort connector. It's ideal for working with high-def image and video files or streaming 8K video in digital signage applications. It supports audio up to 32-channel LPCM, compressed audio (AC-3, DTS), HBR audio formats and a 192 kHz audio frame rate up to 24-bit audio sample size.

Transmits Crystal-Clear 8K Video with HDR, DSC and 4:4:4 Color

The P582-006-8K6 supports Ultra HD resolutions up to 7680 x 4320 at 60 Hz. HDR (High Dynamic Range) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 8K display. Uncompressed 4:4:4 chroma subsampling is perfect for top-level PC gaming or using your HDTV as a PC monitor. Display Stream Compression (DSC) encodes/decodes video in real time with low latency, making this cable ideal for high-performance gaming.

Supports HDCP 2.3 for 8K Installations

The P582-006-8K6 supports HDCP 2.3, which protects 8K UHD content from illegal copying and helps you stream 8K video with no complications. The cable is backward compatible with earlier HDMI, HDCP and DisplayPort generations, as well as 4K and 1080p displays.

Avoid Signal Disruptions with Extra-Secure Connectors

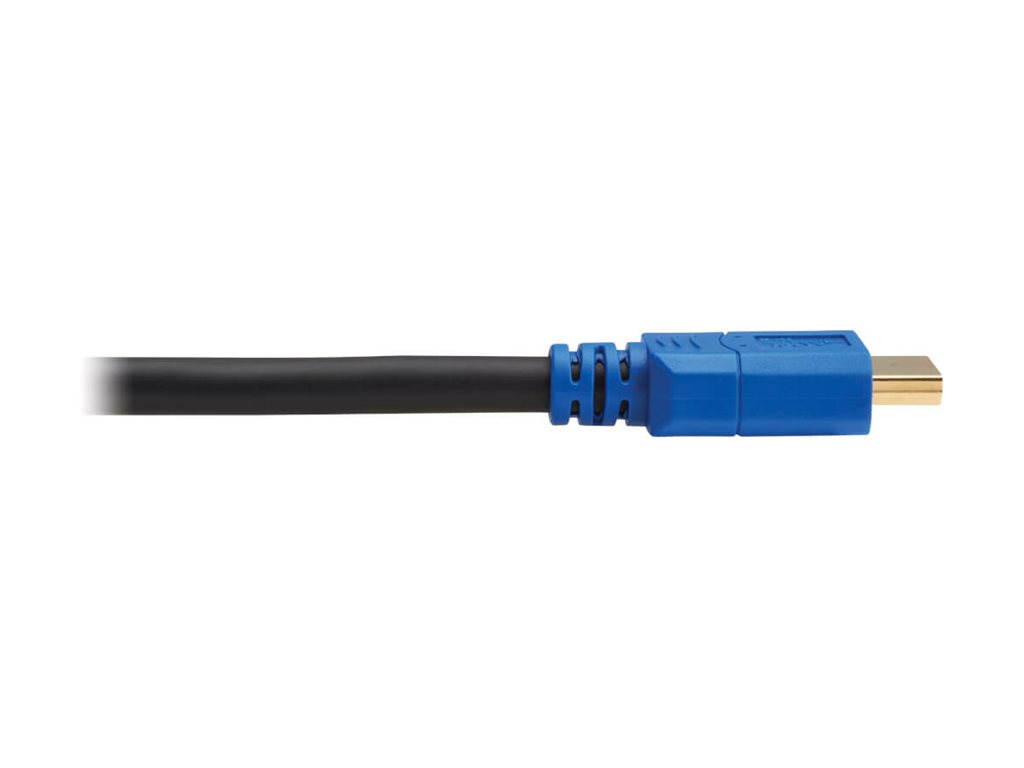

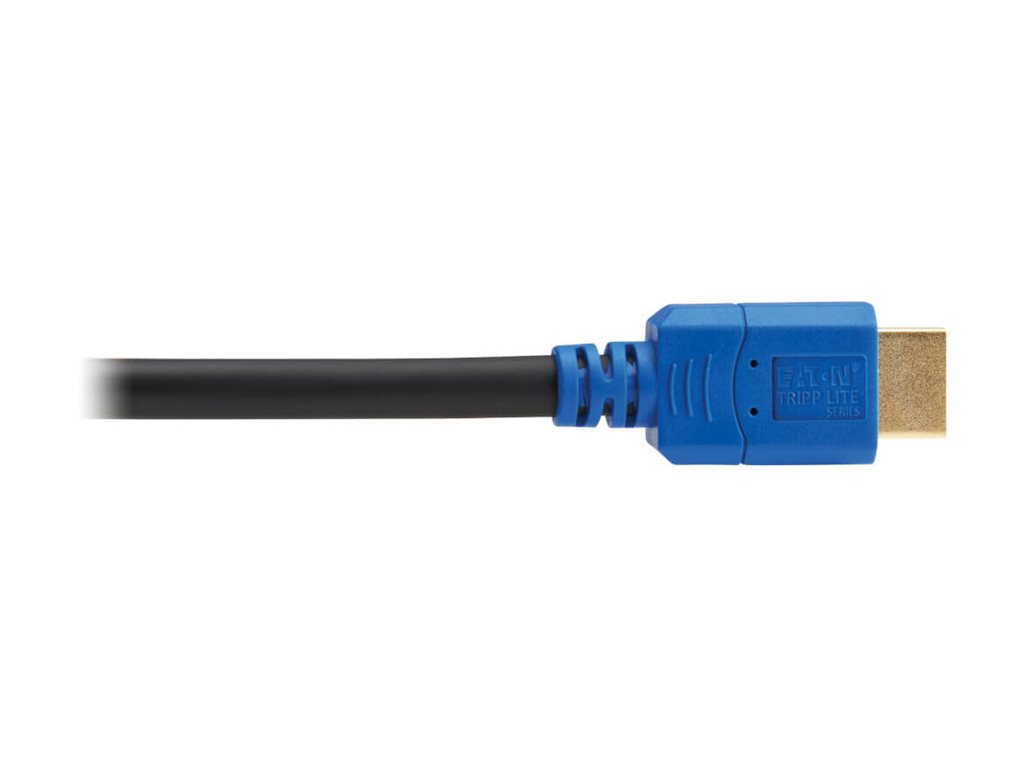

Specially designed high-grip HDMI and latching DisplayPort connectors firmly hold the ports on your equipment to help prevent accidental disconnection and signal disruption. With greater port retention than typical connectors, these more secure connectors resist vibrations that can loosen over time. This is especially helpful for ensuring components stay attached in difficult-to-access installations.

TAA-Compliant for GSA Schedule Purchases

The P582-006-8K6 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
