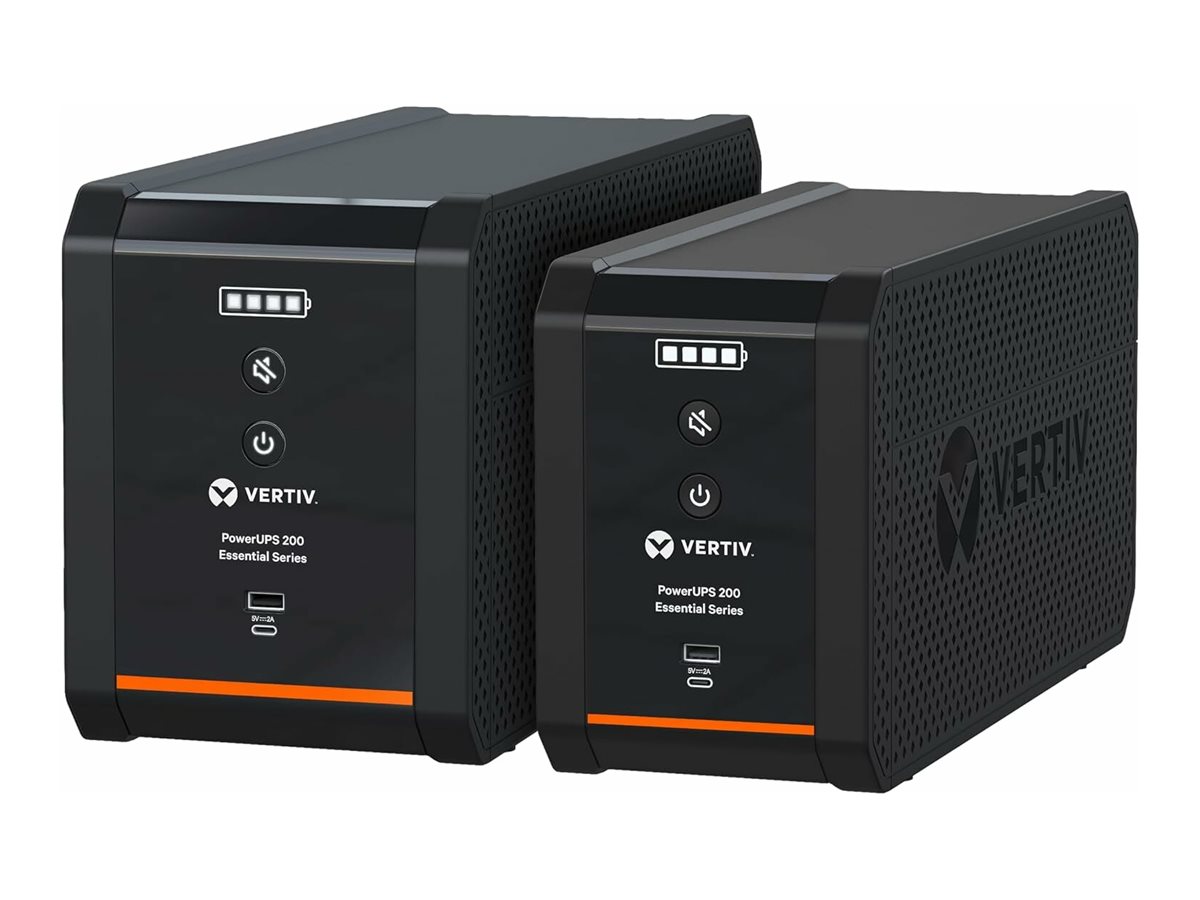

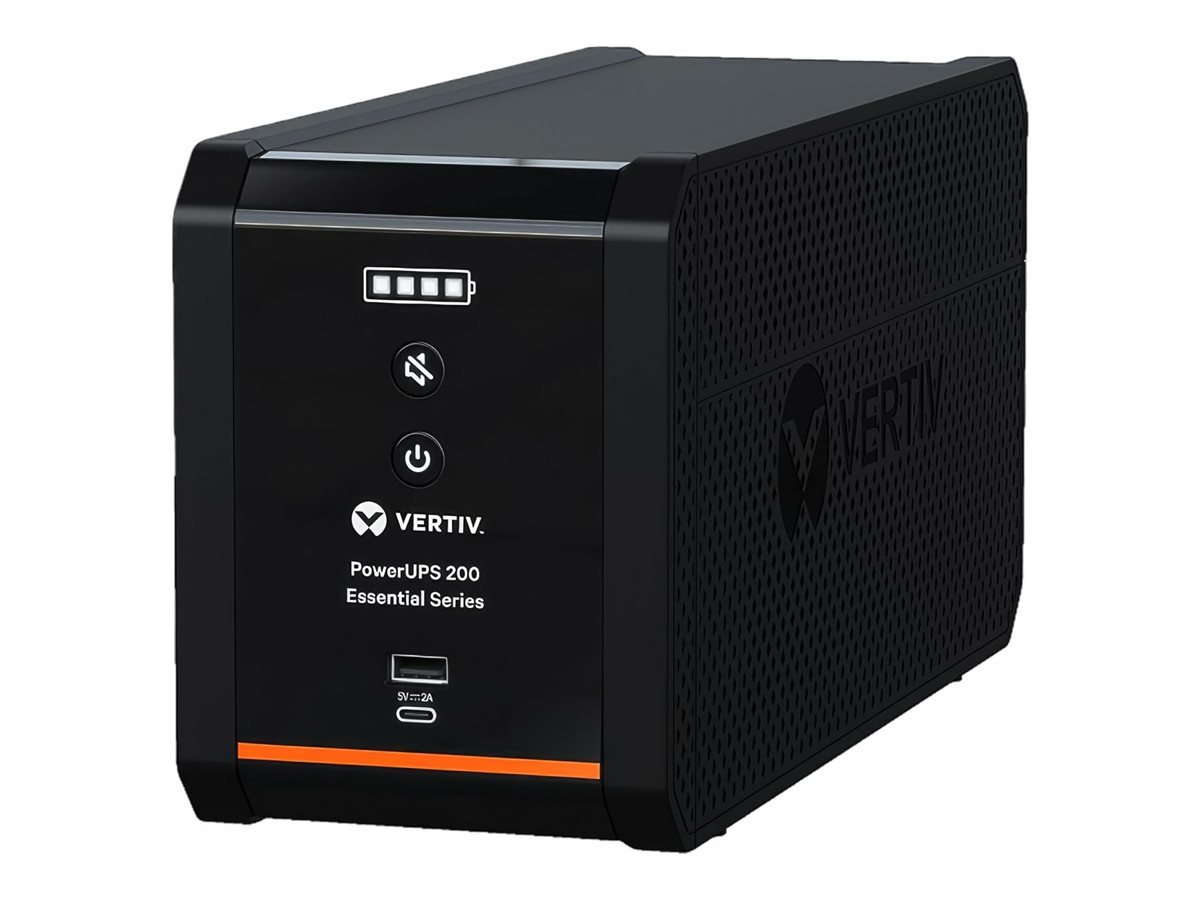

Vertiv PowerUPS 200 Essential Series PSA6E-1500LVT
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vertiv PowerUPS 200 Essential Series PSA6E-1500LVT
- UPS
- AC 120 V
- 850 Watt
- 1440 VA
- 1-phase
- output connectors: 4
| Additional Details | |
|---|---|
| Mfr Part #: | PSA6E-1500LVT |
| SHI Part #: | 50980443 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Vertiv PowerUPS 200 Essential Series PSA6E-1500LVT - UPS - AC 120 V - 850 Watt - 1440 VA - 1-phase - output connectors: 4 |
| Manufacturer | Vertiv |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 40 cm |
| Dimensions & Weight / Height | 19.5 cm |
| Dimensions & Weight / Weight | 9.6 kg |
| Dimensions & Weight / Width | 14.5 cm |
| Header / Brand | Vertiv |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 1440 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Sealed |
| Technology | Lead acid |
| Transfer Time | 10 ms |
| Dimensions & Weight | |
| Depth | 40 cm |
| Height | 19.5 cm |
| Weight | 9.6 kg |
| Width | 14.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 49.5 cm |
| Shipping Height | 30.5 cm |
| Shipping Weight | 11.1 kg |
| Shipping Width | 23.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CB, IEC/EN 62040-1, UKCA, RCM, EAC, IEC/EN 62040-2, EN IEC 61000-3-2, EN 61000-3-3, IEC 61000-4-5, ISTA 3A, REACH, RoHS, WEEE |
| Features | Automatic Voltage Regulation (AVR), Extended Power Performance (EPP), overcurrent protection, short-circuit protection, overcharge protection |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 95% at 100% Load |
| Frequency Provided | 50/60 Hz ± 1 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Input Voltage | AC 120 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Simulated sine wave |
| Power Capacity | 850 Watt / 1440 VA |
| Power Output Connectors Details | 4 x power NEMA 5-15 (UPS and surge) |
| Surge Energy Rating | 400 Joules |
| UPS Technology | Line interactive |
