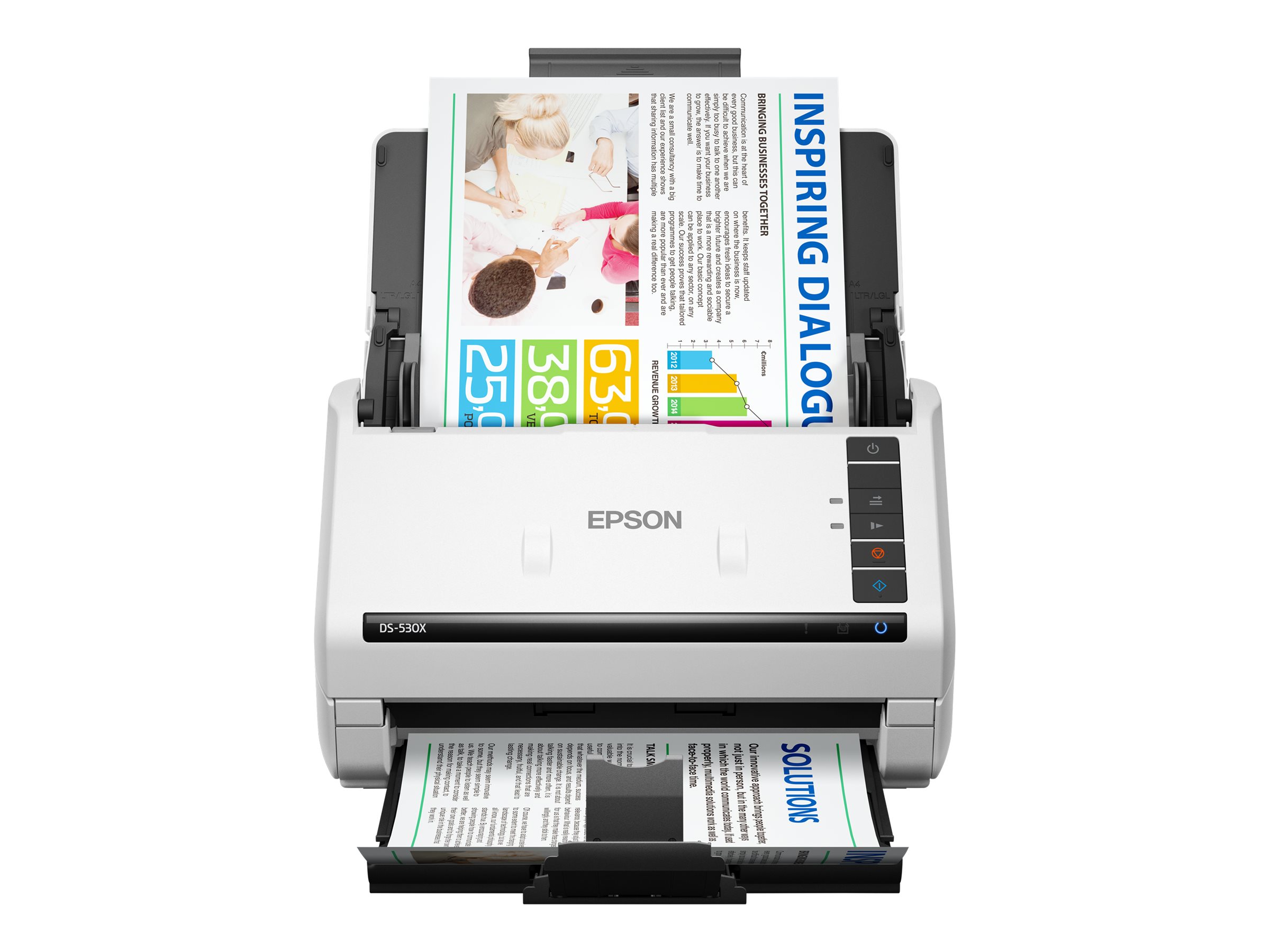

Epson DS-530X - Document scanner
MSRP$459.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Epson DS-530X - Document scanner
- 2 x Contact Image Sensor (CIS)
- Duplex
- 215.9 x 6096 mm
- 600 dpi x 600 dpi
- up to 45 ppm (mono) / up to 45 ppm (color)
- ADF (100 sheets)
- up to 7000 scans per day
- USB 3.2 Gen 1
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $459.00 |
| Mfr Part #: | B11B286201 |
| SHI Part #: | 51280331 |
| Category: | Scanners |
| UNSPSC: | 43211711 |
| Manufacturer: | Epson |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Scanners |
| Description | Epson DS-530X - Document scanner - 2 x Contact Image Sensor (CIS) - Duplex - 215.9 x 6096 mm - 600 dpi x 600 dpi - up to 45 ppm (mono) / up to 45 ppm (color) - ADF (100 sheets) - up to 7000 scans per day - USB 3.2 Gen 1 |
| Manufacturer | Epson |
| MSRP | $459.00 |
| UNSPSC | 43211711 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Height | 17.5 cm |
| Dimensions & Weight / Weight | 3.72 kg |
| Dimensions & Weight / Width | 29.7 cm |
| Header / Brand | Epson |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Automatic Duplexing | Yes |
| Scanner / Document Feeder Type | Automatic |
| Scanner / Interface Type |
|
| Scanner / Max Supported Document Size |
|
| Scanner / Supported Document Type |
|
| Scanner / Type | Document scanner |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 17 cm |
| Height | 17.5 cm |
| Weight | 3.72 kg |
| Width | 29.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 25.1 cm |
| Shipping Height | 29.2 cm |
| Shipping Weight | 4.81 kg |
| Shipping Width | 36.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Bronze |
| Expansion / Connectivity | |
| Interfaces Details | USB 3.2 Gen 1 |
| General | |
| Interface Type | USB 3.2 Gen 1 |
| Max Supported Document Size | 215.9 x 6096 mm |
| Type | Document scanner - desktop |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced exchange program - 1 year - response time: next business day |
| Media Handling | |
| Document Feeder Type | Automatic |
| Feeder Capacity | 100 sheets |
| Max Document Size | 215.9 mm x 6096 mm |
| Supported Document Type | Plain paper, plastic card |
| Miscellaneous | |
| Cables Included | 1 x SuperSpeed USB cable |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption Operational (Standby) | 13 watt |
| Power Consumption Sleep | 0.8 watt |
| Power Consumption Stand by | 5.5 watt |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Scanner | |
| Automatic Duplexing | Yes |
| Color Depth | 30-bit color |
| Color Depth (External) | 24-bit (16.7 million colors) |
| Compliant Standards | TWAIN, ISIS |
| Control Panel Buttons Functions | Scan, stop, slow scan mode, double-feed detect skip |
| Duty Cycle | 7000 scans per day |
| Grayscale Depth | 10-bit gray |
| Grayscale Depth (External) | 8-bit (256 gray levels) |
| Input Type | Color |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Lamp / Light Source Type | 3-color RGB LED |
| Max Document Scan Speed B/W | 45 ppm |
| Max Document Scan Speed Color | 45 ppm |
| Optical Resolution | 600 dpi x 600 dpi |
| Scan Mode | Single-pass |
| Scanner Features | Color Dropout, automatic color detection, blank page skipping, Text Enhancement, Punch Hole Removal, Color Enhancement, Image Correction, skew correction, auto image rotation, Unsharp Mask, dual image output, descreening, edge fill, watermark adding, background pattern removal, Image Stitching |
| Scanner Speed Details |
|
| Scanning Sensor Type | 2 x Contact Image Sensor (CIS) |
| Software / System Requirements | |
| OS Required | Apple MacOS x 10.9.5, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Windows 11 (on ARM), Apple macOS Tahoe 26 |
| Software Included | EPSON Document Capture Pro, EPSON Scan 2, Epson Device Admin, EPSON Document Capture for Mac |
