Hardware Networking and Security Hubs and Switches

Hubs and Switches

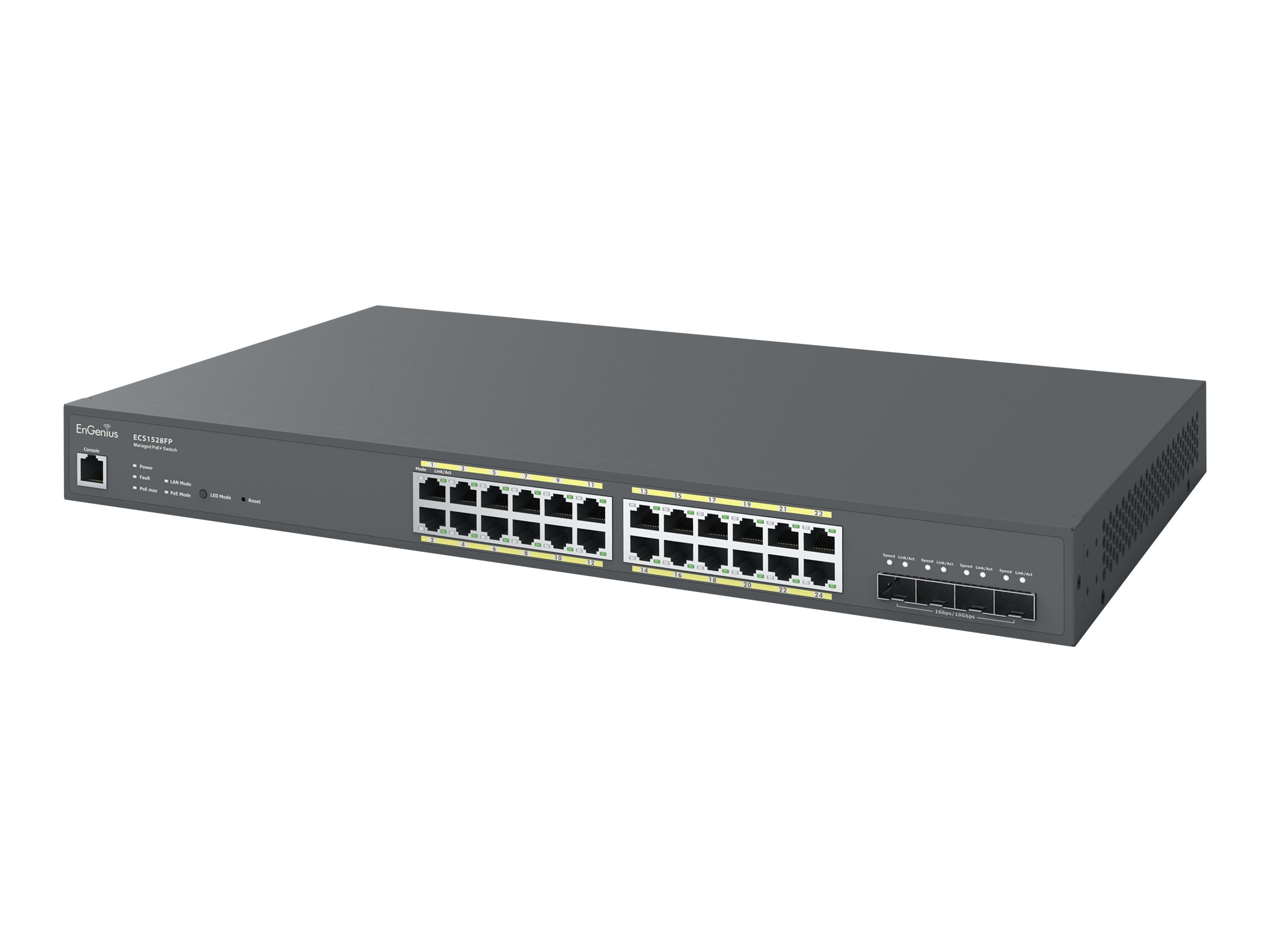

EnGenius Cloud Switch Series ECS1528FP

$499.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Switch managed 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ rack-mountable PoE+ (410 W)

EnGenius Cloud Switch Series ECS1528FP

Switch
managed
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
rack-mountable
PoE+ (410 W)

Additional Details
Price:	$499.00
Mfr Part #:	ECS1528FP
SHI Part #:	38617277
Category:	Network switches
UNSPSC:	43222612
Manufacturer:	EnGenius
Product Type:	Hardware

Networking and Security

EnGenius SFP3213-10 - SFP+ transceiver module

10GbE
10GBase-LR
LC single-mode
up to 10 km
1310 nm
for Cloud Switch Series ECS1112, ECS1528, ECS1552, ECS2512; Neutron Series EWS7926, EWS7952

$160.00

General Information
Category	Network switches
Description	EnGenius Cloud Switch Series ECS1528FP - Switch - managed - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (410 W)
Manufacturer	EnGenius
MSRP	$499.00
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	26 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	3.9 kg
Dimensions & Weight / Width	44 cm
Header / Brand	EnGenius
Miscellaneous / Product Color	Black
Networking / Form Factor	Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	26 cm
Height	4.4 cm
Weight	3.9 kg
Width	44 cm
Dimensions & Weight (Shipping)
Shipping Depth	34.6 cm
Shipping Height	10.1 cm
Shipping Weight	4.7 kg
Shipping Width	53.2 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE+ 4 x 10Gbit LAN SFP+ 1 x console RJ-45
General
Authentication Method	RADIUS
Capacity	Multicast groups: 256 ARP entries: 192 Static ARP entries: 192 IPv4 routes (static): 63 IPv6 routes: 21 VLAN IDs: 4094 Priority QoS queues: 8
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3at, IEEE 802.3az
Device Type	Switch - 24 ports - managed
Enclosure Type	Rack-mountable 1U
Encryption Algorithm	SSL
Features	Flow control, full duplex capability, IGMP snooping, Syslog support, store and forward, IPv6 support, STP support, DHCP snooping, ACL support, QoS, SSH support, MLD snooping, reset button, bandwidth control, IPv4 support, DHCP relay, Port Security, 2MB packet buffer, Multicast filtering function, CoS, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support, ARP inspection, Link Aggregation, scheduler, Voice VLAN, secure backup, Selectable Operation Modes, DSCP Trust, WRR, loopback detection, VLAN Tagging, port-based VLAN, ARP filtering, import SSL certificate
Flash Memory	128 MB
Jumbo Frame Support	9KB
MAC Address Table Size	16000 entries
Performance	Switching capacity: 128 Gbps
PoE Budget	410 W
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
RAM	512 MB SDRAM
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH
Status Indicators	Power, fail, PoE, LAN, link/activity/speed, PoE max
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	1 x network cable
Compliant Standards	IC, FCC
Rack Mounting Kit	Included
Power
Power Consumption Operational	412.26 Watt
Power Device	External power adapter
Voltage Required	AC 120/230 V (50 - 60 Hz)
