Hardware Networking and Security Hubs and Switches

Hubs and Switches

EnGenius Cloud ECS1528P

$449.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Switch L2+ managed 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ rack-mountable

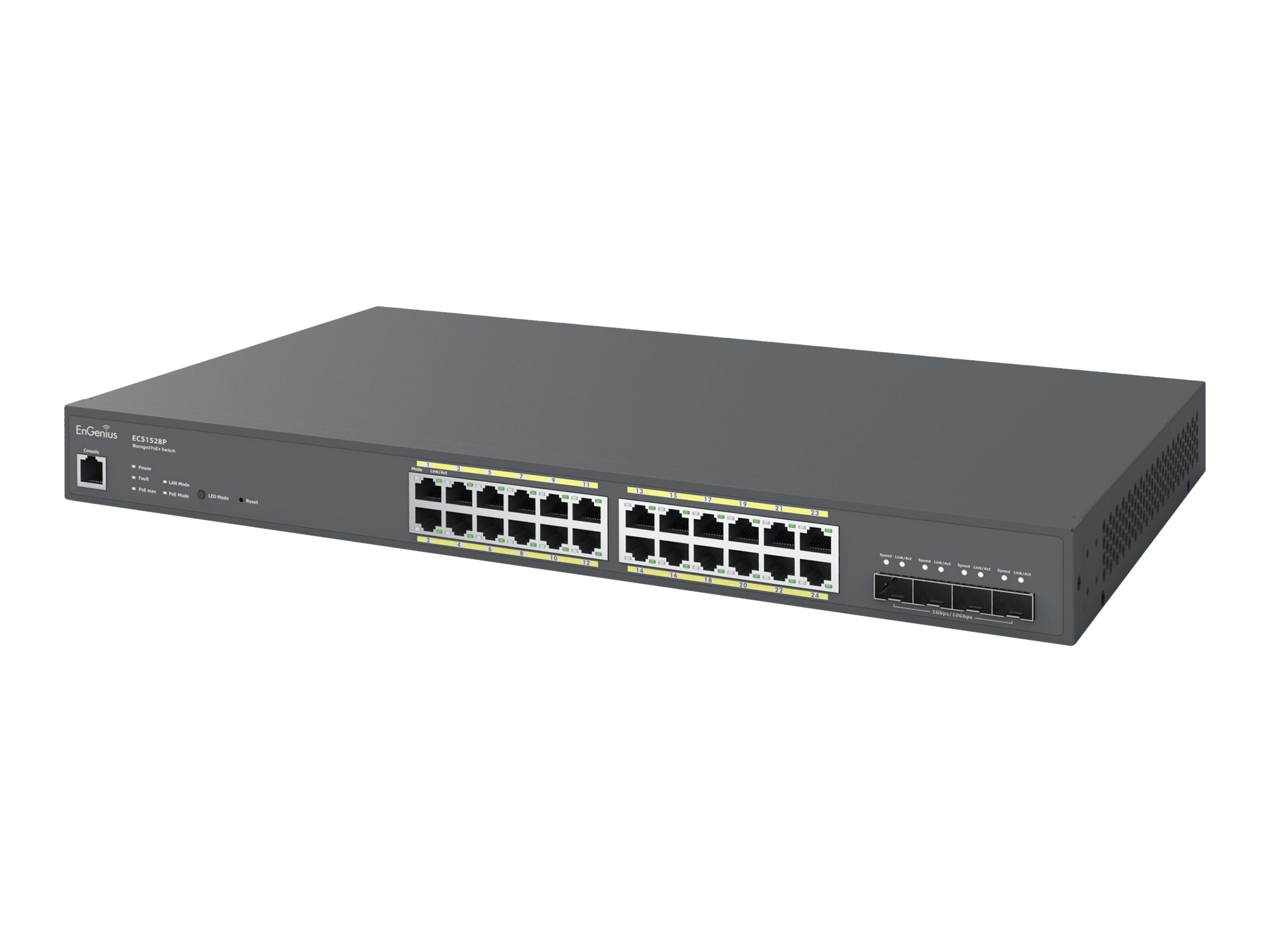

EnGenius Cloud ECS1528P

Switch
L2+
managed
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
rack-mountable
PoE+ (240 W)

Additional Details
Price:	$449.00
Mfr Part #:	ECS1528P
SHI Part #:	42155556
Category:	Network switches
UNSPSC:	43222612
Manufacturer:	EnGenius
Product Type:	Hardware

General Information
Category	Network switches
Description	EnGenius Cloud ECS1528P - Switch - L2+ - managed - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (240 W)
Manufacturer	EnGenius
MSRP	$449.00
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	26 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	3.01 kg
Dimensions & Weight / Width	44 cm
Header / Brand	EnGenius
Miscellaneous / Product Color	Black
Networking / Form Factor	Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
Dimensions & Weight
Depth	26 cm
Height	4.4 cm
Weight	3.01 kg
Width	44 cm
Dimensions & Weight (Shipping)
Shipping Depth	34.6 cm
Shipping Height	10.1 cm
Shipping Weight	3.81 kg
Shipping Width	53.2 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE+ 4 x 10Gbit LAN SFP+ 1 x console RJ-45
General
Authentication Method	RADIUS
Capacity	IPv6 addresses: 20 ARP entries: 192 Static ARP entries: 192 IPv4 routes (static): 63 IPv6 routes: 21 Multicast groups: 256 Priority QoS queues: 8
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3az
Device Type	Switch - 24 ports - L2+ - managed
Enclosure Type	Rack-mountable
Encryption Algorithm	SSL
Features	Flow control, full duplex capability, IGMP snooping, Syslog support, IPv6 support, SNTP support, STP support, ACL support, MLD snooping, reset button, bandwidth control, IPv4 support, DHCP relay, Multicast filtering function, CoS, SP, TFTP client, per port bandwidth control, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support, ARP inspection, Link Aggregation, Voice VLAN, EEE, DSCP Trust, WRR, DSCP based CoS, loopback detection, VLAN Tagging, port-based VLAN, Telnet server, import SSL certificate, SSH server, IGMP multicast, DHCPv4 snooping
Flash Memory	128 MB
Jumbo Frame Support	10KB
MAC Address Table Size	16000 entries
Performance	Switching capacity: 128 Gbps
PoE Budget	240 W
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
RAM	512 MB SDRAM
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP
Routing Protocol	IGMP, MLD, STP
Status Indicators	Power, PoE, LAN, link/activity/speed, fault, PoE max
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Cables Included	1 x network cable
Compliant Standards	IC, FCC
Rack Mounting Kit	Included
Power
Voltage Required	AC 100-240 V (50 - 60 Hz)
